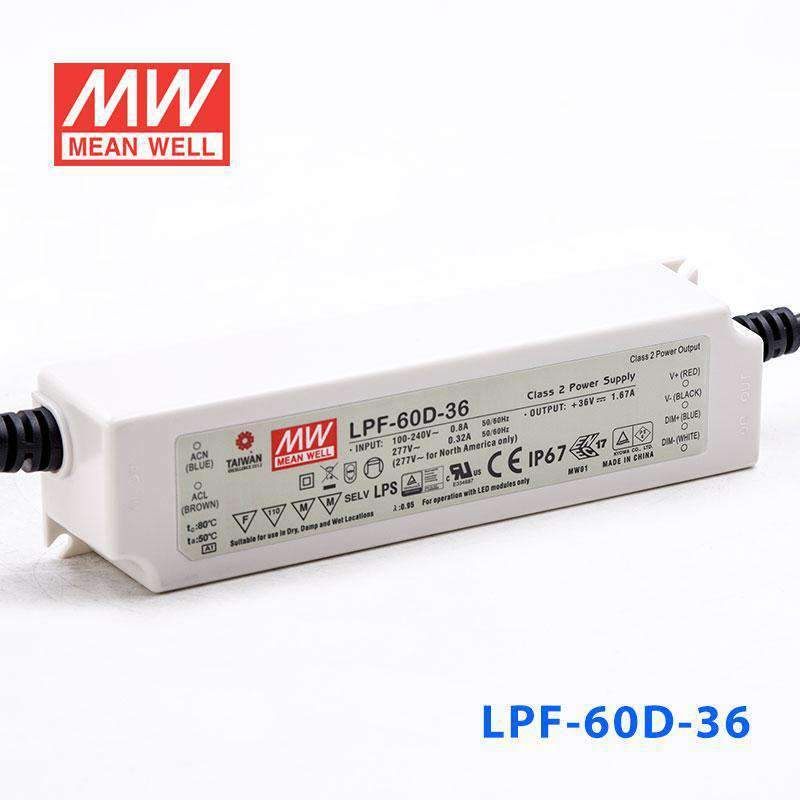

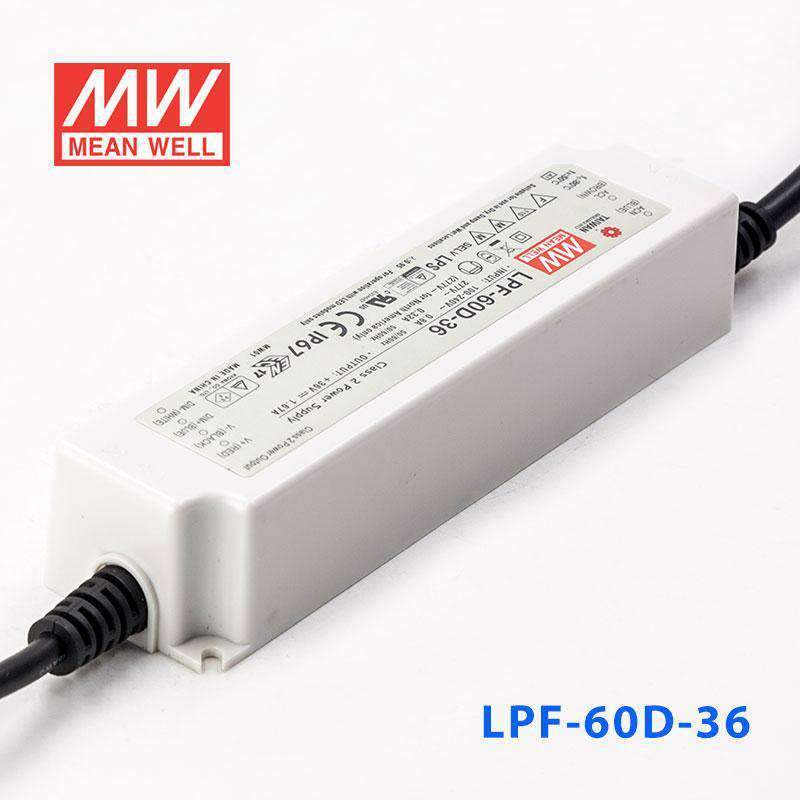

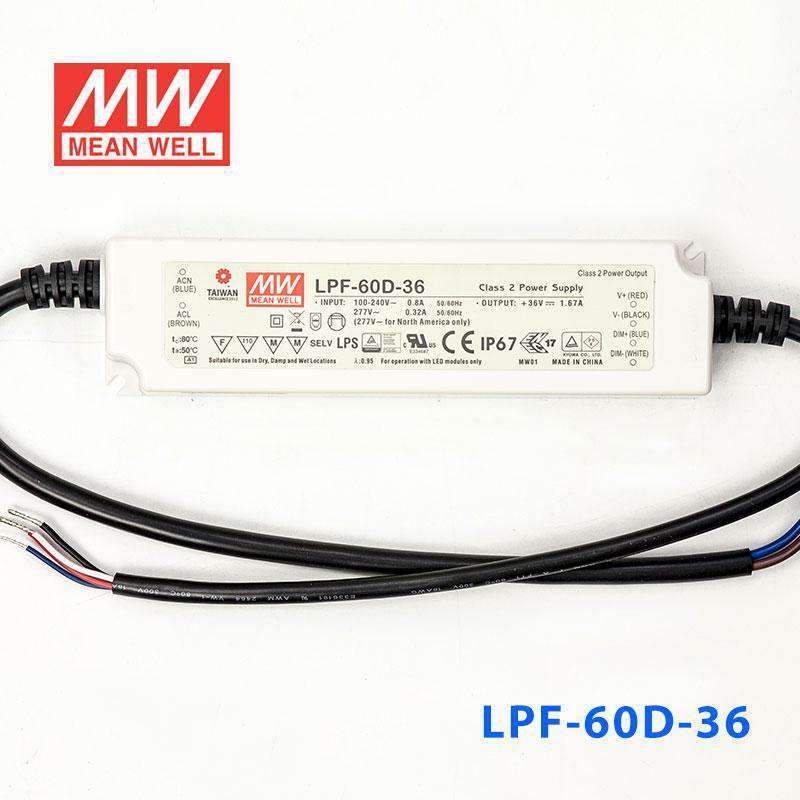

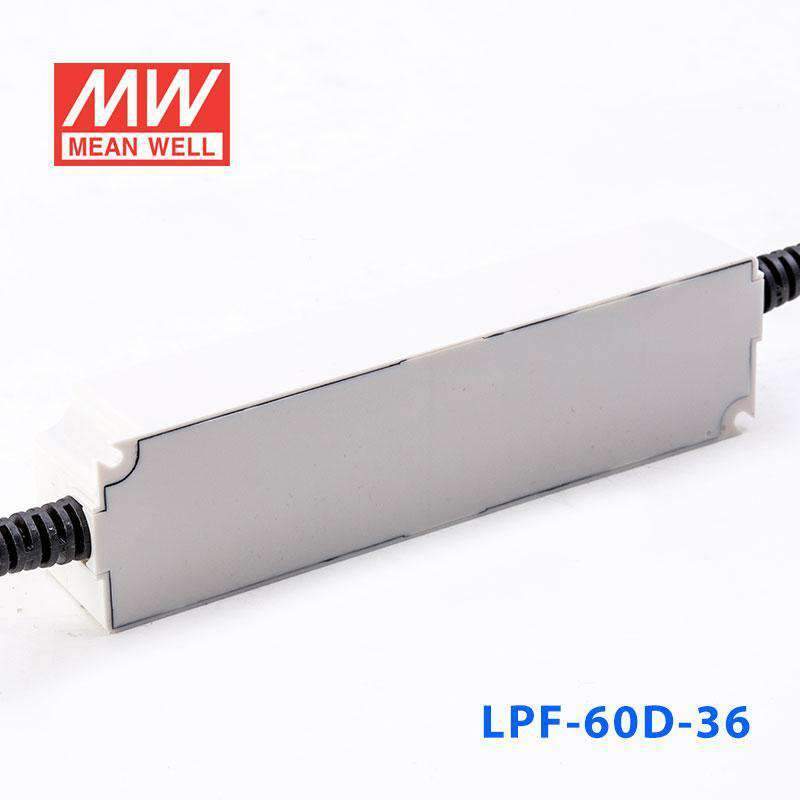

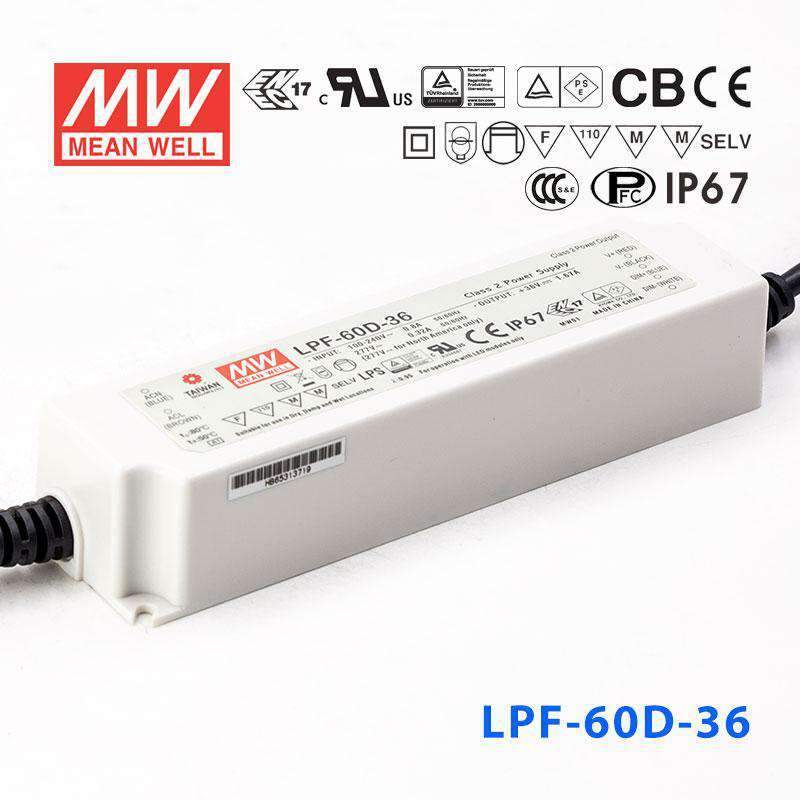

Mean Well LPF-60D-36 Power Supply 60W 36V - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LPF-60D-36 Power Supply 60W 36V - Dimmable
Description
Description
The LPF-60D is a 60W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating60.12 Watt
-
Output Voltage36 Volt
-
Rated Current1.67 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CE,EAC,ENEC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length6.4 in
-
Width1.69 in
-
Height1.26 in
-
Weight0.99 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPF-60D-36 for a 36V linear LED fixture or strip light?
Yes, if the light is a constant current load that operates within 21-36V and draws up to 1.67A. If the strip or fixture is specified as constant voltage, it should not be paired with this driver.
Is this driver appropriate for outdoor 36V signage or edge-lit display lighting?
It can be used for outdoor sign or display lighting when the LED load is constant current and falls within 21-36V at up to 1.67A. The IP67 waterproof housing supports exposed or wet-location placement of the driver.
Can the LPF-60D-36 run a 36V constant current architectural lighting fixture?
Yes, it is designed for constant current LED fixtures up to 60.12W, with a 21-36V output range and 1.67A output current. That makes it suitable for 36V constant current lighting products that stay within those limits.
How much 36V LED strip or linear light can this driver support?
The maximum output is 60.12W, which also corresponds to 36V × 1.67A = 60.12W. To estimate supported length, divide 60.12W by the strip's rated watts per meter, and check your strip rated power per meter and constant current compatibility.
Is the LPF-60D-36 suitable for cold or hot outdoor conditions?
Yes. It is rated IP67 for waterproof use and has an operating temperature range of -40°C to +80°C. Those ratings make the driver suitable for wet areas and wide ambient temperature conditions.
How does the LPF-60D-36 fit into the LPF-60D dimmable 60W range?
The LPF-60D dimmable 60W range includes LPF-60D-12 at 60W 12V 5A, LPF-60D-15 at 60W 15V 4A, LPF-60D-20 at 60W 20V 3A, LPF-60D-24 at 60W 24V 2.5A, LPF-60D-30 at 60W 30V 2A, LPF-60D-36 at 60.12W 36V 1.67A, LPF-60D-42 at 60.06W 42V 1.43A, LPF-60D-48 at 60W 48V 1.25A, and LPF-60D-54 at 60.48W 54V 1.12A. The 36V model sits between the 30V and 42V versions in output voltage while current steps down accordingly.
Other LPF-60D Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPF-60D-54 Power Supply 60W 54V - Dimmable | 60.48W | 54V | 1.12A | IP67 | $31.37 | View |
| Mean Well LPF-60D-48 Power Supply 60W 48V - Dimmable | 60W | 48V | 1.25A | IP67 | $33.71 | View |
| Mean Well LPF-60D-42 Power Supply 60W 42V - Dimmable | 60.06W | 42V | 1.43A | IP67 | $28.04 | View |
| Mean Well LPF-60D-30 Power Supply 60W 30V - Dimmable | 60W | 30V | 2A | IP67 | $31.37 | View |
| Mean Well LPF-60D-24 Power Supply 60W 24V - Dimmable | 60W | 24V | 2.5A | IP67 | $29.60 | View |
| Mean Well LPF-60D-20 Power Supply 60W 20V - Dimmable | 60W | 20V | 3A | IP67 | $33.71 | View |
| Mean Well LPF-60D-15 Power Supply 60W 15V - Dimmable | 60W | 15V | 4A | IP67 | $33.71 | View |
| Mean Well LPF-60D-12 Power Supply 60W 12V - Dimmable | 60W | 12V | 5A | IP67 | $31.37 | View |
