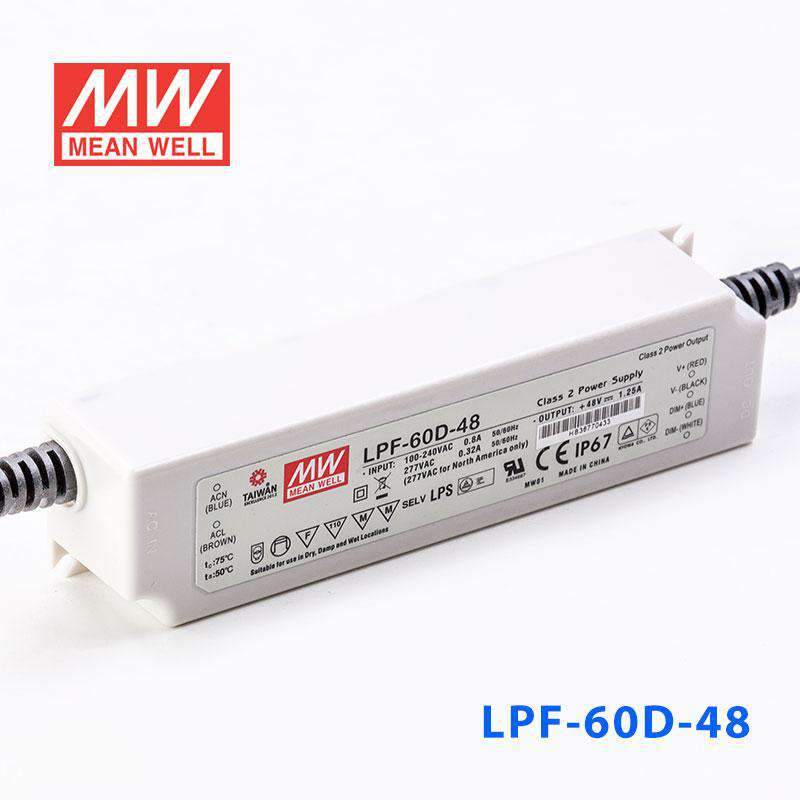

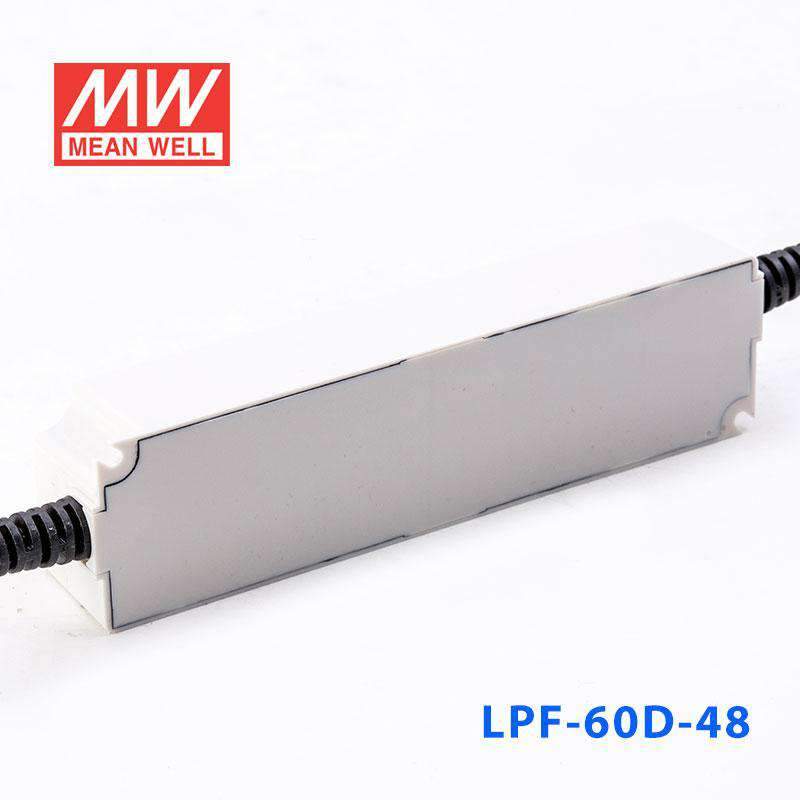

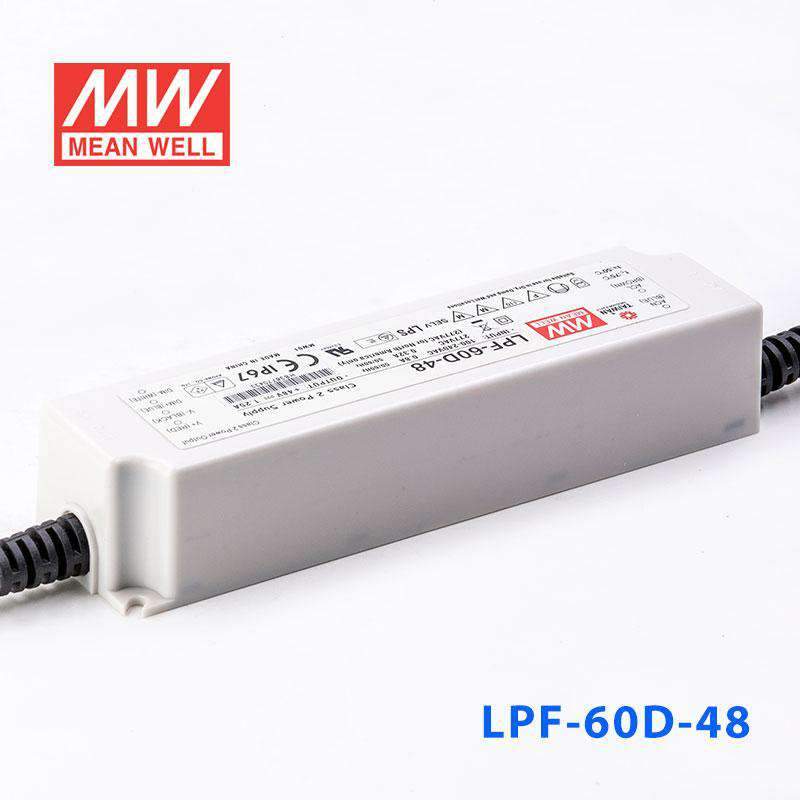

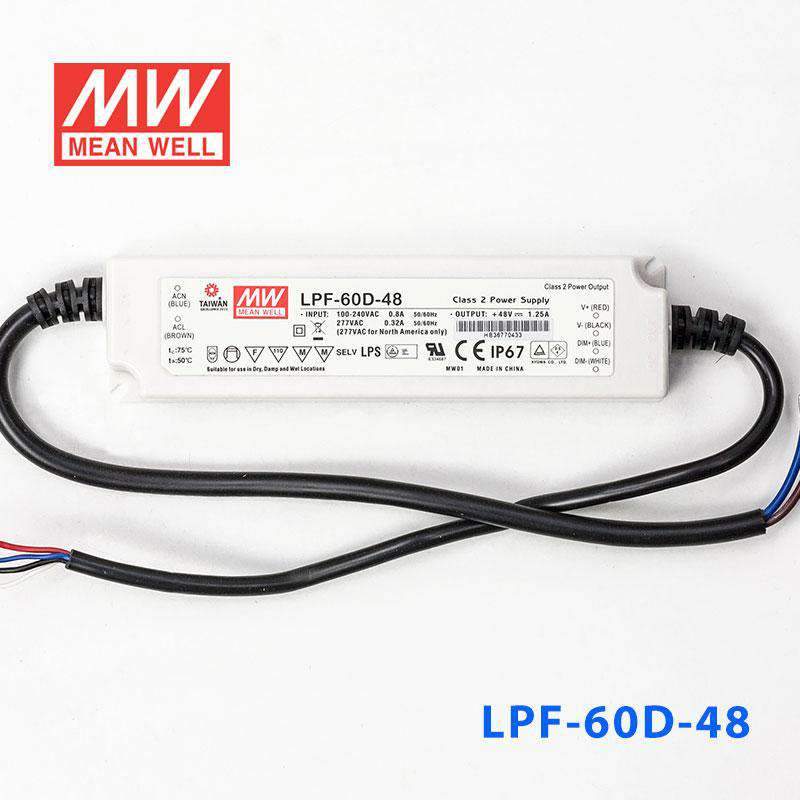

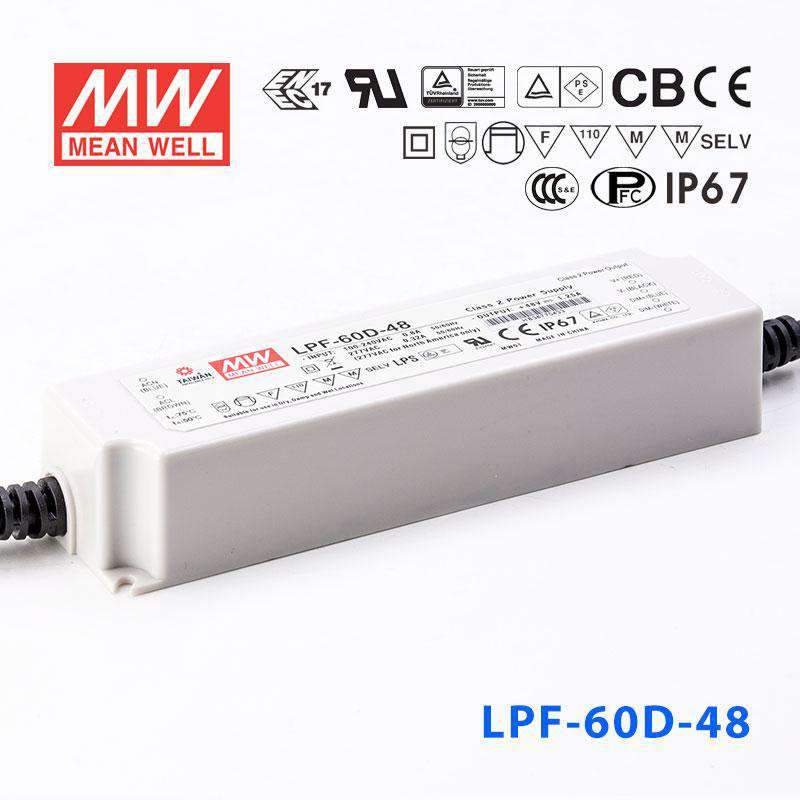

Mean Well LPF-60D-48 Power Supply 60W 48V - Dimmable
fully isolated plastic case, IP67, Class II design without FG, built-in 3 in 1 dimming
SKU:
LPF-60D-48
$33.71 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LPF-60D-48 Power Supply 60W 48V - Dimmable
$33.71 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Built-in active PFC function |
| Fully isolated plastic case |
| Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance) for D type |
| Fully encapsulated with IP67 level |
| Class 2 power unit / Pass LPS |
| Isolation class II, no F.G. |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Suitable for LED lighting and moving sign applications |
| Suitable for dry, damp, and wet location |
| Cooling by free air convection |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 55A |
| Over current protection | 95% ~108% constant current, auto-recovery |
| Over voltage protection | 110%~150% rated output voltage |
| Withstand voltage | I/P - O/P: 3.75kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, PSE J61347-1, J61347-2-13 approved for LPF-16(D)/25(D); UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved for LPF-40(D)/60(D)/90(D) |
| EMC standards | EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 |
| Connection Input | UL rated, SJTW 18AWGx2C (30cm) |
| Connection Output | 18AWGx2C(30cm)+22AWGx2C (30cm) |
| Dimension (LxWxH)(mm) | 162.5x 43x 32 |
Specifications
Specifications
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating60 Watt
-
Output Voltage48 Volt
-
Rated Current1.25 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CE,EAC,ENEC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length6.4 in
-
Width1.69 in
-
Height1.26 in
-
Weight0.99 lb
