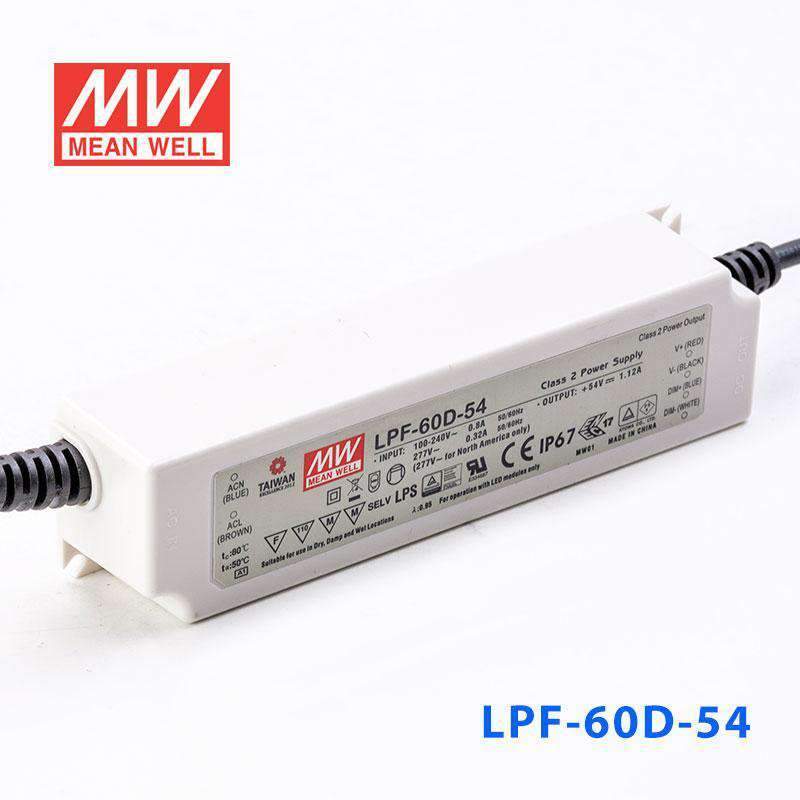

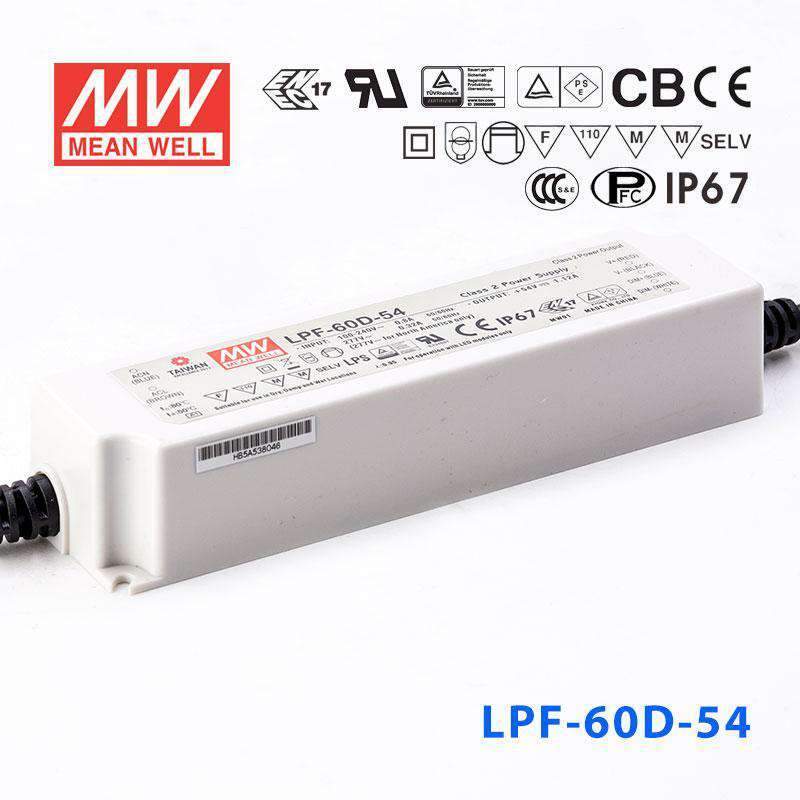

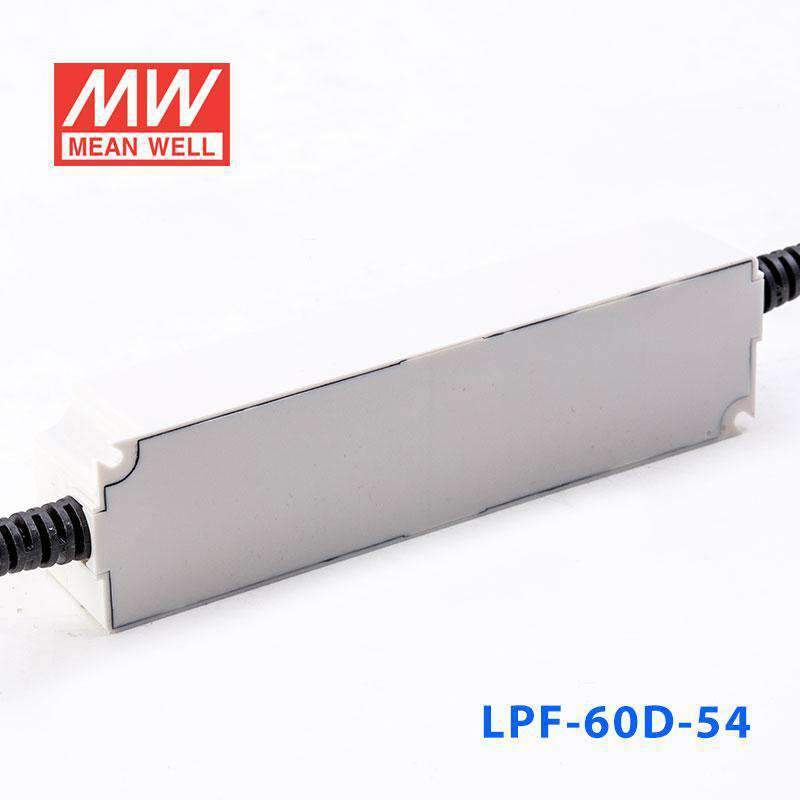

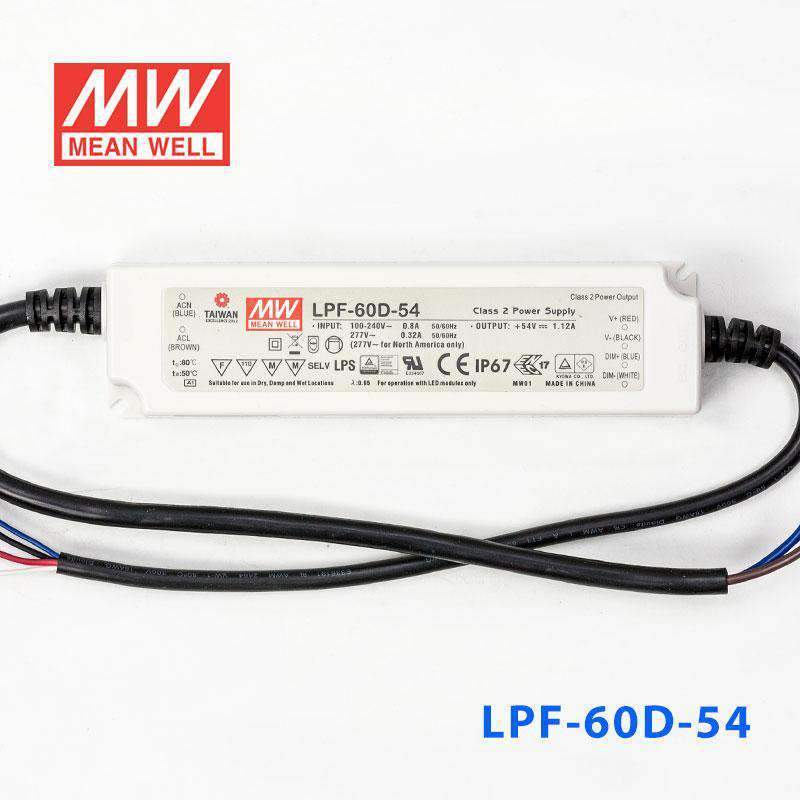

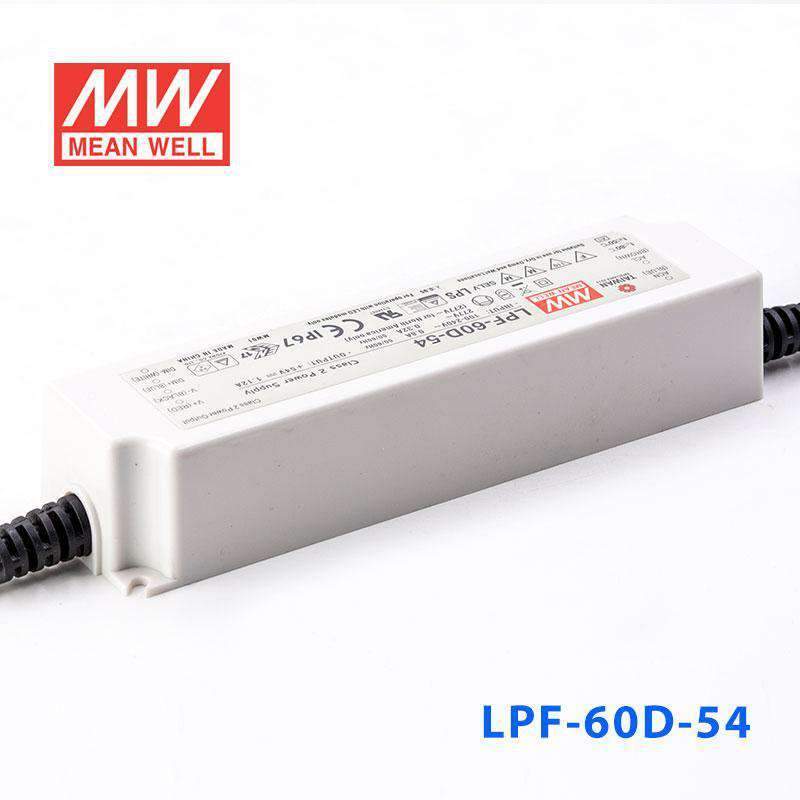

Mean Well LPF-60D-54 Power Supply 60W 54V - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LPF-60D-54 Power Supply 60W 54V - Dimmable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Built-in active PFC function |
| Fully isolated plastic case |
| Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance) for D type |
| Fully encapsulated with IP67 level |
| Class 2 power unit / Pass LPS |
| Isolation class II, no F.G. |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Suitable for LED lighting and moving sign applications |
| Suitable for dry, damp, and wet location |
| Cooling by free air convection |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 55A |
| Over current protection | 95% ~108% constant current, auto-recovery |
| Over voltage protection | 110%~150% rated output voltage |
| Withstand voltage | I/P - O/P: 3.75kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, PSE J61347-1, J61347-2-13 approved for LPF-16(D)/25(D); UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved for LPF-40(D)/60(D)/90(D) |
| EMC standards | EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 |
| Connection Input | UL rated, SJTW 18AWGx2C (30cm) |
| Connection Output | 18AWGx2C(30cm)+22AWGx2C (30cm) |
| Dimension (LxWxH)(mm) | 162.5x 43x 32 |
Specifications
Specifications
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating60.48 Watt
-
Output Voltage54 Volt
-
Rated Current1.12 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CE,EAC,ENEC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length6.4 in
-
Width1.69 in
-
Height1.26 in
-
Weight0.99 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPF-60D-54 for a 54V constant-current LED lighting fixture?
Yes, if the fixture is designed for constant-current operation within the 32-54V range and draws up to 1.12A. This model delivers 60.48W at 54V and is not intended for loads outside that constant-current range.
Is the LPF-60D-54 suitable for outdoor LED signage or architectural lighting?
It can be used in outdoor or exposed lighting applications because the housing is IP67 waterproof. The operating temperature range is -40°C to +80°C, which supports demanding indoor or outdoor environments.
Can this driver work for damp-location or washdown-area LED lighting?
Yes, the IP67 rating means the unit is built for wet or dusty environments where the power supply needs a sealed enclosure. It is better suited to those conditions than an indoor-only driver, provided the LED load matches 54V constant-current operation up to 1.12A.
Can I use the LPF-60D-54 with a long LED strip run?
You can estimate length from the 60.48W maximum output: maximum length = 60.48W divided by your strip wattage per meter. For example, the math is 60.48W / W per meter, but you need to check your strip rated power per meter and confirm the strip is compatible with a 54V constant-current driver.
What is the difference between LPF-60D-54 and the other 60W LPF models?
Within the 60W range, the non-dimming models are LPF-60-12 at 60W, 12V, 5A; LPF-60-15 at 60W, 15V, 4A; LPF-60-20 at 60W, 20V, 3A; LPF-60-24 at 60W, 24V, 2.5A; LPF-60-30 at 60W, 30V, 2A; LPF-60-36 at 60.12W, 36V, 1.67A; LPF-60-42 at 60.06W, 42V, 1.43A; LPF-60-48 at 60W, 48V, 1.25A; and LPF-60-54 at 60.48W, 54V, 1.12A. The dimming versions are LPF-60D-12 at 60W, 12V, 5A; LPF-60D-15 at 60W, 15V, 4A; LPF-60D-20 at 60W, 20V, 3A; LPF-60D-24 at 60W, 24V, 2.5A; LPF-60D-30 at 60W, 30V, 2A; LPF-60D-36 at 60.12W, 36V, 1.67A; LPF-60D-42 at 60.06W, 42V, 1.43A; LPF-60D-48 at 60W, 48V, 1.25A; and this LPF-60D-54 at 60.48W, 54V, 1.12A.
