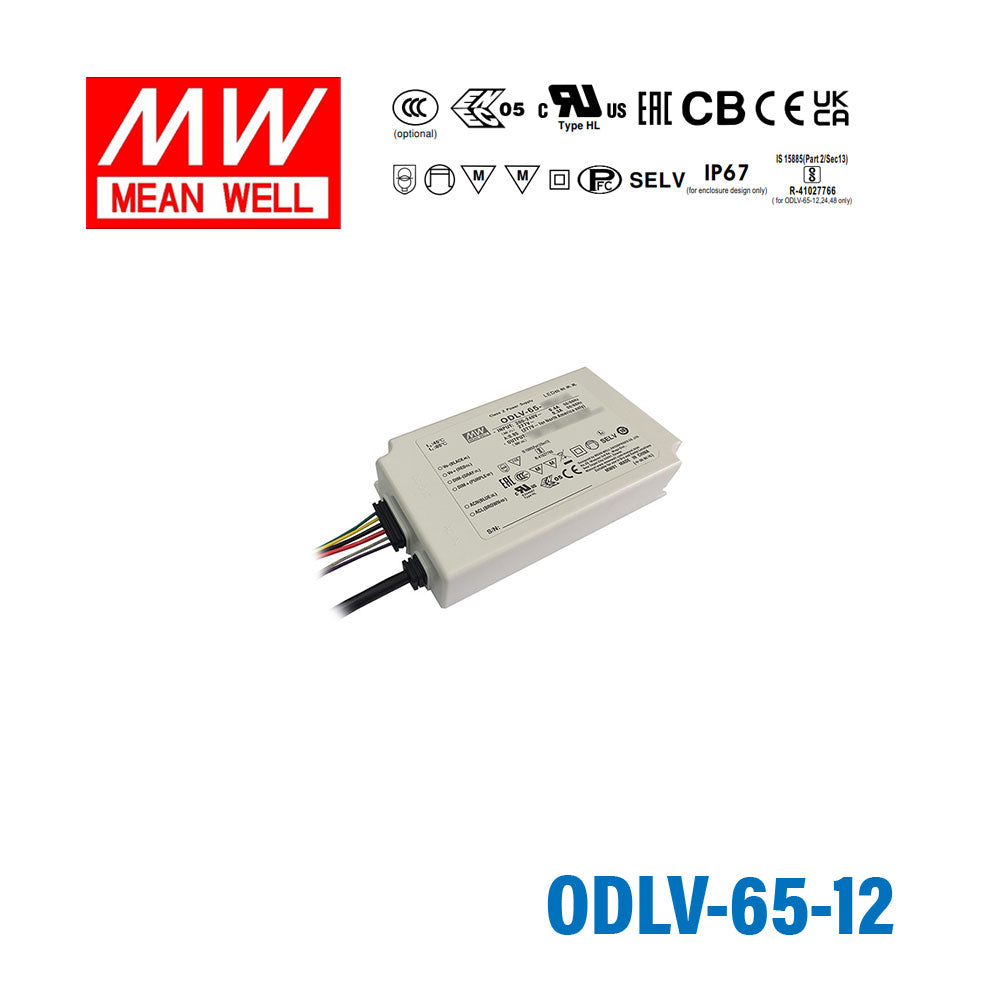

Mean Well ODLV-65-12 Power Supply 65W 12V, Dimmable
Description
Description
Features
| Constant voltage PWM style output with frequency 1KHz |
| Plastic housing with class II design |
| Built-in active PFC function |
| No load power consumption<0.5W(Blank-Type) |
| IP67 rating for indoor or outdoor installations |
| Function options: 2 in 1 dimming(dim-to-off); Auxiliary DC output |
| 3 years warranty |
General Specification
| AC input voltage range | 180~295VAC |
| AC inrush current (Typ.) | COLD START 30A(twidth=270μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 |
| Short circuit protection | Shut down O/P voltage, re-power on to recovery |
| Over current protection | 105~115% |
| Setup time | 500ms / 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC |
| Working temperature | -20~+85ºC |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020 |
| Dimension (LxWxH)(mm) | 121*77*28.5mm |
| Packing | 24pcs/11Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesODLV Series
-
Power Rating50.4 Watt
-
Output Voltage12 Volt
-
Rated Current4.2 Ampere
-
Input Voltage180V~295V
-
No of Output1
-
Dimming Control0-10V,10V PWM
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length4.76 in
-
Width3.03 in
-
Height1.12 in
-
Weight0.95 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the ODLV-65-12 for 12V LED strip lighting?
Yes, this model provides 12V constant voltage output with 50.4W maximum power and 4.2A output current. It is suitable for 12V LED strip applications where the total load stays within 50.4W.
Is the ODLV-65-12 suitable for 12V sign lighting or channel letters?
It can be used for 12V constant voltage signage loads up to 50.4W. The IP67 waterproof rating makes it appropriate for sign lighting in outdoor or wet conditions.
Can this driver power 12V landscape or accent lighting?
It is a fit for 12V constant voltage landscape or accent lighting systems that require no more than 50.4W. Its operating temperature range of -20°C to +85°C supports demanding lighting environments.
How do I size LED strip length with the ODLV-65-12?
This driver can supply up to 50.4W total, so maximum strip length is calculated as 50.4W divided by your strip's rated power per meter. Check your strip rated power per meter before sizing, then use the formula 50.4W ÷ strip W/m.
Can the ODLV-65-12 be used outdoors or in wet locations?
Yes, it has an IP67 waterproof rating for wet-location use. It is also rated for operation from -20°C to +85°C, which supports outdoor installation environments.
How does the ODLV-65-12 compare with the other ODLV options?
The series includes ODLV-45-12 at 36W 12V 3A, ODLV-45-24 at 45.12W 24V 1.88A, ODLV-45-36 at 45W 36V 1.25A, ODLV-45-48 at 45.12W 48V 0.94A, ODLV-45-60 at 45W 60V 0.75A, ODLV-45A-12 at 36W 12V 3A, ODLV-45A-24 at 45.12W 24V 1.88A, ODLV-45A-36 at 45W 36V 1.25A, ODLV-45A-48 at 45.12W 48V 0.94A, and ODLV-45A-60 at 45W 60V 0.75A. The 65W-class siblings are ODLV-65-12 at 50.4W 12V 4.2A, ODLV-65-24 at 57.6W 24V 2.4A, ODLV-65-36 at 64.8W 36V 1.8A, ODLV-65-48 at 64.8W 48V 1.35A, ODLV-65-60 at 64.8W 60V 1.08A, ODLV-65A-12 at 50.4W 12V 4.2A, ODLV-65A-24 at 57.6W 24V 2.4A, ODLV-65A-36 at 64.8W 36V 1.8A, ODLV-65A-48 at 64.8W 48V 1.35A, and ODLV-65A-60 at 64.8W 60V 1.08A. This ODLV-65-12 is the 12V, 50.4W, 4.2A member of the non-A 65 series.
