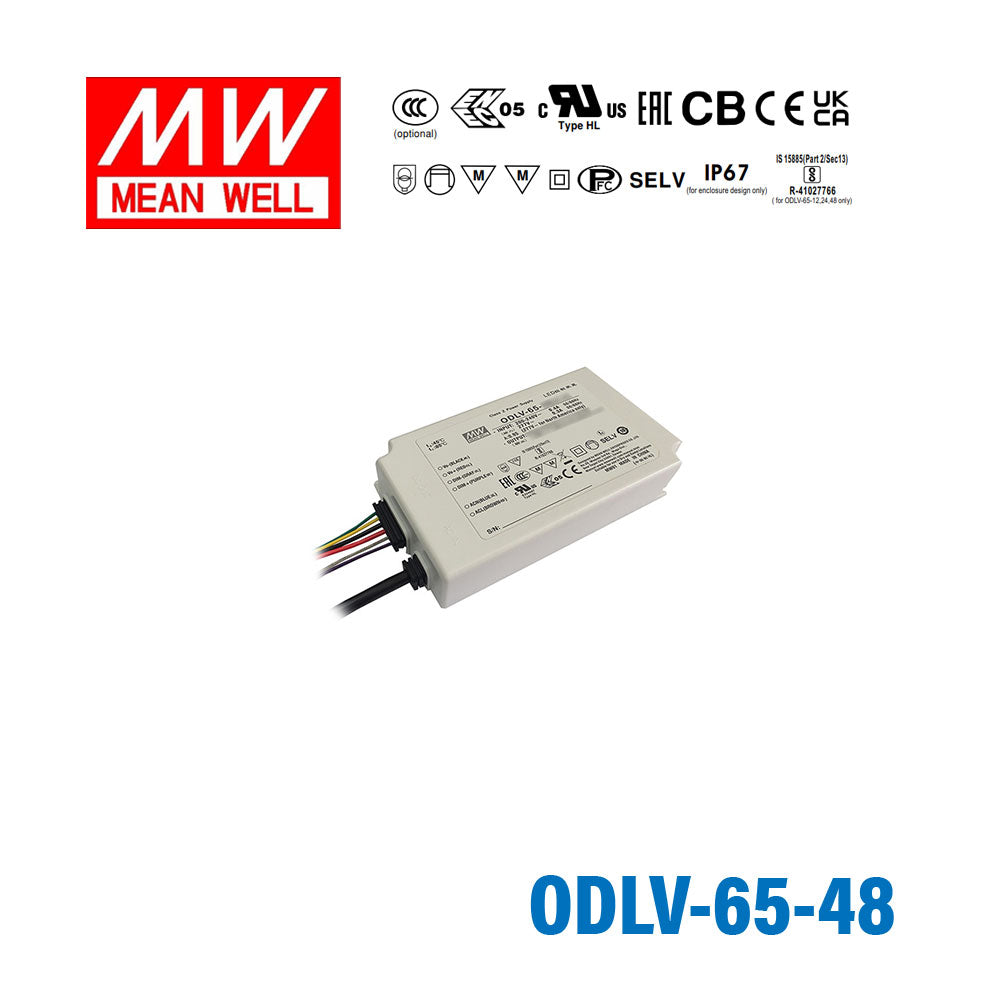

Mean Well ODLV-65-48 Power Supply 65W 48V, Dimmable
Description
Description
Features
| Constant voltage PWM style output with frequency 1KHz |
| Plastic housing with class II design |
| Built-in active PFC function |
| No load power consumption<0.5W(Blank-Type) |
| IP67 rating for indoor or outdoor installations |
| Function options: 2 in 1 dimming(dim-to-off); Auxiliary DC output |
| 3 years warranty |
General Specification
| AC input voltage range | 180~295VAC |
| AC inrush current (Typ.) | COLD START 30A(twidth=270μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 |
| Short circuit protection | Shut down O/P voltage, re-power on to recovery |
| Over current protection | 105~115% |
| Setup time | 500ms / 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC |
| Working temperature | -20~+85ºC |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020 |
| Dimension (LxWxH)(mm) | 121*77*28.5mm |
| Packing | 24pcs/11Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesODLV Series
-
Power Rating64.8 Watt
-
Output Voltage48 Volt
-
Rated Current1.35 Ampere
-
Input Voltage180V~295V
-
No of Output1
-
Dimming Control0-10V,10V PWM
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length4.76 in
-
Width3.03 in
-
Height1.12 in
-
Weight0.95 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the ODLV-65-48 for 48V LED strip lighting on exterior signage?
Yes, if the lighting is 48V constant voltage and the total load is no more than 64.8W. This driver provides 48V output at 1.35A and carries an IP67 waterproof rating for outdoor or wet-area use. Confirm the sign lighting's voltage and total wattage before pairing it.
Is this a good fit for 48V linear lighting in commercial or architectural applications?
It is suitable for 48V constant-voltage linear fixtures that stay within 64.8W. The IP67 rating supports installations in damp or outdoor environments, and the operating temperature range is -20°C to +85°C. Match it only with 48V loads.
Can the ODLV-65-48 power 48V LED tape for long building accent runs?
It can power 48V constant-voltage LED tape up to 64.8W total. That makes it relevant for facade accents, perimeter lighting, or sign borders where a 48V strip system is specified and a waterproof driver is needed. Check the strip's rated power per meter before deciding on total length.
How do I estimate the maximum 48V LED strip length for this driver?
Use the math: maximum strip length = 64.8W divided by the strip's watts per meter. This model's output limit is 64.8W total at 48V and 1.35A. Check your strip rated power per meter and keep the full load within the driver's 64.8W maximum.
What is the difference between the ODLV-65-48 and the other ODLV family drivers?
Within the 65 series, the non-A models are ODLV-65-12 at 50.4W, 12V, 4.2A; ODLV-65-24 at 57.6W, 24V, 2.4A; ODLV-65-36 at 64.8W, 36V, 1.8A; ODLV-65-48 at 64.8W, 48V, 1.35A; and ODLV-65-60 at 64.8W, 60V, 1.08A. The 45 series includes ODLV-45-12 at 36W, 12V, 3A; ODLV-45-24 at 45.12W, 24V, 1.88A; ODLV-45-36 at 45W, 36V, 1.25A; ODLV-45-48 at 45.12W, 48V, 0.94A; and ODLV-45-60 at 45W, 60V, 0.75A. The A variants listed are ODLV-45A-12 at 36W, 12V, 3A; ODLV-45A-24 at 45.12W, 24V, 1.88A; ODLV-45A-36 at 45W, 36V, 1.25A; ODLV-45A-48 at 45.12W, 48V, 0.94A; ODLV-45A-60 at 45W, 60V, 0.75A; ODLV-65A-12 at 50.4W, 12V, 4.2A; ODLV-65A-24 at 57.6W, 24V, 2.4A; ODLV-65A-36 at 64.8W, 36V, 1.8A; ODLV-65A-48 at 64.8W, 48V, 1.35A; and ODLV-65A-60 at 64.8W, 60V, 1.08A.
Other ODLV-65 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well ODLV-65-60 Power Supply 65W 60V, Dimmable | 64.8W | 60V | 1.08A | IP67 | $27.23 | View |
| Mean Well ODLV-65-36 Power Supply 65W 36V, Dimmable | 64.8W | 36V | 1.8A | IP67 | $27.23 | View |
| Mean Well ODLV-65-24 Power Supply 65W 24V, Dimmable | 57.6W | 24V | 2.4A | IP67 | $27.23 | View |
| Mean Well ODLV-65-12 Power Supply 65W 12V, Dimmable | 50.4W | 12V | 4.2A | IP67 | $23.04 | View |
