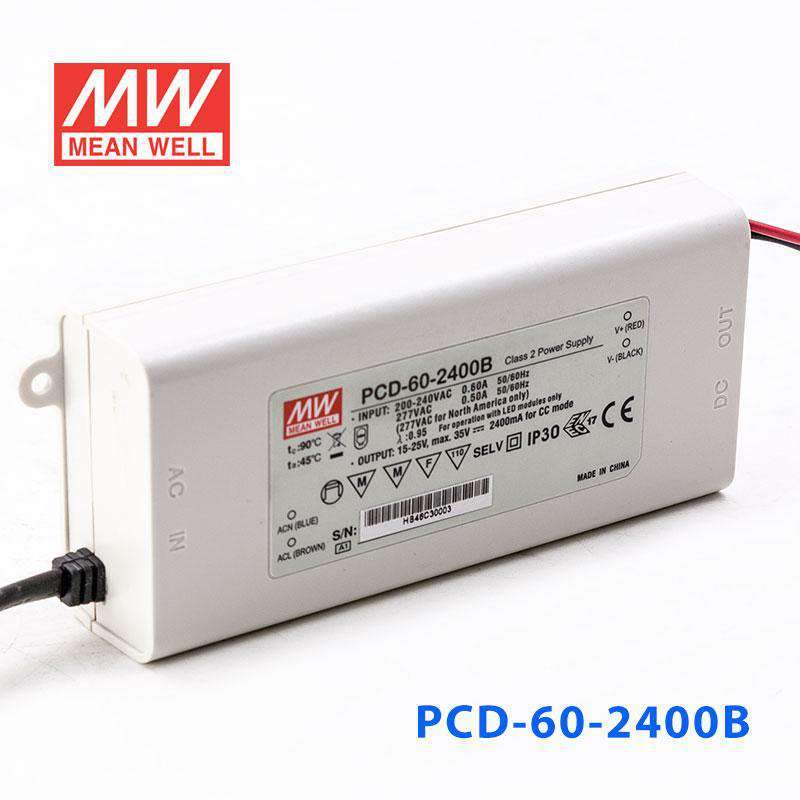

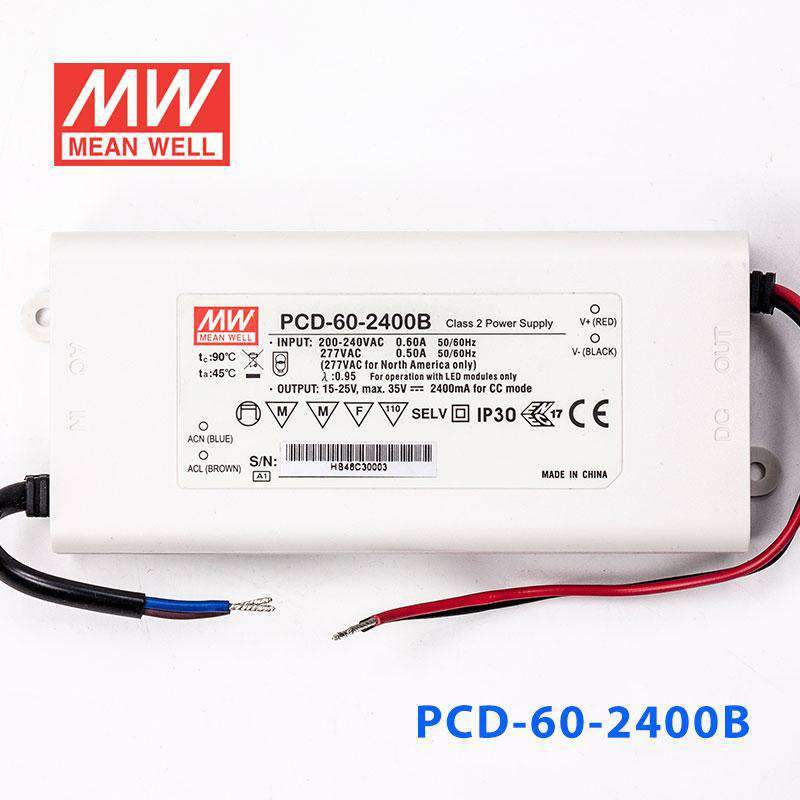

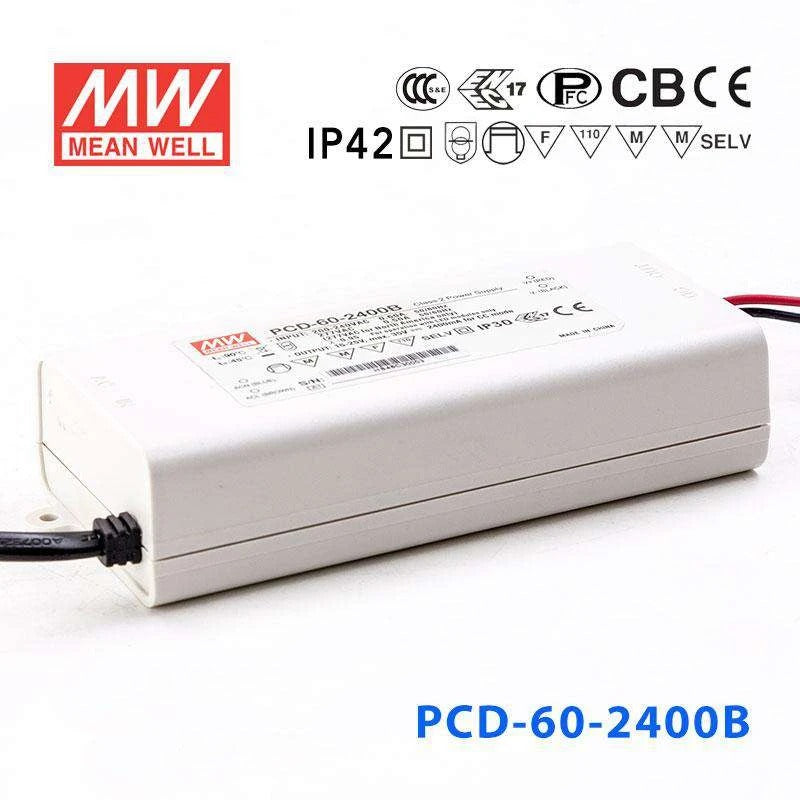

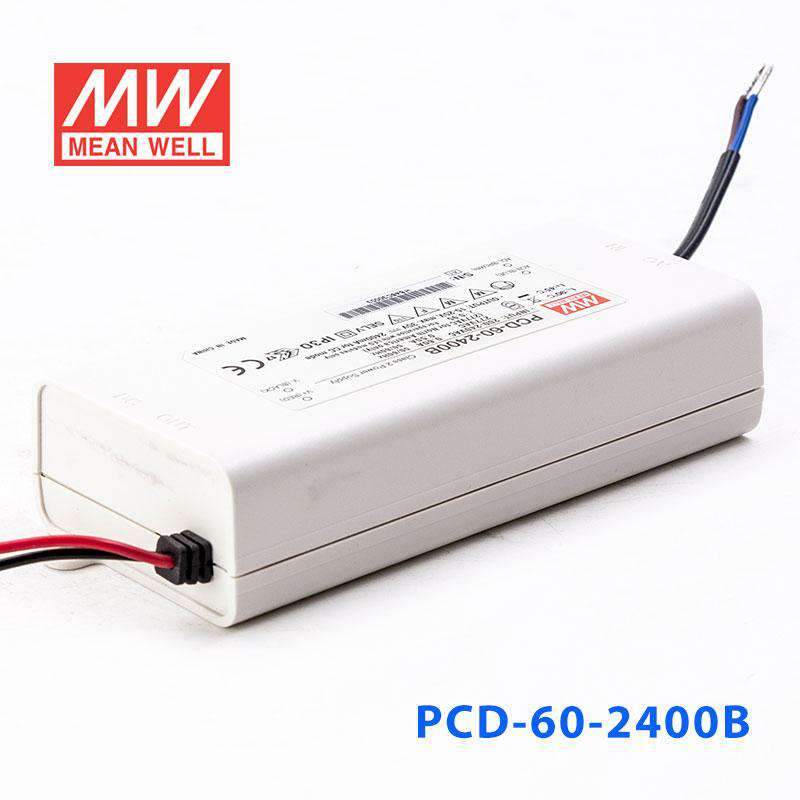

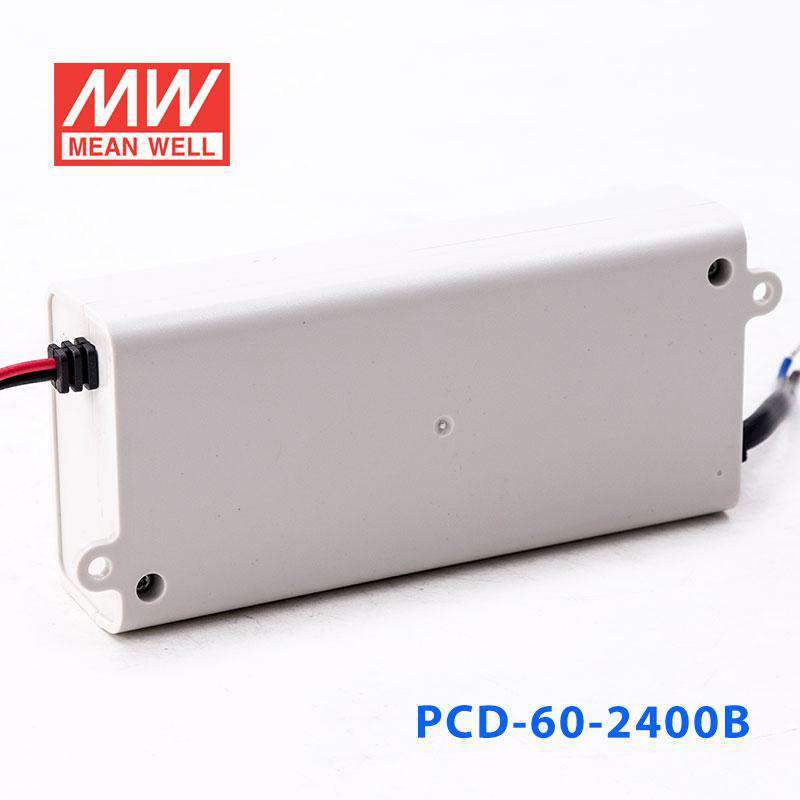

Mean Well PCD-60-2400B Power Supply 60W 2400mA

Yes, this driver is suited to LED downlights that are designed for a constant current source at 2400mA. Its constant current operating mode and 15-25V CC output range fit fixtures built around higher-current LED engines within that voltage window. It is not a constant voltage driver, so it should be matched to a downlight that specifically calls for constant current operation.

It can be a fit for compact signage modules or small LED arrays when the load is specified for 2400mA constant current and falls within the 15-25V CC range. The 60W rating makes it more appropriate for higher-power assemblies than for low-power indicator-style modules. Because it is a constant current model, it should be used with LED loads rather than constant voltage signage products.

Yes, the PCD-60-2400B is a plausible choice for a COB LED light engine if that engine requires 2400mA constant current and operates within 15-25V. The driver is TRIAC dimmable, which can be relevant in dimmable architectural or commercial LED light fixtures using a matching dimming approach. Load matching still depends on the LED module's forward voltage, not just wattage alone.

The key check is whether the LED load is designed for constant current at 2400mA and whether its total forward voltage stays within the 15-25V CC output range. The number of LEDs that can be driven depends on the forward voltage of each LED, so there is no fixed LED count for this model. It should not be used as a constant voltage supply for LED tape or other constant voltage products.

Within the PCD-60 range, the sibling options are PCD-60-500B at 500mA with a 70-108V CC range and 54W, PCD-60-700B at 700mA with a 50-86V CC range and 60.2W, PCD-60-1050B at 1050mA with a 34-57V CC range and 59.85W, PCD-60-1400B at 1400mA with a 25-43V CC range and 60.2W, PCD-60-1750B at 1750mA with a 20-34V CC range and 59.5W, PCD-60-2000B at 2000mA with an 18-30V CC range and 60W, and this PCD-60-2400B at 2400mA with a 15-25V CC range and 60W. The main differences are output current and the matching constant current voltage window. All are constant current drivers in the same series, so selection depends on the LED load's required drive current and forward-voltage range.

This model has a plastic casing rated IP42, so it is better aligned with indoor LED applications where basic enclosure protection is acceptable. It also has an operating temperature range of -30°C to +45°C, which defines the stated ambient range for use. For locations with heavier dust or water exposure, the IP42 rating is the limiting factor to review.
