Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

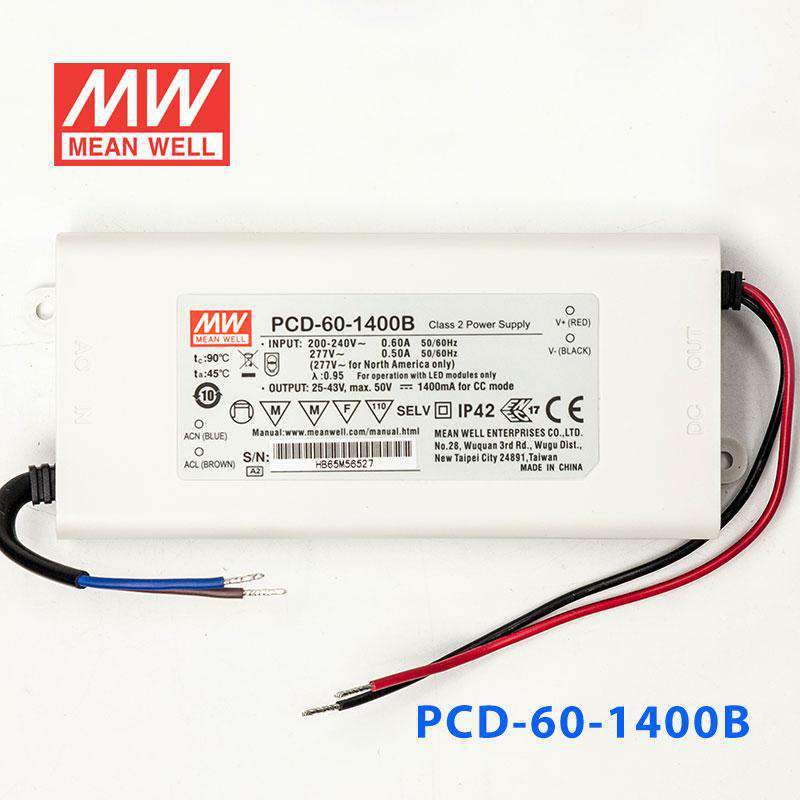

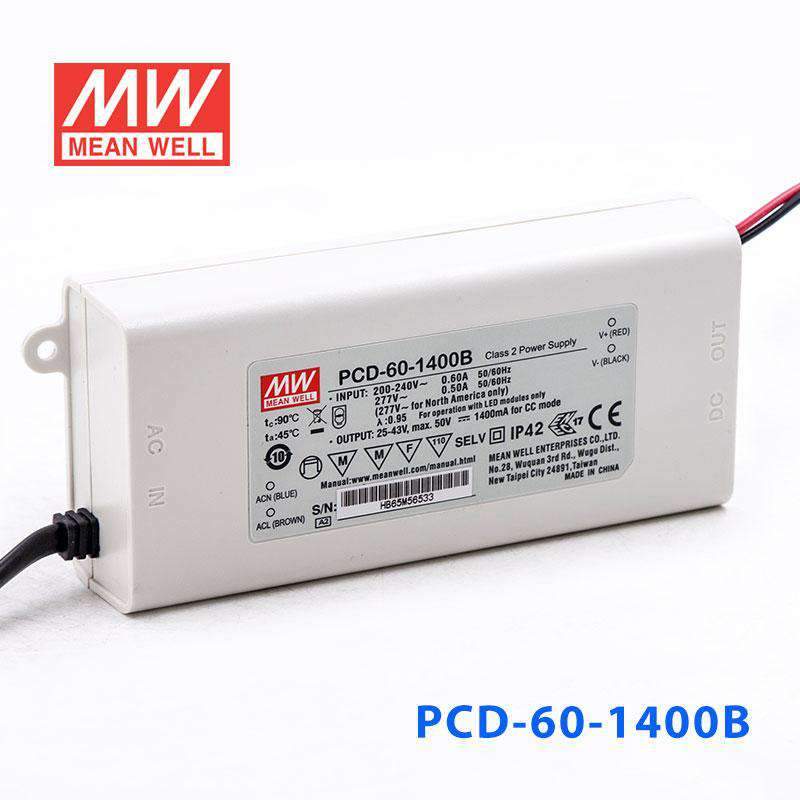

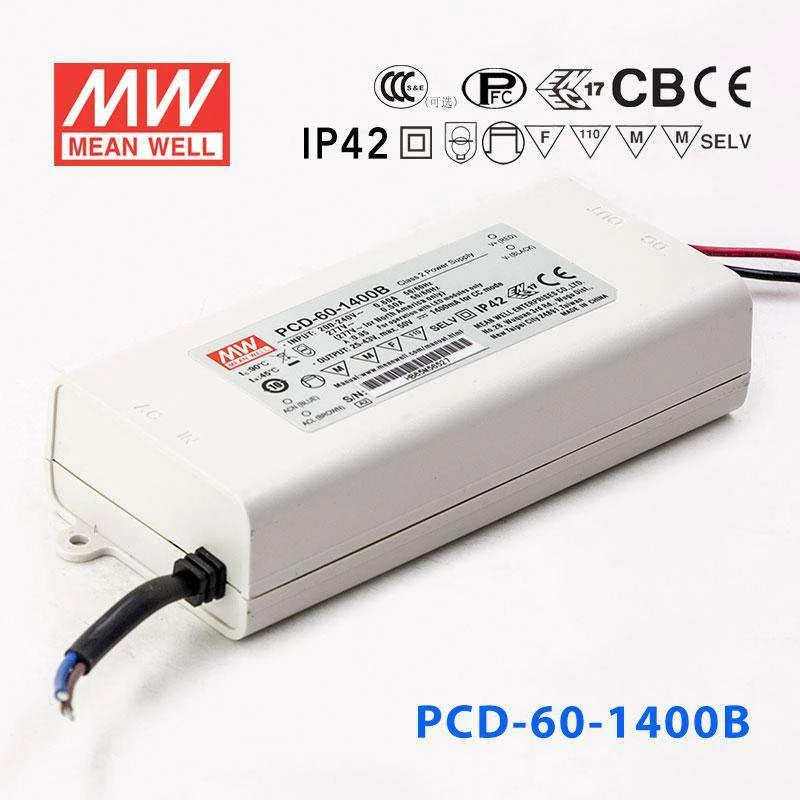

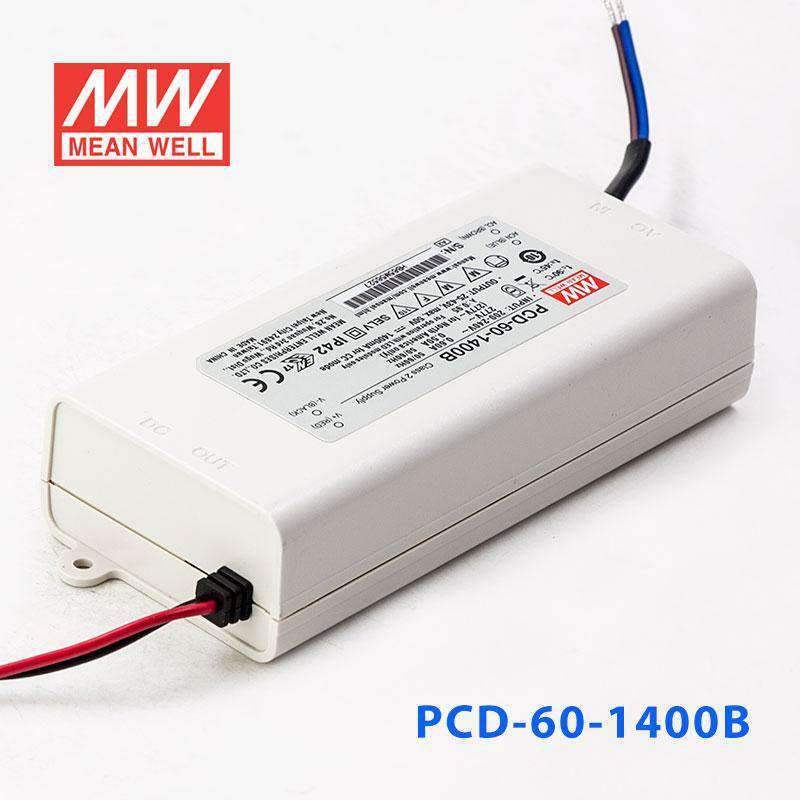

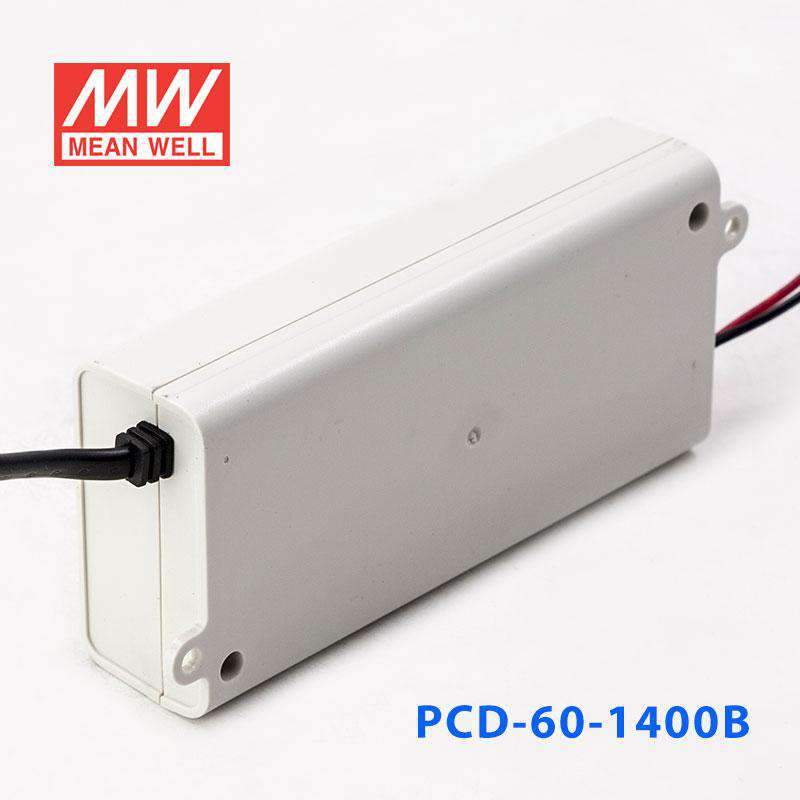

Mean Well PCD-60-1400B Power Supply 60W 1400mA
TRIAC dimmable, plastic casing IP42, Class II design without FG, constant current
SKU:
PCD-60-1400B
Datasheet:
$24.88 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Your order will be processed within 24 hours
Mean Well PCD-60-1400B Power Supply 60W 1400mA
$24.88 USD
Unit price /
Unavailable
Description
Description
Features
| AC phase-cut dimming, work with leading edge and trailing edge TRIAC dimmers |
| 115VAC or 230VAC input |
| Protections: Short circuit / Over temperature |
| Constant current design |
| Class 2 power unit / Pass LPS |
| Isolation class II, no FG |
| Fully isolated plastic case |
| Cooling by free air convection |
| Built-in active PFC function |
| IP42 design |
| 3 years warranty |
General Specification
| AC input voltage range | 115VAC (90 ~ 135VAC) or 230VAC (180 ~ 295VAC) |
| AC inrush current (max.) | Cold start, 10A at 230VAC |
| Withstand voltage | I / P - O / P: 3.75 k VAC |
| Working temperature | -30 ~ + 60ºC (refer to output derating curve) |
| Safety standards | ENEC EN61347-1, EN61347-2-13 independent, EN62384approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 |
| Connection Input | H03VVH2-F 0.75mm²x2C (7.5cm) |
| Connection Output | UL1430 18AWGx2C (15cm) |
| Dimension (LxWxH) (mm) | 128x 60x 31.5 |
Specifications
Specifications
-
BrandMean Well
-
SeriesPCD Series
-
Power Rating60.2 Watt
-
Output Voltage43 Volt
-
Rated Current1.4 Ampere
-
Input Voltage180V~295V
-
No of Output1
-
Dimming ControlAC Phase Cut Dimming
-
Standards MetCB,CE,EAC,ENEC
-
Operation ModeConstant Current
-
Operating Temperature-30°C~45°C
-
Warranty3 Year
-
Length5.04 in
-
Width2.36 in
-
Height1.24 in
-
Weight0.77 lb
