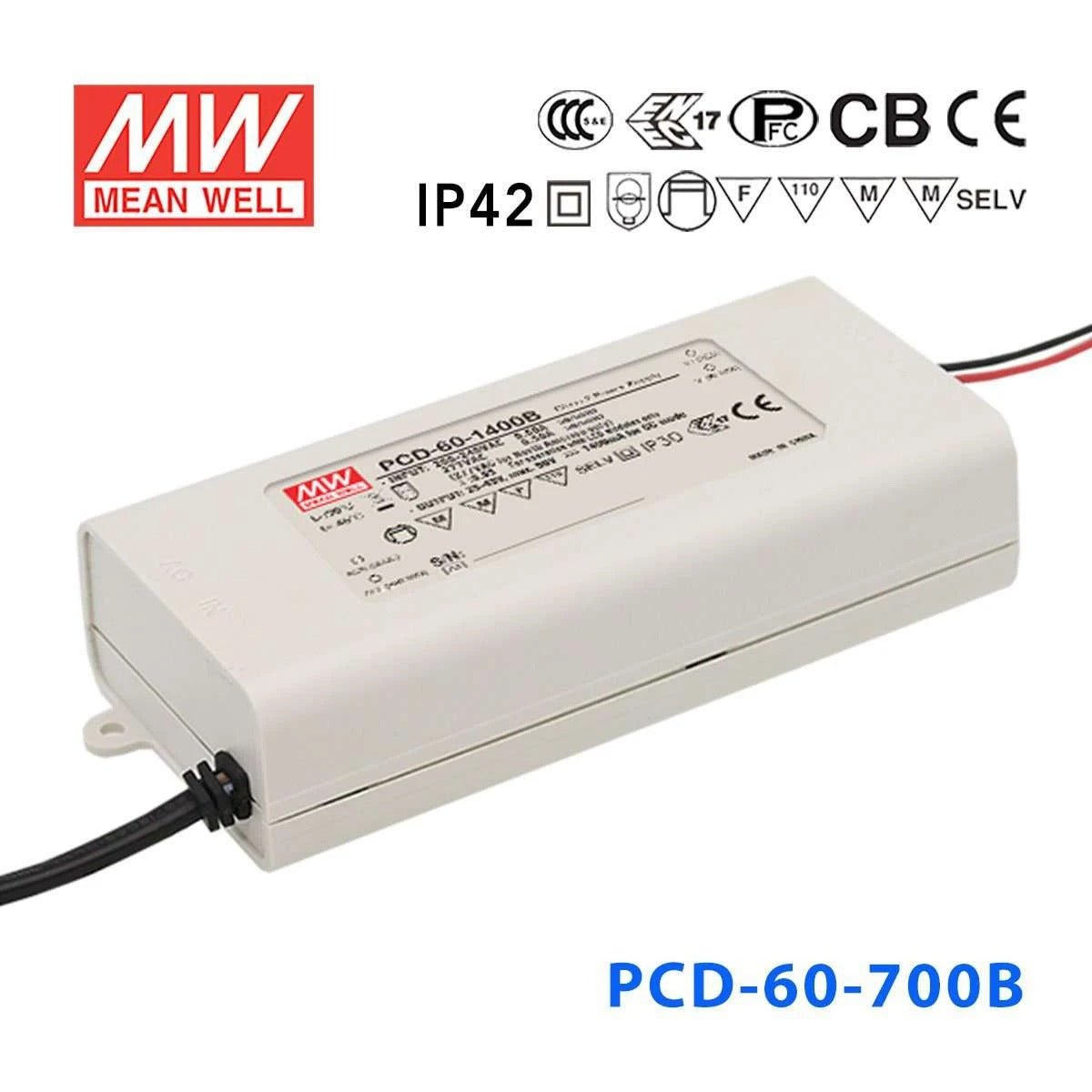

Mean Well PCD-60-700B Power Supply 60W 700mA

TRIAC dimmable, plastic casing IP42, Class II design without FG, constant current
$24.88 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

AC phase-cut dimming, work with leading edge and trailing edge TRIAC dimmers
115VAC or 230VAC input
Protections: Short circuit / Over temperature
Constant current design
Class 2 power unit / Pass LPS
Isolation class II, no FG
Fully isolated plastic case
Cooling by free air convection
Built-in active PFC function
IP42 design
3 years warranty

General Specification

AC input voltage range 115VAC (90 ~ 135VAC) or 230VAC (180 ~ 295VAC)
AC inrush current (max.) Cold start, 10A at 230VAC
Withstand voltage I / P - O / P: 3.75 k VAC
Working temperature -30 ~ + 60ºC (refer to output derating curve)
Safety standards ENEC EN61347-1, EN61347-2-13 independent, EN62384approved
EMC standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input H03VVH2-F 0.75mm²x2C (7.5cm)
Connection Output UL1430 18AWGx2C (15cm)
Dimension (LxWxH) (mm) 128x 60x 31.5

Specifications

  • Brand
    Mean Well
  • Series
    PCD Series
  • Power Rating
    60.2 Watt
  • Output Voltage
    86 Volt
  • Rated Current
    0.7 Ampere
  • Input Voltage
    180V~295V
  • No of Output
    1
  • Dimming Control
    AC Phase Cut Dimming
  • Standards Met
    CB,CE,EAC,ENEC
  • Operation Mode
    Constant Current
  • Operating Temperature
    -30°C~45°C
  • Warranty
    3 Year
  • Length
    5.04 in
  • Width
    2.36 in
  • Height
    1.24 in
  • Weight
    0.77 lb
