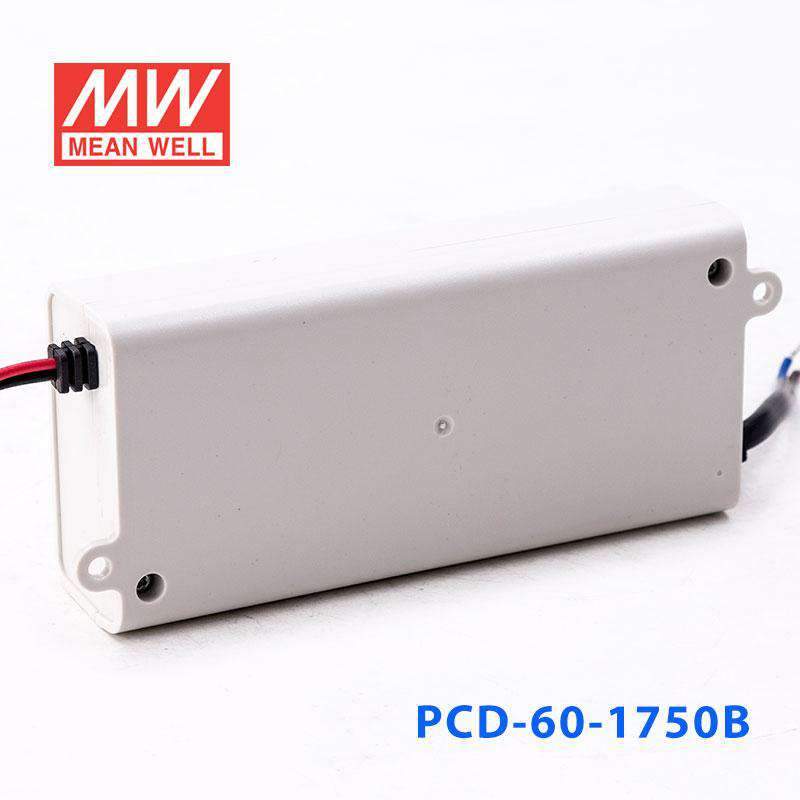

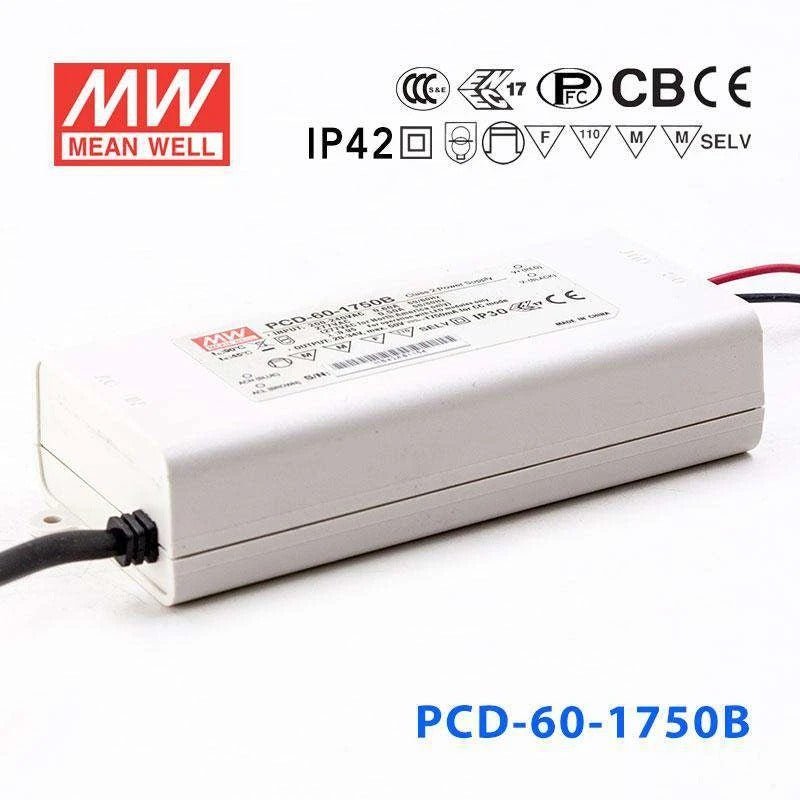

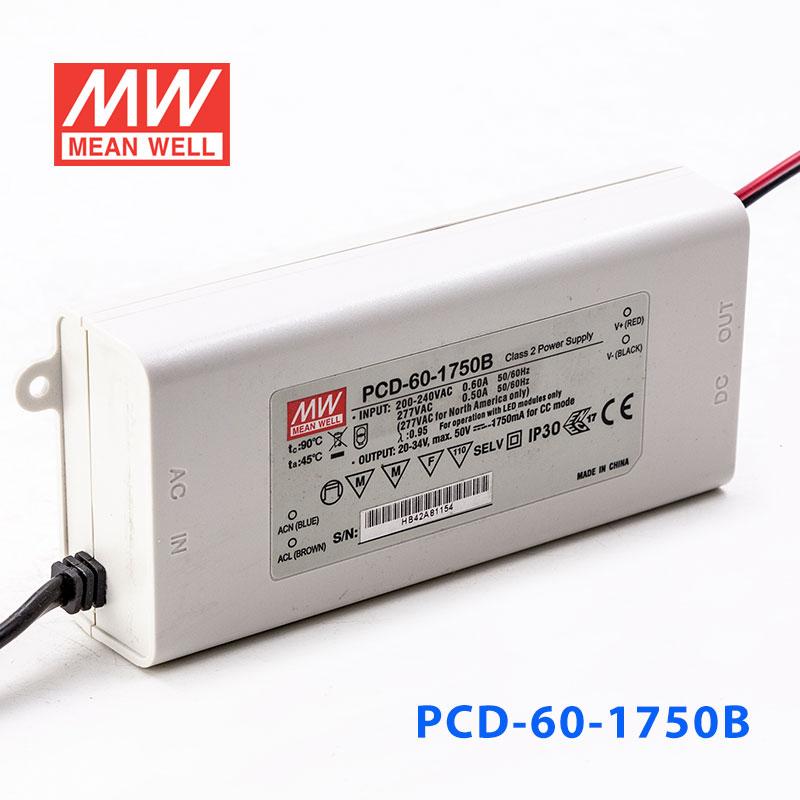

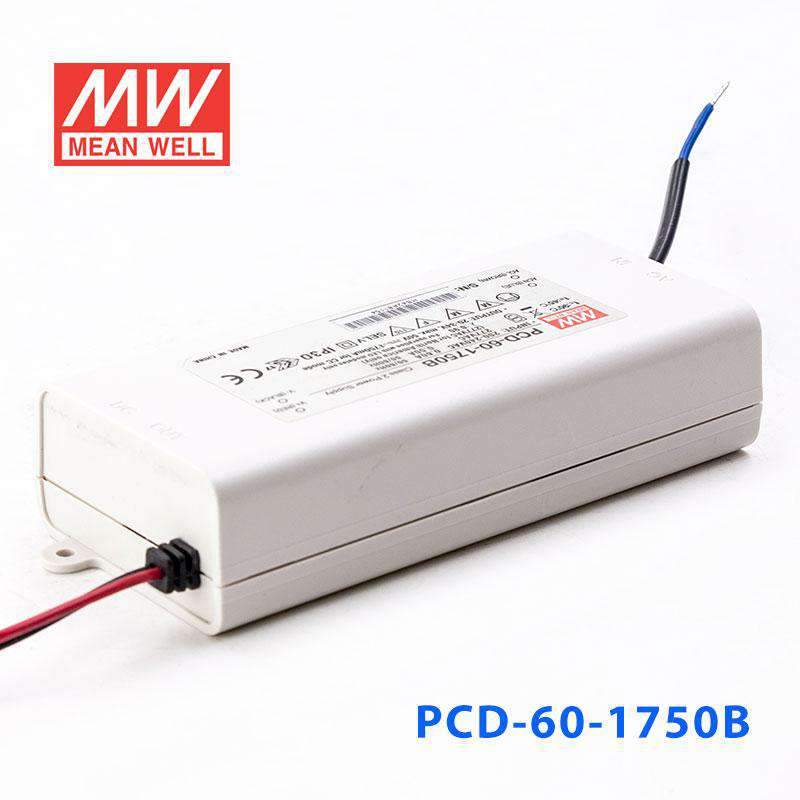

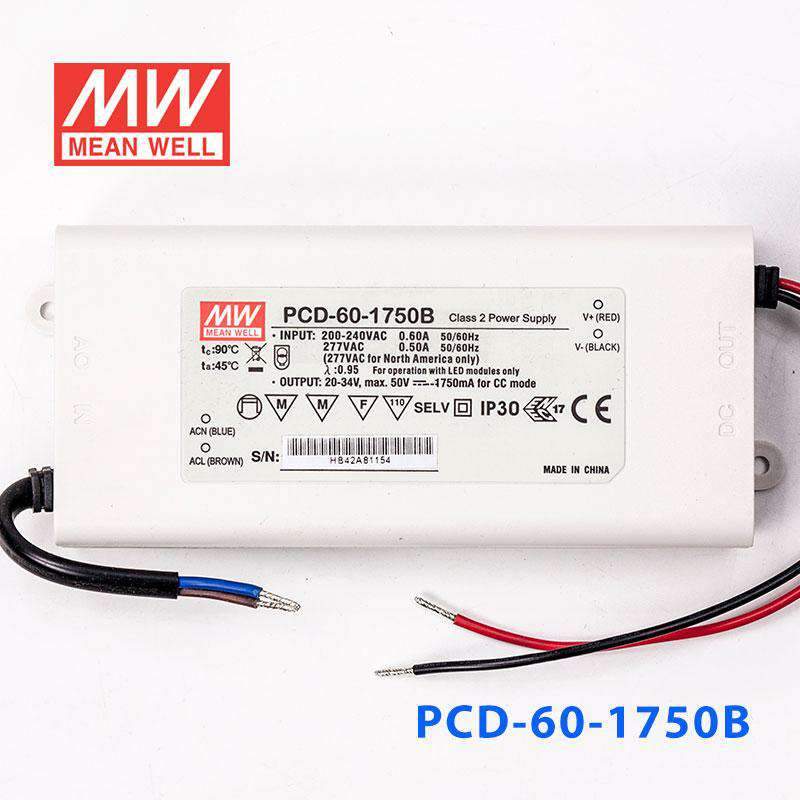

Mean Well PCD-60-1750B Power Supply 60W 1750mA

TRIAC dimmable, plastic casing IP42, Class II design without FG, constant current

SKU:

PCD-60-1750B

$24.88 USD ~~$88.50~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

AC phase-cut dimming, work with leading edge and trailing edge TRIAC dimmers

115VAC or 230VAC input

Protections: Short circuit / Over temperature

Constant current design

Class 2 power unit / Pass LPS

Isolation class II, no FG

Fully isolated plastic case

Cooling by free air convection

Built-in active PFC function

IP42 design

3 years warranty

General Specification

AC input voltage range	115VAC (90 ~ 135VAC) or 230VAC (180 ~ 295VAC)
AC inrush current (max.)	Cold start, 10A at 230VAC
Withstand voltage	I / P - O / P: 3.75 k VAC
Working temperature	-30 ~ + 60ºC (refer to output derating curve)
Safety standards	ENEC EN61347-1, EN61347-2-13 independent, EN62384approved
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input	H03VVH2-F 0.75mm²x2C (7.5cm)
Connection Output	UL1430 18AWGx2C (15cm)
Dimension (LxWxH) (mm)	128x 60x 31.5

Specifications

Brand

Mean Well
Series

PCD Series
Power Rating

59.5 Watt
Output Voltage

34 Volt
Rated Current

1.75 Ampere
Input Voltage

180V~295V
No of Output

1
Dimming Control

AC Phase Cut Dimming
Standards Met

CB,CE,EAC,ENEC
Operation Mode

Constant Current
Operating Temperature

-30°C~45°C
Warranty

3 Year
Length

5.04 in
Width

2.36 in
Height

1.24 in
Weight

0.77 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the PCD-60-1750B for 1750mA LED downlights?

Yes, if the fixture is specified for constant current 1750mA operation. The driver supports a 20-34V constant current range and up to 59.5W output. It should not be used in place of a constant voltage supply.

Will this driver work for a short, high-current LED array?

It can be a fit for a small LED array that requires constant current at 1750mA. The total LED forward voltage must fall within 20-34V, and the load must stay within the 59.5W power rating. The actual LED quantity depends on the forward voltage of each LED.

Is the PCD-60-1750B suitable for constant current signage assemblies?

Yes, but only where the signage assembly is designed for constant current 1750mA operation. The driver's usable constant current voltage window is 20-34V, so the LED assembly must operate inside that range. Constant voltage signage modules require a different power source.

What kind of LED load is compatible with the PCD-60-1750B?

This driver is for constant current LED loads at 1750mA, not constant voltage products. The total LED forward voltage must stay within 20-34V, and the allowable number of LEDs depends on the forward voltage of each LED. Total power should remain within 59.5W.

Can this driver be used where temperature swings are a concern?

Its operating temperature range is -30°C to +45°C, which covers a wide span for protected installations. The housing is IP42, so environmental suitability still depends on keeping it in an appropriately sheltered location. Temperature range and ingress rating should both be considered together.
