Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

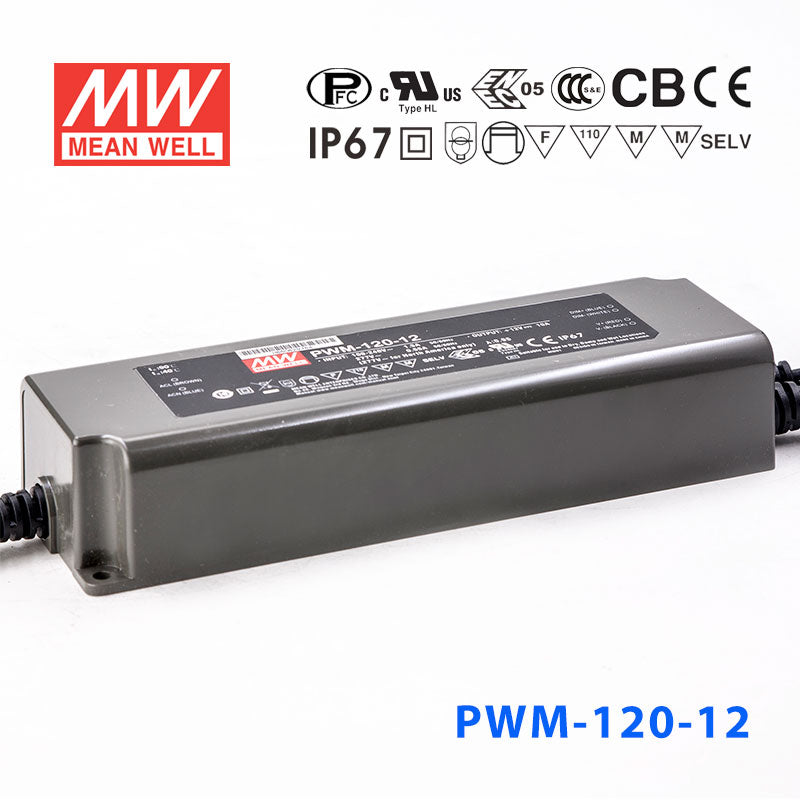

Mean Well PWM-120-12DA Power Supply 120W 12V - DALI

Q: Can I use the PWM-120-12DA with a DALI building management system to control 12V LED strips?

Yes. The PWM-120-12DA has a DALI dimming interface, allowing it to be addressed and controlled by any DALI-compliant building management or lighting control system. It outputs 12V at up to 10A (120W) with a PWM-style waveform suited for 12V LED strips.

Q: Is the PWM-120-12DA suitable for outdoor architectural LED lighting installations?

Yes. The IP67 rating means the driver is fully protected against dust and temporary water immersion, making it appropriate for outdoor architectural or landscape lighting enclosures. Its -40°C to +90°C operating range covers a wide range of climate conditions.

Q: How many meters of 12V LED strip can the PWM-120-12DA power?

With a maximum output of 120W at 12V, the usable strip length depends on your strip's wattage per meter. For a 12W/m strip, that is up to 10 meters (120 ÷ 12); for a 14.4W/m strip, approximately 8.3 meters (120 ÷ 14.4). Check your strip's rated power per meter and apply a 20% safety margin.

Q: Can the PWM-120-12DA be used to power 12V LED signage in a DALI-controlled office environment?

Yes. The DALI interface allows the driver to integrate directly into DALI lighting networks common in commercial office environments. The 120W, 12V output is appropriate for powering 12V LED modules or strips inside illuminated signage.

Q: Does the PWM-120-12DA work in very cold outdoor installations, such as freezer rooms or northern climates?

Yes. The operating temperature range of -40°C to +90°C means the PWM-120-12DA is rated for operation in freezer room temperatures and cold outdoor climates without performance derating.

Q: Can I use the PWM-120-12DA in a museum or gallery display case needing precise DALI dimming of 12V LED strips?

Yes. The DALI interface provides precise digital dimming control, which is well-suited to museum and gallery environments where consistent, programmable lighting levels are required. The PWM-style output delivers smooth dimming to 12V LED strips at up to 10A.

PWM style output, fully isolated plastic case, IP67, Class II design without FG, DALI

SKU:

PWM-120-12DA

$57.58 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input (up to 305VAC) / Full range

Constant voltage PWM style output

Built-in active PFC function

High efficiency up to 90.5%

No load power consumption <0.5W

Protections: Short circuit / Overload / Over voltage / Over temperature

Fully isolated plastic case

Fully encapsulated with IP67 level

Class 2 power unit

Isolation class II, no F.G.

Built-in 3 in 1 dimming (dim-to-off);DALI

Suitable for dry, damp and wet location

Suitable for LED strip lighting

5 years warranty

General Specification

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 60A at 230VAC
Overload protection	108%~120% hiccup mode, auto-recovery
Over voltage protection	Shut down o/p voltage, re-power on to recover
Over temp. protection	Shut down output voltage, re-power on to recover
Setup, rise, hold up time	500ms, 80ms, 16ms at full load and 230VAC
Withstand voltage	I/P-O/P: 3.75kVAC
Working temperature	-40~+90ºC (refer to output derating curve)
Safety standards	UL8750, CSA C22.2 No.250.13-12,ENEC EN61347-1, EN61347-2-13 independent, EN62384 approved ; Design refer to EN60335-1
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input	UL rated, SJTW 18AWGx3C (30cm)
Connection Output	SJTW 14AWG x2C (30cm)+UL24645 18AWG x2C (30cm)
Dimension (LxWxH) (mm)	191x63x 37.5
Packing	15pcs / 15.6kg

Specifications

Brand

Mean Well
Series

PWM Series
Power Rating

120 Watt
Output Voltage

12 Volt
Rated Current

10 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

DALI
Standards Met

CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

7.52 in
Width

2.48 in
Height

1.48 in
Weight

2.14 lb

File Downloads

::specification::
