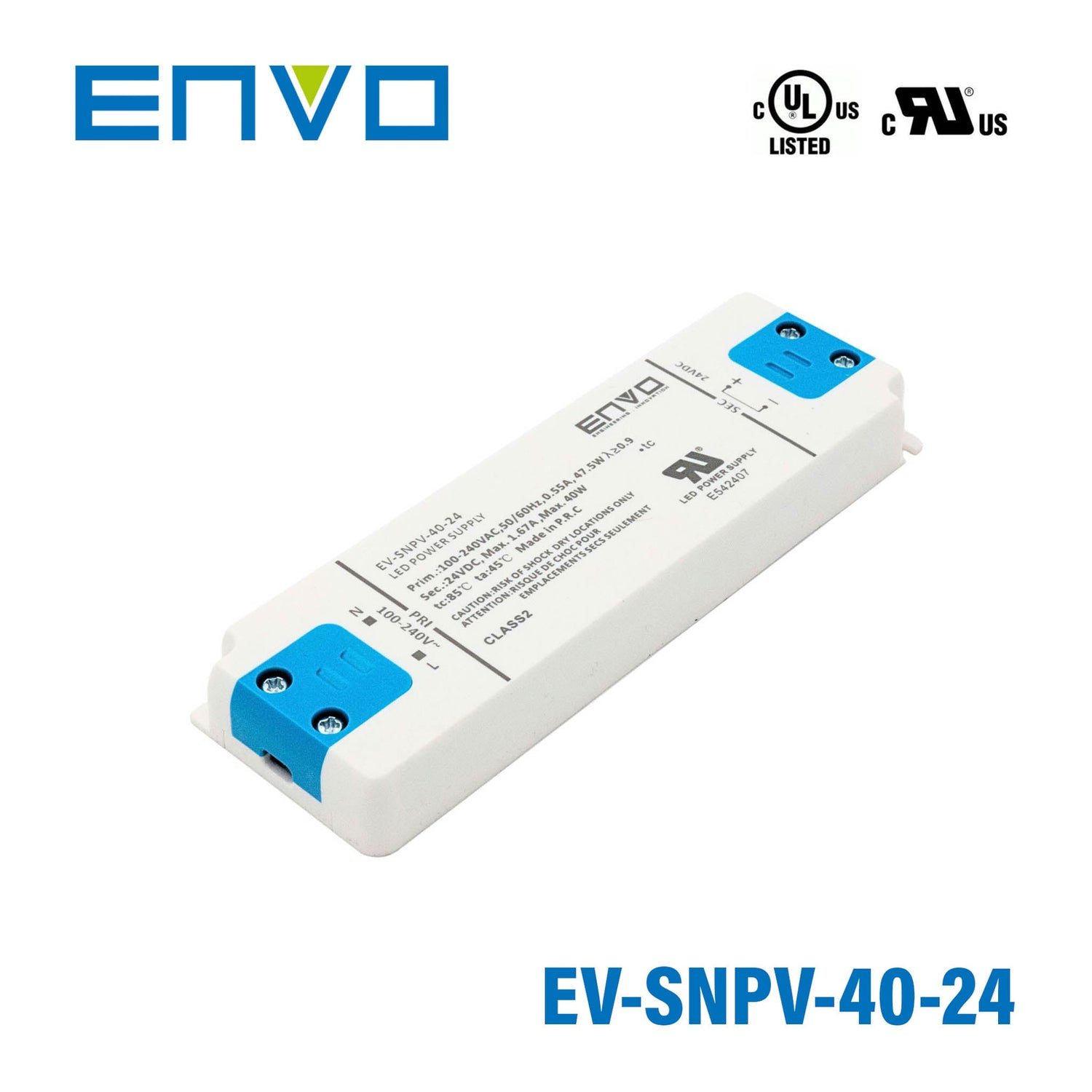

ENVO EV-SNPV-40-24 LED Power Supply 40W 24V 1.67A
10% off 10+ units
Mix & match any ENVO LED drivers. US orders, applied automatically at checkout.
Notify me when it's back in stock
Your order will be processed within 24 hours
ENVO EV-SNPV-40-24 LED Power Supply 40W 24V 1.67A
Overview
High cost performance, complies with Class 2 standard of electric shock protection. Features wide input voltage, flat and slim design, ideal for furniture or cabinet lighting applications in Europe and US markets. SELV. Provides open circuit, short circuit, overload, and overtemperature protection. Compliance with ERP directive. 5 years warranty.
Specifications
Input
- Input voltage
- 90-264Vac
- Input frequency
- 50Hz/60Hz
- Input current
- 0.55A
- Input power
- <47.5W
- Efficiency
- ≥ 86%
- StandbyAverage
- <0.5W
- Inrush currentPeak
- <50A
- PF
- ≥0.9
Output
- Startup time
- 1.0S
- Output voltage and precision
- 24V±5%
- Output current range40W
- 0-1.67A
- Output voltage waveVp-p
- 240mV
- Output overload
- Yes
Environment
- Relative humidity
- 45%-85%
- IP grade
- IP20
Others
- Lifetime
- 30,000hr
- EMI
- IEC55015 FCC PART15 Class B
- Safety
- IEC61347-1 IEC61347-2-13, UL8750
Certifications & ratings
- Marked features
- SELV, Class II
- Certification marks
- CE, UKCA, UL, cULus, cRUus
Technical drawings
Downloads
Datasheet1
FAQ
What is this LED driver used for?
It is designed for furniture or cabinet lighting applications in Europe and US markets, featuring a flat and slim design.
What are the output voltage and current ratings?
The output is 24V with a current range of 0-1.67A, providing up to 40W of power.
What is the input voltage range?
It accepts a wide input voltage range of 90-264Vac at 50Hz/60Hz.
What protections does the driver include?
It provides open circuit, short circuit, overload, overtemperature, and overvoltage protection with auto-recovery.
How is the driver mounted?
It has an independent mounting style with a plastic case and an IP20 rating, suitable for indoor use.
What is the warranty period?
The product comes with a 5-year warranty.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other EV-SNPV Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| ENVO EV-SNPV-60-12 LED Power Supply 60W 12V 5A | 60W | 12V | 5A | IP20 | $17.08 | View |
| ENVO EV-SNPV-60-24 LED Power Supply 60W 24V 2.5A | 60W | 24V | 2.5A | IP20 | $15.46 | View |
| ENVO EV-SNPV-40-12 LED Power Supply 40W 12V 3.33A | 40W | 12V | 3.33A | IP20 | $13.08 | View |
