ENVO EV-SNPV-60-24 LED Power Supply 60W 24V 2.5A
10% off 10+ units
Mix & match any ENVO LED drivers. US orders, applied automatically at checkout.
Notify me when it's back in stock
Your order will be processed within 24 hours

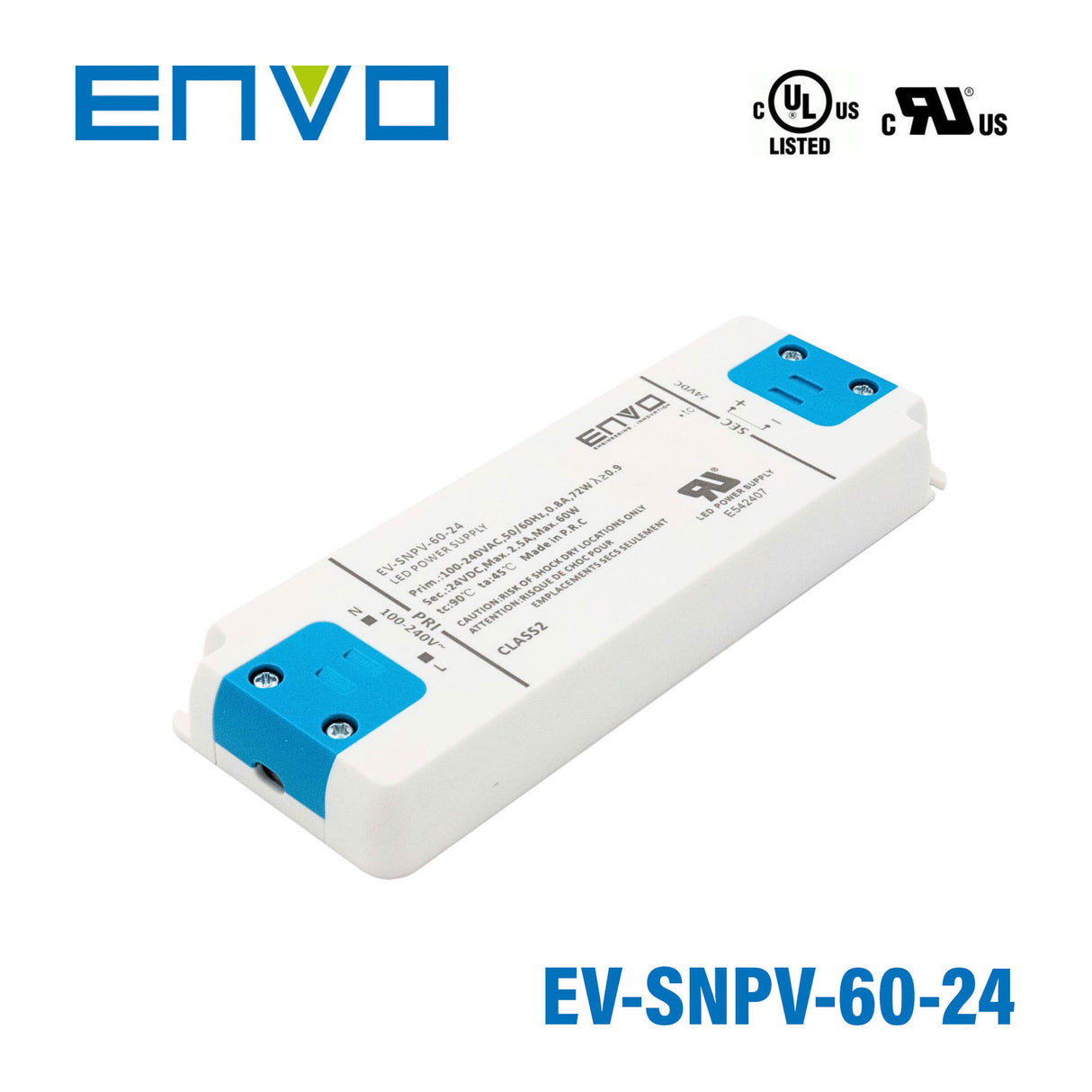

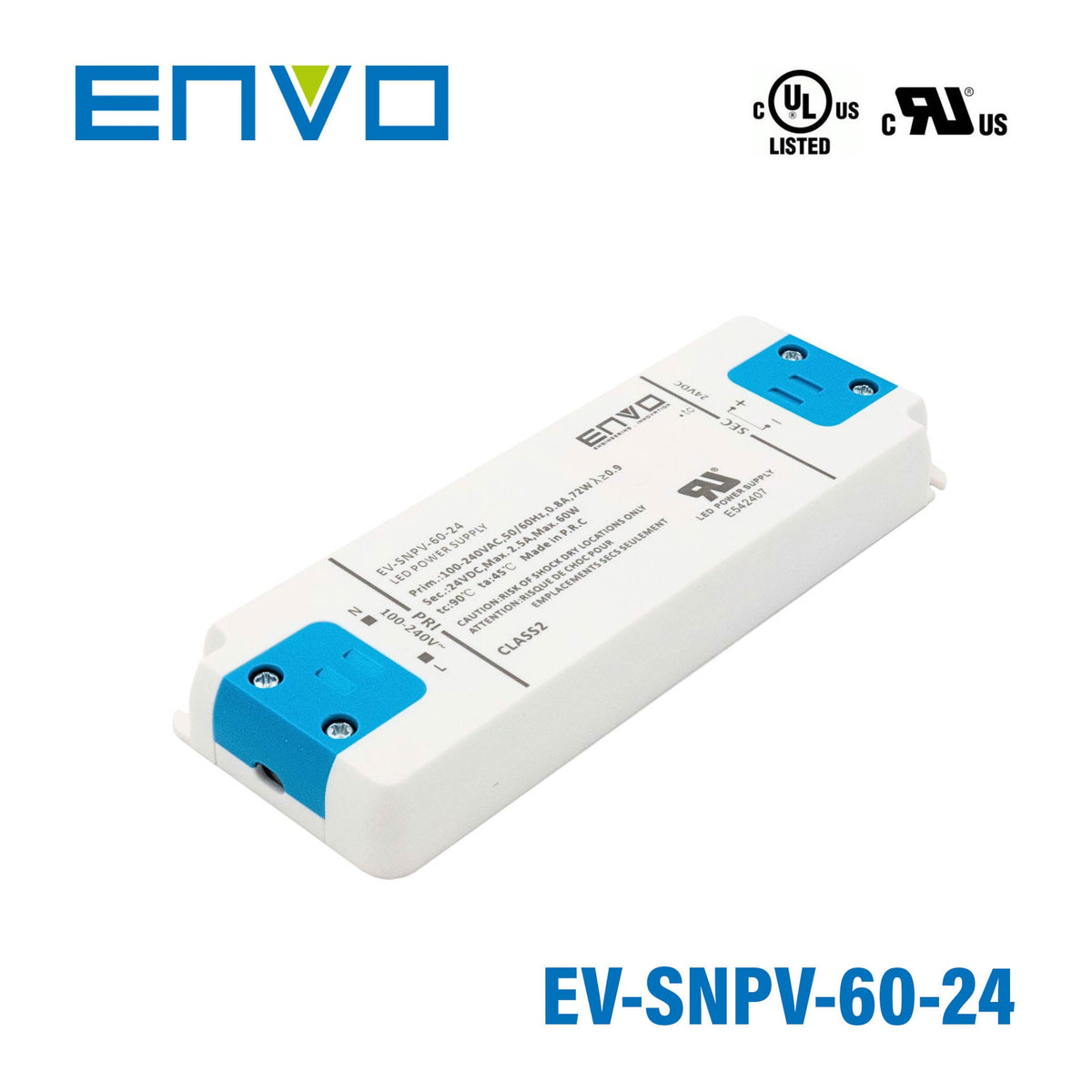

ENVO EV-SNPV-60-24 LED Power Supply 60W 24V 2.5A
Overview
High cost performance, complies with Class 2 standard of electric shock protection. Features wide input voltage, flat and slim design, ideal for furniture or cabinet lighting applications in Europe and US markets. SELV. Provides open circuit, short circuit, overload, and overtemperature protection. Compliance with ERP directive. 5 years warranty.
Specifications
Input
- Input voltage
- 100-240Vac
- Input frequency
- 50Hz/60Hz
- Input current
- 0.8A
- Input power
- <72W
- Efficiency
- ≥ 87%
- StandbyAverage
- <0.5W
- Inrush currentPeak
- <75A
- PF
- ≥0.9
Output
- Startup time
- 0.5S
- Output voltage and precision
- 24V±5%
- Output current range60W
- 0-2.5A
- Output voltage waveVp-p
- <240mV
- Output overload
- Yes
Environment
- Relative humidity
- 45%-85%
- IP grade
- IP20
Others
- Lifetime
- 30,000hr
- Case material and size
- Plastic 159.9*57.8*18mm
- Safety
- IEC61347-1 IEC61347-2-13, UL8750
Certifications & ratings
- Marked features
- Class II, SELV
- Certification marks
- CE, UKCA, UL, cULus, cRUus
- Safety standards
- UL8750
- EMC standards
- FCC PART15 Class B
Technical drawings
Downloads
Datasheet1
FAQ
What is this LED driver used for?
It is designed for furniture or cabinet lighting applications in Europe and US markets, featuring a flat and slim design.
What are the output voltage and current specifications?
The output is 24V with a current range of 0-2.5A, delivering up to 60W of power.
What is the input voltage range?
It accepts a wide input voltage range of 100-240Vac at 50Hz/60Hz.
What safety protections are included?
It provides open circuit, short circuit, overload, overvoltage, and overtemperature protection. It is a Class II, SELV device.
What is the IP rating and mounting type?
The unit has an IP20 rating, making it suitable for indoor use only. It uses independent mounting with a plastic case.
Which certifications does this driver hold?
It carries CE, UKCA, UL, cULus, and cRUus marks, complying with IEC61347 and UL8750 safety standards.
What is the warranty period?
The product comes with a 5-year warranty.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other EV-SNPV Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| ENVO EV-SNPV-60-12 LED Power Supply 60W 12V 5A | 60W | 12V | 5A | IP20 | $17.08 | View |
| ENVO EV-SNPV-40-24 LED Power Supply 40W 24V 1.67A | 40W | 24V | 1.67A | IP20 | $12.41 | View |
| ENVO EV-SNPV-40-12 LED Power Supply 40W 12V 3.33A | 40W | 12V | 3.33A | IP20 | $13.08 | View |
