ENVO EV-SNPV-60-12 LED Power Supply 60W 12V 5A
10% off 10+ units
Mix & match any ENVO LED drivers. US orders, applied automatically at checkout.
Notify me when it's back in stock
Your order will be processed within 24 hours

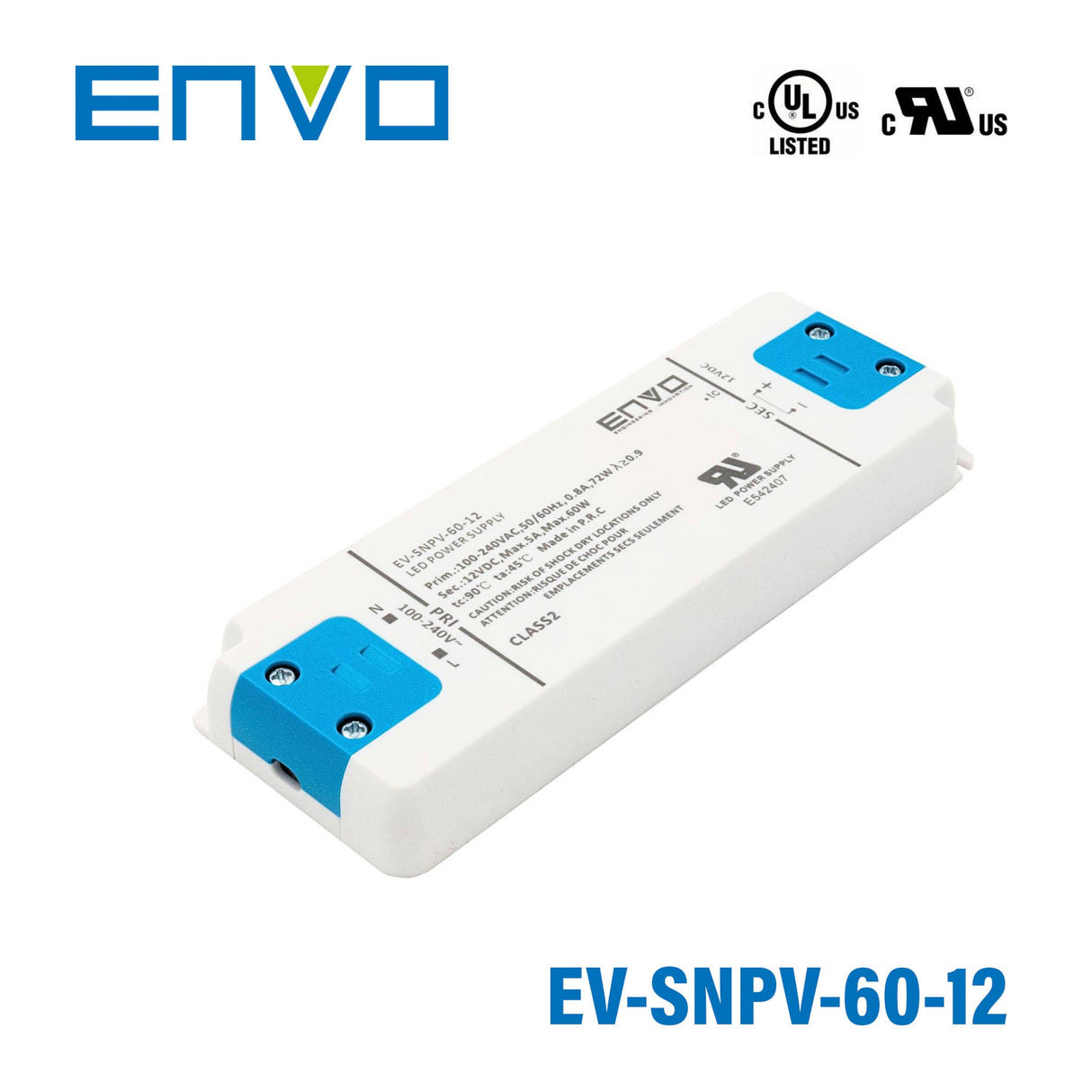

ENVO EV-SNPV-60-12 LED Power Supply 60W 12V 5A
Overview
High cost performance, complies with Class 2 standard of electric shock protection. Features wide input voltage, flat and slim design, ideal for furniture or cabinet lighting applications in Europe and US markets. SELV. Provides open circuit, short circuit, overload, and overtemperature protection. Compliance with ERP directive. 5 years warranty.
Specifications
Input
- Input voltage
- 100-240Vac
- Input frequency
- 50Hz/60Hz
- Input current
- 0.8A
- Input power
- <72W
- Efficiency
- ≥ 87%
- StandbyAverage
- <0.5W
- Inrush currentPeak
- <75A
- PF
- ≥0.9
Output
- Startup time
- 0.5S
- Output voltage and precision
- 12V±5%
- Output current range60W
- 0-5.0A
- Output voltage waveVp-p
- <300mV
- Output overload
- Yes
Environment
- Relative humidity
- 45%-85%
- IP grade
- IP20
Others
- Lifetime
- 30,000hr
- Case material and size
- Plastic 159.9*57.8*18mm
- Safety
- IEC61347-1, IEC61347-2-13
- EMI
- EN55015
Certifications & ratings
- Marked features
- Class II, SELV
- Certification marks
- CE, UKCA, UL, cULus, cRUus
- Safety standards
- UL8750
- EMC standards
- FCC PART15 CLASSB
Technical drawings
Downloads
Datasheet1
FAQ
What is this LED driver used for?
It is a 60W constant voltage driver designed for furniture or cabinet lighting applications in Europe and US markets.
What are the output specifications?
It provides a 12V DC output with a current range of 0-5.0A and a maximum power of 60W.
What is the input voltage range?
It accepts a wide input voltage range of 100-240Vac at 50Hz/60Hz.
What protections does it have?
It includes open circuit, short circuit, overload, overtemperature, and overvoltage protection. Overload and short circuit faults auto-recover, while overvoltage and overheat require a restart.
How is it installed?

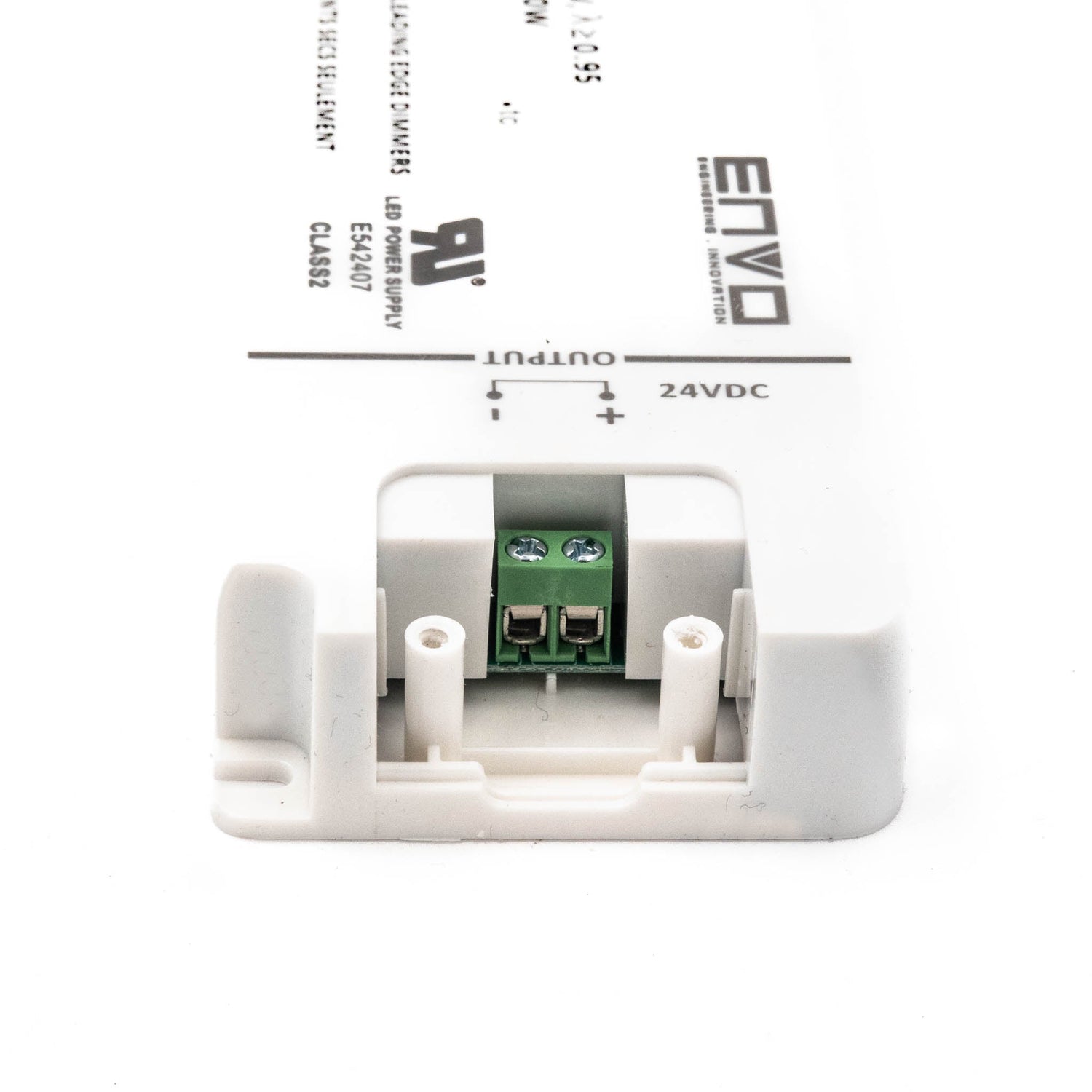

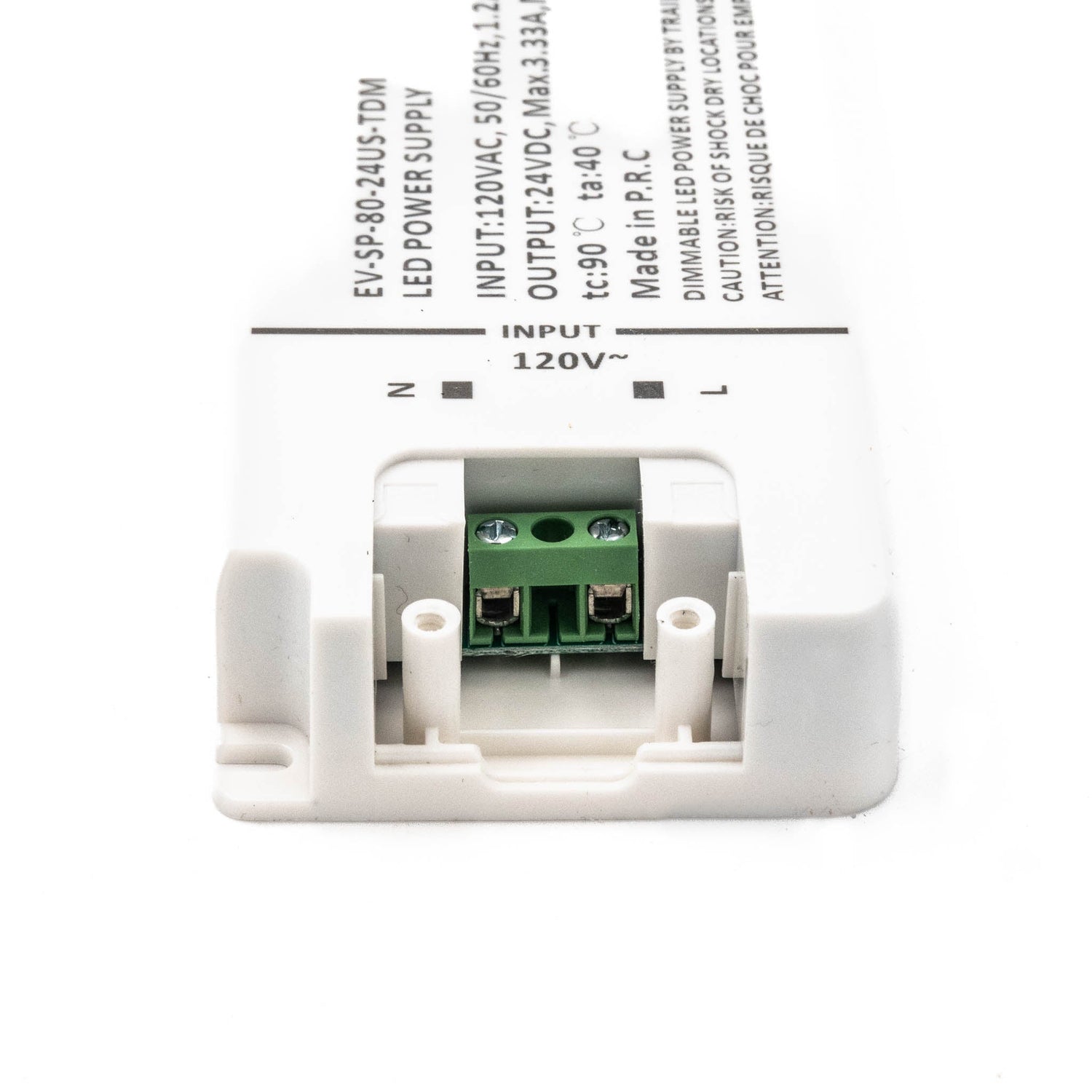

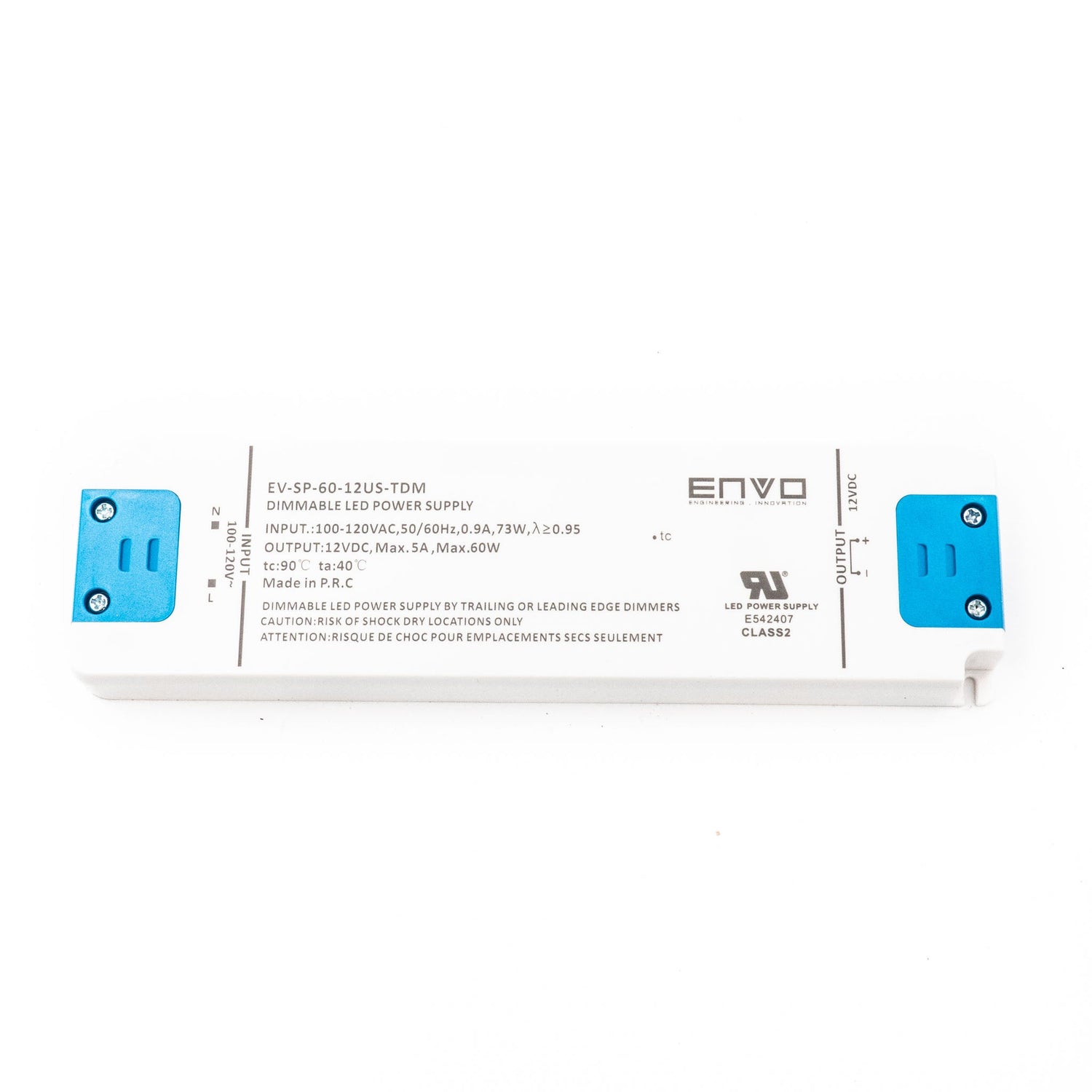

It features a flat, slim plastic case (159.9x57.8x18mm) with terminal connections for input and output cables. It is designed for independent mounting.
Where can it be used?
It has an IP20 rating, making it suitable for indoor use only. The operating temperature range is -20°C to 45°C.
Is it certified?
Yes, it carries CE, UKCA, UL, cULus, and cRUus marks. It complies with Class II and SELV standards.
