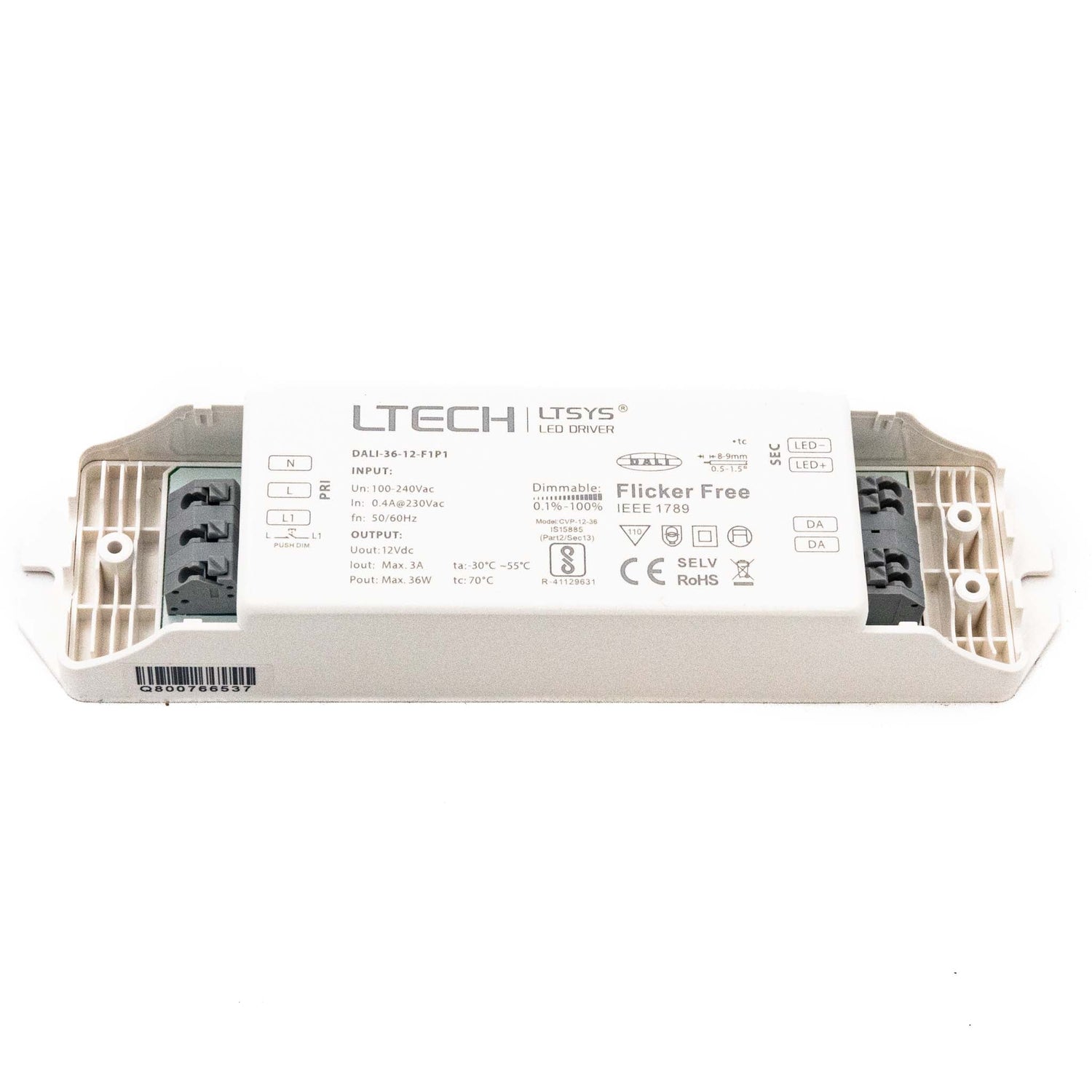

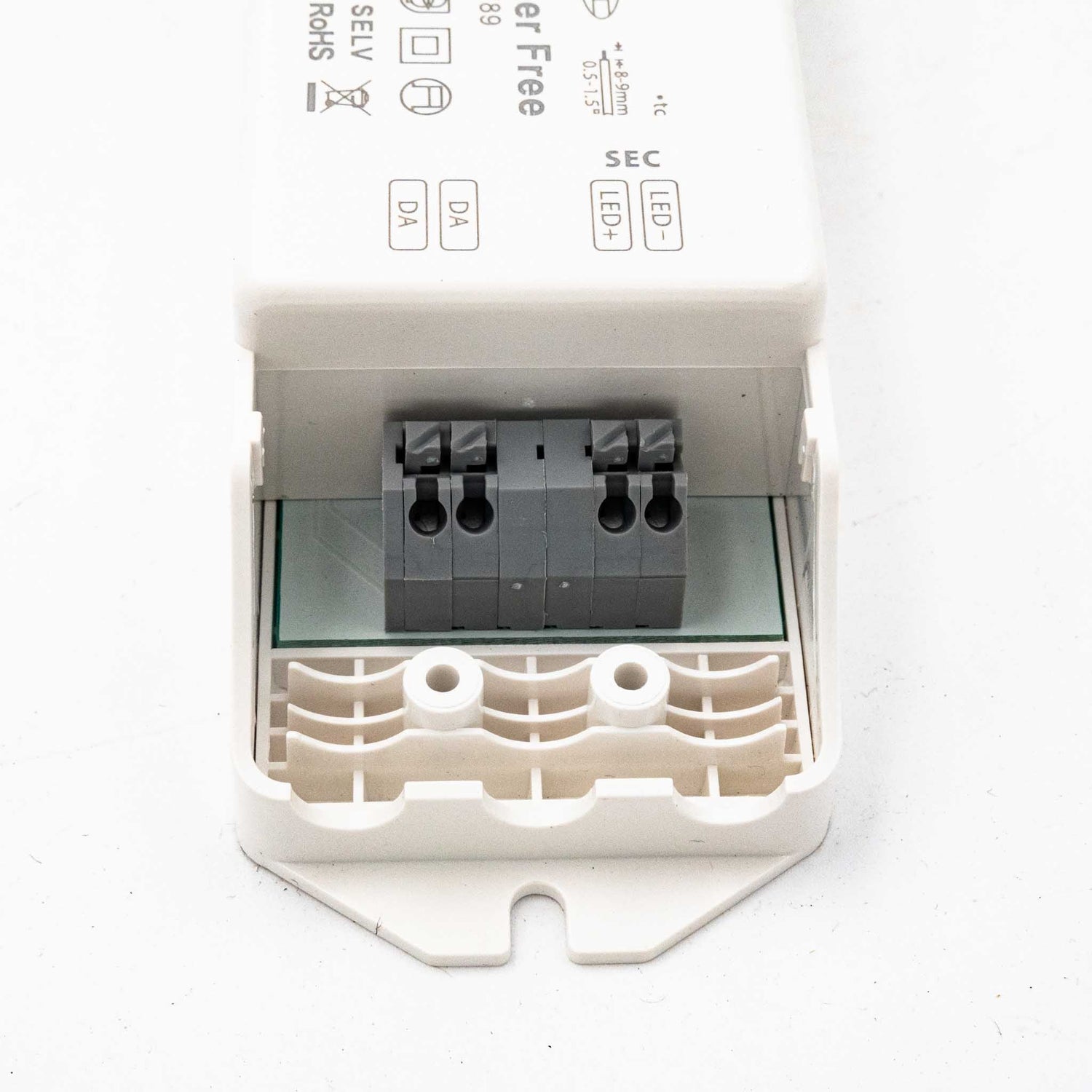

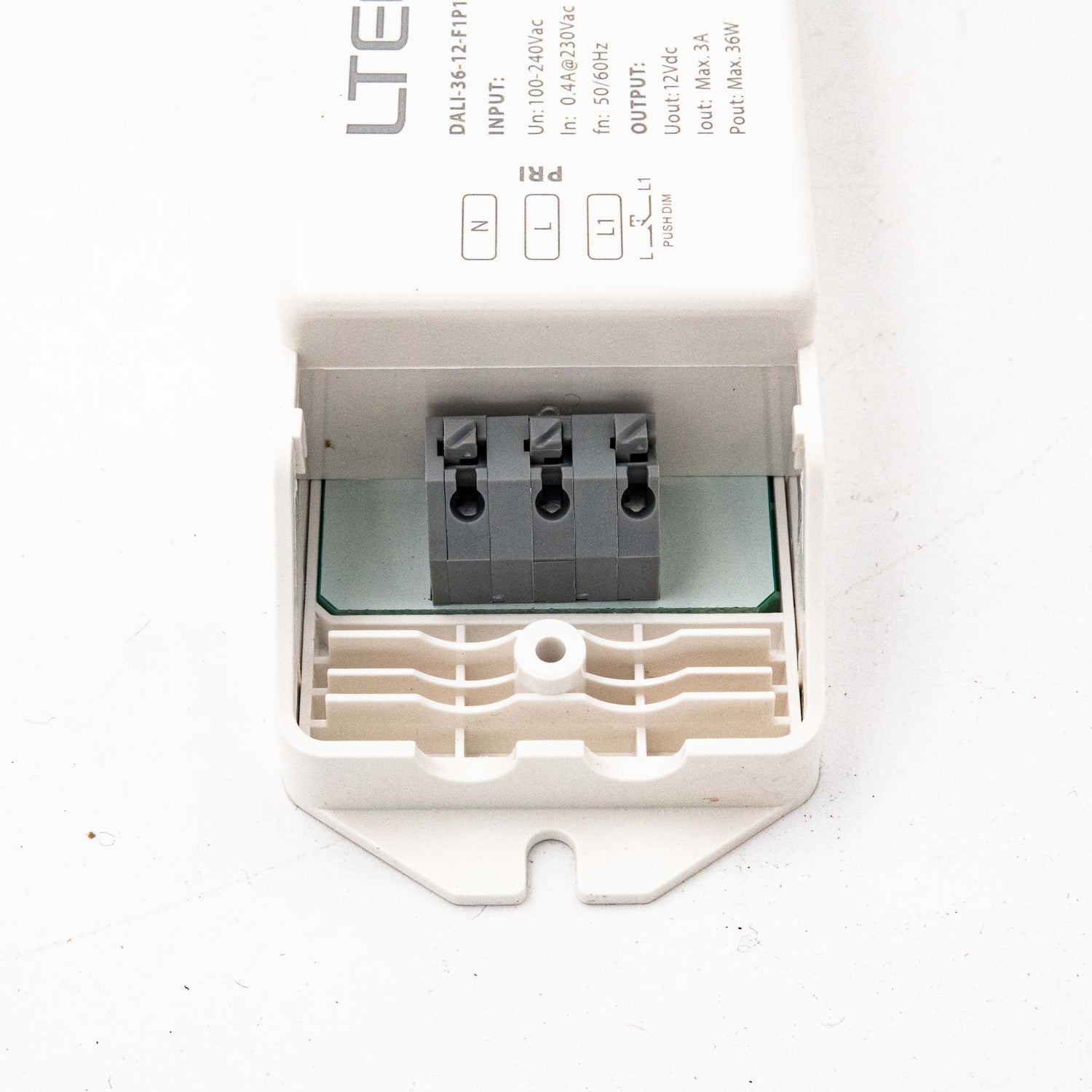

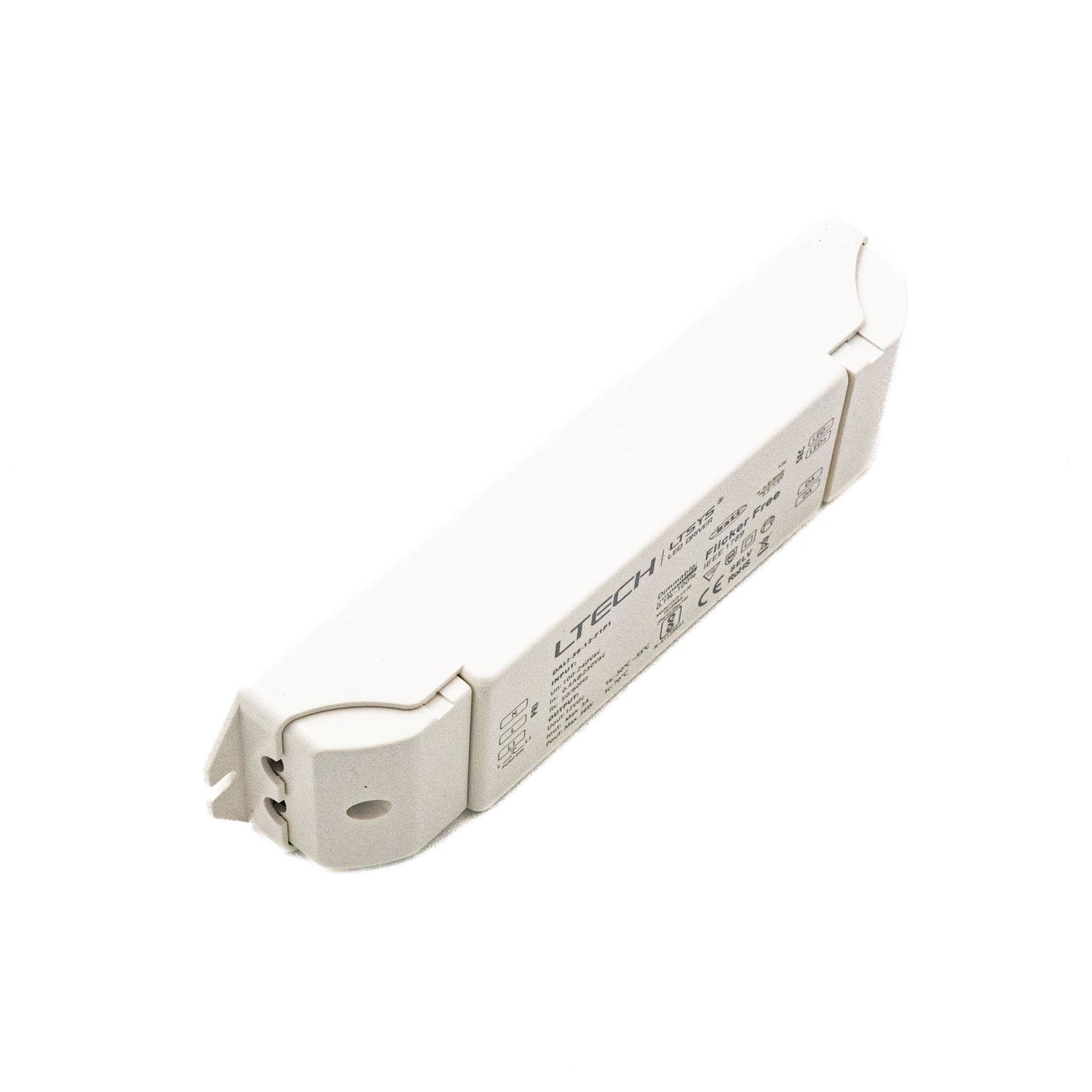

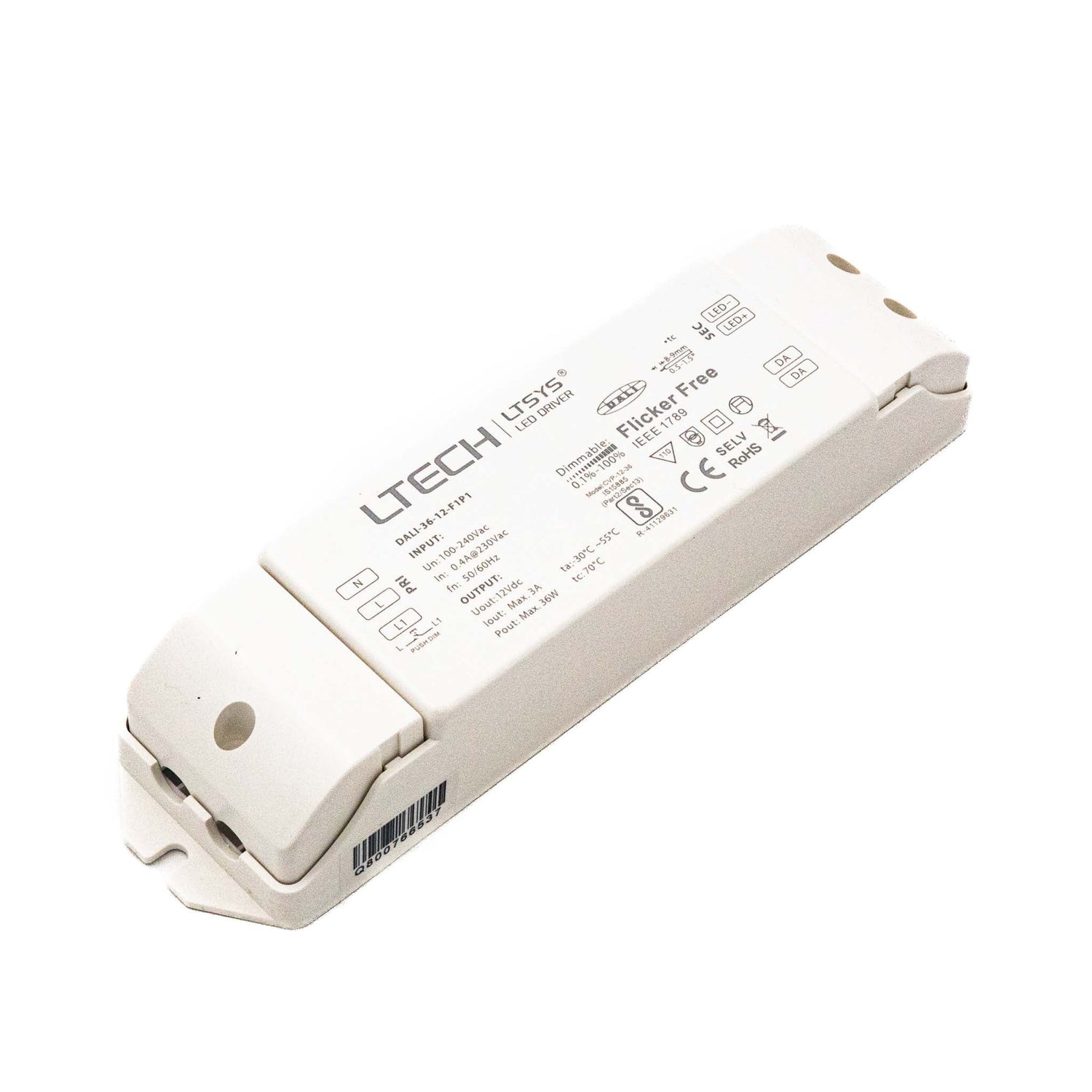

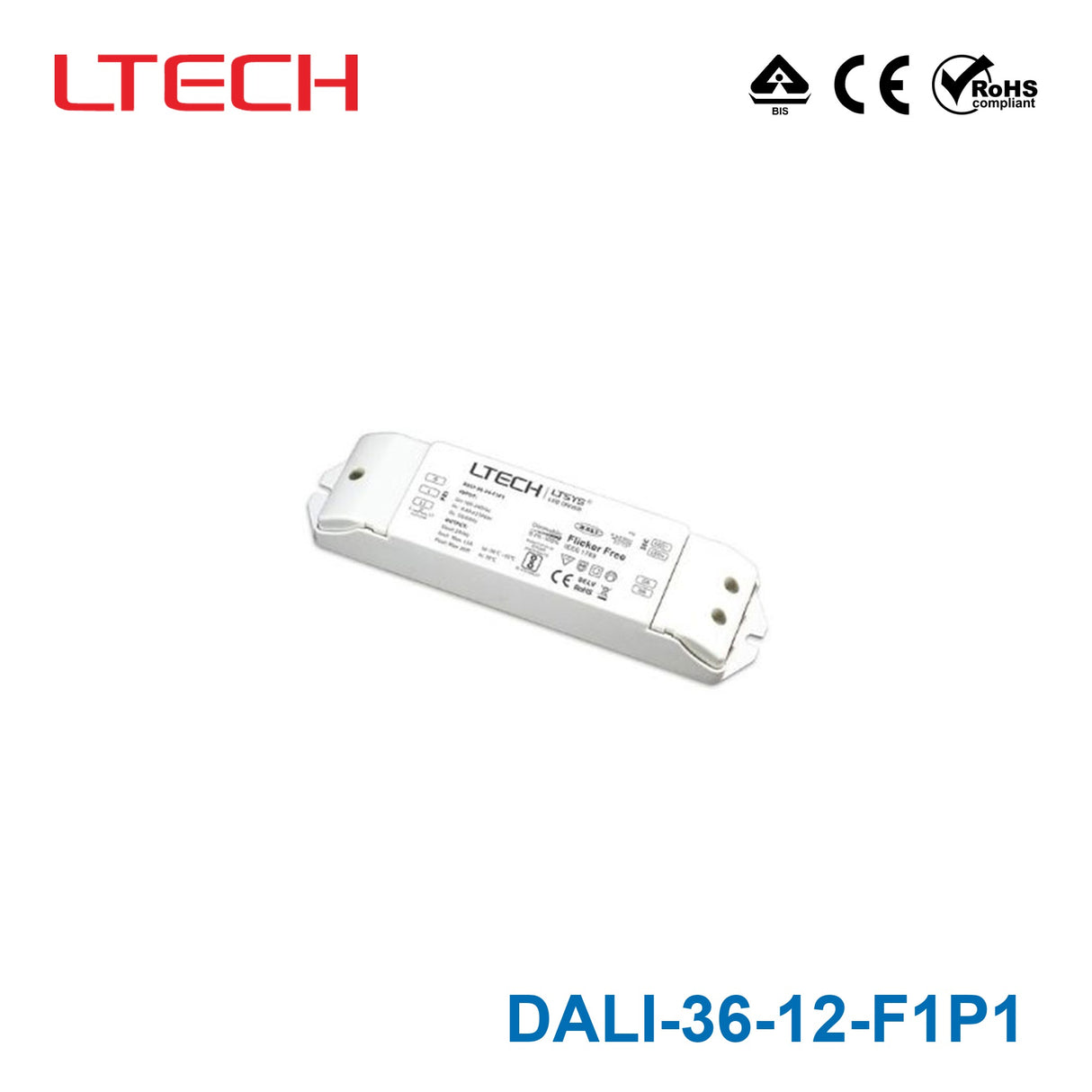

LTECH DALI-36-12-F1P1 36W 12VDC CV DALI LED Driver

$39.46 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

  • Dimming interface: DALI
  • Push DIM
  • Dimming range from 0-100%
  • LED start at 0.1%possible.
  • 0~100% flicker-free
  • achieve the level of exemption assessment.
  • DALI dimming curve: liner curve or logarithmic curve.
  • Over-heat / Over load / Short circuit protection
  • recover automatically.
  • Class 2 power supply
  • full protective plastic housing.DALI bus standard: IEC62386-101
  • 102
  • 207
  • Compliant with Safety Extra Low Voltage standard.
  • Suitable for indoor I/II/IIItype lamps application.

Specifications

  • Brand
    Ltech
  • Series
    Ltech DALI Series
  • Power Rating
    36 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    3 Ampere
  • Input Voltage
    100V~240V
  • No of Output
    1
  • Dimming Control
    DALI
  • Standards Met
    BIS,CE,ROHS
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~55°C
  • Warranty
    5 Year
  • Length
    6.89 in
  • Width
    1.73 in
  • Height
    1.18 in
  • Weight
    0.42 lb
