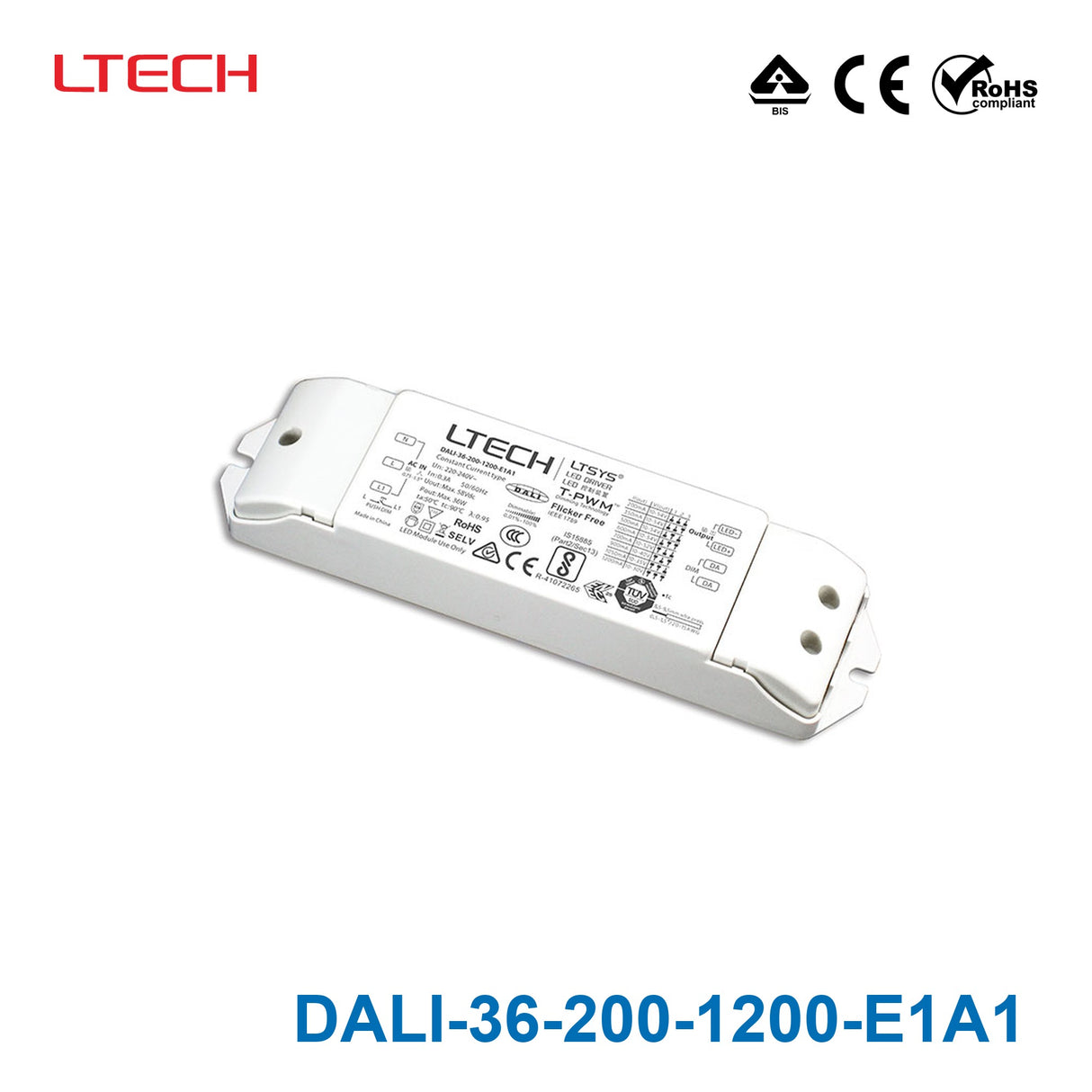

Ltech DALI-36-200-1200-E1A1 36W 200mA~1200mA CC Dali LED Driver - ...
- Dimming interface: DALI
- Push DIM
- T-PWM digital dimming
- Dimming range: 0~100%
- LED start at 0.01% possible.
- 0-100% flicker-free
- (IEEE 1789 standard)
- Innovative thermal management technology
- intelligent power life protection.
- DALI dimming curve can be either linear or logarithmic.
- Multi-current & wide voltage
- suitable for different power LED.
- Non-load output voltage 0V to prevent damages to LED caused by poor contact
- Short circuit / Over load/Over heat
- Non-load protection recover automatically
- DALI bus standard: IEC62386-101
- 102
- 207
- Suitable for internal lights application for I/II/III
- 5 years warranty (Rubycon capacitor).
-
BrandLtech
-
SeriesLtech DALI Series
-
Power Rating36 Watt
-
Output Voltage58 Volt
-
Rated Current0.2 Ampere
-
Input Voltage220V~240V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetBIS,CE,ROHS
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length6.57 in
-
Width1.61 in
-
Height1.26 in
-
Weight0.02 lb
::specification::
Frequently Asked Questions
What type of LED applications is the Ltech DALI-36-200-1200-E1A1 designed for?
This model is a constant-current DALI LED driver intended for internal lighting applications. Its selectable 200mA to 1200mA output range makes it suitable for different power LED fixtures that need current matching rather than a fixed-voltage supply.
What makes this driver different from a fixed-output LED driver?
The DALI-36-200-1200-E1A1 offers selectable constant-current output from 200mA up to 1200mA, which gives more flexibility across different LED loads. That can simplify product selection when compared with a single-current driver that only supports one rated output.
Which dimming methods does the Ltech DALI-36-200-1200-E1A1 support?
This driver supports DALI dimming, Push DIM, and T-PWM digital dimming. It provides a 0 to 100% dimming range, supports LED startup at 0.01%, and is described as flicker-free across 0 to 100% in line with IEEE 1789.
What are the main electrical specs of this LED driver?
This model is rated at 36W and provides selectable constant-current output from 200mA to 1200mA. The listed maximum output voltage is 58V, so it is intended for LED loads that fit within that constant-current operating range.
Can this driver be used in demanding temperature conditions?
The specified operating temperature range is -40°C to 80°C, which makes it suitable for a wide range of indoor commercial and architectural lighting environments. It also includes innovative thermal management and intelligent power life protection to help support reliability under load.
What protection features are included in the Ltech DALI-36-200-1200-E1A1?
This driver includes short circuit, overload, overheat, and non-load protection with automatic recovery. It also has a 0V non-load output feature intended to help prevent LED damage caused by poor contact when no proper load is present.
Is this model compatible with standard DALI control systems?
Yes. The product states compliance with the DALI bus standard IEC62386-101, IEC62386-102, and IEC62386-207, which indicates compatibility with standard DALI-based lighting control environments.
What warranty does the Ltech DALI-36-200-1200-E1A1 include?
This model carries a 5-year warranty. The description also notes Rubycon capacitors, which are highlighted as part of the product's long-life design approach.
