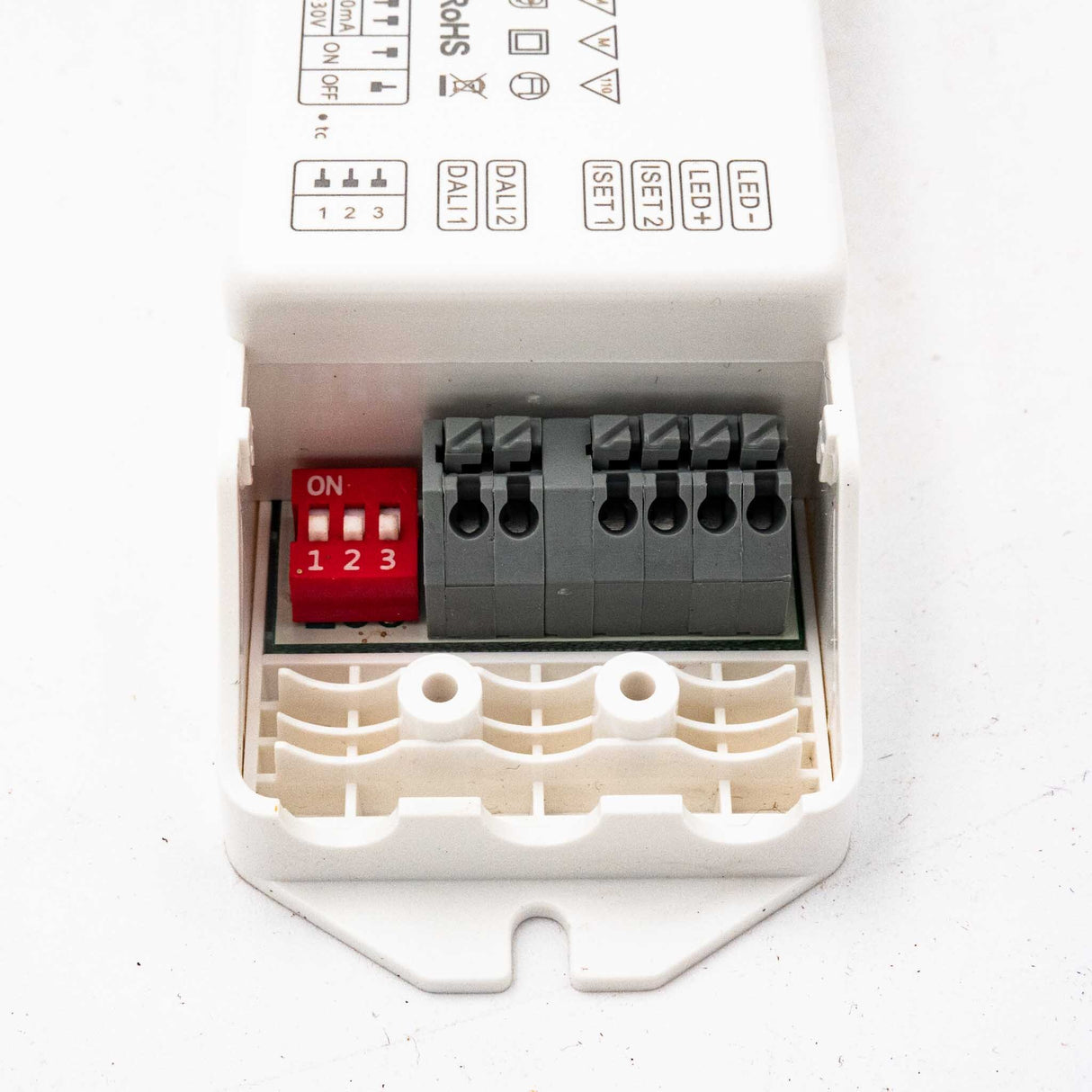

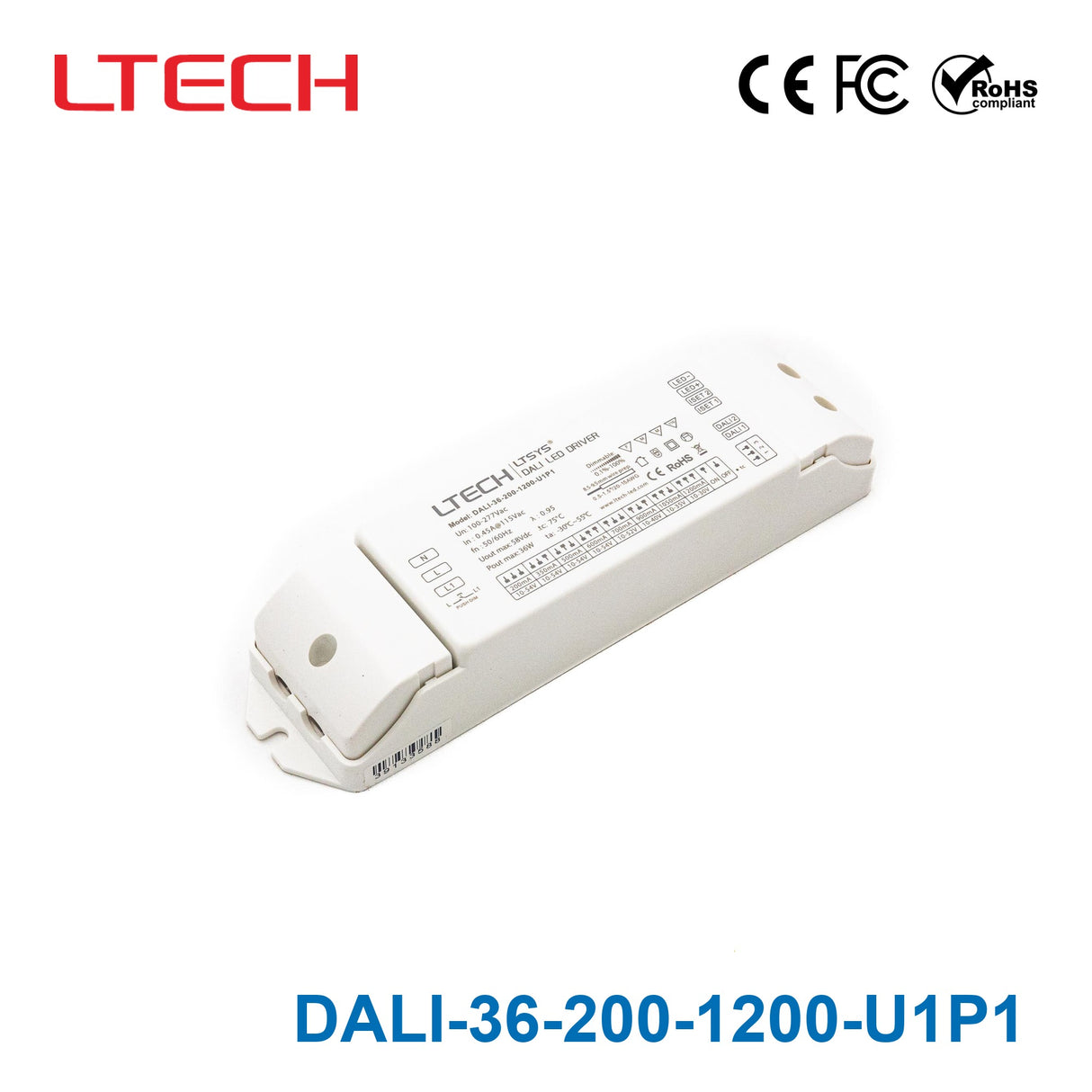

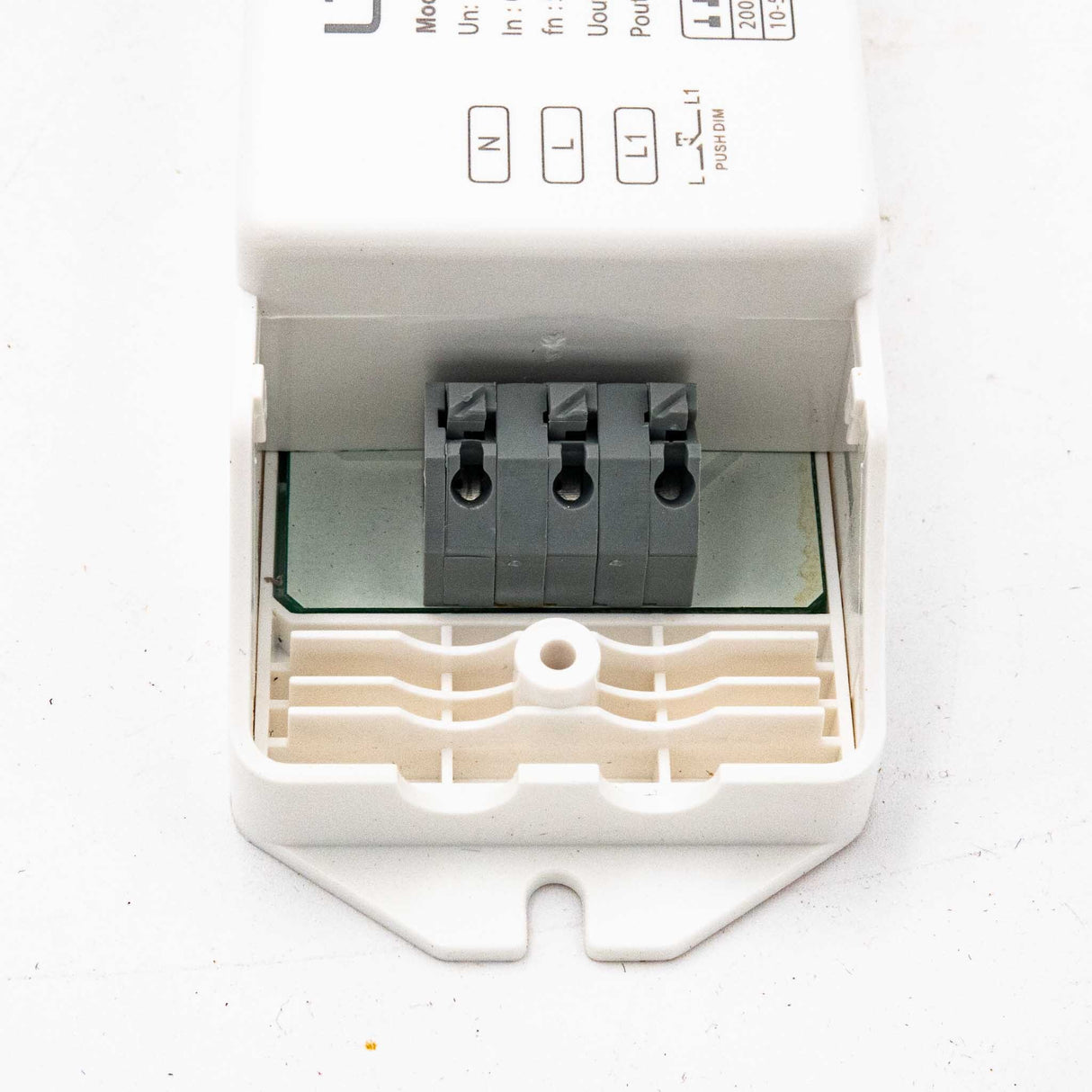

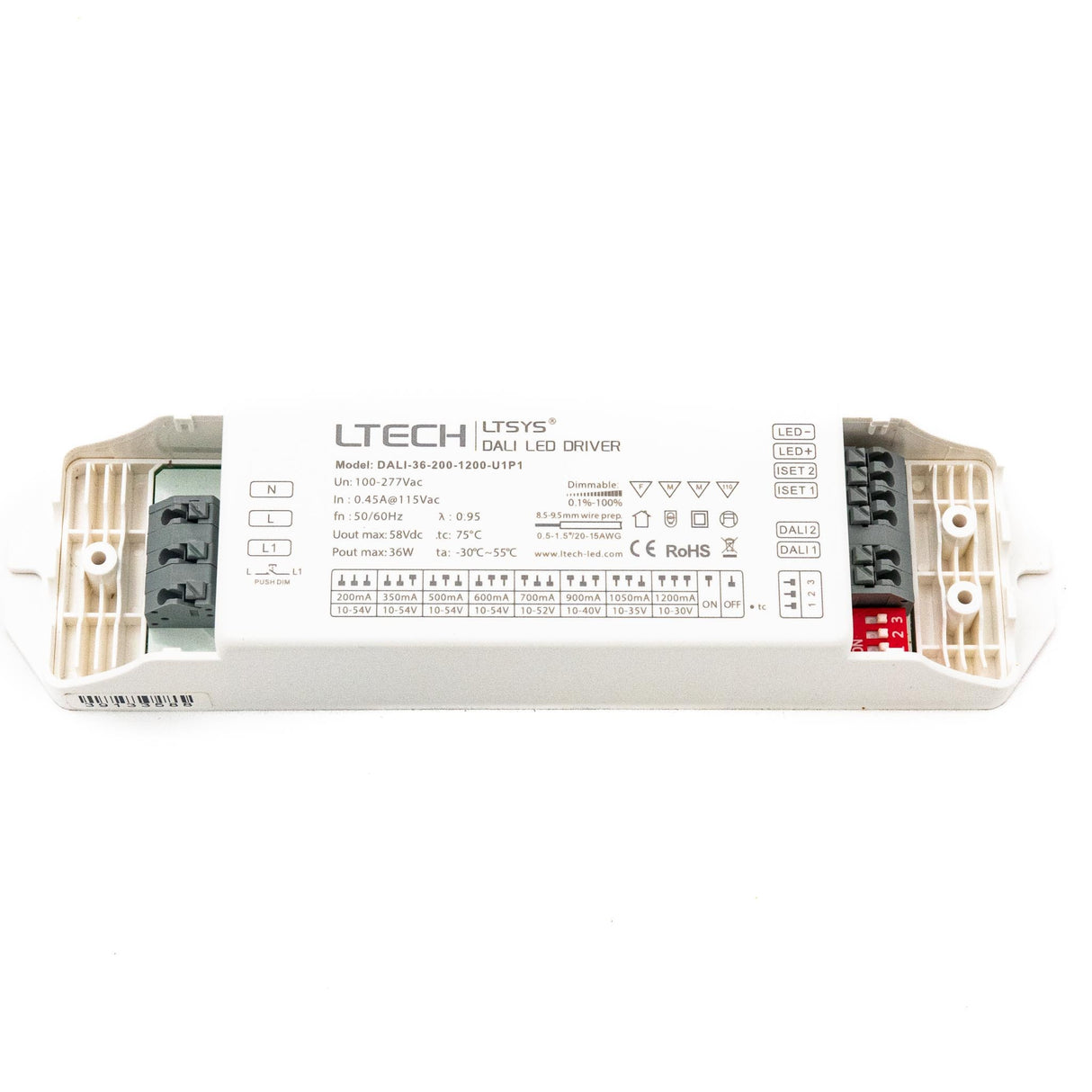

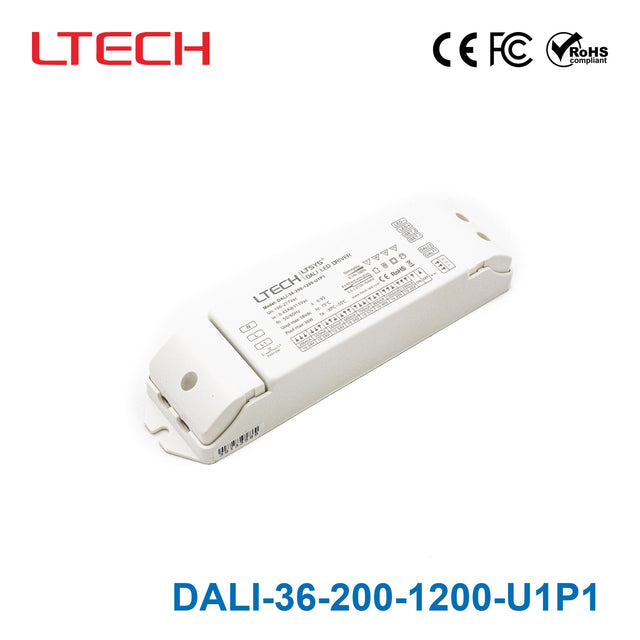

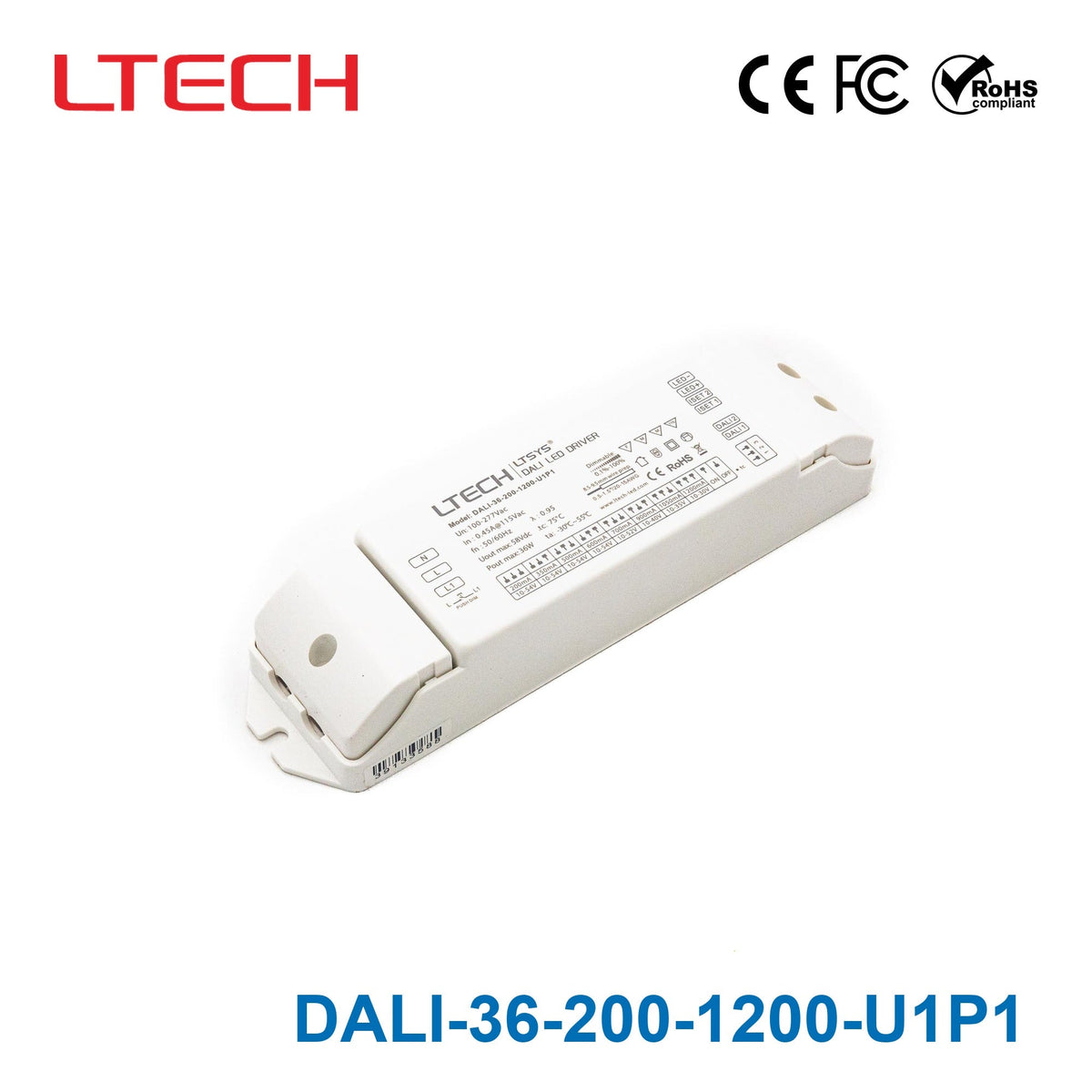

LTECH DALI-36-200-1200-U1P1 36W 200mA ~ 1200mA CC Dali LED Driver - Selectable Output

Features:

• Dimming interface: DALI, Push DIM
• T-PWM digital dimming
• Dimming range: 0~100%, LED start at 0.01% possible.
• 0-100% flicker-free (IEEE 1789 standard).
• Innovative thermal management technology, intelligent power life protection.
• DALI dimming curve can be either linear or logarithmic.
• Multi-current & wide voltage, suitable for different power LED.
• Non-load output voltage 0V to prevent damages to LED caused by poor contact
• Short circuit / Over-heat / Over load / Non-load protection, recover automatically
• DALI bus standard: IEC62386-101, 102, 207
• Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ
• 5 years warranty (Rubycon capacitor).

General Specification

Input Voltage

100-277Vac ±10%, (Max. 90-305Vac)

Inrush Current

Cold start 20A at 230Vac (twidth=75μs measured at 50% Ipeak)

Over-heat Protection

Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, auto recovers.

Over Load Protection

Shut down the output when current load≥102%, auto recovers.

Short Circuit Protection

Shut down automatically if short circuit occurs, auto recovers

Non-load Protection:

Shut down the output if no load, auto recovers

Withstanding Voltage

I/P-O/P: 3750Vac

Insulation Resistance

I/P-O/P: 100MΩ/500VDC/25°C/70%RH

Operating Temperature

ta: -30°C ~ 55°C tc: 75°C

Safety standards

IEC/EN61347-1, IEC/EN61347-2-13

Dimension (LxWxH)

175×44×30 mm

• Brand
  Ltech
• Series
  Ltech DALI Series
• Power Rating
  36 Watt
• Output Voltage
  58 Volt
• Rated Current
  1.2 Ampere
• Input Voltage
  90V~305V
• No of Output
  1
• Dimming Control
  DALI,Push Dimming
• Standards Met
  CE,FC,ROHS,SELV
• Operation Mode
  Constant Current
• Operating Temperature
  -30°C~55°C
• Warranty
  5 Year
• Length
  6.89 in
• Width
  1.18 in
• Height
  1.73 in
• Weight
  0.39 lb
