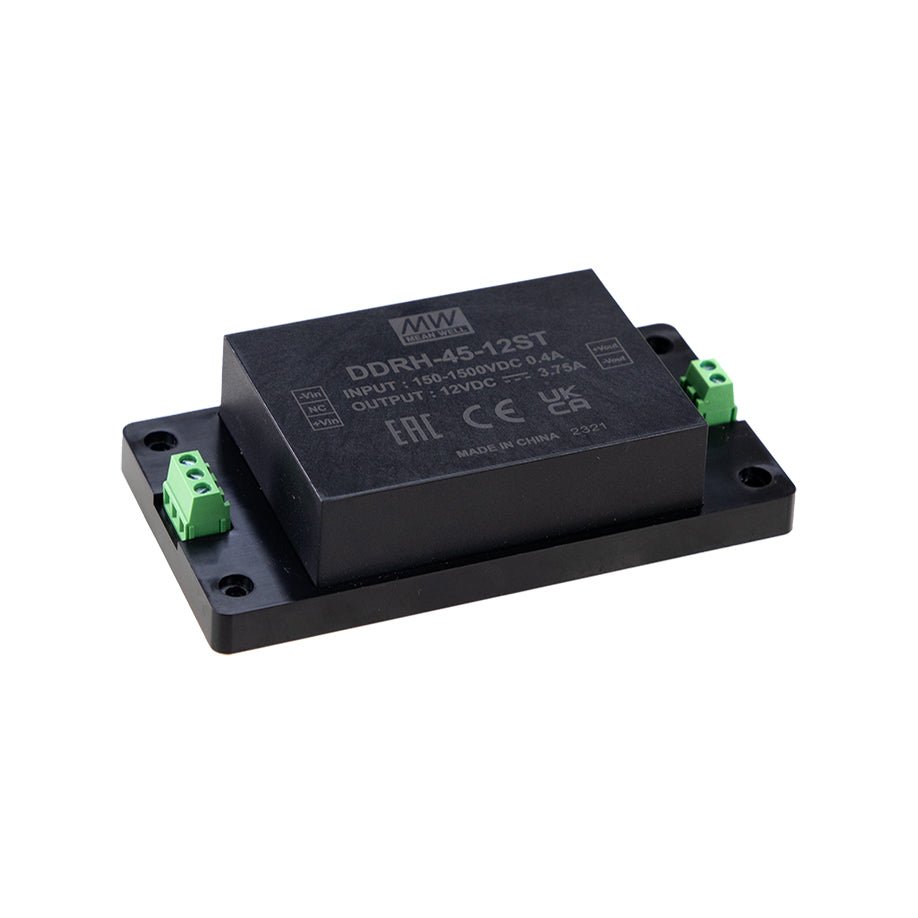

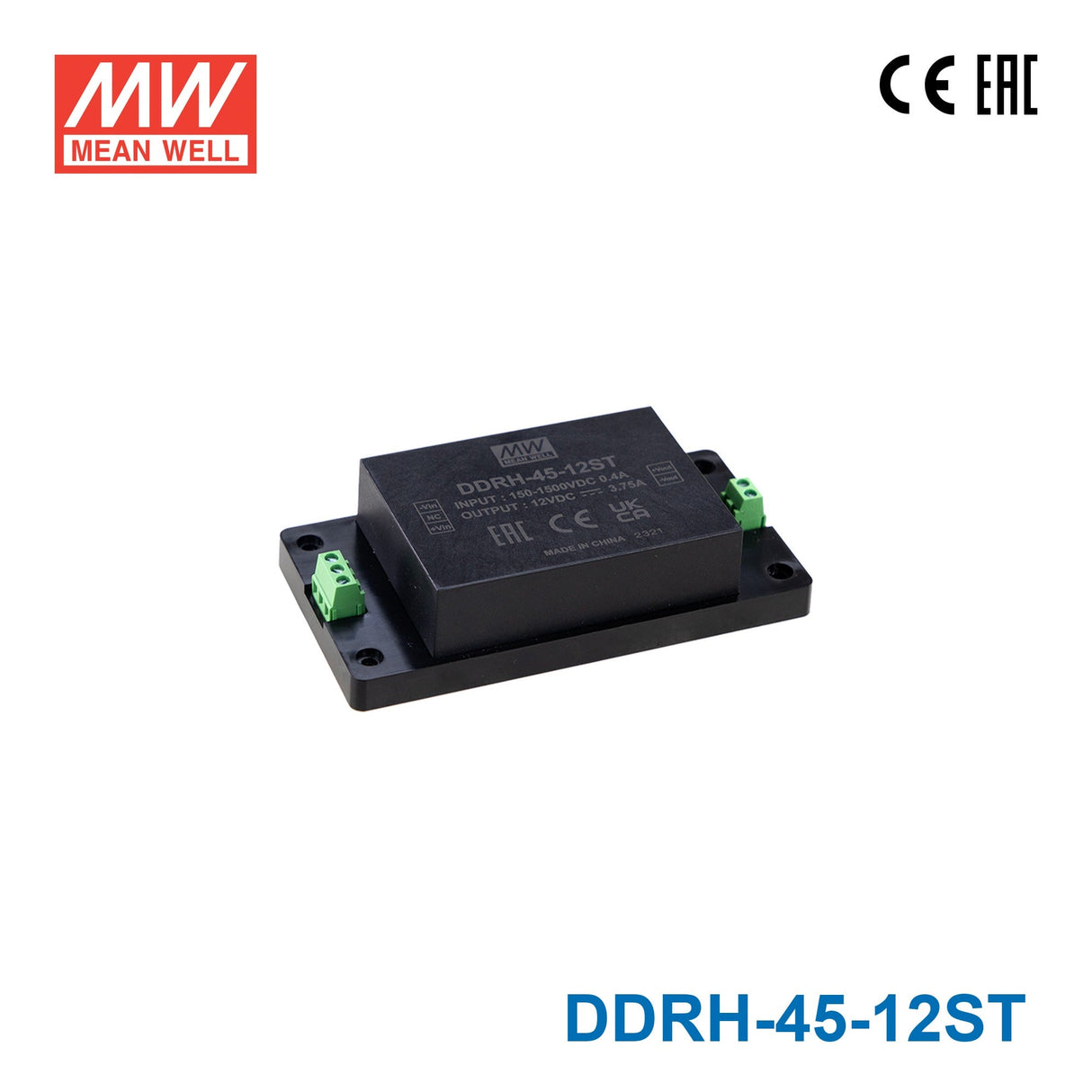

Mean Well DDRH-45-12ST Ultra Wide Input DC-DC Converter, 45W 12V, Screw Terminal Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well DDRH-45-12ST Ultra Wide Input DC-DC Converter, 45W 12V, S...
The DDRH-45 is a 45W high-reliability ultra-wide input DC-DC converter designed for photovoltaic, renewable energy storage, and demanding high-voltage industrial systems. Supporting a 150~1500Vdc input range, it adapts to solar, battery string, and DC bus supply sources. With 4KVac reinforced I/O isolation, fanless free air convection cooling, and no minimum load requirement, the DDRH-45 offers reliable power conversion across a -40~+80°C operating range.
Key Features
- ✓ Ultra-wide 150~1500Vdc input range — covers solar, ESS, and DC bus sources
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVac reinforced I/O isolation
- ✓ Cooling by free air convection — fanless design, no minimum load required
- ✓ Wide operating temperature: -40°C ~ +80°C
- ✓ Protections: Short circuit / Overload / Over voltage / Reverse polarity / Under voltage lockout
- ✓ DIN rail TS-35/7.5 or 15 compatible (DR type)
- ✓ Safety approvals: IEC62109-1 (LVD), EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesDDRH Series
-
Power Rating45 Watt
-
Output Voltage12 Volt
-
Rated Current3.75 Ampere
-
Input Voltage150V~1500V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty3 Year
-
Length5.32 in
-
Width2.76 in
-
Height1.26 in
-
Weight0.67 lb
::specification::
Frequently Asked Questions
Can I use the DDRH-45-12ST to supply 12V control power in a medium-voltage switchgear panel?
Yes. The 150–1500VDC input accepts the DC auxiliary bus voltages common in medium-voltage switchgear and substation panels. The screw-terminal connections simplify field wiring, and the 45W, 12V, 3.75A output powers protection relays, annunciators, and panel lighting.
Is the DDRH-45-12ST suitable for powering 12V sensors and transmitters in a process control system?
The constant-voltage 12V output at up to 3.75A supports 4–20 mA transmitters, pressure sensors, and flow meters commonly found in process control and SCADA installations. The screw terminal format simplifies integration with field cable runs.
Can this converter power a 12V industrial Ethernet switch in a factory automation network?
A 45W, 12V supply at 3.75A is adequate for most unmanaged and compact managed industrial Ethernet switches. The fanless, –40°C to +80°C-rated design fits harsh production floor environments where noise and temperature fluctuations are concerns.
What is the difference between the DDRH-45-12ST and the other DDRH-45-12 models?
The DDRH-45-12ST uses screw terminal connections and measures 135×70×32 mm, weighing 0.305 kg. The DDRH-45-12DR has the same footprint but is 43.5 mm deep (0.31 kg) and includes a DIN rail clip. The DDRH-45-12P is a PCB-mount module at 89×63.5×25 mm (0.24 kg). All three are rated 45W, 12V, 3.75A.
Can the DDRH-45-12ST be installed in an outdoor junction box?
The converter itself has no IP ingress-protection rating, so direct outdoor exposure is not recommended. When installed inside an IP54 or better-rated outdoor enclosure, the –40°C to +80°C operating range accommodates most climatic conditions.
Does the fanless design of the DDRH-45-12ST make it suitable for dusty industrial environments?
Yes. Without a fan there are no moving parts to draw dust into the converter, reducing contamination risk. For environments with heavy particulate, an enclosure with appropriate filtration is still advisable since the unit itself lacks an IP dust rating.
