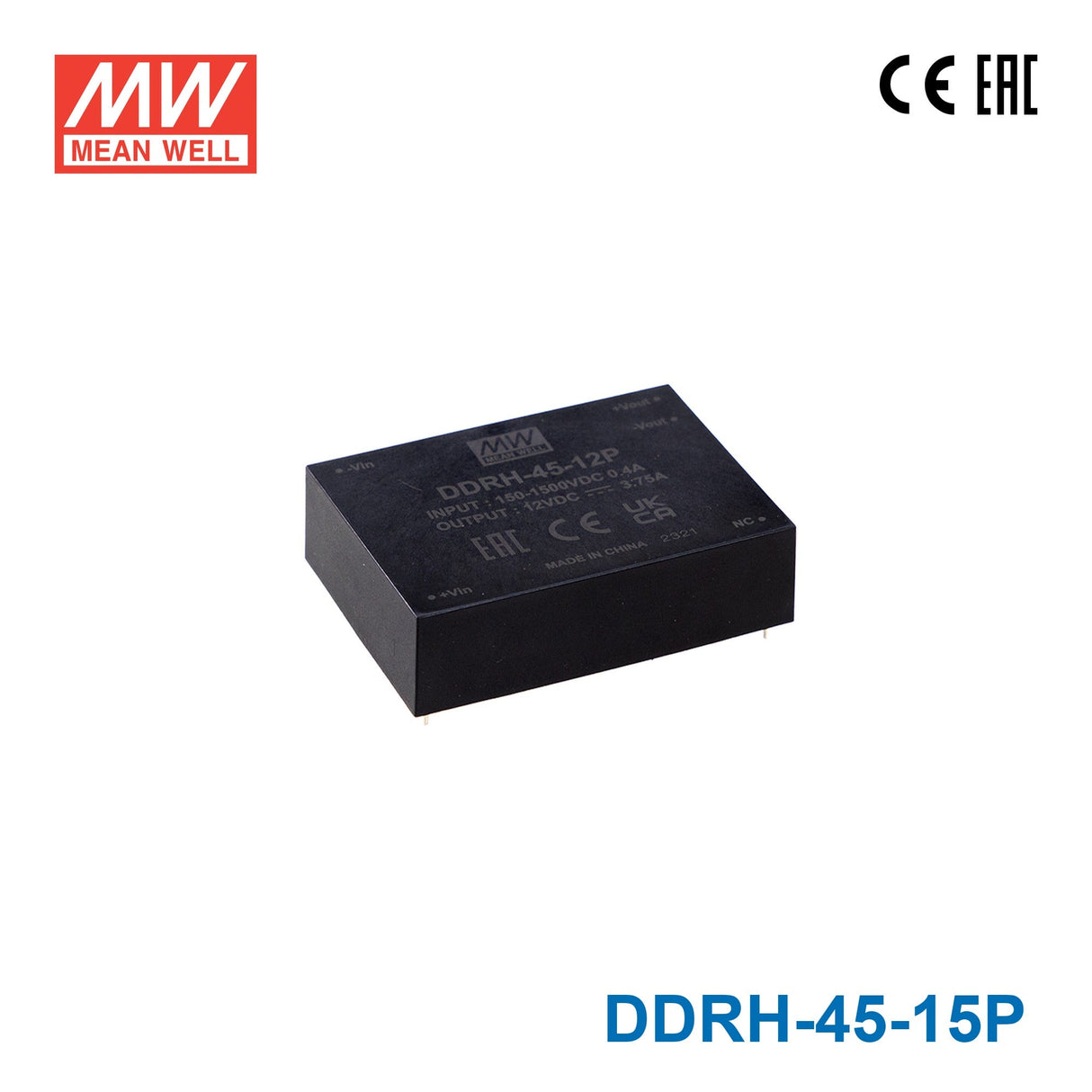

Mean Well DDRH-45-15P Ultra Wide Input DC-DC Converter, 45W 15V, PCB Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well DDRH-45-15P Ultra Wide Input DC-DC Converter, 45W 15V, PC...
The DDRH-45 is a 45W high-reliability ultra-wide input DC-DC converter designed for photovoltaic, renewable energy storage, and demanding high-voltage industrial systems. Supporting a 150~1500Vdc input range, it adapts to solar, battery string, and DC bus supply sources. With 4KVac reinforced I/O isolation, fanless free air convection cooling, and no minimum load requirement, the DDRH-45 offers reliable power conversion across a -40~+80°C operating range.
Key Features
- ✓ Ultra-wide 150~1500Vdc input range — covers solar, ESS, and DC bus sources
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVac reinforced I/O isolation
- ✓ Cooling by free air convection — fanless design, no minimum load required
- ✓ Wide operating temperature: -40°C ~ +80°C
- ✓ Protections: Short circuit / Overload / Over voltage / Reverse polarity / Under voltage lockout
- ✓ DIN rail TS-35/7.5 or 15 compatible (DR type)
- ✓ Safety approvals: IEC62109-1 (LVD), EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesDDRH Series
-
Power Rating45 Watt
-
Output Voltage15 Volt
-
Rated Current3 Ampere
-
Input Voltage150V~1500V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty3 Year
-
Length3.5 in
-
Width2.5 in
-
Height0.98 in
-
Weight0.53 lb
::specification::
Frequently Asked Questions
Can the DDRH-45-15P supply the 15V rail needed by op-amp circuits in an embedded signal processing board?
Yes. The PCB-mount form factor and compact 89×63.5×25 mm size allow the DDRH-45-15P to be placed directly on a carrier board. It provides a regulated 15V at up to 3A (45W) suitable for analog signal chains requiring a precision 15V rail.
Is the DDRH-45-15P suitable for powering wireless industrial routers from a 600VDC photovoltaic bus?
Yes. The 150–1500VDC input range easily covers a 600VDC PV bus. At 45W, 15V, 3A the converter can power industrial Wi-Fi routers, cellular modems, and edge computing gateways used in solar monitoring systems.
Can this PCB-type module be integrated into a custom avionics ground-support tool that runs from a high-voltage battery?
The ultra-wide 150–1500VDC input and –40°C to +80°C operating range align with demanding test and ground-support environments. At 45W it supports 15V loads such as display electronics, signal generators, and data acquisition front ends.
How does the DDRH-45-15P differ from the DDRH-45-15DR and DDRH-45-15ST?
All three produce 45W at 15V, 3A with the same 150–1500VDC input. The DDRH-45-15P is a PCB module (89×63.5×25 mm, 0.24 kg). The DDRH-45-15DR (135×70×43.5 mm, 0.31 kg) mounts on a DIN rail. The DDRH-45-15ST (135×70×32 mm, 0.305 kg) connects via screw terminals.
Does the DDRH-45-15P require any active cooling when mounted on a PCB inside a sealed box?
The fanless design means no active cooling is built in. In a sealed enclosure, total power dissipation will raise the internal temperature; ensure the enclosure thermal design keeps the ambient around the module below the 80°C maximum.
Can the DDRH-45-15P handle the cold-start conditions found in outdoor telecom equipment at –40°C?
Yes. The –40°C lower temperature rating covers the cold-start requirements of outdoor telecom nodes and remote monitoring equipment. The unit should still be housed in an IP-rated enclosure since the converter itself carries no ingress-protection rating.
