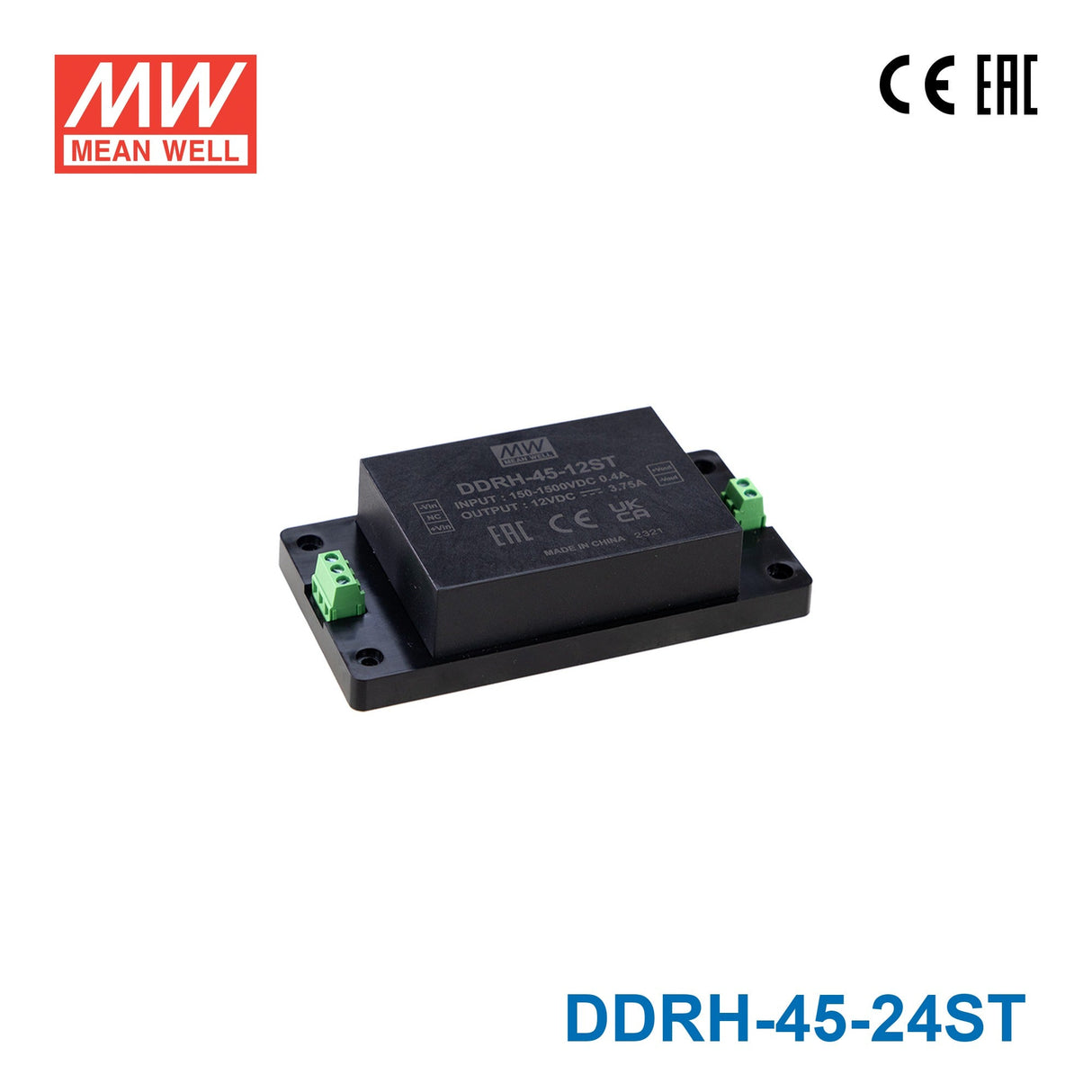

Mean Well DDRH-45-24ST Ultra Wide Input DC-DC Converter, 45W 24V, Screw Terminal Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well DDRH-45-24ST Ultra Wide Input DC-DC Converter, 45W 24V, S...
Description
Description
Features:
- 150~1500Vdc 10:1 ultra-wide input range
- 4KVac I/O high isolation(Reinforced isolation)
- Protections: Short Circuit / Overload / Over voltage / DC input under voltage / DC input Reverse Polarity
- Fanless design, fully encapsulated, cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15 (DR-type)
- -40 ~ +80℃ ultra-wide operating temperature (>+50℃ derating)
- Operating altitude up to 5000 meters
- 3 years warranty
General Specification
AC input voltage range
Nominal 800Vdc (150~1500Vdc)
AC inrush current (max.)
Cold start 150A max. @ Vin=800Vdc
Over-voltage protection
Hiccup mode recovers automatically after the fault condition is removed
Withstand voltage
I/P-O/P:4KVac
Working temperature
-40 ~ +80℃ (Refer to "Derating Curve")
Safety standards
IEC62109-1(LVD), EAC TP TC 004 approved; Design refer to UL1741(By requested)
Dimension (LxWxH)
135x70x32mm
Specifications
Specifications
-
BrandMean Well
-
SeriesDDRH Series
-
Power Rating45 Watt
-
Output Voltage24 Volt
-
Rated Current1.87 Ampere
-
Input Voltage150V~1500V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty3 Year
-
Length5.32 in
-
Width2.76 in
-
Height1.26 in
-
Weight0.67 lb
