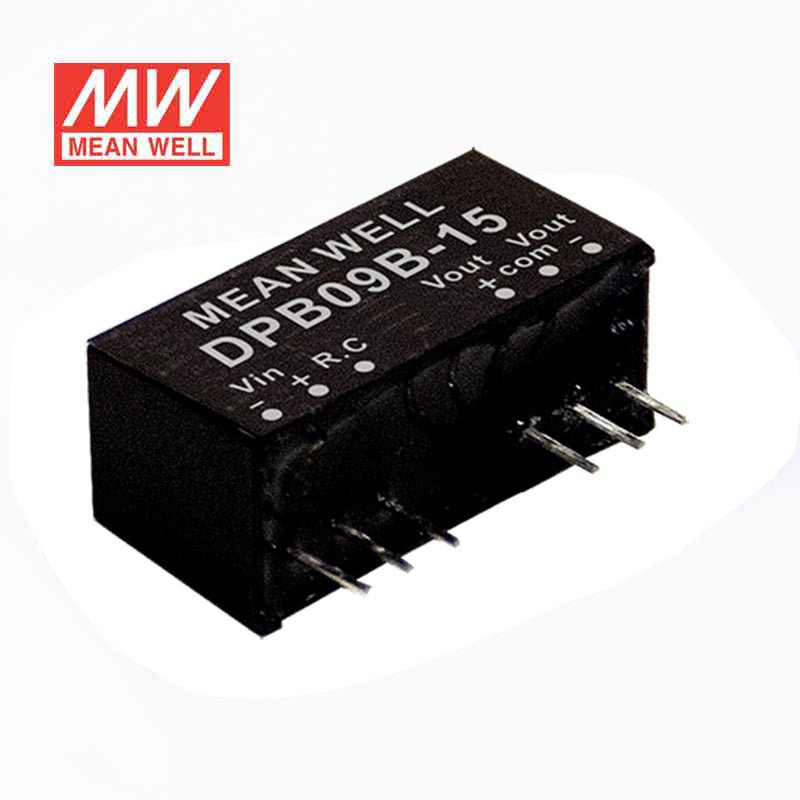

Mean Well DPB09B-15 DC-DC Converter - 9W - 18~36V in ±15V out
Description
Description
The DPB09B is a 9W Mean Well power converter (input range: 9~18Vdc).
Key Features
- ✓ Input voltage range: 9~18Vdc
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload
- ✓ Remote ON/OFF control
- ✓ Safety approvals: EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDPB Series
-
Power Rating9 Watt
-
Output Voltage15 Volt
-
Rated Current0.3 Ampere
-
Input Voltage18V~36V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length0.98 in
-
Width0.44 in
-
Height0.38 in
-
Weight0.01 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the DPB09B-15 for low-power analog control circuits that need ±15V output?
Yes, this converter is suited to low-power constant-voltage applications that need ±15V output from an 18-36V input range. With a 9W rating, it fits small analog control and interface circuitry rather than larger power-hungry assemblies.
Is the DPB09B-15 a fit for instrumentation or measurement electronics?
It can be used where instrumentation electronics need regulated ±15V rails and the source supply falls within 18-36V. The 9W output ceiling makes it appropriate for compact measurement and conditioning stages, not high-load subsystems.
Can this model support embedded test, sensing, or automation boards that require ±15V rails?
Yes, the ±15V output makes it relevant for embedded boards that use bipolar analog stages, sensing interfaces, or control circuitry. Its compact 24.9 × 11.2 × 9.6 mm body also helps where PCB or module space is tight.
Is the DPB09B-15 suitable for indoor cabinets exposed to wide temperature swings?
The unit is specified for -40°C to +90°C operation, which supports use in equipment that sees a broad temperature range. No IP rating is provided, so the available specs do not identify it as an outdoor-rated converter.
What are the differences between the DPB09B-15 and its sibling models?
The listed DPB09B siblings are all 9W converters. DPB09B-05 is 5V and 800A, DPB09B-12 is 12V and 375A, and DPB09B-15 is 15V and 300A.
Other DPB09 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well DPB09C-15 DC-DC Converter - 9W - 36~75V in ±15V out | 9W | 15V | 0.3A | Indoor | $15.50 | View |
| Mean Well DPB09C-12 DC-DC Converter - 9W - 36~75V in ±12V out | 9W | 12V | 0.37A | Indoor | $15.50 | View |
| Mean Well DPB09C-05 DC-DC Converter - 9W - 36~75V in ±5V out | 9W | 5V | 0.8A | Indoor | $15.50 | View |
| Mean Well DPB09B-12 DC-DC Converter - 9W - 18~36V in ±12V out | 9W | 12V | 0.37A | Indoor | $15.50 | View |
| Mean Well DPB09B-05 DC-DC Converter - 9W - 18~36V in ±5V out | 9W | 5V | 0.8A | Indoor | $15.50 | View |
| Mean Well DPB09A-15 DC-DC Converter - 9W - 9~18V in ±15V out | 9W | 15V | 0.3A | Indoor | $15.50 | View |
| Mean Well DPB09A-12 DC-DC Converter - 9W - 9~18V in ±12V out | 9W | 12V | 0.37A | Indoor | $15.50 | View |
| Mean Well DPB09A-05 DC-DC Converter - 9W - 9~18V in ±5V out | 9W | 5V | 0.8A | Indoor | $15.50 | View |
