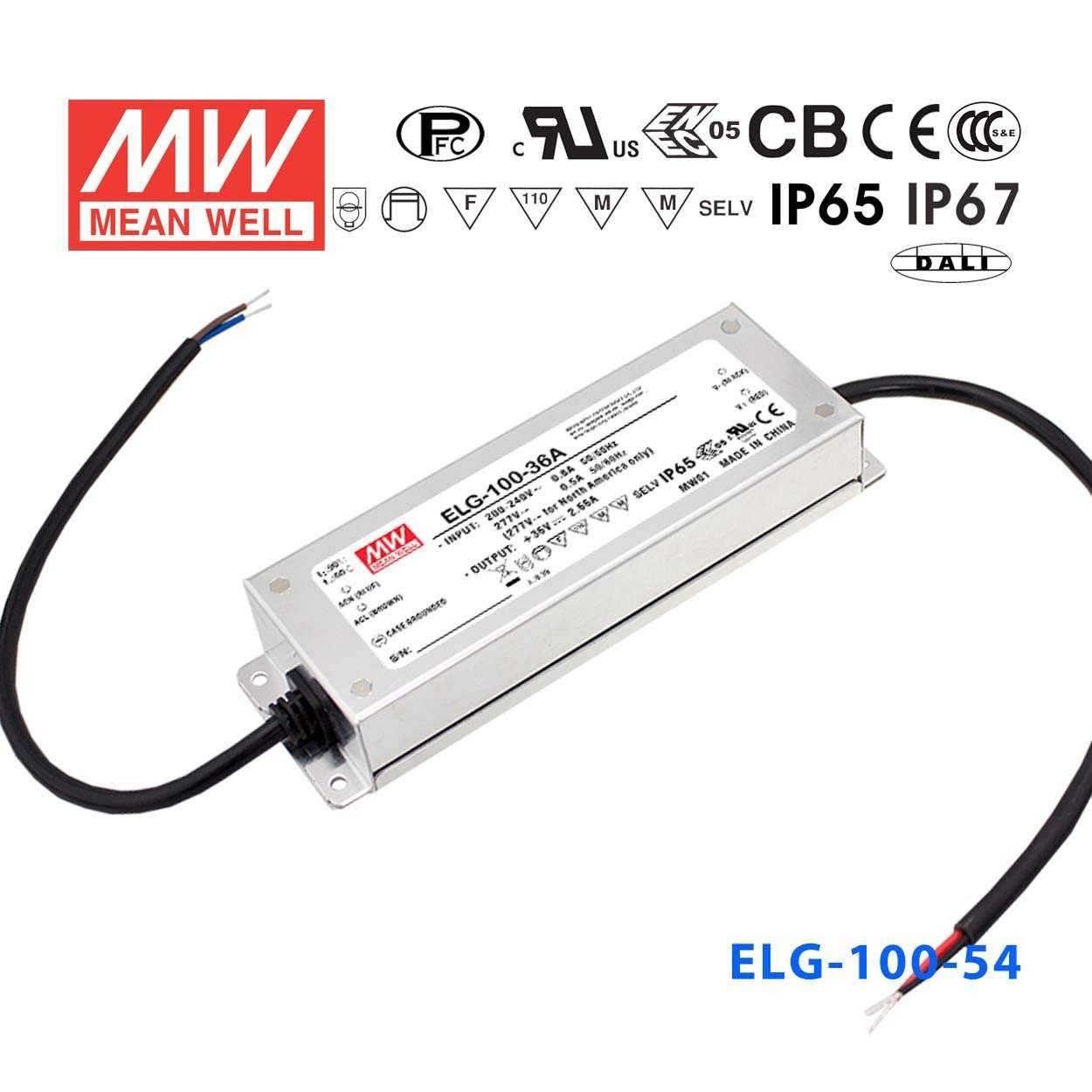

Mean Well ELG-100-54AB Power Supply 100W 54V

Name: Mean Well ELG-100-54AB Power Supply 100W 54V - Adjustable and Dimmable 1.78A
Brand: Mean Well
SKU: ELG-100-54AB
Price: 40.59 USD
Availability: InStock

Overview

ELG-100-54AB is the 54V output model of this series: rated current 1.78A, typical efficiency 91%. Type AB: Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) (IP65).

ELG-100 series is a 100W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-100 operates from 100~360VAC and offers models with different rated voltage ranging between 24V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-100 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system

Features

Constant Voltage + Constant Current mode output
Metal housing design with functional Ground
Built-in active PFC function
Class 2 power unit
No load / Standby power consumption <0.5W
IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off)
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-100-54ABSpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

DC VOLTAGE: 54V
CONSTANT CURRENT REGION^Note.2: 27 ~ 54V
RATED CURRENT: 1.78A
RATED POWER 200VAC ~ 305VAC: 96.12W
RATED POWER 100VAC ~ 180VAC: 70W
RIPPLE & NOISE (max.)^Note.3: 350mVp-p
VOLTAGE ADJ. RANGE: Adjustable for AB-Type only (via the built-in potentiometer) 48.6 ~ 59.4V
CURRENT ADJ. RANGE: Adjustable for AB-Type only (via the built-in potentiometer) 0.89 ~ 1.78A
VOLTAGE TOLERANCE^Note.4: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 1000ms, 80ms/115VAC 500ms, 100ms/230VAC
HOLD UP TIME (Typ.): 15ms/115VAC 10ms/230VAC

INPUT

VOLTAGE RANGE^Note.5: 100 ~ 305VAC 142 ~ 431VDC continue,320VAC for 24Hrs; 360VAC for 1Hr (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC; @load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 91%
AC CURRENT: 1.1A / 115VAC 0.6A / 230VAC 0.5A/277VAC
INRUSH CURRENT(Typ.): COLD START 60A(twidth=850μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 62 ~ 72V Shut down output voltage, re-power on to recover
OVER TEMPERATURE: Shut down output voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12; IEC/BS EN/EN/AS/NZS 61347-1, IEC/BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; EAC TP TC 004;BIS IS15885(for 24/24A/24B/24DA/36/36A/36B/42/42A/42ADA/42B/48/48B/54/54A/54ADA/54B only); GB/T19510.1, GB/T19510.213; IP65;KC61347-1,KC61347-2-13 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%); BS EN/EN61000-3-3;GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV); EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 2920.8K hrs min. Telcordia SR-332 (Bellcore) 282.9Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 199*63*35.5mm (L*W*H)
PACKING: 0.85kg; 16pcs/14.2kg/0.72CUFT

Certifications & ratings

Type: HL

MODEL ENCODING

Blank: Io and Vo fixed; IP67
A: Io and Vo adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
AB (this model): Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
DA: DALI control technology; IP67

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
12. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
13. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-100-54AB Block Diagram — Block Diagram

ELG-100-54AB DIMMING OPERATION — DIMMING OPERATION

ELG-100-54AB OUTPUT LOAD vs TEMPERATURE(Note.9) — OUTPUT LOAD vs TEMPERATURE(Note.9)

ELG-100-54AB STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-100-54AB TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-100-54AB ※ 3Y Model (3-wire input) — ※ 3Y Model (3-wire input)

ELG-100-54AB Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED architectural lighting
LED bay lighting
LED floodlighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

ELG-100-54AB datasheetELG-100-SPEC.PDF · 2026-07-06 edition PDF Download

Certificates5

CB Certificate (ELG-100)(EN) PDF Download

UL Certificate (ELG-100)(EN) PDF Download

EMC Certificate (ELG-100)(EN) PDF Download

ERP Certificate (ELG-100)(EN) PDF Download

ENEC Certificate (ELG-100)(EN) PDF Download

Test reports1

Test Report (ELG-100-54)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the ELG-100-54AB to power 54V LED signage in a covered outdoor location?

Yes. The ELG-100-54AB carries an IP65 water-resistant rating, which protects against low-pressure water jets and dust ingress, making it suitable for covered outdoor enclosures such as cabinet signs or canopy lighting. It is rated for a case temperature (Tcase) of -40°C to +90°C, with load derating at high temperatures.

Is the ELG-100-54AB a good fit for architectural LED strip lighting in a commercial build-out?

Yes. Operating at 54V DC with up to 96.12W of output, it suits longer runs of 54V LED strip used in cove lighting, retail displays, or architectural accent applications. The potentiometer-adjustable output current and built-in dimming input (AB suffix) allow fine-tuning brightness to match design intent.

How much 54V LED strip can the ELG-100-54AB realistically drive?

The driver delivers 96.12W at 1.78A on 200–305VAC input (70W on 100–180VAC, e.g. 120VAC). If your strip is rated at 14 W/m, you can run up to approximately 6.9 m per driver at 96.12W. Always check your specific strip's rated power per meter and apply a 10–20% derating margin for thermal headroom.

Can this driver be used for illuminated outdoor channel letters on a building facade?

Yes, provided the letters' enclosure offers additional mechanical protection from direct rain exposure. The IP65 rating protects against splashing water but is not fully submersible. For fully exposed, unenclosed outdoor signs subject to driving rain, consider the IP67-rated ELG-100-54B variant instead.

Does the ELG-100-54AB support 0–10V or PWM dimming for dynamic lighting control?

Yes. The AB suffix indicates the driver supports 3-in-1 dimming: 0–10VDC, 10V PWM signal, and resistance control. This makes it compatible with building automation systems and dimmer controllers that provide these signals.

What are the key differences between the ELG-100-54AB and its 24V and 48V siblings in the ELG-100 series?

Within the ELG-100 family, the primary difference is output voltage and corresponding current: the 24V models deliver 4A at 96W, the 48V models deliver 2A at 96W, and the 54V models (including this one) deliver 1.78A at 96.12W. All share the same 100–305VAC input range and similar power rating; choose the voltage that matches your LED strip or luminaire system.

Is the ELG-100-54AB suitable for museum or gallery accent lighting where precise brightness control is needed?

Yes. The adjustable output current (AB model) combined with 3-in-1 dimming allows fine-grained brightness adjustment down to a minimum dimming level of about 8%, which suits display lighting where glare control and exact lumen output are important.
