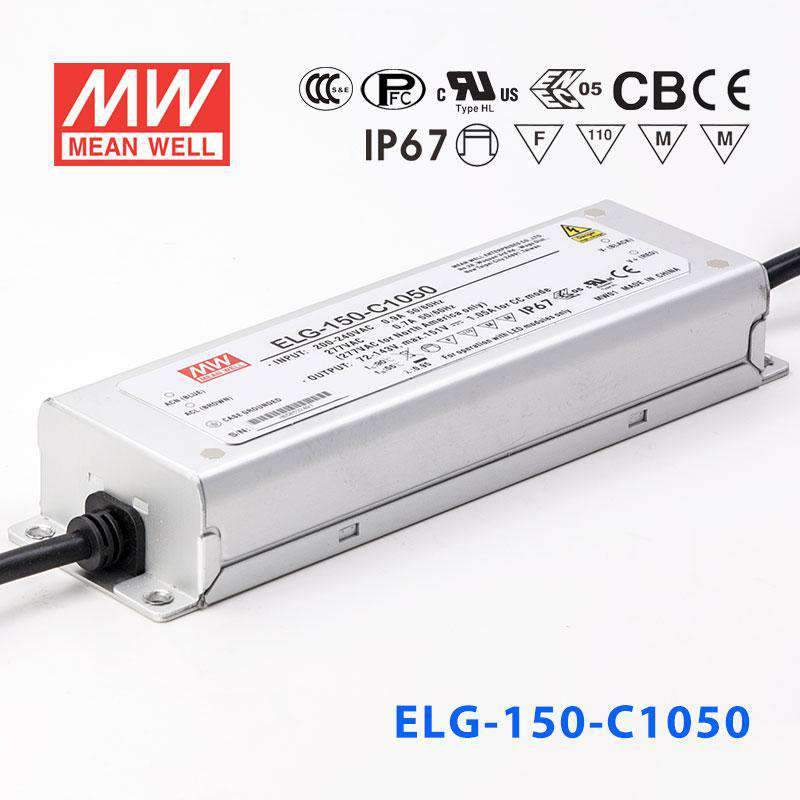

Mean Well ELG-150-C1050AB Power Supply 150W 1050mA - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELG-150-C1050AB Power Supply 150W 1050mA - Adjustable and...
The ELG-150 is a 150W Mean Well power converter.
Key Features
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating150.15 Watt
-
Output Voltage151 Volt
-
Rated Current1.05 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length8.62 in
-
Width2.48 in
-
Height1.4 in
-
Weight2.09 lb
::specification::
Frequently Asked Questions
Can I use the ELG-150-C1050AB for dimmable LED downlights in a commercial office building?
Yes. The ELG-150-C1050AB combines constant-current output at 1050mA with both output current adjustment and a built-in dimming interface, making it well-suited for dimmable LED downlight systems. The 72–143V CC range supports LED strings used in typical commercial downlight applications.
Is this driver suitable for dimmable signage in an outdoor retail environment?
The ELG-150-C1050AB is rated IP65 for water resistance and supports dimming control, making it appropriate for outdoor retail signage that requires brightness adjustability. Its 150.15W output at 1050mA constant current handles LED module series strings with a total forward voltage between 72V and 143V.
Can the ELG-150-C1050AB power a dimmable LED array for architectural facade lighting?
Yes. With 150.15W, 1050mA constant current, and built-in dimming, the ELG-150-C1050AB is a strong match for dimmable architectural facade LED arrays. The IP65 rating allows installation in outdoor enclosures exposed to rain, and the -40°C to +90°C operating range covers most climate conditions.
What LED string forward voltage range is compatible with the ELG-150-C1050AB?
The driver maintains constant current regulation when the LED string's total forward voltage is between 72V and 143V. The number of LEDs in the string depends on each LED's individual Vf — calculate total string voltage by multiplying LED count by the per-LED forward voltage.
What is the IP rating of the ELG-150-C1050AB and what environments does it support?
The ELG-150-C1050AB is rated IP65, providing complete dust protection and resistance to water jets from any direction. It is suitable for outdoor or damp indoor locations but is not rated for submersion.
What is the difference between the ELG-150-C1050A and the ELG-150-C1050AB?
Both are 150.15W, 1050mA constant-current drivers with a 72–143V CC range and IP65 rating. The ELG-150-C1050A supports output current adjustment only, while the ELG-150-C1050AB additionally includes a dimming interface for dynamic brightness control.
