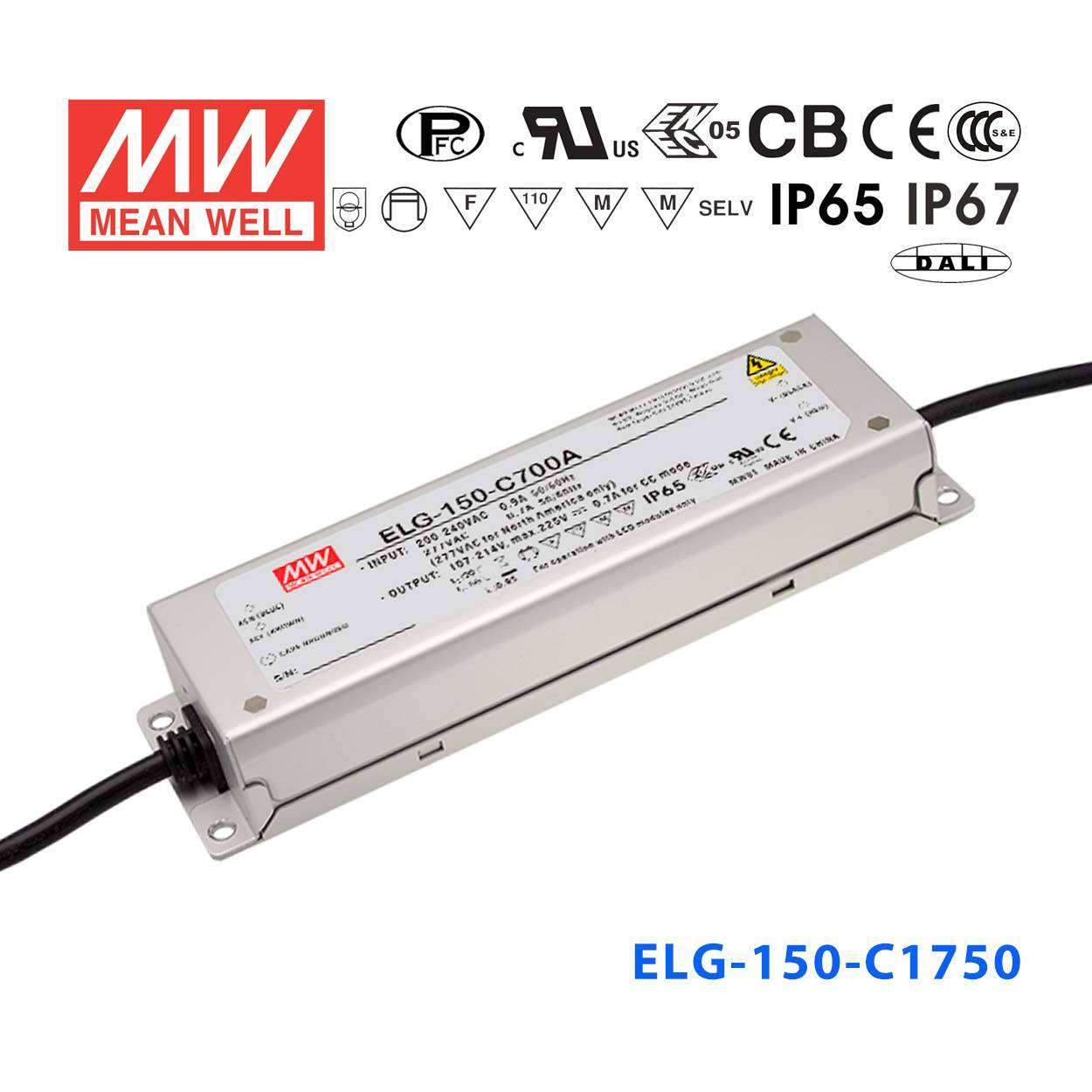

Mean Well ELG-150-C1750 Power Supply 150W 1750mA
The ELG-150 is a 150W Mean Well power converter.
Key Features
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating150.5 Watt
-
Output Voltage94 Volt
-
Rated Current1.75 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length8.62 in
-
Width2.48 in
-
Height1.4 in
-
Weight2.09 lb
::specification::
Frequently Asked Questions
What types of LED fixtures is the ELG-150-C1750 designed for?
The ELG-150-C1750 is a constant current driver at 1750mA and 150.5W, suited for mid-power LED downlights, floodlights, and LED module arrays that require a higher drive current than typical 1400mA drivers. Its CC voltage range of 43–86V accommodates shorter LED series strings.
Is the ELG-150-C1750 suitable for outdoor LED floodlights or area lights?
Yes. The ELG-150-C1750 is IP67 waterproof and operates from -40°C to +90°C, both of which support outdoor floodlight and area lighting applications exposed to weather and wide temperature swings.
Can I use the ELG-150-C1750 to power LED modules in a street lighting fixture?
Yes. Street lighting fixtures often use mid-to-high constant current drivers in the 1400–1750mA range. The ELG-150-C1750 at 1750mA and 150.5W with IP67 and a -40°C to +90°C operating range is compatible with outdoor street or roadway LED modules whose series string voltage falls within 43–86V.
How does the ELG-150-C1750's CC voltage range differ from the ELG-150-C1400 series?
The ELG-150-C1750 has a CC voltage range of 43–86V at 1750mA, while the ELG-150-C1400 operates across 54–107V at 1400mA. The higher current of the C1750 makes it suited to fewer LEDs in series or LEDs with lower forward voltage per string, whereas the C1400 drives longer strings at lower current.
What is the LED compatibility requirement for the ELG-150-C1750?
The driver outputs a constant 1750mA, and your LED series string must have a combined forward voltage between 43V and 86V. The actual number of LEDs you can connect depends on each LED's forward voltage and cannot be stated as a fixed quantity.
Can the ELG-150-C1750 be installed in an enclosure exposed to coastal salt air?
The ELG-150-C1750 has an IP67 waterproof metal case and operates across -40°C to +90°C, providing strong protection against moisture and particulates. For long-term coastal deployment, verifying that the enclosure and mounting hardware are also rated for salt-spray environments is recommended.
