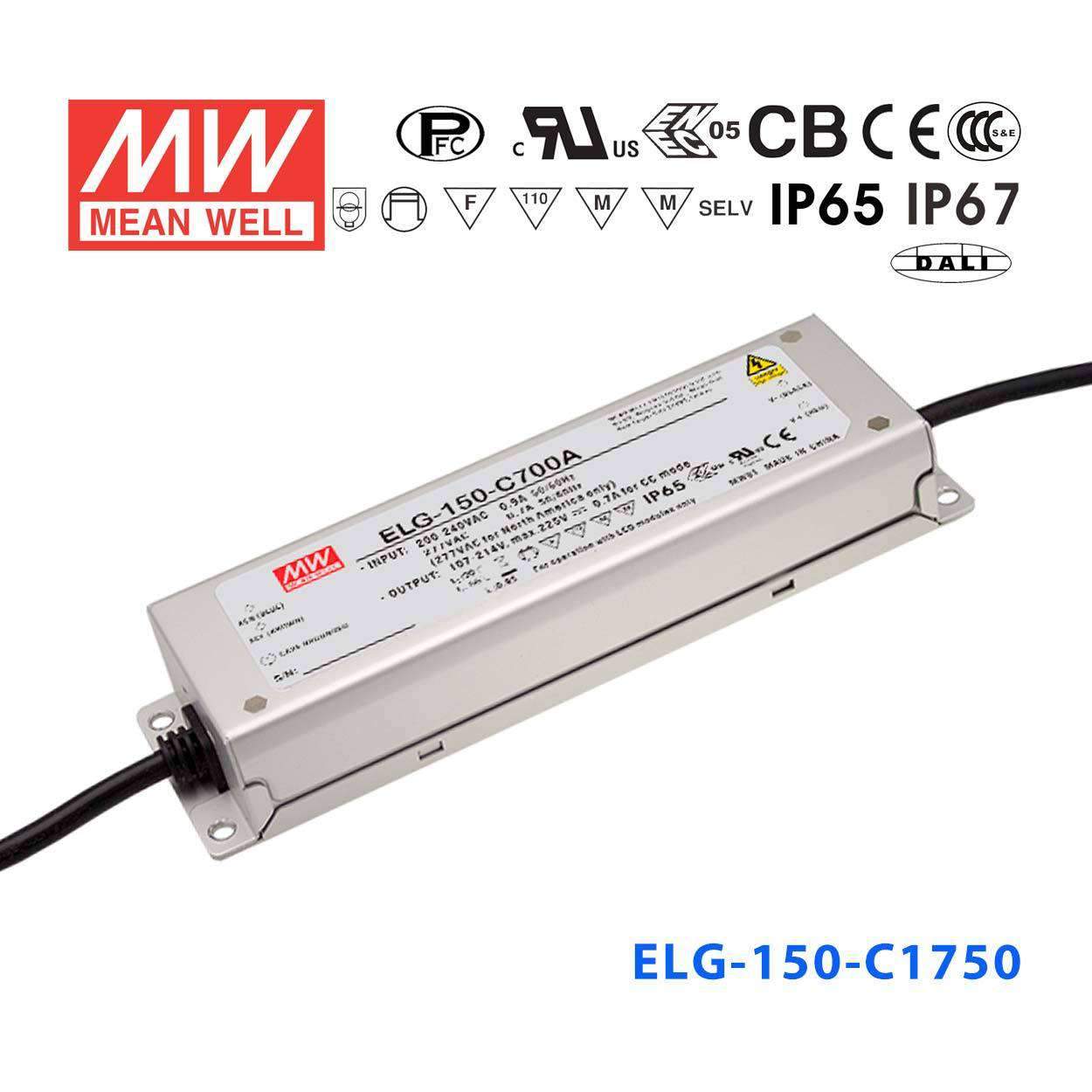

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well ELG-150-C1750A Power Supply 150W 1750mA - Adjustable
The ELG-150 is a 150W Mean Well power converter.
Key Features
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating150.5 Watt
-
Output Voltage94 Volt
-
Rated Current1.75 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length8.62 in
-
Width2.48 in
-
Height1.4 in
-
Weight2.09 lb
::specification::
Frequently Asked Questions
Can the ELG-150-C1750A power adjustable-output LED downlights?
Yes. The ELG-150-C1750A is a constant current driver at 1750mA with a built-in output adjustment feature, allowing the current to be trimmed to match the LED module's rated operating point. Its 150.5W capacity is appropriate for higher-drive-current LED downlight arrays.
Is the ELG-150-C1750A appropriate for semi-exposed outdoor LED installations?
The ELG-150-C1750A is IP65 rated, protecting against low-pressure water jets and dust. It is suitable for semi-exposed outdoor locations such as covered walkways, parking canopies, or outdoor display cabinets where it is not directly exposed to standing water or immersion.
How many LEDs can I run from the ELG-150-C1750A?
The driver outputs a constant 1750mA across a CC voltage range of 43–86V. The number of LEDs you can connect in series is determined by each LED's individual forward voltage — no fixed count applies. The combined string forward voltage must fall within 43–86V.
What is the difference between the ELG-150-C1750A and the ELG-150-C1750?
Both drivers share the same 150.5W output, 1750mA constant current, and 43–86V CC voltage range. The key differences are IP rating and adjustment capability: the ELG-150-C1750 is IP67 with no output adjustment, while the ELG-150-C1750A is IP65 and includes an output adjustment trimmer for commissioning flexibility.
Can the ELG-150-C1750A be used to drive LED modules in a cold outdoor environment?
Yes. The ELG-150-C1750A has an operating temperature range of -40°C to +90°C, which covers harsh winter conditions. Its IP65 enclosure also guards against condensation and light precipitation typical of cold-climate outdoor installations.
