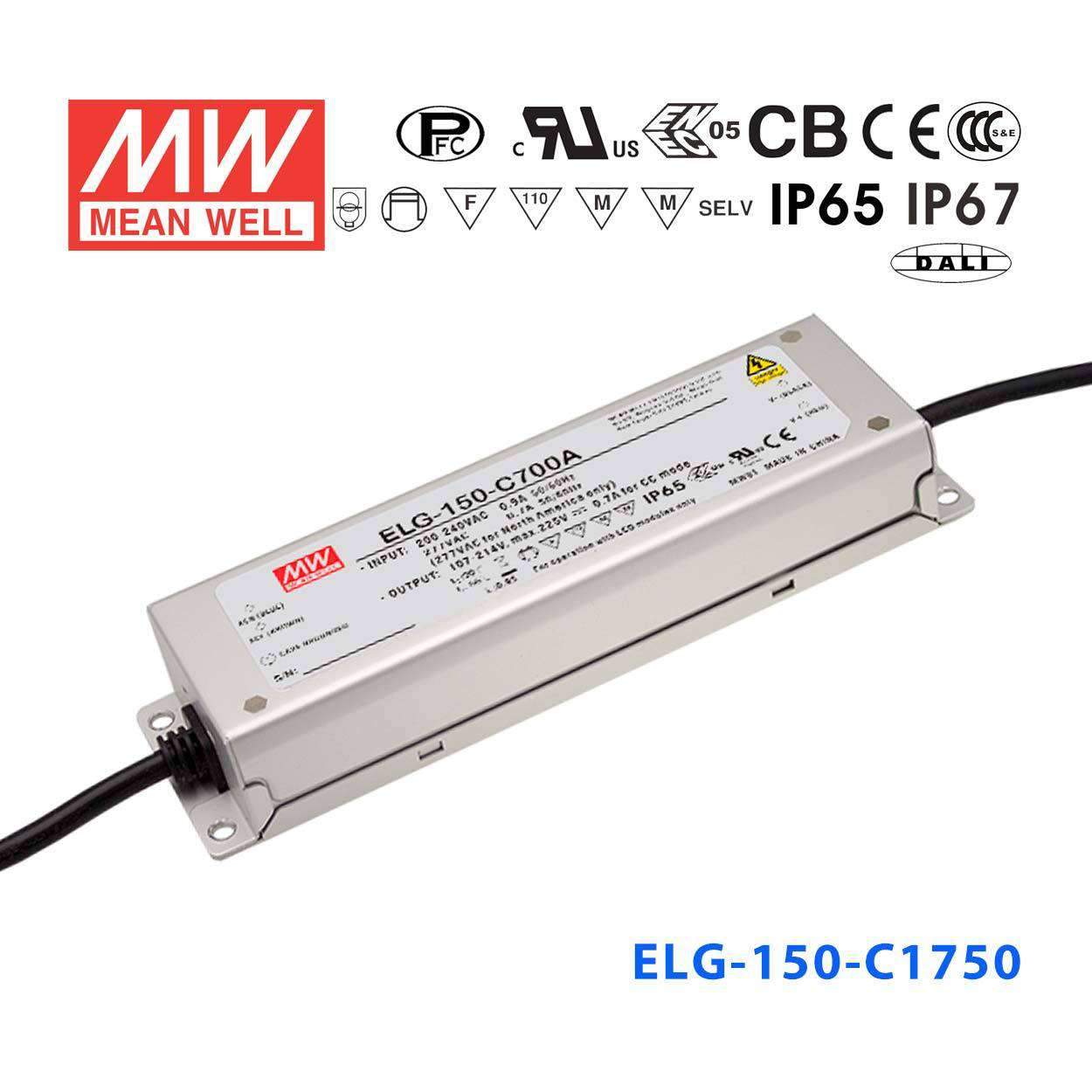

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well ELG-150-C1750AB Power Supply 150W 1750mA - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELG-150-C1750AB Power Supply 150W 1750mA - Adjustable and...
Description
Description
Features
| 100~305VAC wide input range |
| Built-in active PFC |
| Protections: Short circuit / Over voltage/Over temperature |
| No load power consumption <0.5W |
| High efficiency up to 92% |
| Suitable for LED lighting and street lighting applications |
| Cooling by free air convection |
| 100% full load burn-in test |
| 5 years warranty |
General Specification
| AC input voltage range | 100~305VAC;142~431VDC |
| AC inrush current | Cold start, 65 at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Over voltage protection | 110%~140% rated output voltage |
| Setup, rise, hold up time | 500ms |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Safety standards | UL8750 approved |
| EMC standards | EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, GB17743,GB17625.1 |
| Dimension (LxWxH) | 219x63x35.5 |
| Packing | 16pcs / 16.0kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating150.5 Watt
-
Output Voltage94 Volt
-
Rated Current1.75 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length8.62 in
-
Width2.48 in
-
Height1.4 in
-
Weight2.09 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the ELG-150-C1750AB drive LED downlights in a covered outdoor walkway?
Yes. The ELG-150-C1750AB carries an IP65 rating, protecting it against dust ingress and low-pressure water jets from any direction. It is suitable for covered outdoor installations such as walkway or canopy downlight fixtures where rain splash is possible but direct immersion is not expected.
Is this driver a good fit for constant current LED arrays in retail signage cabinets?
Yes. Operating in constant current mode at 1750mA, the ELG-150-C1750AB maintains a stable current across the LED array regardless of forward voltage variations. At 150.5W total output, it can power medium-to-large sign modules whose combined forward voltages fall within the 43–86V CC range.
Can I use the ELG-150-C1750AB for LED downlight arrays in a commercial building?
Yes. With 150.5W at 1750mA constant current and a wide 100–305VAC input range, this driver is compatible with both North American and international mains. The metal housing and -40°C to +90°C operating range make it a reliable fit for recessed or surface-mount commercial downlight circuits.
Will the ELG-150-C1750AB work with LED modules for illuminated outdoor signage?
Yes. The constant current output at 1750mA with a 43–86V compliance range accommodates series strings of LED sign modules. The IP65 enclosure handles typical outdoor sign cabinet environments, and the 5-year warranty provides assurance for permanent installations.
How many LEDs can I run in series with the ELG-150-C1750AB?
The CC voltage compliance range is 43–86V. The number of LEDs per string depends on each LED's forward voltage at 1750mA—dividing the compliance range by your LED's Vf gives the minimum and maximum string depth. Do not target a fixed LED count without knowing the actual Vf of your chosen LED at the operating current.
What dimming and adjustment options does the ELG-150-C1750AB offer compared to other C1750 variants?
The AB suffix means the ELG-150-C1750AB includes both a built-in output adjustment potentiometer and 3-in-1 dimming (10V analog, PWM, and resistance). The base ELG-150-C1750 has neither; the A adds only the potentiometer; the B adds only 3-in-1 dimming; the DA adds DALI; and the D2 adds DALI-2. All variants share the same 1750mA / 150.5W output.
Can the ELG-150-C1750AB operate in freezing ambient conditions?
Yes. The operating temperature range extends down to -40°C, making it suitable for cold-climate outdoor installations or refrigerated display lighting where ambient temperatures drop well below freezing. The upper limit of +90°C also accommodates enclosed fixture installations with limited airflow.
