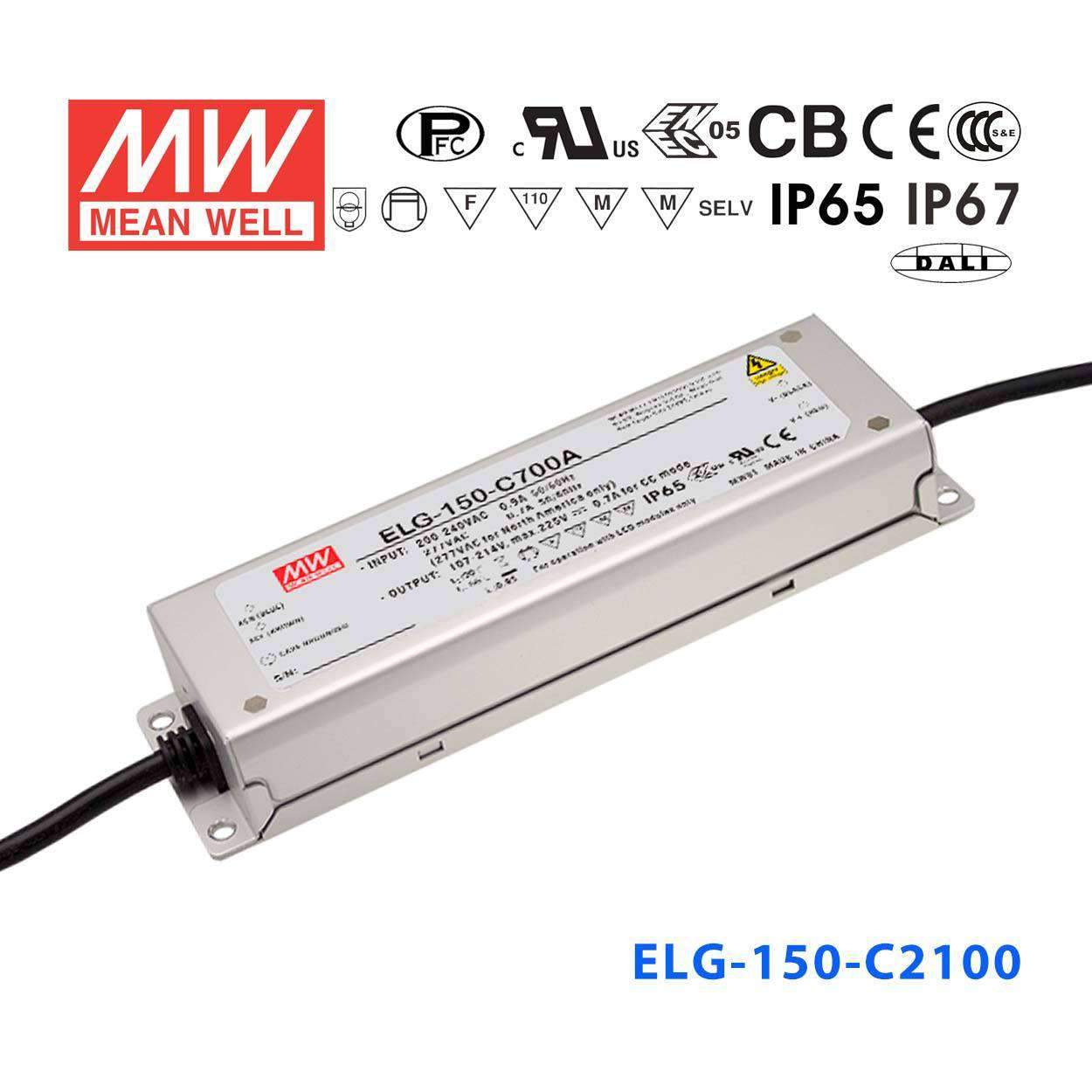

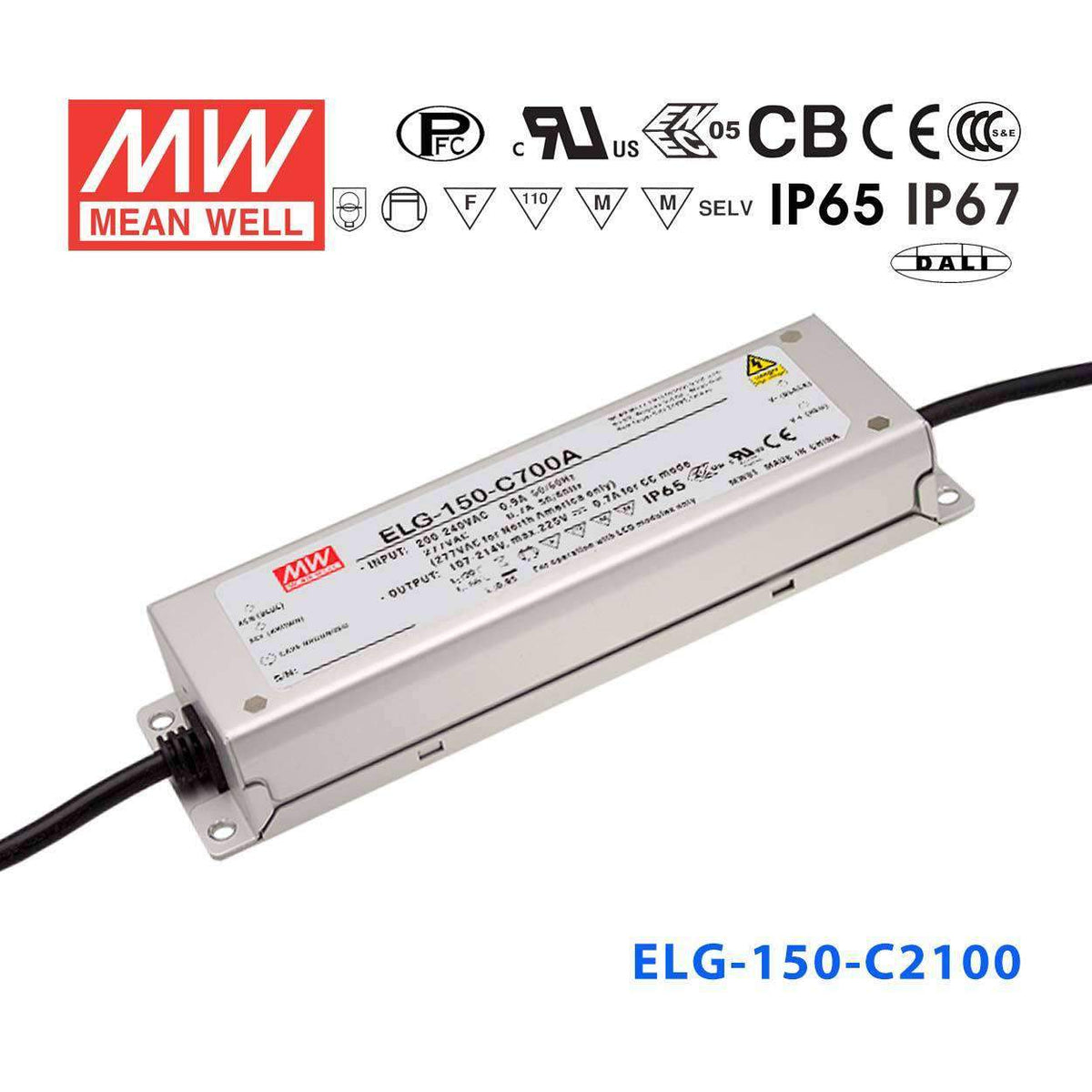

Mean Well ELG-150-C2100AB Power Supply 150W 2100mA - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELG-150-C2100AB Power Supply 150W 2100mA - Adjustable and...
The ELG-150 is a 150W Mean Well power converter.
Key Features
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating151.2 Watt
-
Output Voltage80 Volt
-
Rated Current2.1 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length8.62 in
-
Width2.48 in
-
Height1.4 in
-
Weight2.09 lb
::specification::
Frequently Asked Questions
Can I use the ELG-150-C2100AB for LED downlights where output needs to be adjustable?
Yes, this model is a constant current LED driver rated at 2100mA and 151.2W, so it fits LED downlights built for that drive current. The fixture's total forward voltage still needs to stay within the 36-72V CC range.
Is the ELG-150-C2100AB a good choice for signage modules that need dimmable constant current power?
It can be, provided the signage modules are designed for constant current operation at 2100mA rather than constant voltage. The load also needs to stay within the 36-72V constant current range and within the 151.2W rating.
Will this driver work for a small LED array that needs brightness control?
Yes, the ELG-150-C2100AB is suited to constant current LED arrays that require 2100mA output. The array must have a combined forward voltage in the 36-72V range, and total power must not exceed 151.2W.
What kind of LED load is compatible with the ELG-150-C2100AB?
This driver is for constant current LED loads, not constant voltage products. The load must match the 2100mA output, and the required operating voltage must fall within the 36-72V CC range; the number of LEDs depends on each LED's forward voltage, not on a fixed count.
Can the ELG-150-C2100AB be used in wet or demanding environments?
It is rated IP65 water-resistant and uses a metal case, so it is intended for more demanding environments than an indoor-only driver. The operating temperature range is -40°C to +90°C, which supports use in very cold and very hot conditions when the rest of the system is rated for the same environment.
