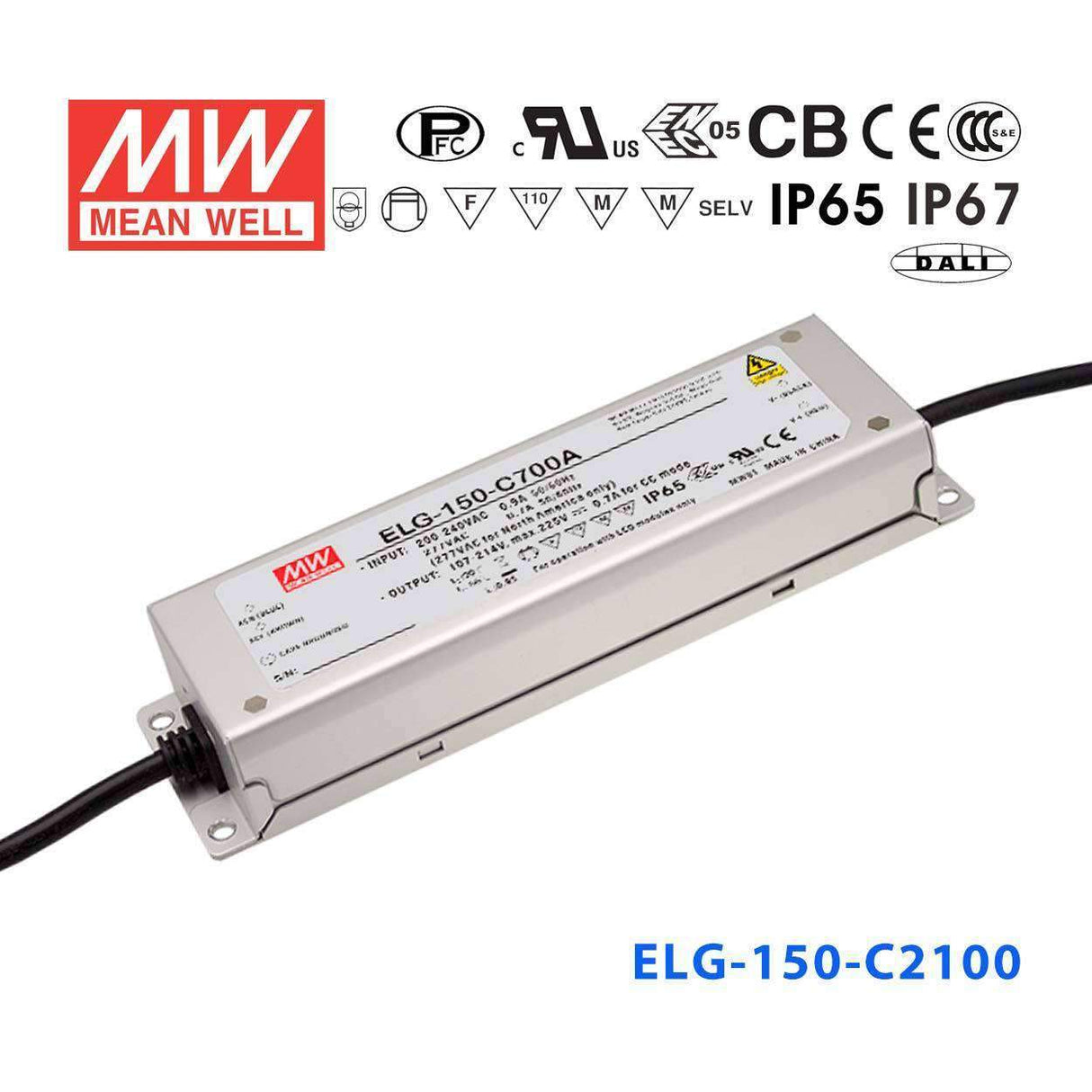

Mean Well ELG-150-C2100B Power Supply 150W 2100mA - Dimmable
The ELG-150 is a 150W Mean Well power converter.
Key Features
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating151.2 Watt
-
Output Voltage80 Volt
-
Rated Current2.1 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length8.62 in
-
Width2.48 in
-
Height1.4 in
-
Weight2.09 lb
::specification::
Frequently Asked Questions
Can I use the ELG-150-C2100B for LED downlights that need a constant-current driver?
Yes, if the downlight is designed for constant-current operation at 2100mA and its LED load falls within the 36-72V constant-current range. This model is a 151.2W constant-current driver, so it is suited to higher-power LED downlight assemblies rather than constant-voltage 24V or 48V fixtures.
Is this driver suitable for powering signage LED modules?
It can be used for signage modules only when the modules are built as a constant-current load at 2100mA and operate within 36-72V. It is not a constant-voltage power supply, so it is not the right match for signage products that expect a fixed 12V, 24V, or 48V input.
Can the ELG-150-C2100B run a small LED array for architectural or display lighting?
Yes, it can run a small LED array when the array is specified for 2100mA constant current and the total forward voltage stays within 36-72V. With 151.2W output capability and an IP67 rating, it fits higher-output LED arrays used in demanding indoor or outdoor environments.
Will this LED driver work outdoors or in wet locations?
This unit is rated IP67 waterproof and has an operating temperature range of -40°C to +90°C. That makes it appropriate for outdoor or washdown-prone environments where a sealed driver is required.
What is the difference between the ELG-150-C2100B and other ELG-150 constant-current versions?
Within the ELG-150 constant-current family, the main differences are output current and voltage range: ELG-150-C500 is 150W, 315V, 500A; ELG-150-C700 is 149.8W, 225V, 700A; ELG-150-C1050 is 150.15W, 151V, 1050A; ELG-150-C1400 is 149.8W, 115V, 1400A; ELG-150-C1750 is 150.5W, 94V, 1750A; and ELG-150-C2100 is 151.2W, 80V, 2100A. The ELG-150-C2100B specifically provides 2100mA output with a 36-72V constant-current range.
