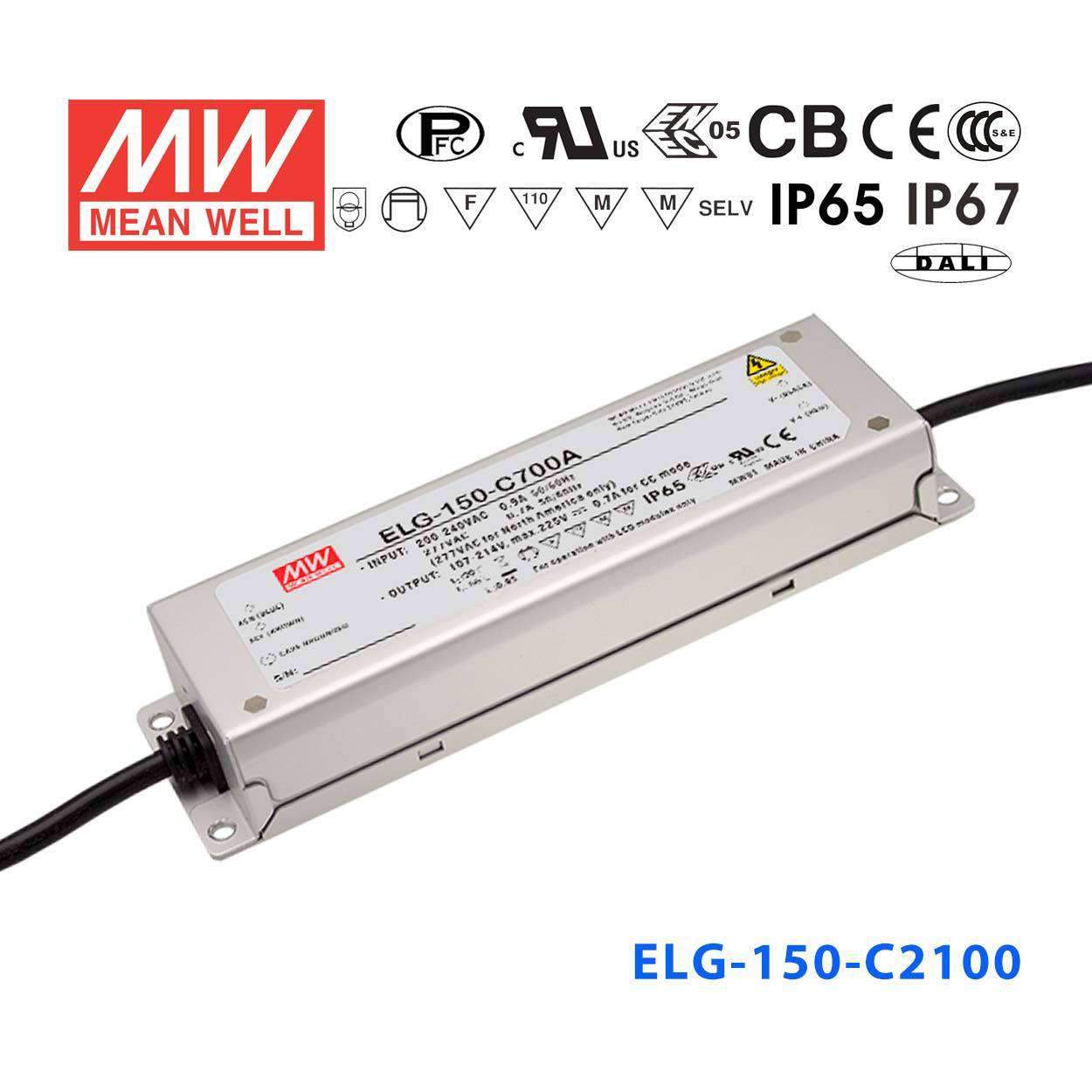

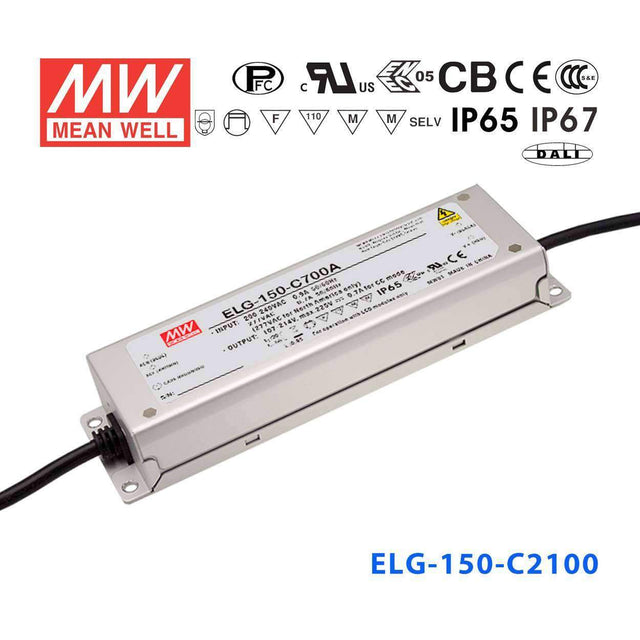

Mean Well ELG-150-C2100DA Power Supply 150W 2100mA - DALI

contant current, metal case, IP65/IP67, 5 years warranty
SKU:
ELG-150-C2100DA

Model
$44.68 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

100~305VAC wide input range
Built-in active PFC
Protections: Short circuit / Over voltage/Over temperature
No load power consumption <0.5W
High efficiency up to 92%
Suitable for LED lighting and street lighting applications
Cooling by free air convection
100% full load burn-in test
5 years warranty

General Specification

AC input voltage range 100~305VAC;142~431VDC
AC inrush current Cold start, 65 at 230VAC
DC adjustment range ±10% rated output voltage
Over voltage protection 110%~140% rated output voltage
Setup, rise, hold up time 500ms
Withstand voltage I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature -40~+80°C (refer to output derating curve)
Safety standards UL8750 approved
EMC standards EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, GB17743,GB17625.1
Dimension (LxWxH) 219x63x35.5
Packing 16pcs / 16.0kg

Specifications

  • Brand
    Mean Well
  • Series
    ELG-C Series
  • Power Rating
    151.2 Watt
  • Output Voltage
    80 Volt
  • Rated Current
    2.1 Ampere
  • Input Voltage
    100V~305V
  • No of Output
    1
  • Dimming Control
    DALI
  • Standards Met
    BSI,CB,CCC,CE,EAC,ENEC,RCM,UL
  • Operation Mode
    Constant Current
  • Operating Temperature
    -40°C~90°C
  • Warranty
    5 Year
  • Length
    8.62 in
  • Width
    2.48 in
  • Height
    1.4 in
  • Weight
    2.09 lb
