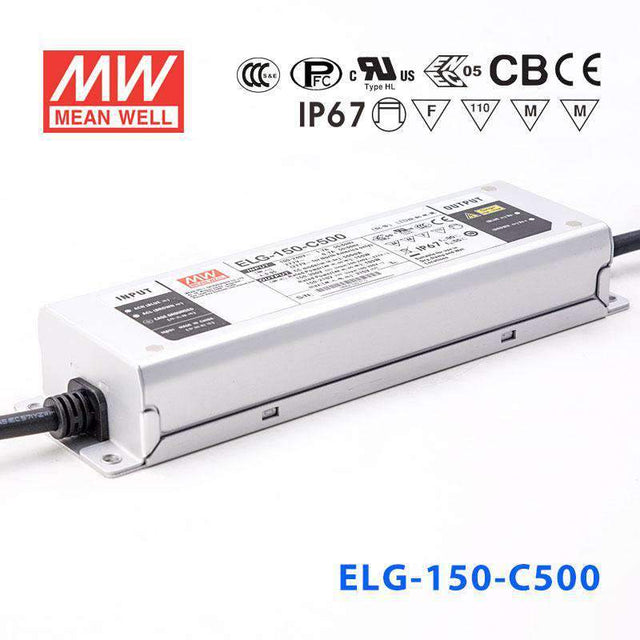

Mean Well ELG-150-C500 Power Supply 150W 500mA
The ELG-150 is a 150W Mean Well power converter.
Key Features
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating150 Watt
-
Output Voltage315 Volt
-
Rated Current0.5 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length8.62 in
-
Width2.48 in
-
Height1.4 in
-
Weight2.09 lb
::specification::
Frequently Asked Questions
Can the ELG-150-C500 drive a long series string of high-voltage LED modules for channel letter signage?
Yes. The ELG-150-C500 delivers 500mA constant current across a 150–300V output compliance range, which accommodates long series strings typical in channel letter and illuminated cabinet signage. The number of modules per string depends on each module's forward voltage, so the total string voltage must fall within 150–300V.
Is the ELG-150-C500 rated for outdoor sign cabinet installations?
Yes. With an IP67 waterproof rating, the ELG-150-C500 can be mounted inside outdoor sign cabinets where condensation or rain infiltration is possible. Its operating range of -40°C to +90°C also supports both cold and high-ambient environments.
Can this driver be used for LED street or area lighting fixtures?
Yes. The 500mA constant current output, 150W power capacity, and IP67 rating make the ELG-150-C500 appropriate for LED street or area light modules where the LED array's combined forward voltages total between 150V and 300V. Verify each LED's forward voltage to confirm string sizing.
What is the compliance voltage range, and how does that affect LED string design?
The ELG-150-C500 has a constant current compliance range of 150–300V. LEDs must be wired in series so that the sum of all forward voltages in the string falls within that window. Because compliance voltage depends on individual LED forward voltages, the number of LEDs per string is not a fixed count.
What certifications does the ELG-150-C500 carry?
The ELG-150-C500 is certified to c_BSI, CB, CCC, CE, EAC, ENEC, c_RCM, and UL standards, covering major markets in North America, Europe, China, and Australia. A 5-year warranty is included.
Can the ELG-150-C500 operate on both 120V and 240V mains inputs?
Yes. The driver accepts a universal 100–305VAC input range, so it operates on 120V, 208V, 240V, or 277V circuits without any manual switching or rewiring.
