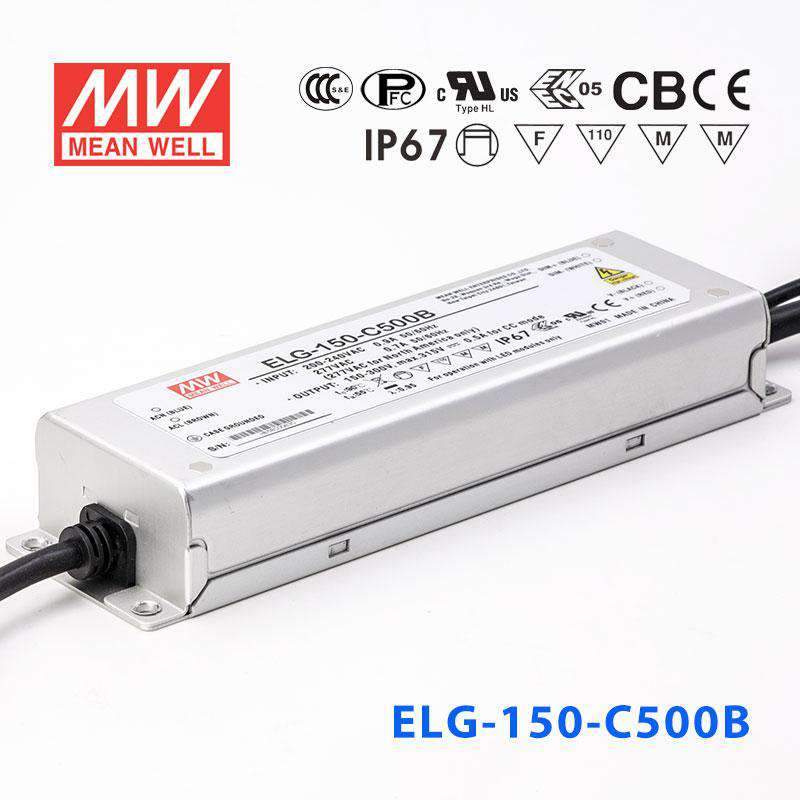

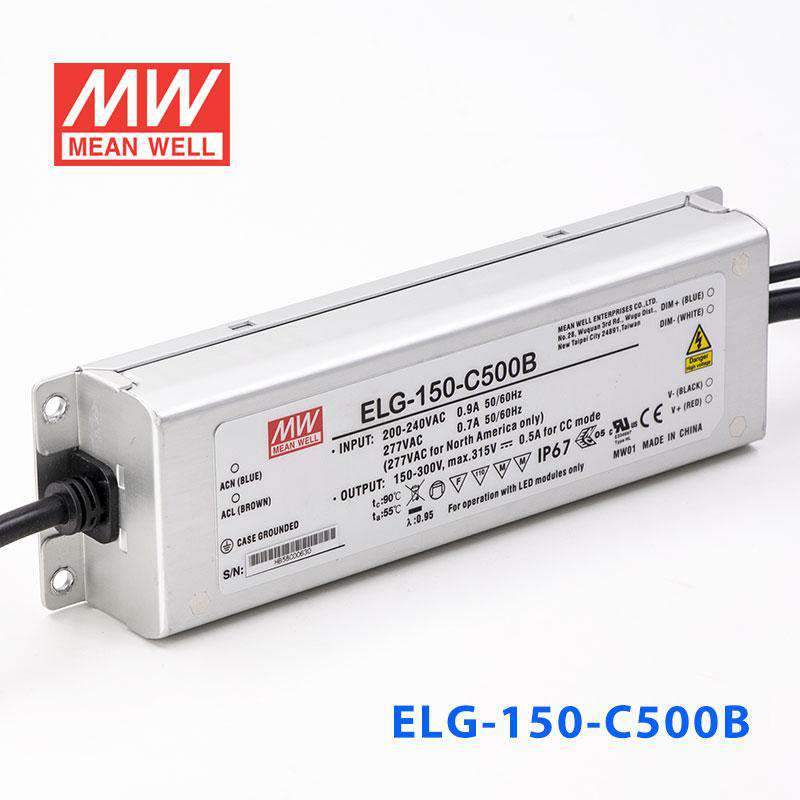

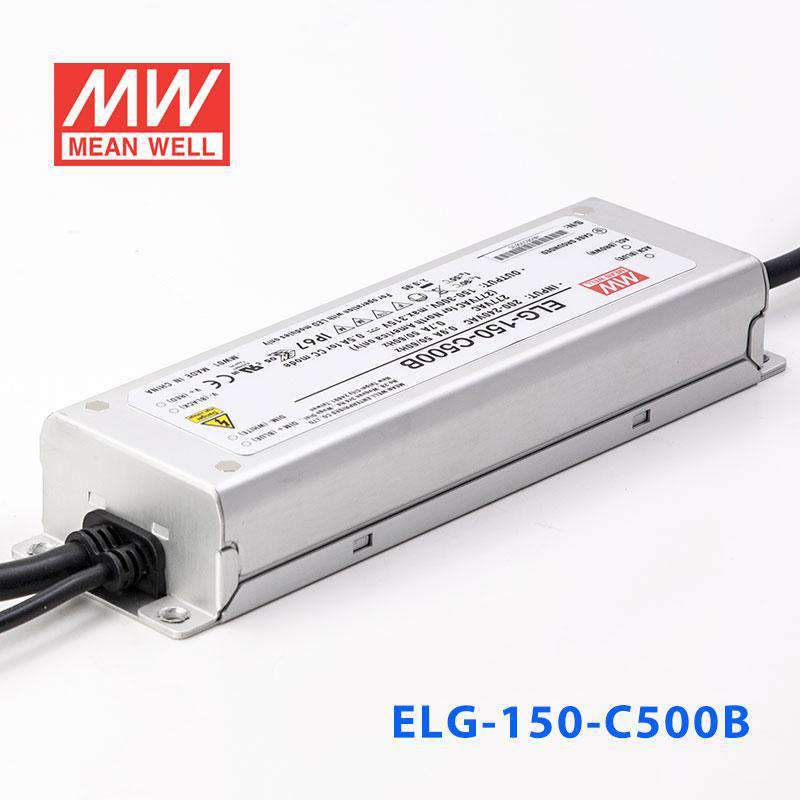

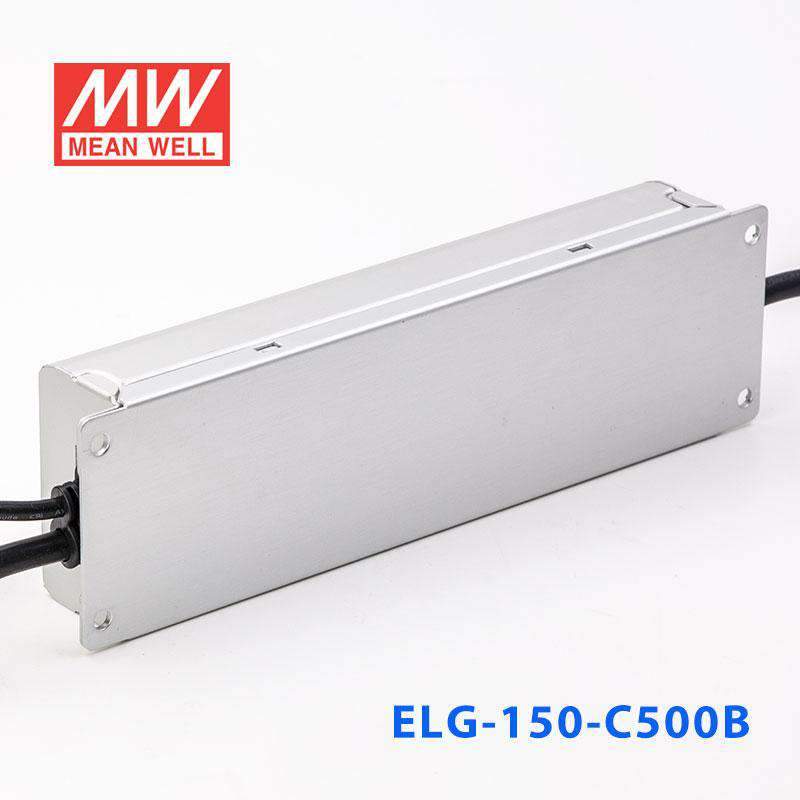

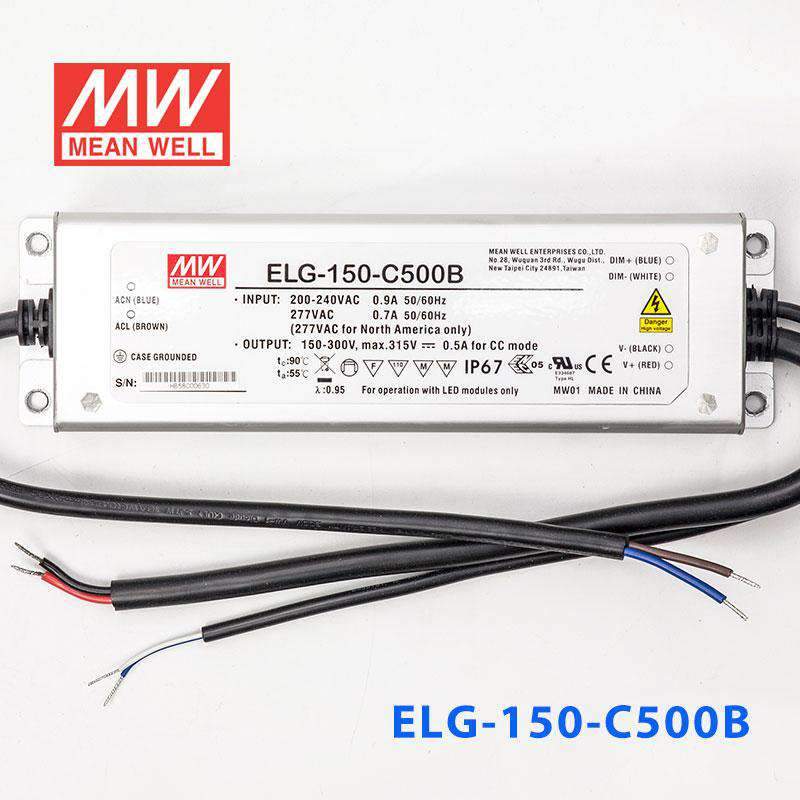

Mean Well ELG-150-C500B Power Supply 150W 500mA - Dimmable
Description
Description
Features
| 100~305VAC wide input range |
| Built-in active PFC |
| Protections: Short circuit / Over voltage/Over temperature |
| No load power consumption <0.5W |
| High efficiency up to 92% |
| Suitable for LED lighting and street lighting applications |
| Cooling by free air convection |
| 100% full load burn-in test |
| 5 years warranty |
General Specification
| AC input voltage range | 100~305VAC;142~431VDC |
| AC inrush current | Cold start, 65 at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Over voltage protection | 110%~140% rated output voltage |
| Setup, rise, hold up time | 500ms |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Safety standards | UL8750 approved |
| EMC standards | EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, GB17743,GB17625.1 |
| Dimension (LxWxH) | 219x63x35.5 |
| Packing | 16pcs / 16.0kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating150 Watt
-
Output Voltage315 Volt
-
Rated Current0.5 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length8.62 in
-
Width2.48 in
-
Height1.4 in
-
Weight2.09 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the ELG-150-C500B be used to dim LED downlights via a 0–10V control signal?
Yes. The B suffix denotes three-in-one dimming capability, which accepts 0–10V, PWM, and resistance control signals. This allows the ELG-150-C500B to integrate with standard 0–10V dimming panels used in commercial downlight systems without needing a separate external dimmer.
Is the ELG-150-C500B suitable for outdoor LED signage with rain exposure?
Yes. The ELG-150-C500B carries an IP67 waterproof rating, so it can withstand temporary water immersion and is appropriate for outdoor sign cabinets or luminaires exposed to rain. Its operating range of -40°C to +90°C also supports cold outdoor climates.
Can this driver power LED modules in series strings used for channel letter signage?
Yes. At 500mA constant current with a 150–300V compliance range, the ELG-150-C500B suits series-connected LED modules in channel letter or illuminated cabinet signage. The number of modules per string depends on each module's individual forward voltage — the total string voltage must stay within 150–300V.
What certifications does the ELG-150-C500B carry?
The ELG-150-C500B is certified to c_BSI, CB, CCC, CE, EAC, ENEC, c_RCM, and UL standards. It also carries a 5-year warranty.
How does the ELG-150-C500B differ from the ELG-150-C500A?
Both models share 500mA constant current at 150W and a 150–300V compliance range. The C500B adds three-in-one dimming (0–10V/PWM/resistance) and is rated IP67 waterproof, while the C500A offers analog output adjustment (current trim) and is rated IP65 water-resistant. Choose the C500B when active dimming and full waterproofing are both required.
