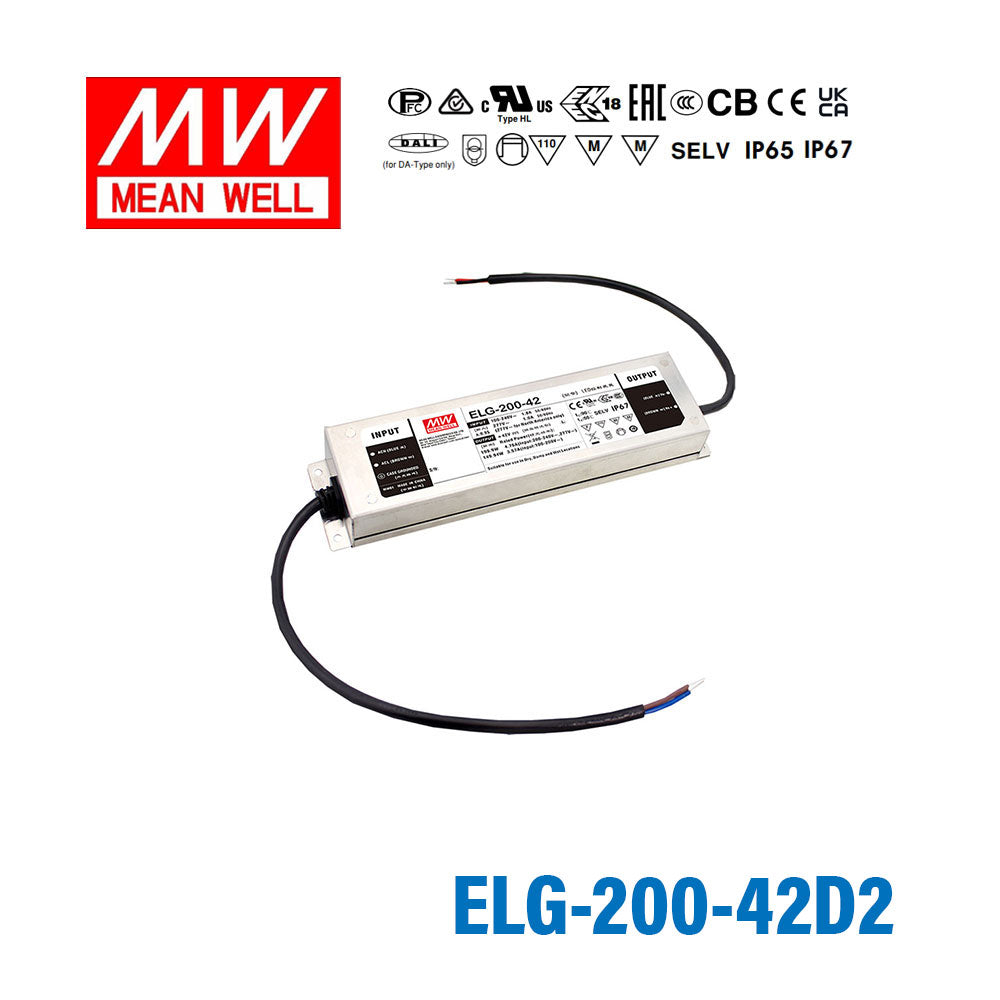

Mean Well ELG-200-42D2 AC-DC Single output LED Driver Mix Mode (CV+...
The ELG-200 is a 200W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 12/12B/24/24B/36/36A/42A/48/48A/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating200 Watt
-
Output Voltage42 Volt
-
Rated Current4.76 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
::specification::
Frequently Asked Questions
Can I use the ELG-200-42D2 with a 0–10V dimming controller in a commercial lighting system?
Yes. The D2 suffix designates three-in-one dimming: 0–10V analog, PWM signal, and resistance (potentiometer). This makes the ELG-200-42D2 directly compatible with standard 0–10V wall dimmers and BAS dimming outputs common in commercial office and retail lighting control systems.
Is the ELG-200-42D2 suitable for outdoor LED feature lighting?
Yes. The IP67 rating means the driver tolerates temporary water immersion up to 1 meter, making it appropriate for outdoor plinth lighting, buried luminaire drivers, and exposed outdoor LED features. The -40°C to +90°C operating temperature range handles both cold-climate winters and hot enclosure conditions.
How many meters of LED strip can the ELG-200-42D2 support?
The driver outputs 200W at 42V. Divide 200W by your strip's rated wattage per meter to estimate length; for an 8W/m strip that is 25 m (200 ÷ 8), and for a 14W/m strip it is roughly 14 m (200 ÷ 14). Always derate by at least 20% for thermal headroom, reducing those examples to approximately 20 m and 11 m respectively. Check your strip's rated power per meter for an accurate figure.
Can the ELG-200-42D2 power LED modules in a museum display or gallery case?
Yes. The three-in-one D2 dimming input allows precise brightness control via an analog 0–10V signal, which is common in museum lighting control systems. At 200W and 42V it can drive a substantial array of display LED modules from a single driver, reducing wiring complexity inside display cases.
Is the ELG-200-42D2 appropriate for LED lighting in food processing or wash-down areas?
IP67 protection covers temporary immersion, so it handles incidental water jets and heavy condensation typical of food processing environments. However, IP67 is not equivalent to a full wash-down or IP69K rating; if high-pressure hot cleaning is routine, a dedicated wash-down enclosure is recommended around the driver.
Can the ELG-200-42D2 be used to drive a 42V LED strip in a horticultural grow-light application?
Yes. At 200W and 42V constant-current output with IP67 protection against the high humidity in grow rooms, the ELG-200-42D2 is a practical choice for horticultural LED strip arrays. The D2 dimming input also allows integration with photoperiod and intensity controllers common in controlled-environment agriculture.
