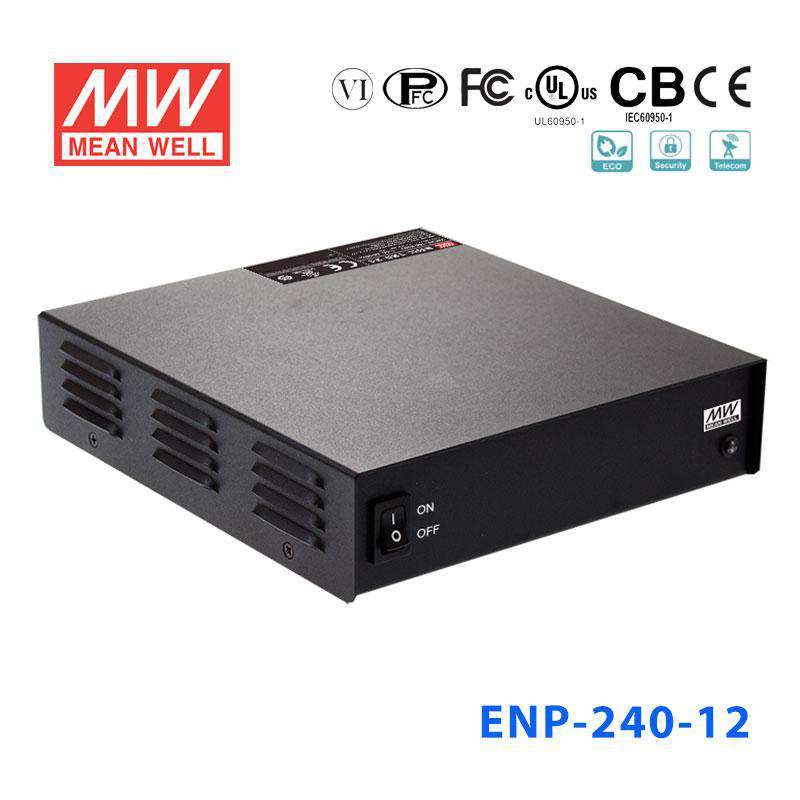

Mean Well ENP-240-12 Desktop Type Chargers 240W 13.8V 17.4A - Level VI Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ENP-240-12 Desktop Type Chargers 240W 13.8V 17.4A - Level...
Description
Description
EN55032 Class B,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11
Key Features
- ✓✓Universal AC input/Full range
- ✓✓Built-in active PFC function
- ✓✓Energy efficiency Level VI
- ✓✓No load power consumption <0.15W
- ✓✓Comply with EISA 2007/DoE, NRCan, and EU Erp
- ✓✓125% peak load capability
- ✓✓Fanless design, cooling by free air convection
- ✓✓Protection: Short circuit/ Overload/ Over voltage/ Over temperature
- ✓✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesENP Series
-
Power Rating240 Watt
-
Output Voltage13.8 Volt
-
Rated Current17.4 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,cUL,EAC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.56 in
-
Width7.01 in
-
Height1.79 in
-
Weight2.71 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output ratings of the Mean Well ENP-240-12?
The ENP-240-12 is a 240W desktop power supply with a regulated 13.8V DC output and a rated current of 17.4A. It is designed for applications that need a higher-current 13.8V source in a compact external form factor.
Is the ENP-240-12 a good fit for 12V-class equipment?
This model outputs 13.8V DC, so it is typically considered for equipment designed to operate at or around that voltage. Buyers should confirm that their load accepts 13.8V input and does not exceed the unit's 17.4A rated current or 240W power limit.
What makes the ENP-240-12 different from a basic 12V power adapter?
Compared with a basic adapter, the ENP-240-12 provides a much higher 240W power rating, active PFC, and Energy Efficiency Level VI performance. It also includes industrial-style protections, fanless cooling, and 125% peak load capability for short-duration demand above rated output.
Can this power supply handle demanding or variable loads?
Yes. The ENP-240-12 is rated for 240W continuous output and can support 125% peak load capability under the conditions specified by the manufacturer. Its overload behavior includes constant current limiting with auto-recovery after the peak condition is removed.
Is the ENP-240-12 suitable for harsh or wide-temperature environments?
This model has a specified operating temperature range of -30°C to +70°C, which supports use across a broad range of environments. Its fanless free-air convection design can also be useful where lower noise or reduced moving-part maintenance is preferred.
What safety, efficiency, and protection features does the ENP-240-12 include?
The ENP-240-12 is an Energy Efficiency Level VI power supply with no-load power consumption below 0.15W and compliance references including EISA 2007/DoE, NRCan, and EU ErP. It includes short circuit, overload, over-voltage, and over-temperature protection, and it is approved to IEC62368-1 and UL62368-1 safety standards.
Other ENP-240 Models
2 other models| Model | Power | Battery Type | Battery Voltage | Charging Current | Price | |
|---|---|---|---|---|---|---|
| Mean Well ENP-240-48 Desktop Type Chargers 240W 55.2V 4.4A - Level VI Power Supply | 240 Watt | Normal Battery | 48V | — | $83.98 | View |
| Mean Well ENP-240-24 Desktop Type Chargers 240W 27.6V 8.7A - Level VI Power Supply | 240 Watt | Normal Battery | 24V | — | $75.93 | View |
