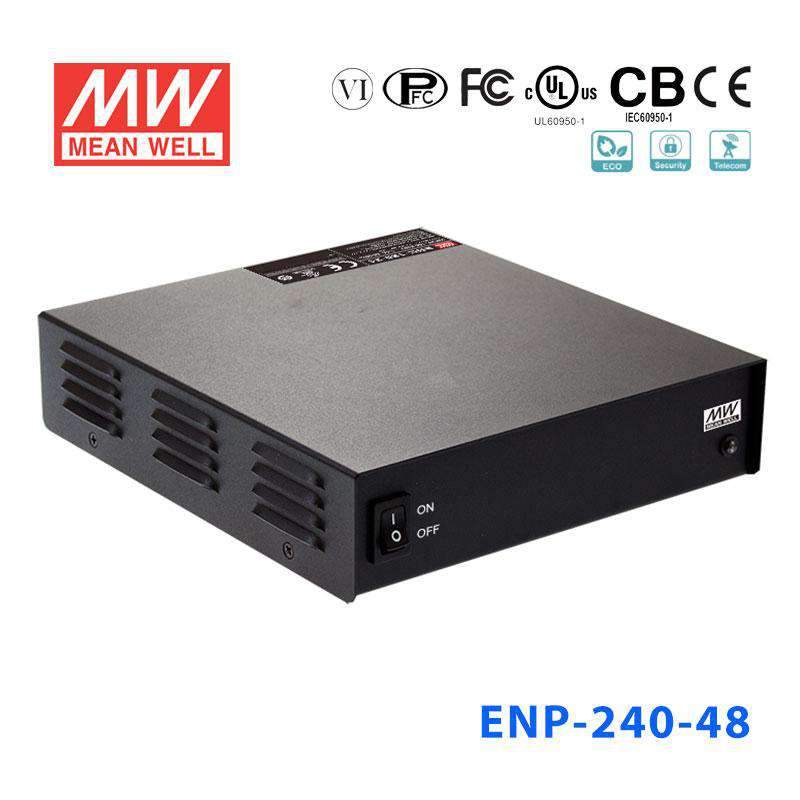

Mean Well ENP-240-48 Desktop Type Chargers 240W 55.2V 4.4A - Level VI Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ENP-240-48 Desktop Type Chargers 240W 55.2V 4.4A - Level ...
Description
Description
EN55032 Class B,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11
Key Features
- ✓✓Universal AC input/Full range
- ✓✓Built-in active PFC function
- ✓✓Energy efficiency Level VI
- ✓✓No load power consumption <0.15W
- ✓✓Comply with EISA 2007/DoE, NRCan, and EU Erp
- ✓✓125% peak load capability
- ✓✓Fanless design, cooling by free air convection
- ✓✓Protection: Short circuit/ Overload/ Over voltage/ Over temperature
- ✓✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesENP Series
-
Power Rating240 Watt
-
Output Voltage55.2 Volt
-
Rated Current4.4 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,cUL,EAC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.56 in
-
Width7.01 in
-
Height1.79 in
-
Weight2.71 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output specifications of the Mean Well ENP-240-48?
The ENP-240-48 is rated for 240W output with a nominal output voltage of 55.2V and rated current of 4.4A. It is intended for applications that require this specific voltage and power level from a desktop type power supply.
What input range does the ENP-240-48 support?
This model accepts a universal AC input range of 90 to 264VAC, and it also supports 127 to 370VDC input. That wide range makes it suitable for use across different regions and power environments where compatible mains supply is available.
Does the ENP-240-48 use a fan for cooling?
No, the ENP-240-48 uses a fanless design and is cooled by free air convection. This can be beneficial in applications where lower acoustic noise and reduced moving-part maintenance are important.
What protection features are built into this power supply?
The ENP-240-48 includes protection for short circuit, overload, over voltage, and over temperature. Its overload protection supports operation at 110% to 125% of rated output power for more than 3 seconds before switching to constant current limiting, with auto-recovery after the condition is removed.
Is the ENP-240-48 designed for energy-efficient applications?
Yes, this model is rated to Energy Efficiency Level VI and has no-load power consumption below 0.15W. It also complies with EISA 2007/DoE, NRCan, and EU ErP requirements, which makes it a strong fit for efficiency-sensitive commercial applications.
What operating temperature range can the ENP-240-48 handle?
The specified working temperature range is -30°C to +70°C. Buyers should still confirm that the surrounding enclosure and overall system conditions allow the power supply to operate within that range.
What certifications and standards does the ENP-240-48 meet?
The ENP-240-48 is approved to IEC62368-1, UL62368-1, and EAC TP TC 004, and it meets BS EN/EN62368-1. For EMC, it meets EN55032 Class B and related EN61000 series standards listed in the specification.
What are the physical size, weight, and warranty for this model?
The unit dimensions are 192 x 178 x 45.5 mm, and the listed weight is 1.23 kg. Mean Well specifies this model with a 3-year warranty.
