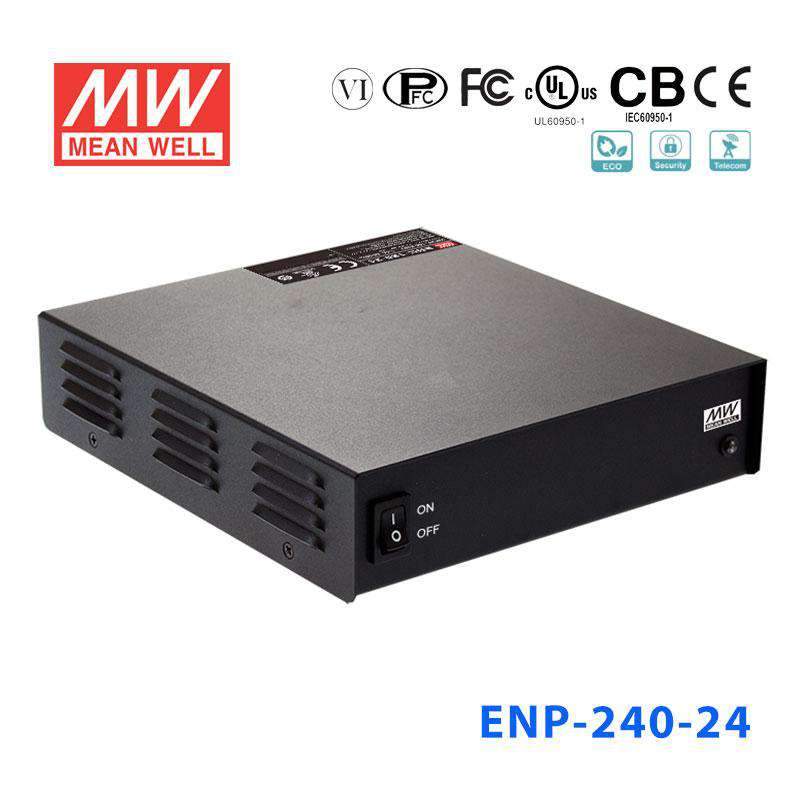

Mean Well ENP-240-24 Desktop Type Chargers 240W 27.6V 8.7A - Level VI Power Supply

energy efficiency level VI, no load power consumption
$75.93 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input/Full range
Built-in active PFC function
Energy efficiency Level VI
No load power consumption <0.15W
Comply with EISA 2007/DoE, NRCan, and EU Erp
125% peak load capability
Fanless design, cooling by free air convection
Protection: Short circuit/ Overload/ Over voltage/ Over temperature
3 years warranty

General Specification

AC input voltage range 90~264VAC  127~370VDC
AC inrush current (max.) Cold start, 75A at 230VAC
Overload protection Normally works within 110 ~ 125% rated output power for more than 3 seconds and switches to constant current limiting, with auto-recovery after the peak load condition is removed
Over-voltage protection 112%~131% rated voltage
Setup, rise, hold up time 1000ms,100ms,20ms at full load
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -30~+70ºC
Safety standards IEC62368-1, UL62368-1, EAC TP TC 004 approved; Meet BS EN/EN62368-1
EMC standards

EN55032 Class B,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11

Dimension (LxWxH) (mm) 192x178x45.5mm
Packing 10pcs/13.3Kg

Specifications

  • Brand
    Mean Well
  • Series
    ENP Series
  • Power Rating
    240 Watt
  • Output Voltage
    27.6 Volt
  • Rated Current
    8.7 Ampere
  • Input Voltage
    90V~264V
  • No of Output
    1
  • Standards Met
    CB,CE,cUL,EAC,FCC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    7.56 in
  • Width
    7.01 in
  • Height
    1.79 in
  • Weight
    2.71 lb

File Downloads

::specification::
