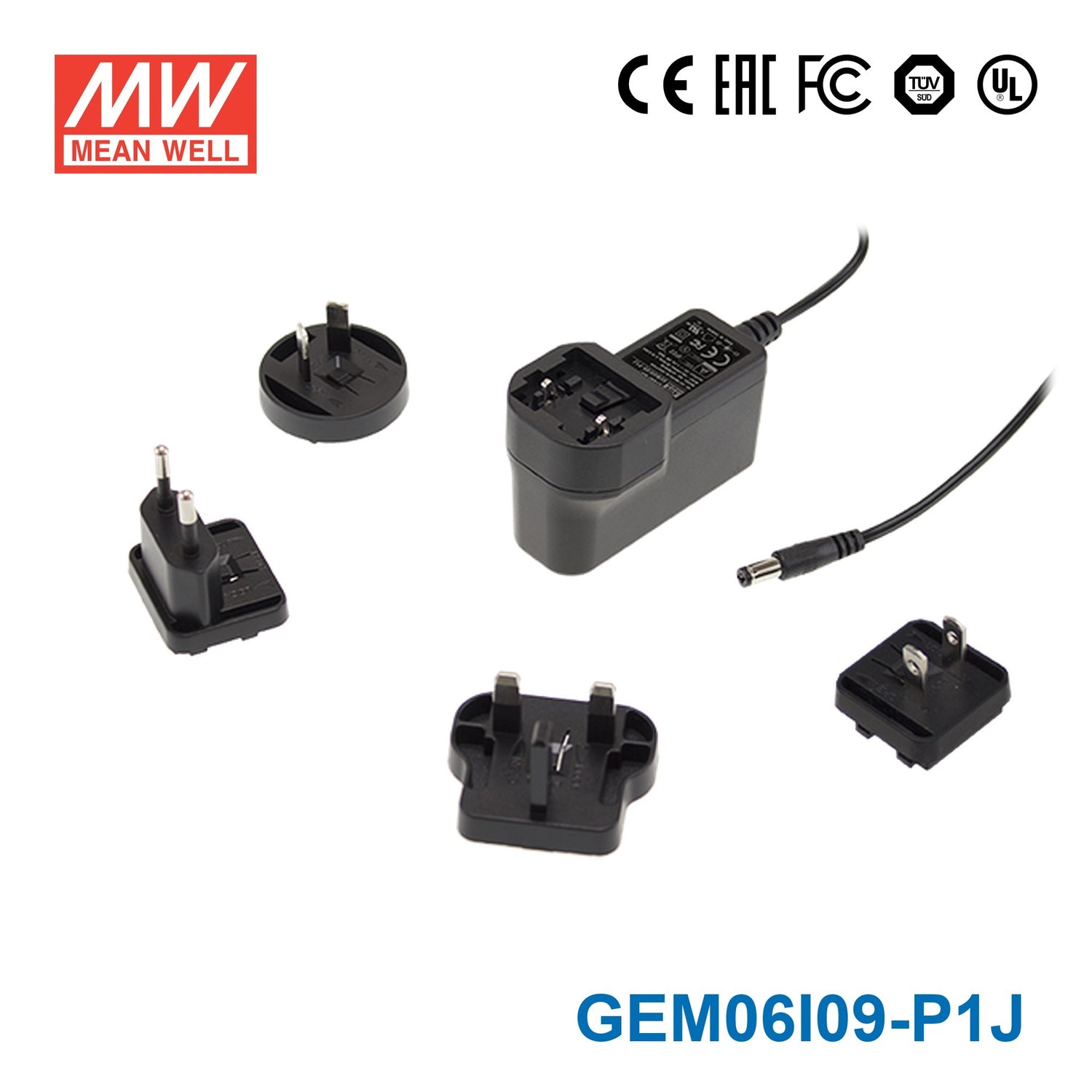

Mean Well GEM06I09-P1J Power Supply 6W 9V
Description
Description
The GEM06I09 is a 6W Mean Well power converter.
Key Features
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGEM Series
-
Power Rating6 Watt
-
Output Voltage9 Volt
-
Rated Current0.66 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.91 in
-
Width1.91 in
-
Height1.54 in
-
Weight0.22 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GEM06I09-P1J for a 9V embedded system or control board?
Yes, this supply provides constant voltage output at 9V and is rated for 6W with up to 0.66A output current. It is appropriate for low-power 9V electronics that stay within those limits.
Is this 9V power supply suitable for compact industrial test or measurement devices?
It can be suitable for small industrial electronics that require a stable 9V source and do not exceed 6W. The key check is that the device's input requirement matches 9V constant voltage and 0.66A maximum output.
Can the GEM06I09-P1J be used for low-power automation accessories that operate on 9V?
Yes, for 9V automation accessories or interface modules with modest power draw. This model is intended for low-power loads, with a maximum output of 6W and 0.66A.
Would this work for 9V IT peripherals or communications accessories?
It can be a fit for small 9V peripherals when the equipment is designed for constant voltage input at 9V. Its 80-264VAC input range also makes it usable across a broad range of AC supply conditions.
Can the GEM06I09-P1J be used outdoors or in exposed areas?
The unit is specified for operation from -20°C to +70°C, which defines the temperature range only. No IP rating is listed in the provided specs, so exposed outdoor use is not confirmed by the available data.
Other GEM06 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well GEM06I24-P1J Power Supply 6W 24V | 6W | 24V | 0.25A | Indoor | $14.85 | View |
| Mean Well GEM06I18-P1J Power Supply 6W 18V | 6W | 18V | 0.33A | Indoor | $14.85 | View |
| Mean Well GEM06I15-P1J Power Supply 6W 15V | 6W | 15V | 0.4A | Indoor | $14.85 | View |
| Mean Well GEM06I12-P1J Power Supply 6W 12V | 6W | 12V | 0.5A | Indoor | $14.85 | View |
| Mean Well GEM06I07-P1J Power Supply 6W 7.5V | 6W | 7.5V | 0.8A | Indoor | $14.85 | View |
| Mean Well GEM06I06-P1J Power Supply 6W 6V | 6W | 6V | 1A | Indoor | $13.77 | View |
| Mean Well GEM06I05-P1J Power Supply 6W 5V | 6W | 5V | 1.2A | Indoor | $14.85 | View |
