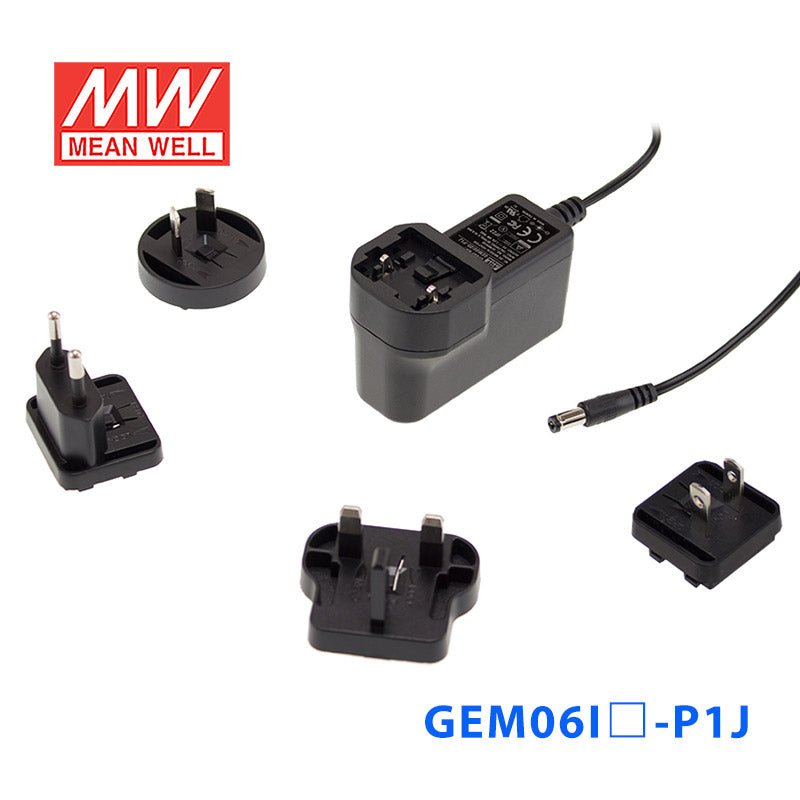

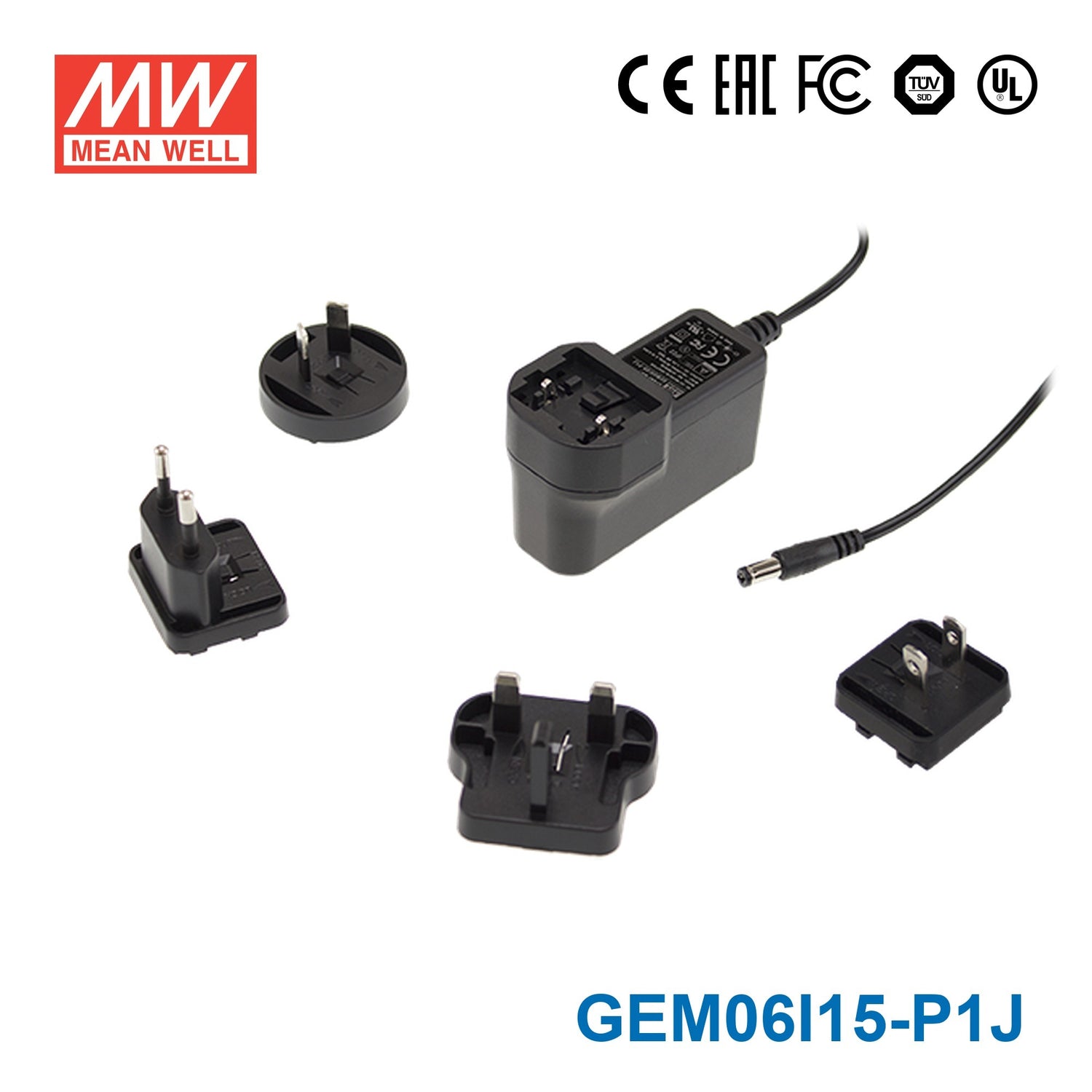

Mean Well GEM06I15-P1J Power Supply 6W 15V

$14.85 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Interchangeable AC plugs (plug kit sold separately)
Medical safety approved(2 xMOPP) according to 60601-1
Extremely low leakage current
No-load power consumption <0.3W
Energy efficiency Level V
-20 ~ +70°C wide range working temperature
Class II power (without earth pin)
Protections: Short circuit/ Overload/ Over voltage
Fully enclosed plastic case
3 years warranty


General Specification

AC input voltage range 80~264VAC
AC inrush current (max.) Cold start, 15A at 115VAC; 30A at 230VAC
Setup, rise, hold up time 1000ms, 50ms, 12ms at 230VAC input
Overload protection >105% rated output power Hiccup mode, auto-recovery
Over-voltage protection 110%~140% rated output voltage
Withstand voltage I/P-O/P:5656VDC
Working temperature -20~+70°C (refer to output derating curve)
Safety standards TUV BS EN/EN60601-1/BS ANSI/AAMI ES60601-1-11
EMC standards EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Length of output cable UL2468 22AWG 1200mm for 5-9V, UL2468 18AWG 1800mm for 12-24V
Dimension (LxWxH) 73.9x 39x 48.5 mm
Standard DC plug P1J: 2.1ID x 5.5OD x 11L, tuning fork type

Specifications

  • Brand
    Mean Well
  • Series
    GEM Series
  • Power Rating
    6 Watt
  • Output Voltage
    15 Volt
  • Rated Current
    0.4 Ampere
  • Input Voltage
    80V~264V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    CE,EAC,FCC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~70°C
  • Warranty
    3 Year
  • Length
    2.91 in
  • Width
    1.91 in
  • Height
    1.54 in
  • Weight
    0.22 lb
