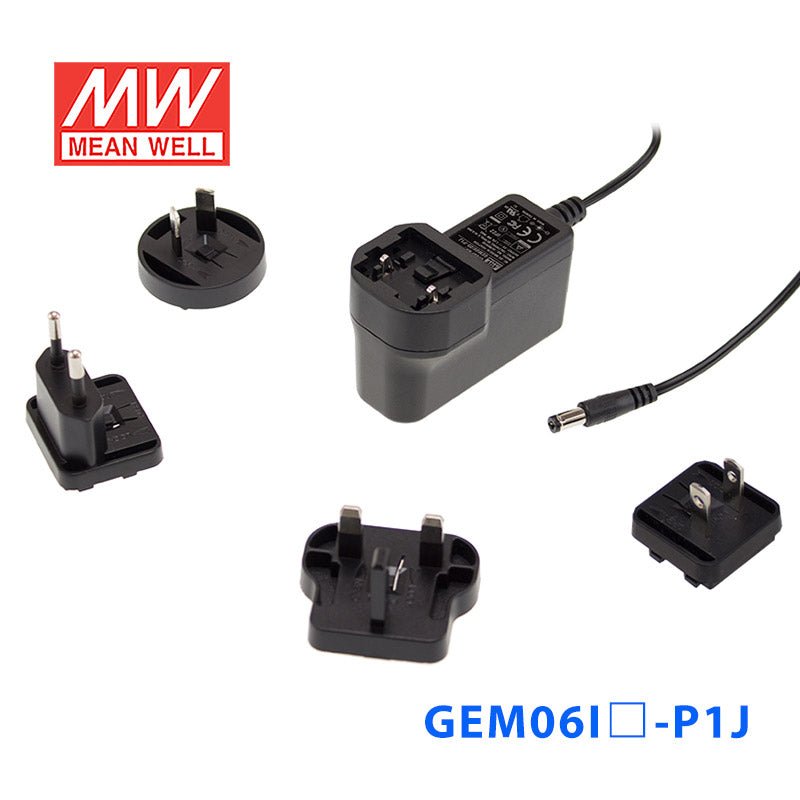

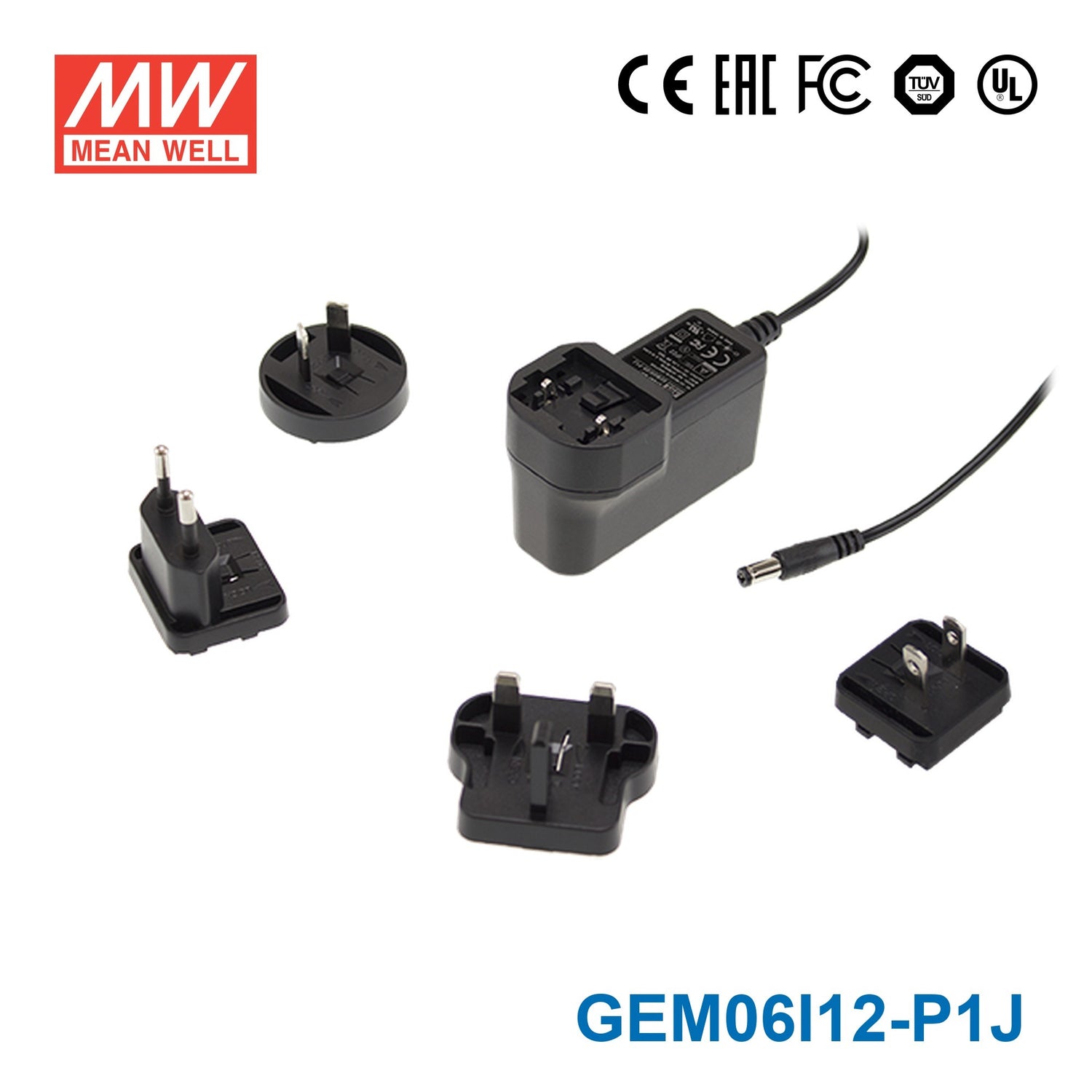

Mean Well GEM06I12-P1J Power Supply 6W 12V
Description
Description
The GEM06I12 is a 6W Mean Well power converter.
Key Features
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGEM Series
-
Power Rating6 Watt
-
Output Voltage12 Volt
-
Rated Current0.5 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.91 in
-
Width1.91 in
-
Height1.54 in
-
Weight0.22 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GEM06I12-P1J for a 12V embedded device or industrial control board?
Yes, this model outputs 12V constant voltage and is rated for 6W with up to 0.5A output current. It is suitable for low-power 12V electronics that stay within that power and current envelope.
Is the GEM06I12-P1J a good fit for small 12V automation sensors or interface modules?
It can be used for compact 12V automation devices that require constant voltage input and draw no more than 0.5A. For larger field hardware, the 6W rating may be too limited.
Can this 12V power supply run low-power CCTV or security-related electronics?
It may fit small 12V security or monitoring electronics if their total demand stays within 6W. The deciding factor is whether the device is designed for a 12V constant voltage source with up to 0.5A available.
Would the GEM06I12-P1J work for compact networking or IT accessories that need 12V?
Yes, for low-power 12V accessories with modest current draw. The supply accepts 80-264VAC input, which helps in installations where AC mains may vary by region.
Is this 12V adapter suitable for indoor or outdoor use?
The specifications include an operating temperature range of -20°C to +70°C, but they do not include an IP rating. Without an IP rating, the provided data does not establish outdoor or water-exposed suitability.
Other GEM06 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well GEM06I24-P1J Power Supply 6W 24V | 6W | 24V | 0.25A | Indoor | $14.85 | View |
| Mean Well GEM06I18-P1J Power Supply 6W 18V | 6W | 18V | 0.33A | Indoor | $14.85 | View |
| Mean Well GEM06I15-P1J Power Supply 6W 15V | 6W | 15V | 0.4A | Indoor | $14.85 | View |
| Mean Well GEM06I09-P1J Power Supply 6W 9V | 6W | 9V | 0.66A | Indoor | $14.85 | View |
| Mean Well GEM06I07-P1J Power Supply 6W 7.5V | 6W | 7.5V | 0.8A | Indoor | $14.85 | View |
| Mean Well GEM06I06-P1J Power Supply 6W 6V | 6W | 6V | 1A | Indoor | $13.77 | View |
| Mean Well GEM06I05-P1J Power Supply 6W 5V | 6W | 5V | 1.2A | Indoor | $14.85 | View |
