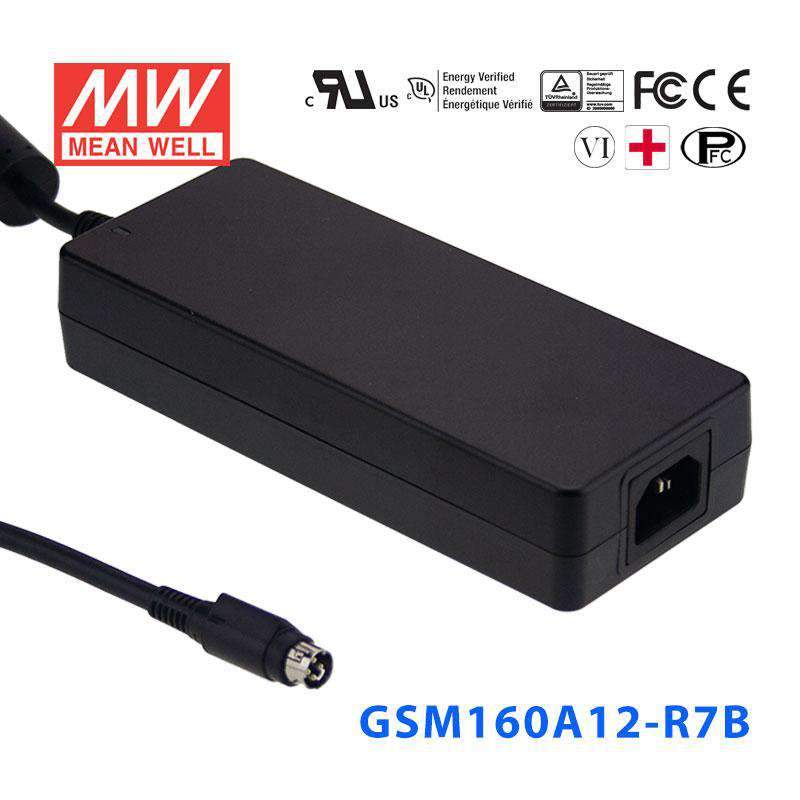

Mean Well GSM160A12-R7B Power Supply 138W 12V

SKU:
GSM160A12-R7B

$57.42 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range
3 pole AC inlet IEC320-C14
Medical safety approved (2 x MOPP between primary to secondary)
Low leakage current <100uA
No load power consumption < 0.15W
High efficiency up to 94%
Class II power (with earth pin)
Protections: Short circuit / Overload / Over voltage / Over temperature
Fully enclosed plastic case
LED indicator for power on
Energy efficiency level VI
100% full load burn-in test
3 years warranty

General Specification

AC input voltage range 80~264VAC
AC inrush current (max.) Cold start, 120A at 230VAC
Overload protection 105%~150% rated output voltage, hiccup mode, auto-recovery
Withstand voltage I/P-O/P: 4kVAC, I/P-FG: 2kVAC, O/P-FG:0.5KVAC
Working temperature -30~+70°C (refer to output derating curve )
Safety standards ANSI/AAMI ES60601-1, TUV EN60601-1 approved
EMC standards EN55011(CISPR11) class B, EN61000-3-2,3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11,EN55024, EN61204-3,EN60601-1-2
Length of output cable 120cm of UL2464, 18AWG
Dimension (LxWxH) 175x 72x 35 mm
Standard DC plug R7B: Power DIN 4P with lock type

Specifications

  • Brand
    Mean Well
  • Series
    GSM Series
  • Power Rating
    138 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    11.5 Ampere
  • Input Voltage
    80V~264V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    CB,CE,EAC,FCC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    6.89 in
  • Width
    2.83 in
  • Height
    1.38 in
  • Weight
    1.46 lb
