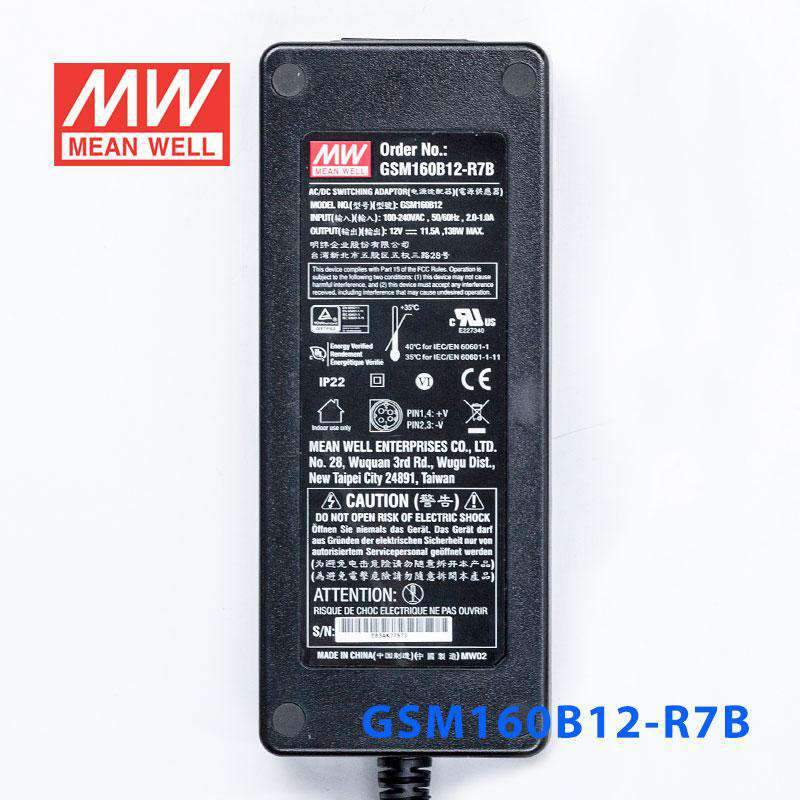

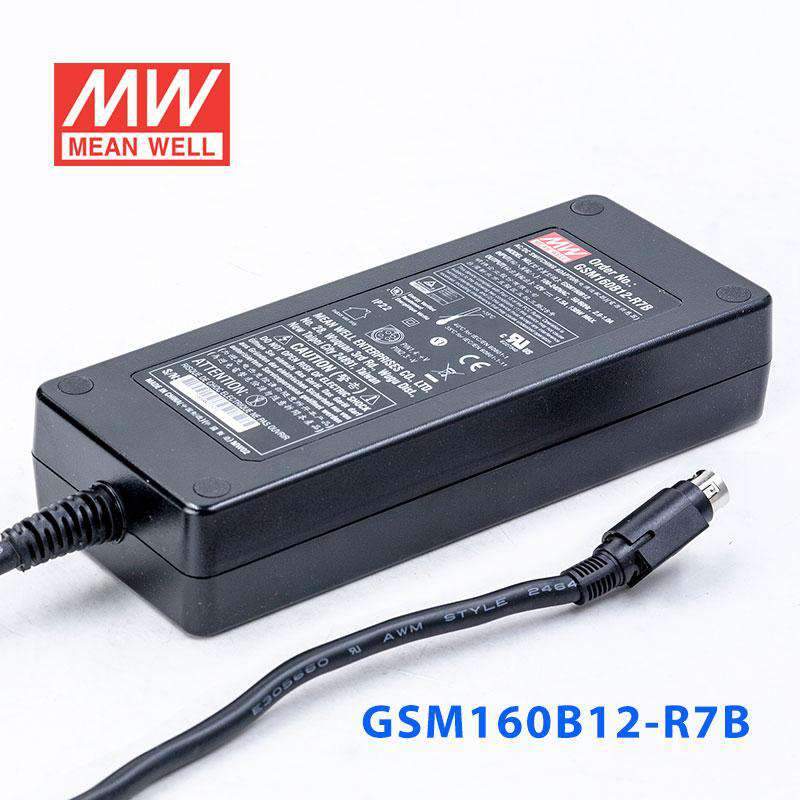

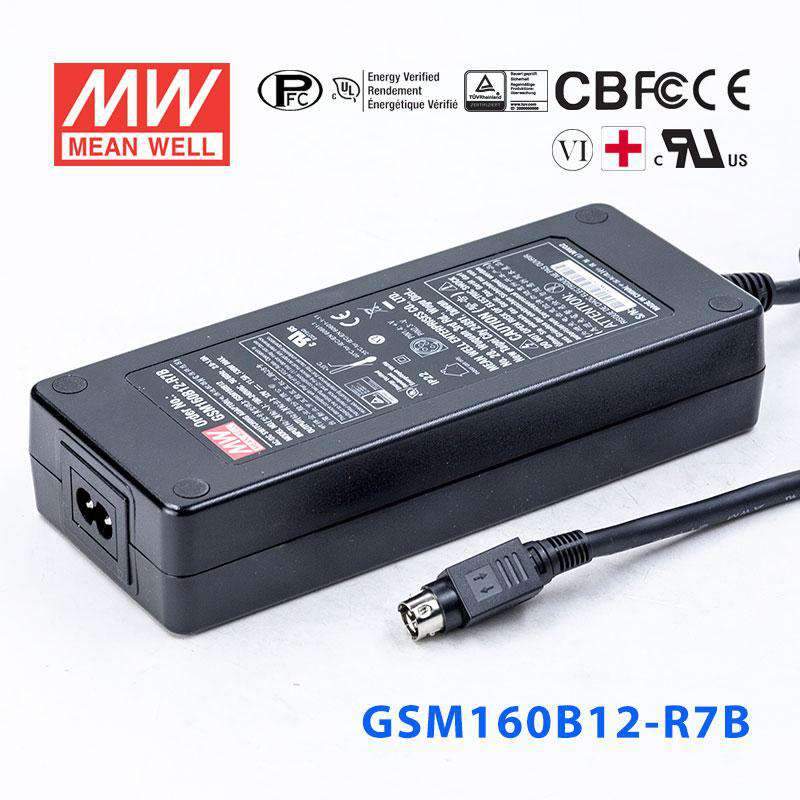

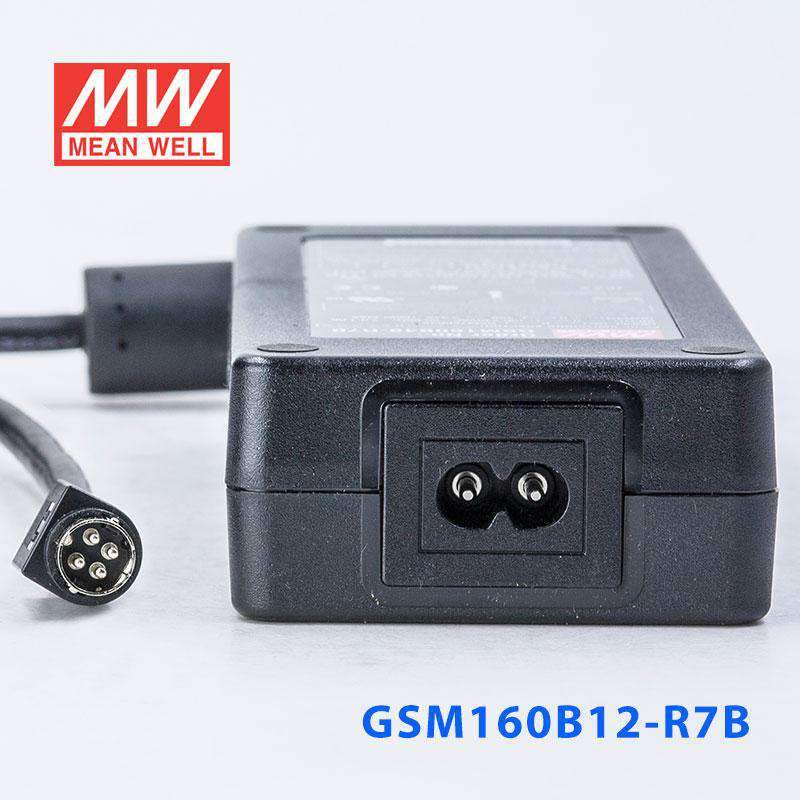

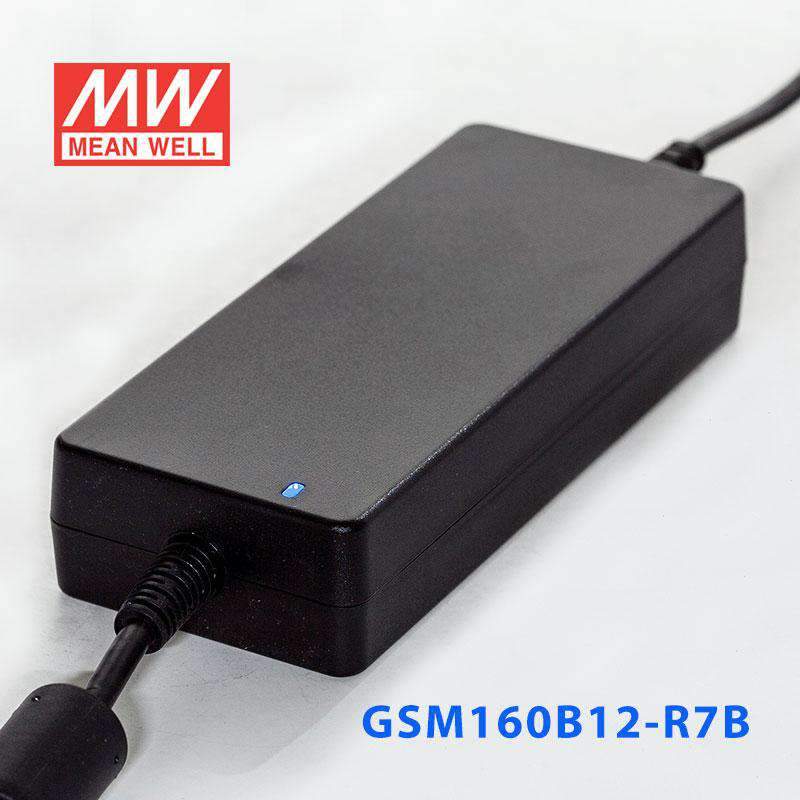

Mean Well GSM160B12-R7B Power Supply 138W 12V
The GSM160B12 is a 160W Mean Well power converter.
Key Features
- ✓ 4KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating138 Watt
-
Output Voltage12 Volt
-
Rated Current11.5 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.89 in
-
Width2.83 in
-
Height1.38 in
-
Weight1.46 lb
::specification::
Frequently Asked Questions
Can I use the GSM160B12-R7B for 12V embedded controllers or industrial electronics?
Yes, it is a constant-voltage 12V power supply with up to 11.5A output current and 138W total output power. That suits 12V embedded controllers, industrial electronics, and similar DC loads within those ratings.
Is this model suitable for 12V automation accessories and low-voltage control devices?
It can be a fit for 12V automation accessories and control devices that need a regulated constant-voltage source. The output ceiling is 11.5A, and the total power limit is 138W.
Can this power supply support a 12V test fixture or development bench setup?
For 12V bench or fixture applications, this model provides a relatively high current output for a compact supply. It delivers 12V constant voltage and can support loads up to 138W.
Would the GSM160B12-R7B work for 12V monitoring, communications, or interface hardware?
It can be used for 12V communications, interface, or monitoring devices that require constant-voltage DC. It also accepts a wide 80-264VAC input range, which is useful where AC supply conditions vary.
Is this 12V power supply meant for indoor or outdoor environments?
The stated operating temperature range is -30°C to +70°C, so the unit is rated for a wide range of ambient conditions. However, the provided specs do not include an IP rating, so outdoor-exposed use is not something the listed data confirms.
