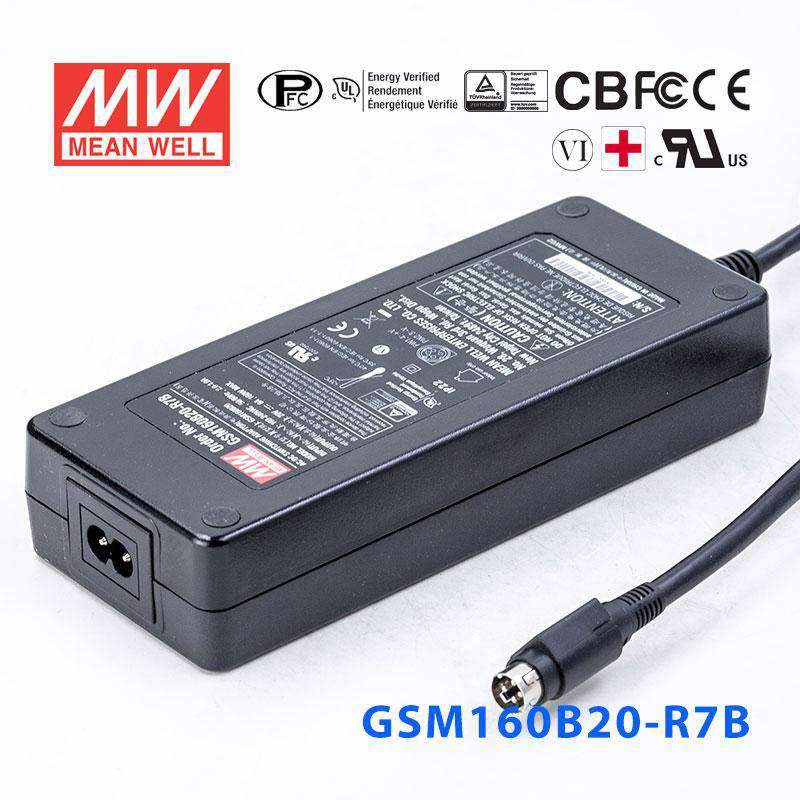

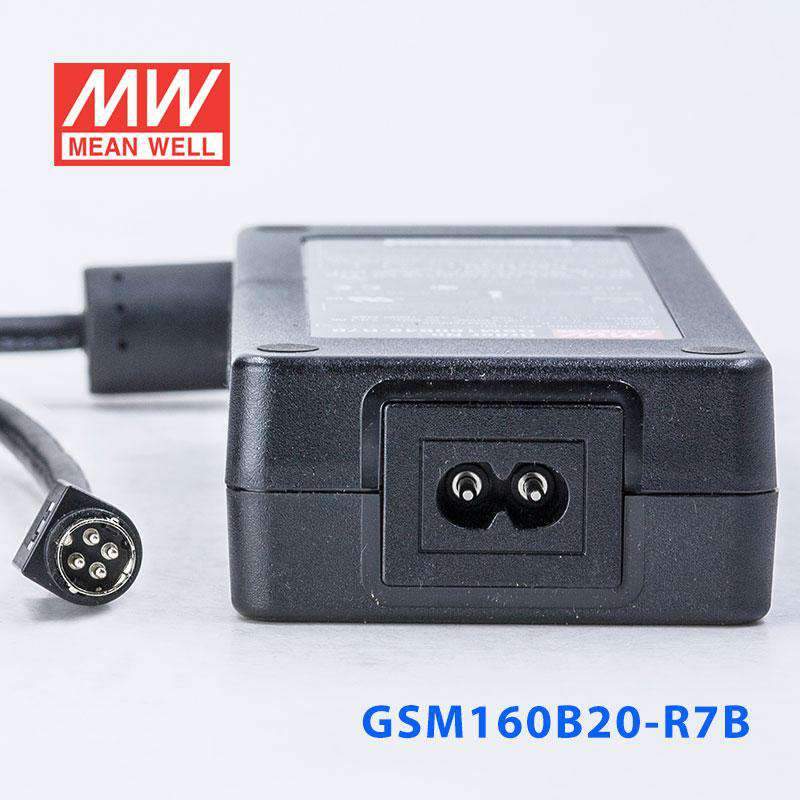

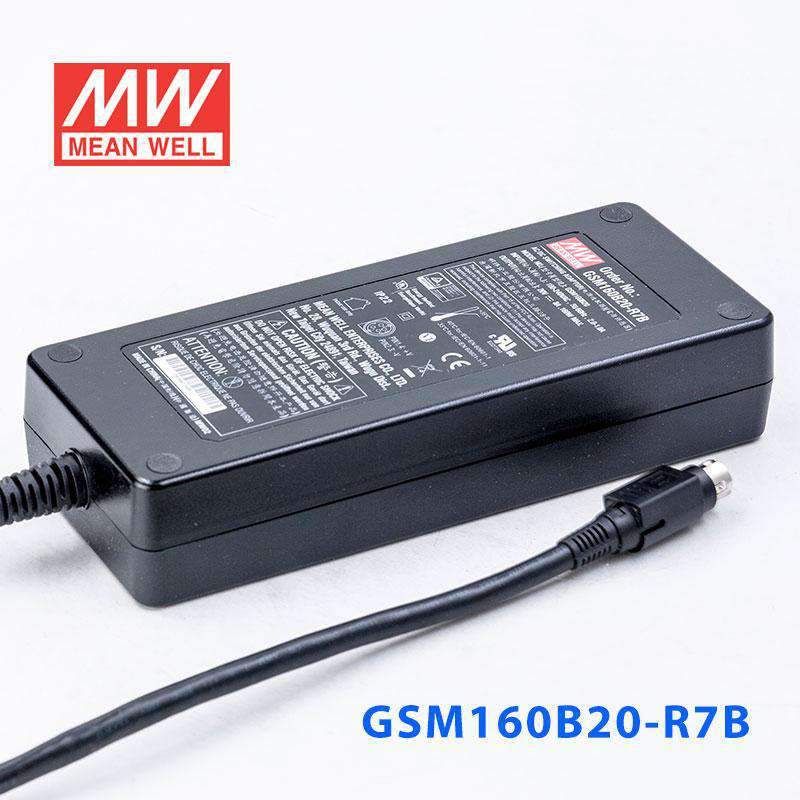

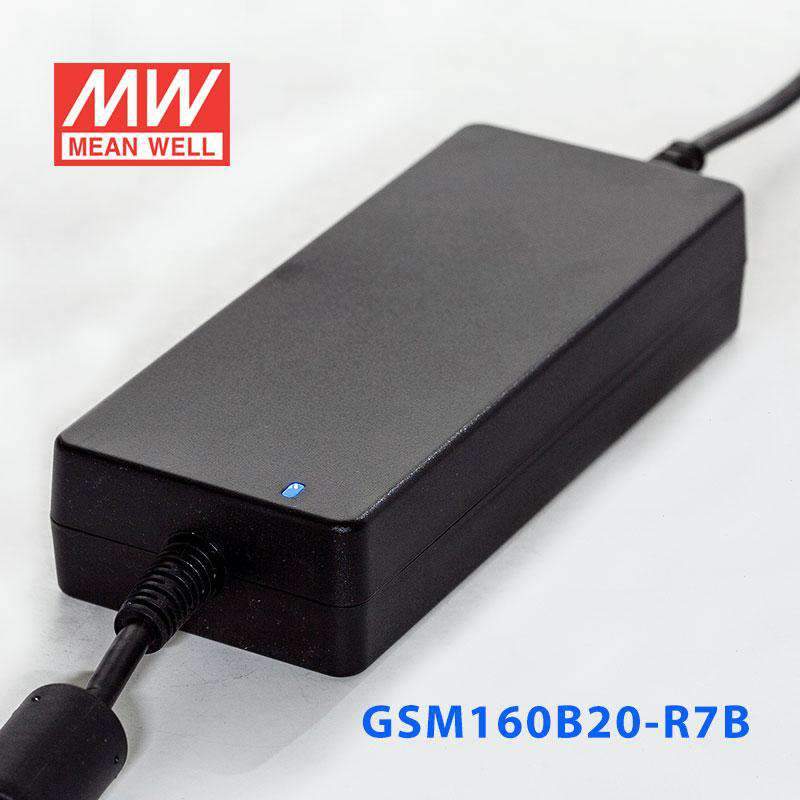

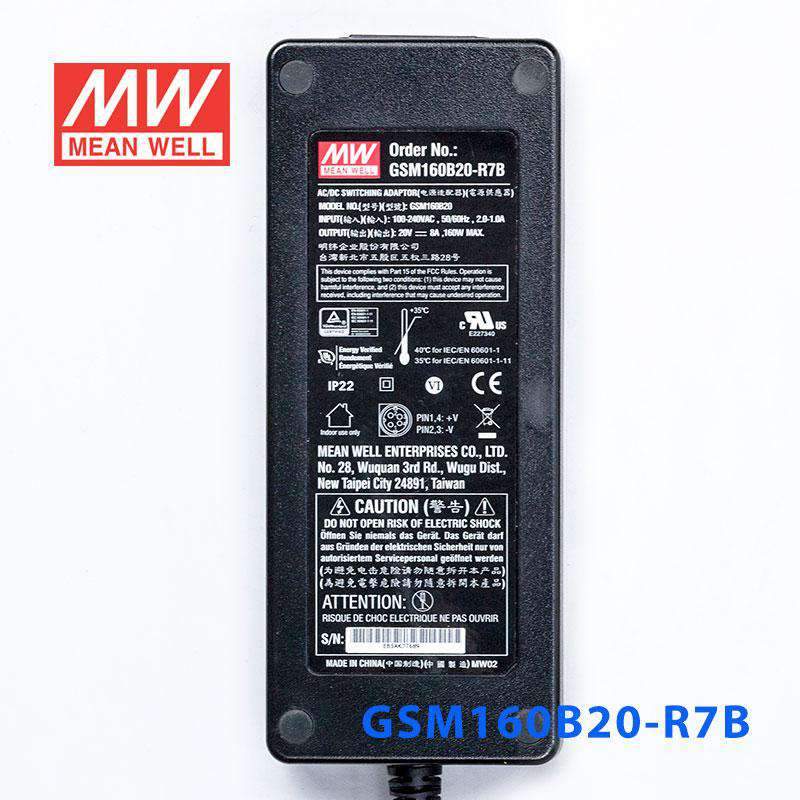

Mean Well GSM160B20-R7B Power Supply 160W 20V
The GSM160B20 is a 160W Mean Well power converter.
Key Features
- ✓ 4KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating160 Watt
-
Output Voltage20 Volt
-
Rated Current8 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.89 in
-
Width2.83 in
-
Height1.38 in
-
Weight1.46 lb
::specification::
Frequently Asked Questions
Can I use the GSM160B20-R7B to power a 20V industrial HMI or panel computer?
Yes, this model is a constant-voltage 20V supply rated for up to 8A and 160W. That makes it suitable for equipment that requires a regulated 20V DC source and stays within those output limits.
Is the GSM160B20-R7B suitable for 20V embedded control or automation electronics?
It can be used for embedded or automation devices that are designed for 20V constant-voltage input. The supply provides up to 8A with a total output capacity of 160W, so the load needs to remain within both values.
Can this 20V power supply run a 20V industrial display or test station?
For a display, test fixture, or similar DC load that requires 20V, this unit is a fit as long as the total demand does not exceed 160W or 8A. Its wide 80-264VAC input also helps when the AC source varies across facilities or regions.
How do I know if the GSM160B20-R7B is sized correctly for my 20V device?
Match the device to a 20V constant-voltage source, then verify its total draw is no more than 8A and no more than 160W. If the load exceeds either limit, this model is undersized for that application.
Is the GSM160B20-R7B suitable for outdoor or harsh-environment use?
The listed operating temperature is -30°C to +70°C, so the temperature range is broad. However, no IP rating is provided in these specs, so outdoor exposure or wet-location suitability is not established here.
