Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

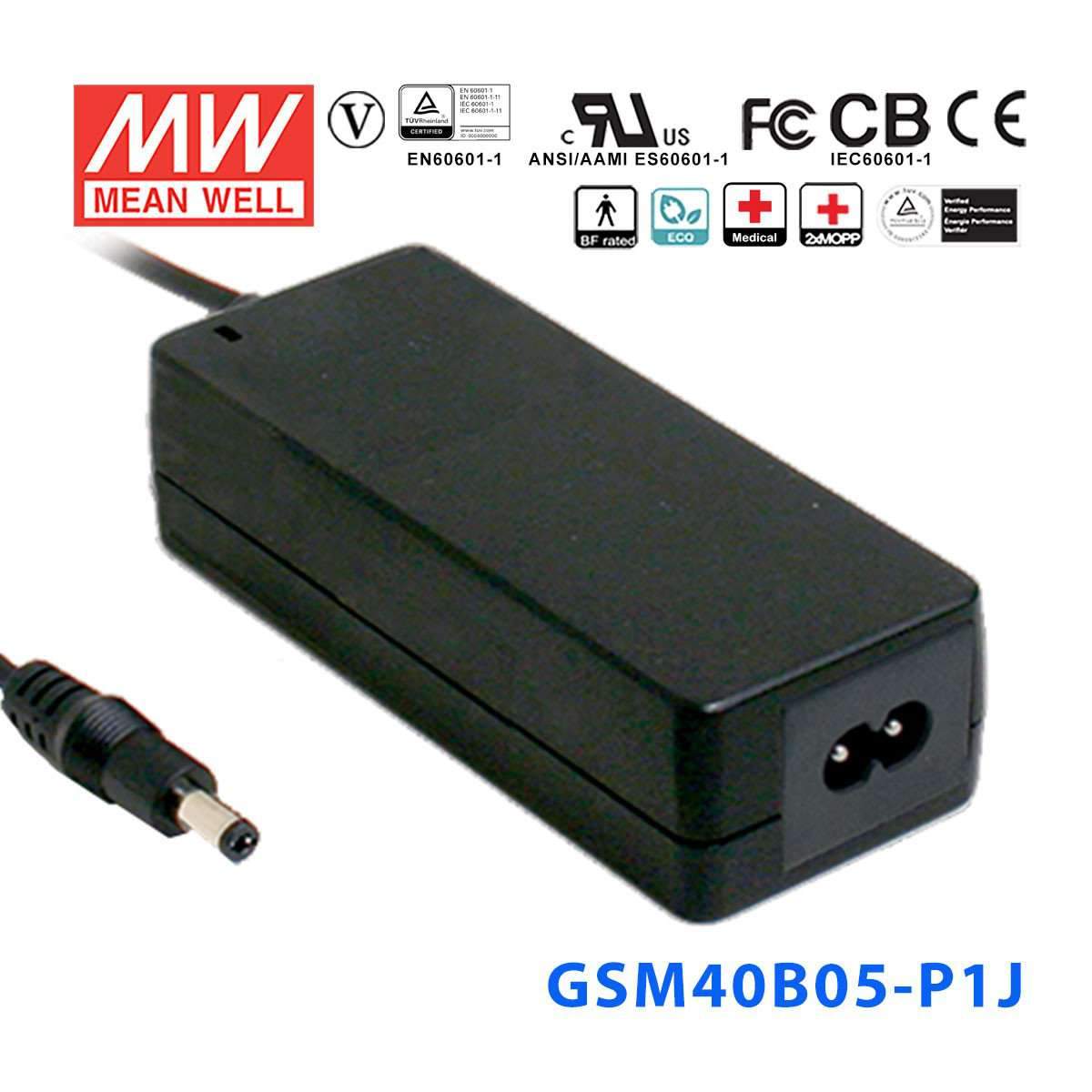

Mean Well GSM40B05-P1J Power Supply 25W 5V
Description
Description
Features
| Universal AC input / Full range |
| 2 pole AC inlet IEC320-C8 |
| Medical safety approved (2 x MOPP between primary to secondary) |
| Low leakage current <50uA |
| No load power consumption < 0.1W |
| High efficiency up to 91% |
| Class II power (with earth pin) |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Fully enclosed plastic case |
| LED indicator for power on |
| Optional lock type DC plug |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 80~264VAC ; 113~370VDC |
| AC inrush current (max.) | Cold start, 65A at 230VAC |
| Overload protection | 105%~160% rated output voltage, hiccup mode, auto-recovery |
| Withstand voltage | I/P-O/P: 4kVAC , O/P-FG:SHORT |
| Working temperature | -30~+60°C (refer to output derating curve ) |
| Safety standards | ANSI/AAMI ES60601-1/ ES60601-1-11 , TUV EN60601/60601-1-11 approved |
| EMC standards | EN55011(CISPR11) class B, EN61000-3-2,3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11,EN55024, EN61204-3,EN60601-1-2 |
| Length of output cable | 100cm of UL2464, 16AWG for 5~7.5V ; 100cm of UL1185, 16AWG for 9~12V; 150cm of UL1185, 16AWG for 15~48V |
| Dimension (LxWxH) | 125x 50x 31.5 mm |
| Standard DC plug | P1J: 2.1øx5.5øx11mm / C+, tuning fork type |
Specifications
Specifications
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating25 Watt
-
Output Voltage5 Volt
-
Rated Current5 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.92 in
-
Width1.97 in
-
Height1.24 in
-
Weight0.64 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GSM40B05-P1J for a 5V embedded controller or SBC?
Yes, this is a constant-voltage 5V power supply for equipment that requires regulated 5V DC input. The total load must stay within 5A and 25W.
Is this a good fit for 5V industrial interfaces or logic devices?
It fits 5V industrial or embedded electronics that are designed for constant 5V input. Output capacity is up to 5A, with 25W maximum power.
Can this power supply run a 5V automation module or compact HMI accessory?
It can power 5V automation accessories that need a constant-voltage source. The device load needs to remain at or below 5A and 25W.
Would this work for 5V test fixtures or control peripherals in an industrial setting?
It is suitable for 5V DC peripherals where a stable constant-voltage output is required. Capacity is limited to 25W total and 5A output current.
Can I use this 5V power supply in outdoor equipment cabinets?
The operating temperature range is -30°C to +70°C, which supports a wide temperature window. The specs do not list an IP rating, so outdoor exposure protection is not established by the published data.
