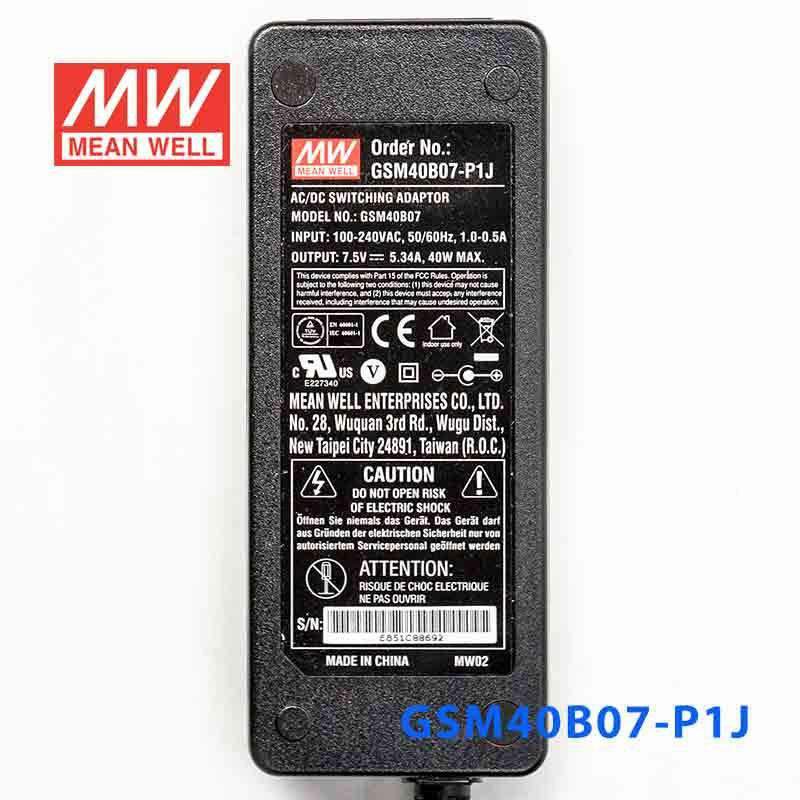

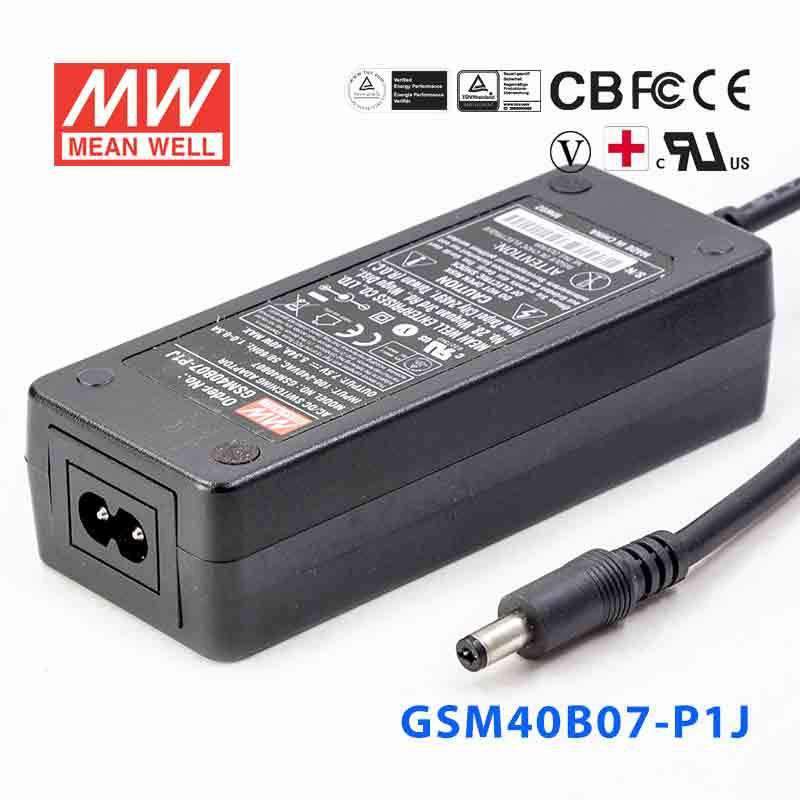

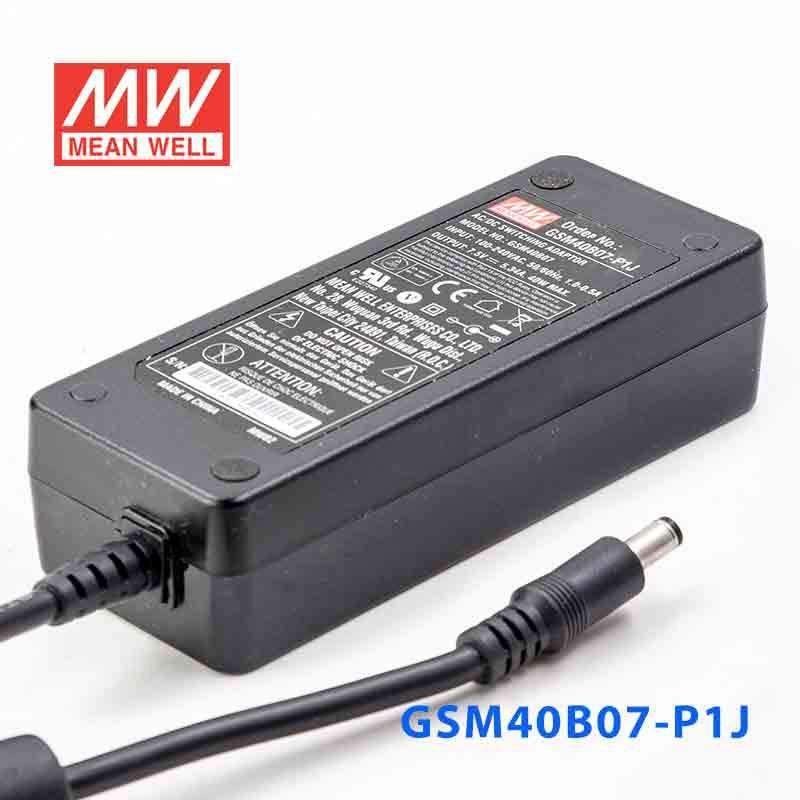

Mean Well GSM40B07-P1J Power Supply 40W 7.5V
Description
Description
Features
| Universal AC input / Full range |

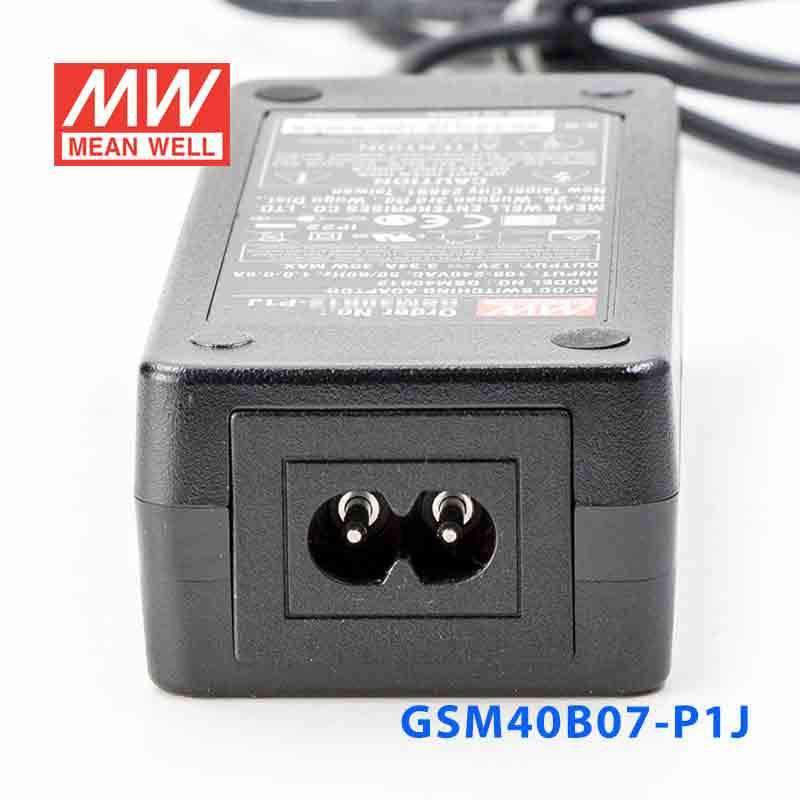

| 2 pole AC inlet IEC320-C8 |
| Medical safety approved (2 x MOPP between primary to secondary) |
| Low leakage current <50uA |
| No load power consumption < 0.1W |
| High efficiency up to 91% |
| Class II power (with earth pin) |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Fully enclosed plastic case |

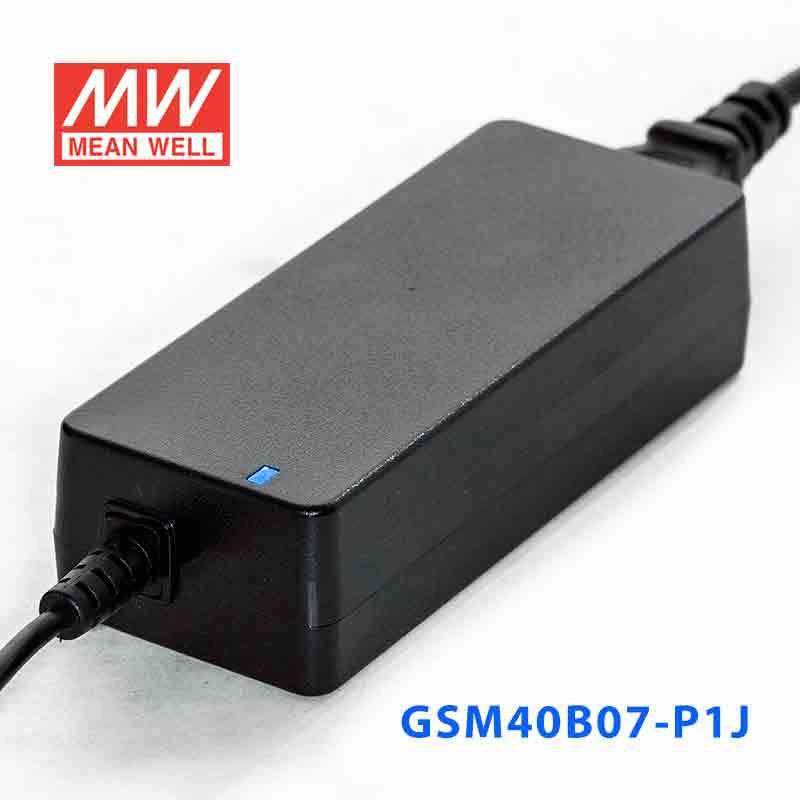

| LED indicator for power on |
| Optional lock type DC plug |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 80~264VAC ; 113~370VDC |
| AC inrush current (max.) | Cold start, 65A at 230VAC |
| Overload protection | 105%~160% rated output voltage, hiccup mode, auto-recovery |
| Withstand voltage | I/P-O/P: 4kVAC , O/P-FG:SHORT |
| Working temperature | -30~+60°C (refer to output derating curve ) |
| Safety standards | ANSI/AAMI ES60601-1/ ES60601-1-11 , TUV EN60601/60601-1-11 approved |
| EMC standards | EN55011(CISPR11) class B, EN61000-3-2,3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11,EN55024, EN61204-3,EN60601-1-2 |
| Length of output cable | 100cm of UL2464, 16AWG for 5~7.5V ; 100cm of UL1185, 16AWG for 9~12V; 150cm of UL1185, 16AWG for 15~48V |
| Dimension (LxWxH) | 125x 50x 31.5 mm |
| Standard DC plug | P1J: 2.1øx5.5øx11mm / C+, tuning fork type |
Specifications
Specifications
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating40 Watt
-
Output Voltage7.5 Volt
-
Rated Current5.34 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.92 in
-
Width1.97 in
-
Height1.24 in
-
Weight0.64 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GSM40B07-P1J for 7.5V embedded electronics?
Yes, if the equipment is designed for constant 7.5V DC input. This unit can supply up to 5.34A with 40W maximum output power.
Is this 7.5V model suitable for legacy industrial control devices that need 7.5V DC?
It is a constant-voltage 7.5V supply, so it fits legacy or specialty control hardware that calls for 7.5V DC. The connected load must stay within 5.34A and 40W.
Will this work for a 7.5V automation accessory or sensor interface?
It can be used for automation accessories that specifically require a regulated 7.5V input. Output capability is limited to 40W total and 5.34A maximum.
Can this power supply support 7.5V bench or production test equipment?
It is appropriate for test equipment that is rated for constant 7.5V DC operation. The available output is 5.34A up to a total of 40W.
Is the GSM40B07-P1J rated for indoor-only use or outdoor use?
The published temperature range is -30°C to +70°C. Since no IP rating is listed, the specs shown here do not confirm outdoor or weather-exposed use.
