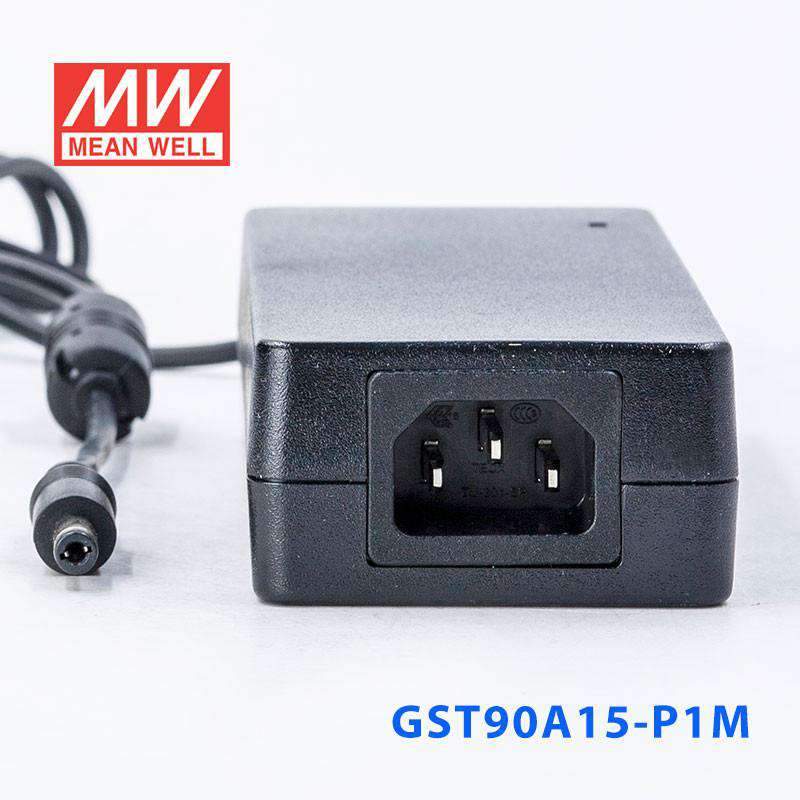

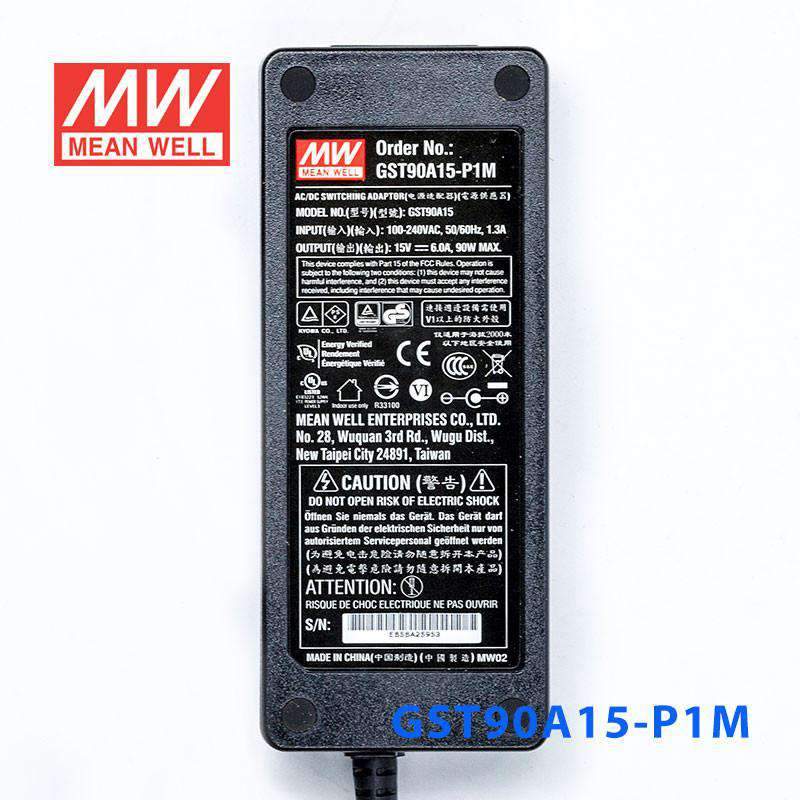

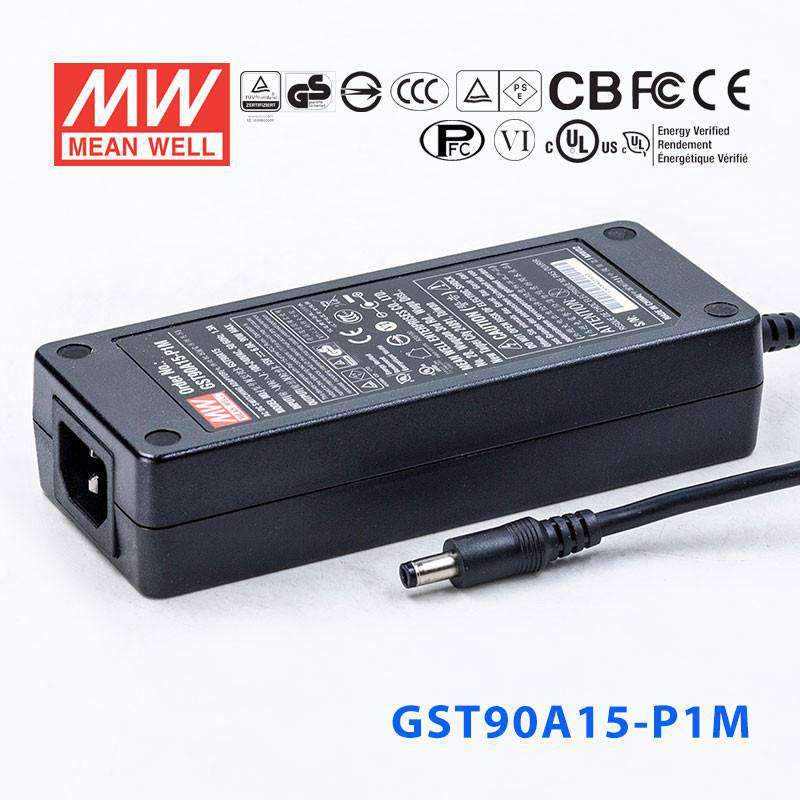

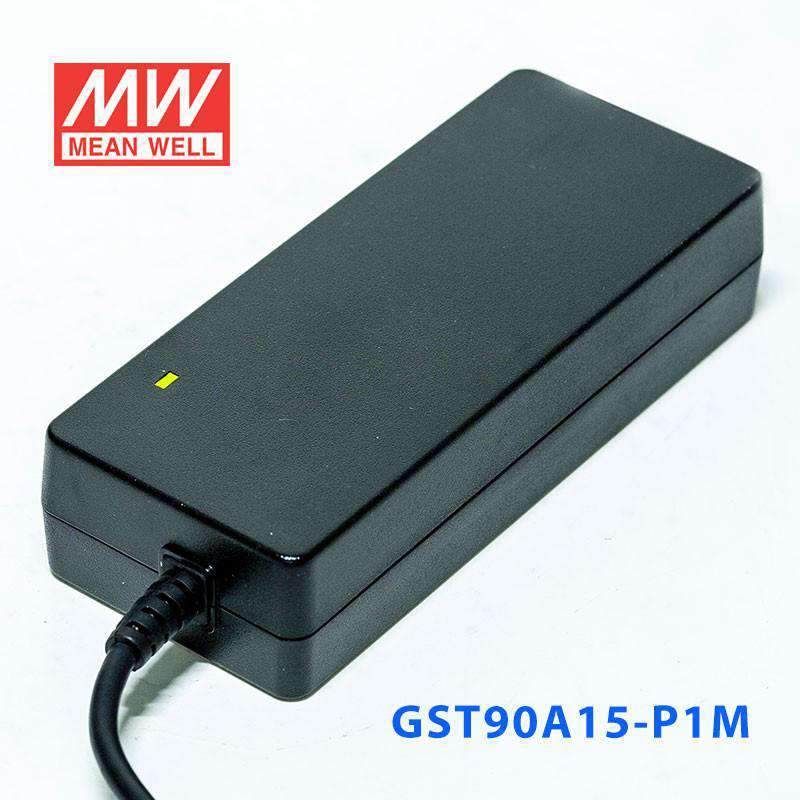

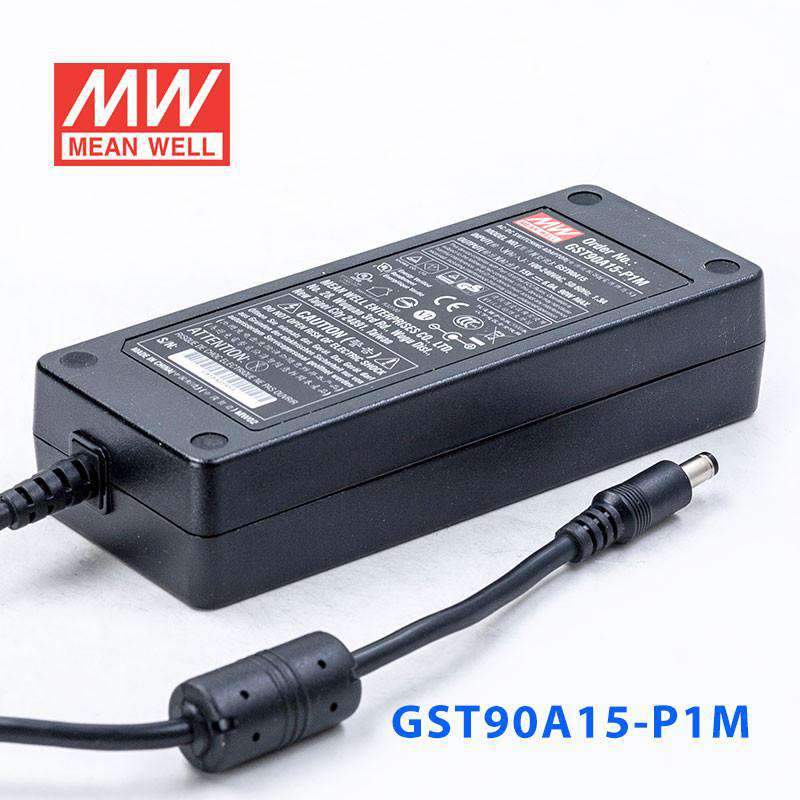

Mean Well GST90A15-P1M Power Supply 90W 15V
The GST90A15 is a 90W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL60950-1, CSA C22.2, TUV EN60950-1, BSMI CNS14336, CCC GB4943, PSE J60950-1,AS/NZS 60950.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGST Series
-
Power Rating90 Watt
-
Output Voltage15 Volt
-
Rated Current6 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5.71 in
-
Width2.36 in
-
Height1.26 in
-
Weight0.99 lb
::specification::
Frequently Asked Questions
What devices is the Mean Well GST90A15-P1M typically used for?
This model is a 90W desktop AC/DC adaptor with a regulated 15V DC output at up to 6A, so it suits equipment that needs a higher-power 15V external supply. It is generally considered for commercial and industrial electronics, control gear, and other 15V devices that match both the voltage and connector specification.
Is the GST90A15-P1M a good fit if my equipment requires 15V DC?
It is designed for 15V DC applications and can supply up to 6A, with a total power rating of 90W. For compatibility, the device should require 15V output and use the P1M DC plug format listed for this model: 2.5 mm ID x 5.5 mm OD x 11 mm.
What connector style does this power supply use?
The standard DC plug on this version is the P1M type, specified as 2.5 mm inner diameter, 5.5 mm outer diameter, and 11 mm length. The output cable length is listed as 100 cm for the 12V to 15V models in this series.
How does the GST90A15-P1M compare with lower-power desktop adaptors?
The main difference is output capacity: this unit provides 90W at 15V and up to 6A, which is suited to heavier-load 15V equipment than smaller adaptors. It also includes features expected in a more robust desktop supply, including active PFC, Level VI efficiency, Class I construction with earth pin, and protection against overload, over voltage, and over temperature.
Is this model intended for business or compliance-sensitive applications?
Yes. This adaptor is specified with Energy Efficiency Level VI, EISA 2007 compliance, and NRCan compliance, and it is approved to multiple safety standards including UL60950-1, CSA 22.2, TUV EN60950-1, PSE J60950-1, and CCC GB4943.
Can the GST90A15-P1M be used in demanding operating environments?
It is built as a fully enclosed desktop power supply with an LED power indicator and protection for overload, over voltage, and over temperature. The spec table also lists EMC compliance to class B standards and a wide AC input range of 90 to 264VAC, which makes it suitable for use across varied commercial power environments.
