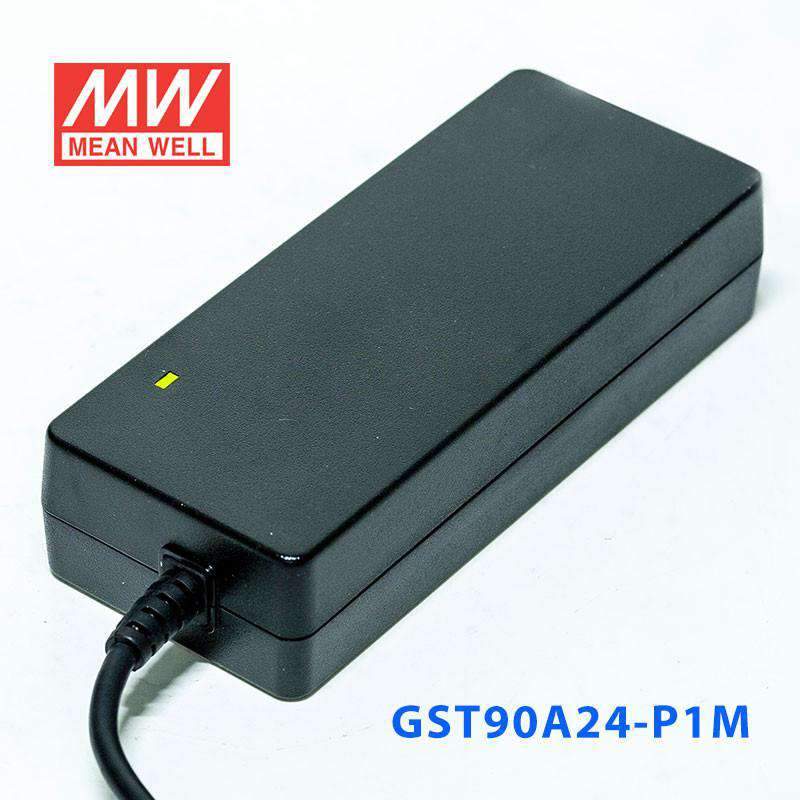

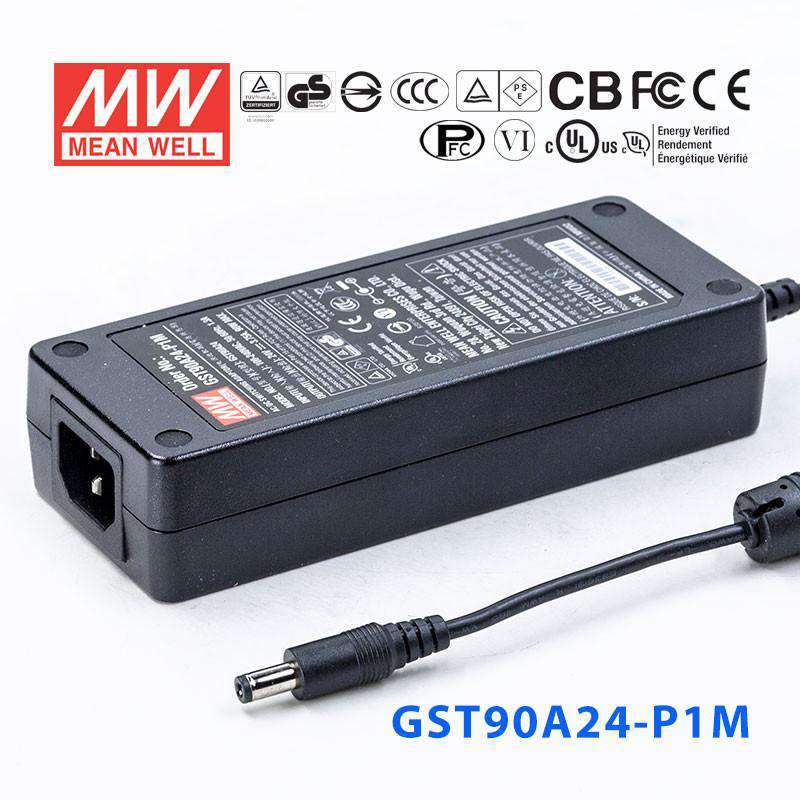

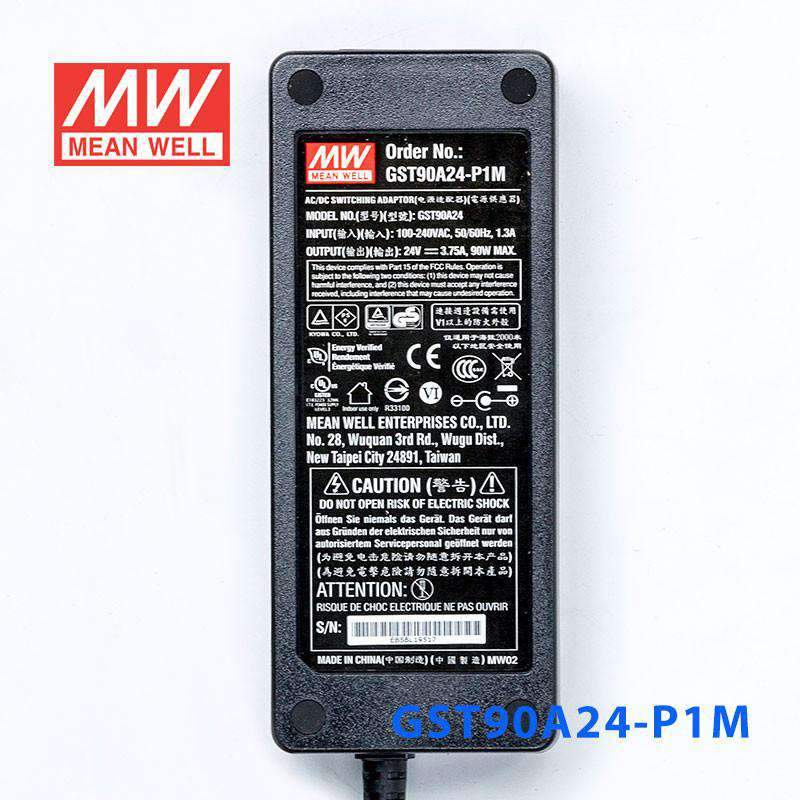

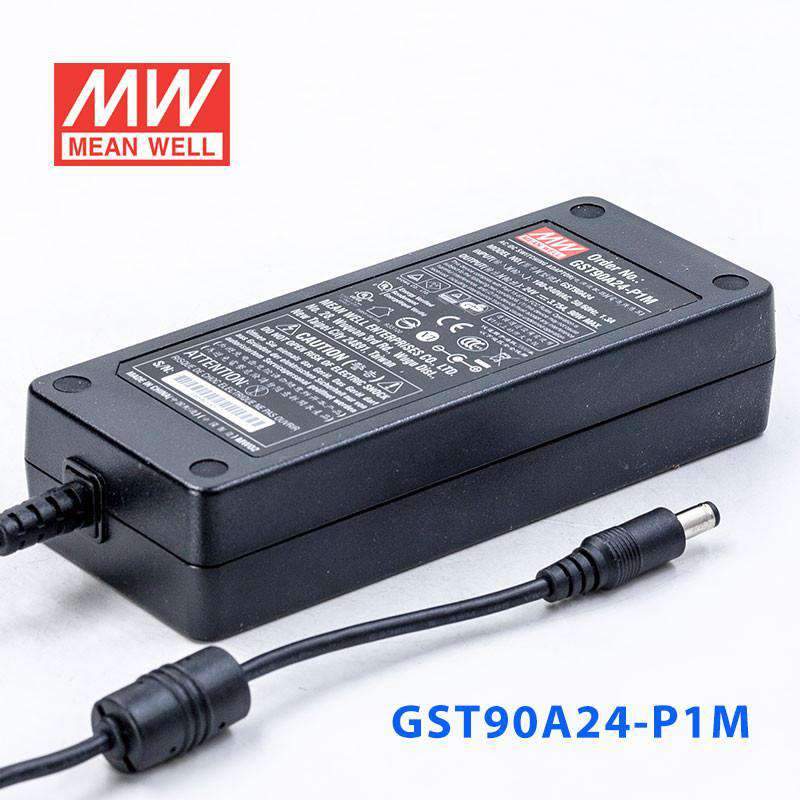

Mean Well GST90A24-P1M Power Supply 90W 24V
The GST90A24 is a 90W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL60950-1, CSA C22.2, TUV EN60950-1, BSMI CNS14336, CCC GB4943, PSE J60950-1,AS/NZS 60950.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGST Series
-
Power Rating90 Watt
-
Output Voltage24 Volt
-
Rated Current3.75 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5.71 in
-
Width2.36 in
-
Height1.26 in
-
Weight0.99 lb
::specification::
Frequently Asked Questions
What are the main electrical ratings of the Mean Well GST90A24-P1M?
The GST90A24-P1M is a 90W desktop AC/DC power supply with a 24V DC output. It is rated for up to 3.75A output current. This model is designed for applications that need a regulated 24V supply from a compact external adaptor.
What input voltage range does the GST90A24-P1M support?

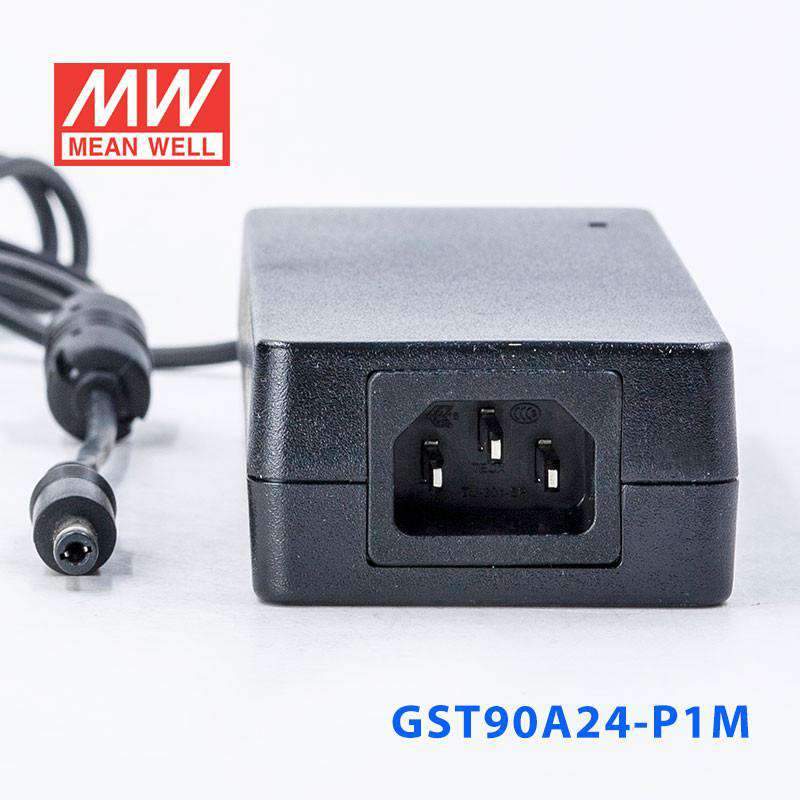

This model accepts a universal AC input range of 90 to 264VAC, and it also supports 127 to 370VDC input. That wide range makes it suitable for use across different mains power environments. It is built as a desktop-style unit with an IEC320-C14 AC inlet.
What DC plug does the GST90A24-P1M use?
The standard DC plug on the GST90A24-P1M is the P1M type. Its dimensions are 2.5mm inner diameter, 5.5mm outer diameter, and 11mm length, with a tuning-fork style design. Buyers should confirm their device matches this plug format before purchase.
What protection features are included in this power supply?
The GST90A24-P1M includes overload, over-voltage, and over-temperature protection. Overload protection operates in hiccup mode with auto-recovery. These built-in protections help safeguard both the power supply and the connected equipment under fault conditions.
Is the GST90A24-P1M an energy-efficient power supply?
Yes, this model is designed for high efficiency and meets Energy Efficiency Level VI requirements. It also has no-load power consumption below 0.075W. The unit is listed as meeting EISA 2007 requirements and is NRCan compliant.
Can this power supply be used in demanding temperature conditions?
The general specification lists a working temperature range of -40 to +85°C with reference to the output derating curve. In the provided product data, the stated temperature range is -30 to +70°C. Buyers with harsher ambient conditions should verify their operating margin against the application requirements.
What approvals and standards does the GST90A24-P1M meet?
This model is approved to multiple safety standards including UL60950-1, CSA 22.2, TUV EN60950-1, BSMI CNS14336, PSE J60950-1, and CCC GB4943. It also meets EMC standards including EN55022 Class B, EN61000-3-2/3, FCC Part 15, and CISPR22 Class B. These approvals make it a strong fit for professional and industrial purchasing requirements.
