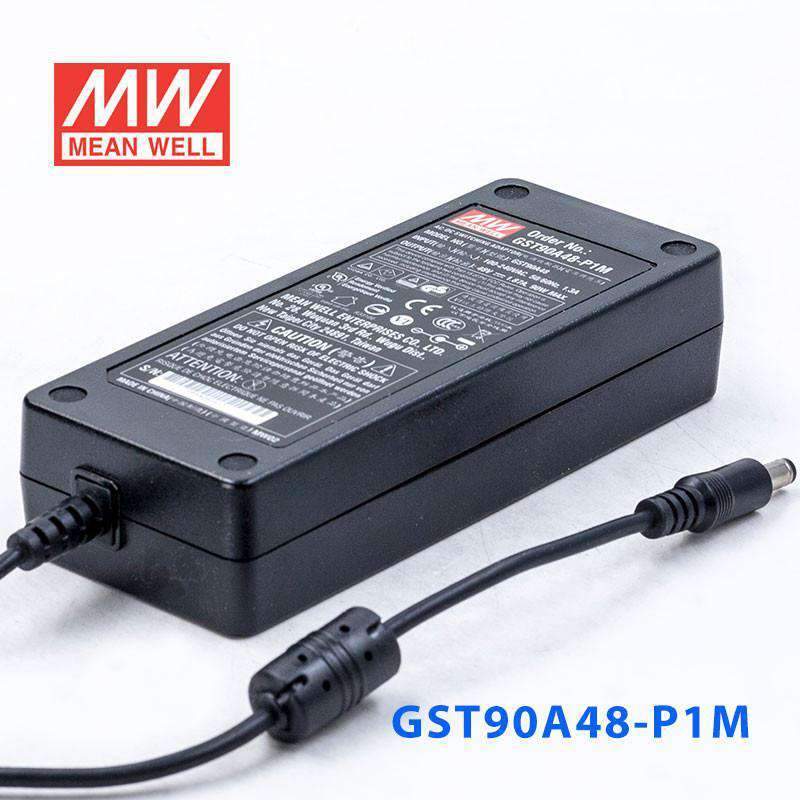

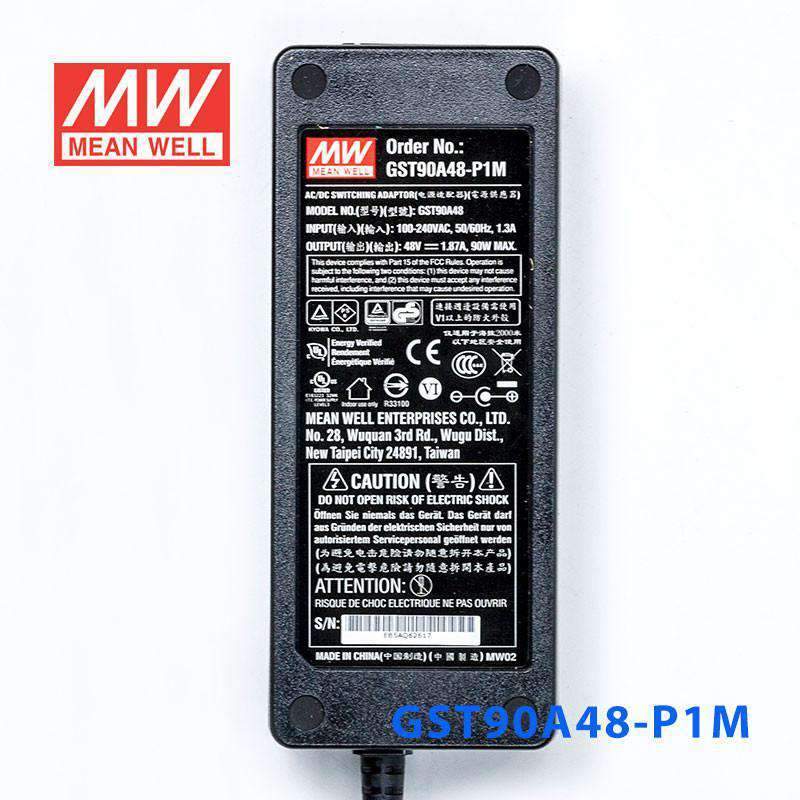

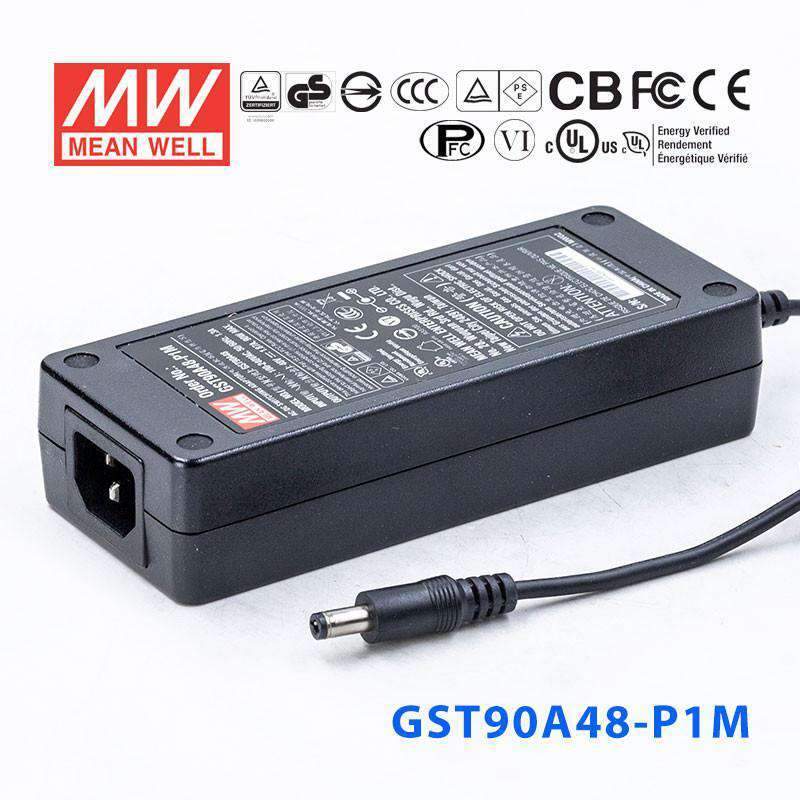

Mean Well GST90A48-P1M Power Supply 90W 48V

SKU:
GST90A48-P1M

Model
$32.51 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range
No load power consumption < 0.075W
Energy Efficiency Level VI
Meet EISA 2007 (Energy Independence and Security Act)
NRCan compliant

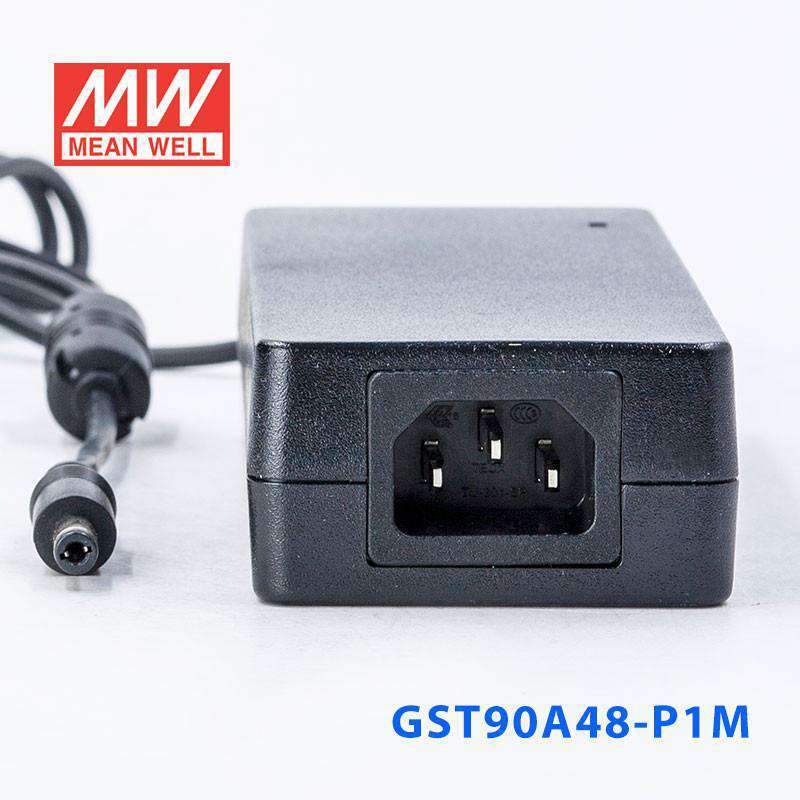

3 pole AC inlet IEC320-C14
Class I power (with earth pin) only
Protections: Overload / Over voltage/Over temperature
Fully enclosed plastic case

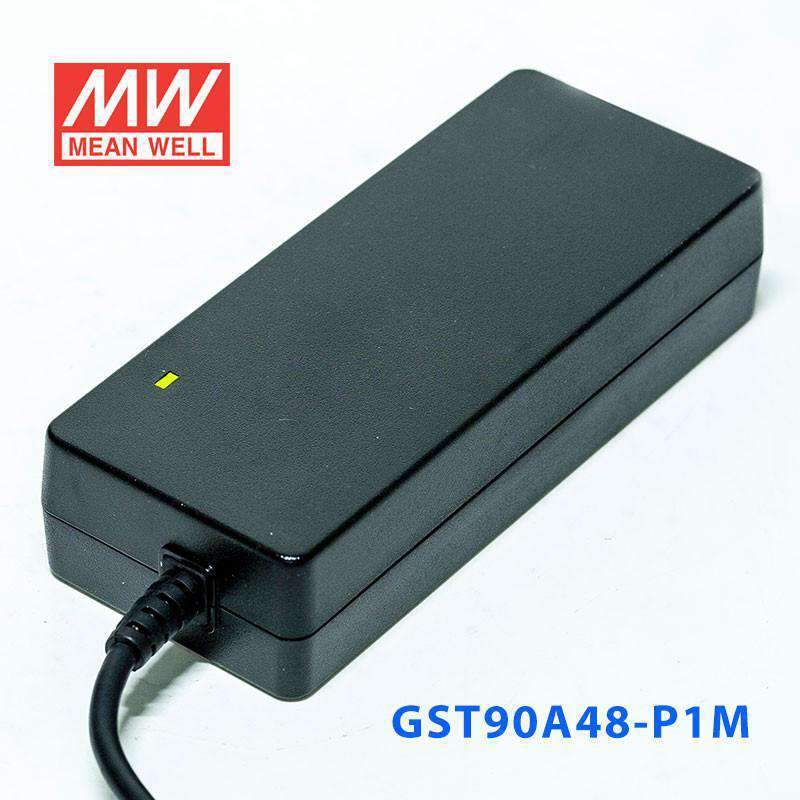

LED indicator for power on
Pass LPS
Built-in active PFC function
3 years warranty


General Specification

AC input voltage range 90~264VAC 127~370VDC
AC inrush current (max.) Cold start, 70A at 230VAC
Overload protection 110%~150% rated output voltage, hiccup mode, auto-recovery
Over voltage protection 105%~135% rated output voltage
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -40~+85°C (refer to output derating curve )
Safety standards UL60950-1, CSA 22.2, TUV EN60950-1, BSMI CNS14336, PSE J60950-1, CCC GB4943 approved
EMC standards EN55022 class B, EN61000-3-2,3, FCC part 15 /CISPR22 class B, CNS13438 class B,GB9254,GB17625.1
Length of output cable 100cm of UL1185, 14AWG for 12~15V; 120cm of UL1185, 16AWG for 19~48V
Dimension (LxWxH) 145x 60x 32mm
Standard DC plug P1M: 2.5ID x 5.5OD x11L, tuning fork type

Specifications

  • Brand
    Mean Well
  • Series
    GST Series
  • Power Rating
    90 Watt
  • Output Voltage
    48 Volt
  • Rated Current
    1.8 Ampere
  • Input Voltage
    90V~264V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    BSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    5.71 in
  • Width
    2.36 in
  • Height
    1.26 in
  • Weight
    0.99 lb
