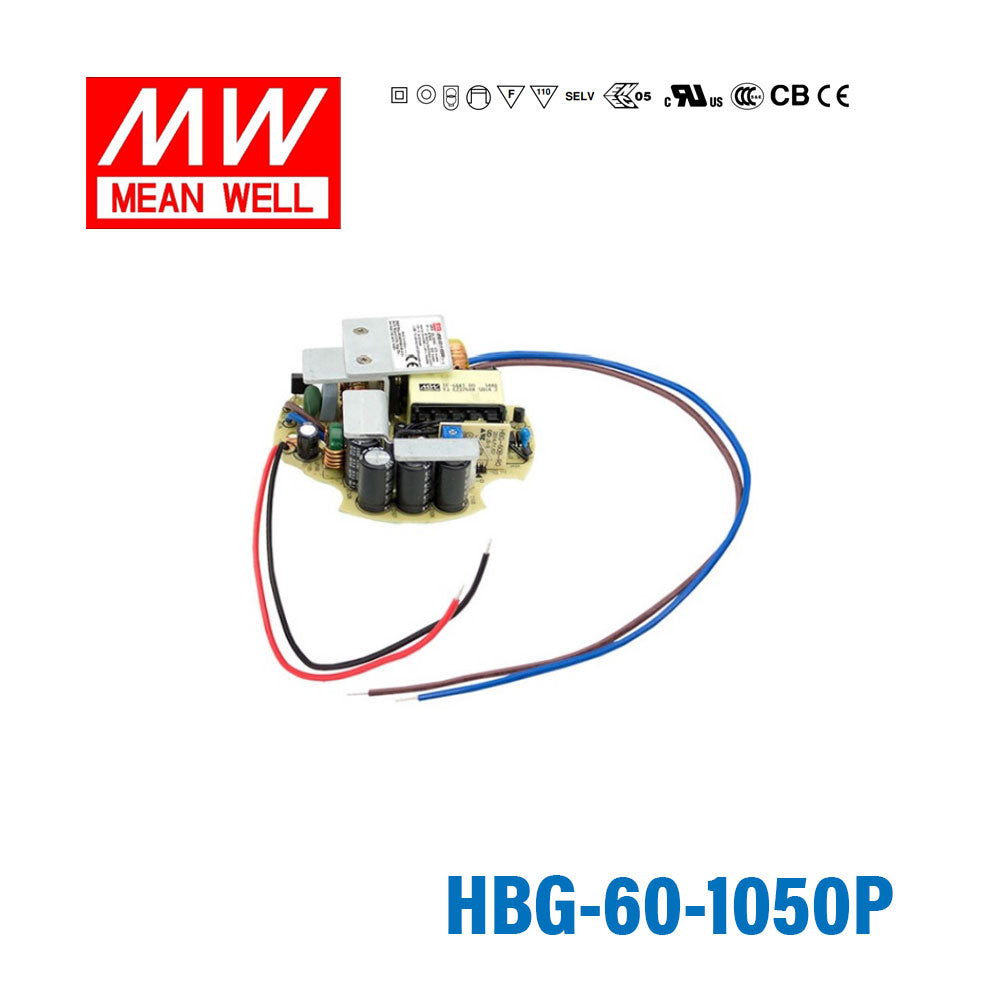

Mean Well HBG-60-1050 Power Supply 60W 1050mA PCB Type

Name: Mean Well HBG-60-1050 Power Supply 60W 1050mA PCB Type
Brand: Mean Well
SKU: HBG-60-1050P
Price: 36.55 USD
Availability: InStock

circular shapefor high/low bay lightPCB design

SKU HBG-60-1050P

$36.55 USD

Shipping calculated at checkout.

Select model — 2 in this family

HBG-60-1050P

HBG-60-1050 1050mA Low stock $25.03 USD

HBG-60-1050P 1050mA PCB Type Low stock $36.55 USD

Product variants

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

HBG-60-1050P is the model of this series: rated current 1050mA, rated power 57.75W, typical efficiency 90%.

HBG-60-P series is a 60W AC/DC PCB type LED driver featuring the circular shape design. It operates from 90~295VAC and offers the constant current output models with different rated current between 1050mA and 2100mA. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -40℃ ~ +70℃ ambient temperature under free air convection.

Features

Constant current mode output
Circular shape PCB type design with class II design
Built-in active PFC function
Class 2 power unit
Typical lifetime>50000 hours
5 years warranty

Specifications

HBG-60-1050PSpecifications from the official datasheet (2026-02-09 edition)

OUTPUT

RATED CURRENT: 1050mA
RATED POWER: 57.75W
CONSTANT CURRENT REGION^Note.2: 37 ~ 55V
OPEN CIRCUIT VOLTAGE(max.): 60V
CURRENT ADJ. RANGE: 680 ~ 1050mA
CURRENT RIPPLE: 25% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 500ms / 230VAC 1200ms / 115VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 295VAC 127 ~ 417VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF>0.97/115VAC, PF>0.95/230VAC, PF>0.9/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧65%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 0.7A/115VAC 0.4A/230VAC 0.3A/277VAC
INRUSH CURRENT (Typ.): COLD START 45A(twidth=100μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 28 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: Hiccup mode, recovers automatically after fault condition is removed
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Ta=-40 ~ +70℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: Ul8750, CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1 & BS EN/EN61347-2-13, BS EN/EN62384, GB/T19510.1, GB/T19510.213 independent,EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.8: Compliance to BS EN/EN55015, GB/T 17743, GB17625.1, BS EN/EN61000-3-2 Class C (@load≧65%) ; BS EN/EN61000-3-3,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, BS EN/EN55024, light industry level(surge immunity: Line-Line:2KV),EAC TP TC 020

OTHERS

MTBF: 4523.2K hrs min. Telcordia SR-332 (Bellcore) ; 455.5Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: ψ99mm *26mm (D * H)
PACKING: 0.21Kg; 45pcs/ 10.4Kg/ 1.03CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com

Technical drawings

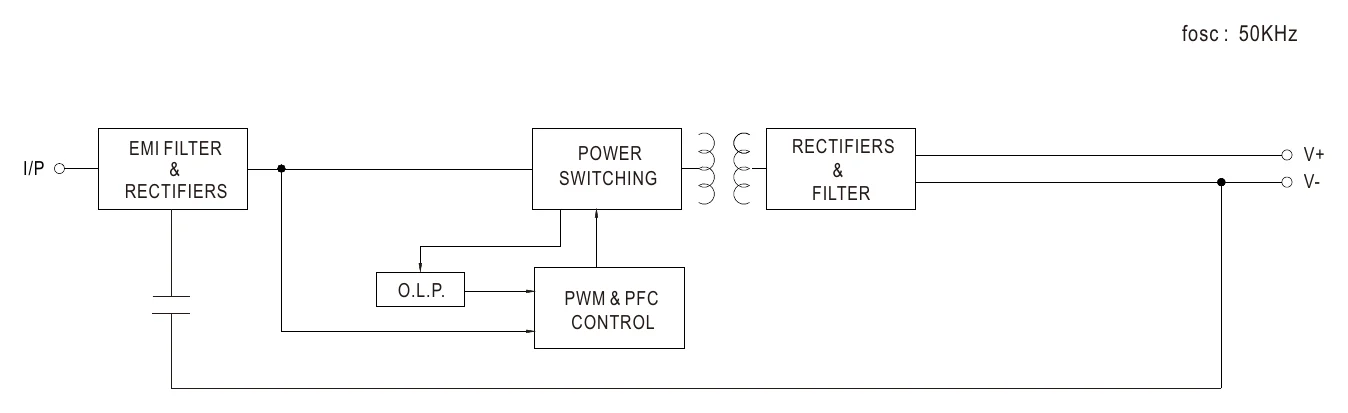

HBG-60-1050P fosc : 50KHz — fosc : 50KHz

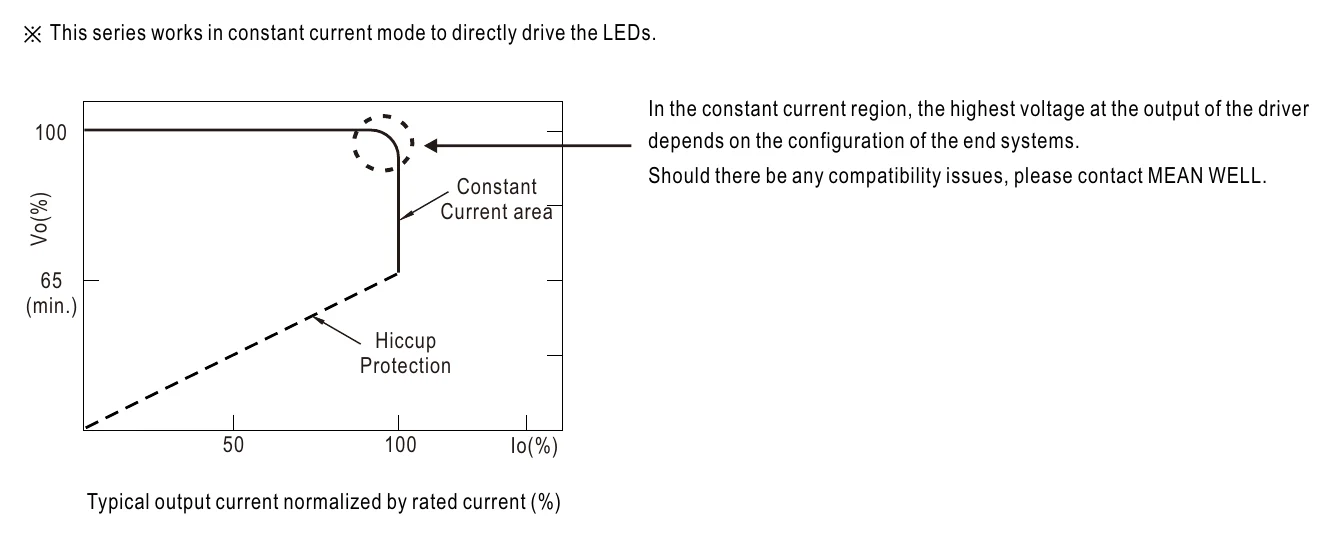

HBG-60-1050P ※ This series works in constant current mode to directly… — ※ This series works in constant current mode to directly…

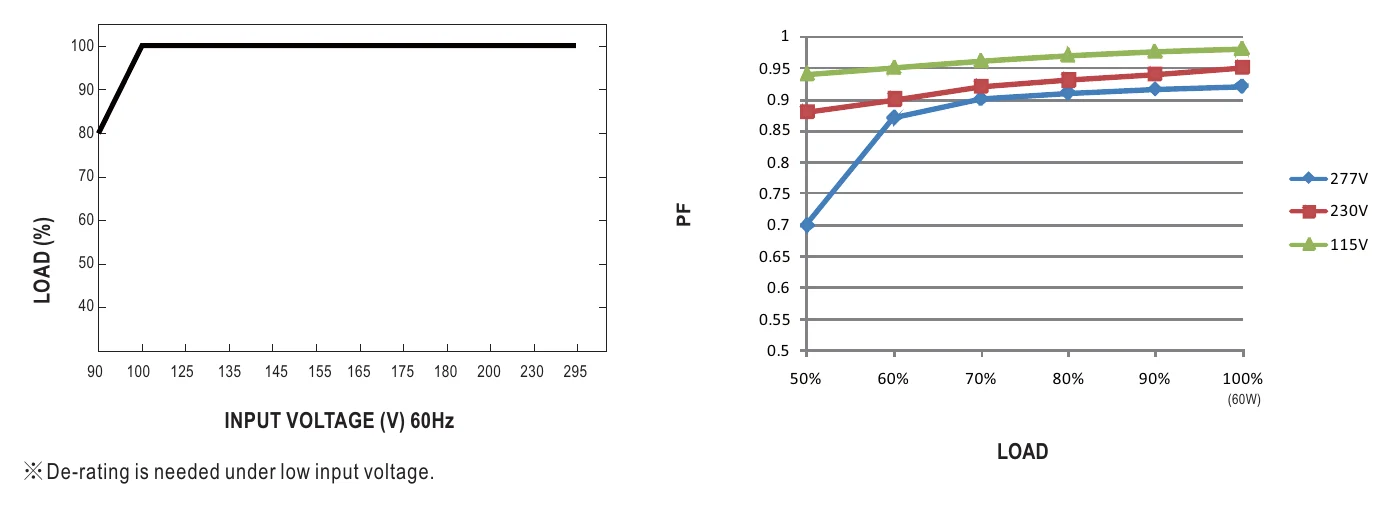

HBG-60-1050P STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

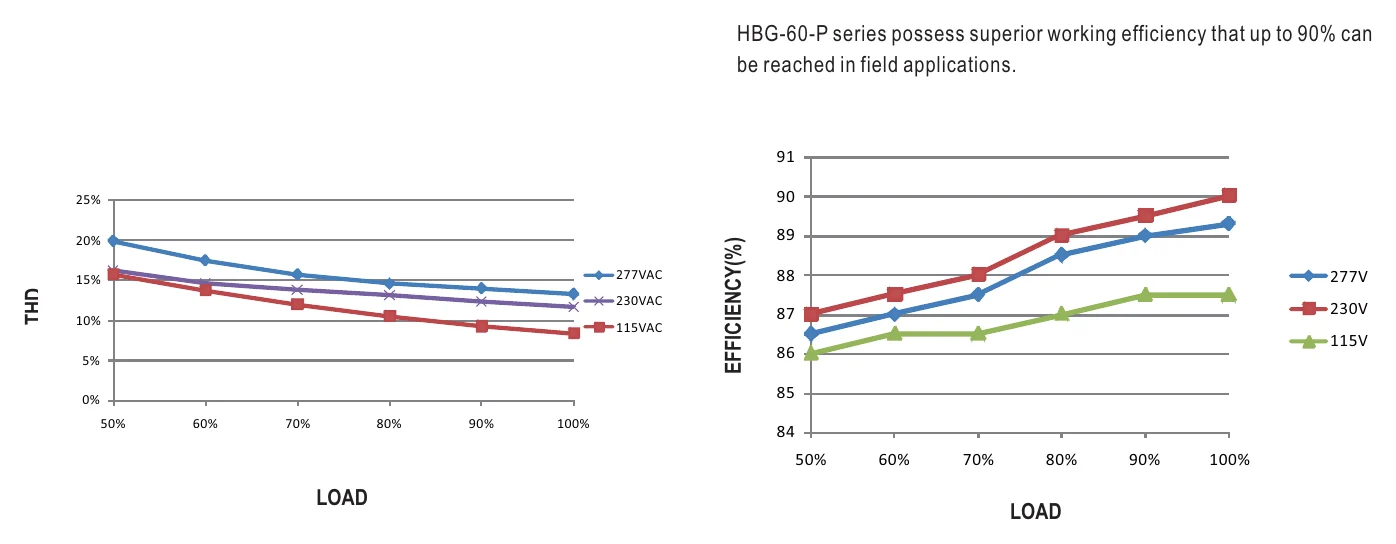

HBG-60-1050P TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

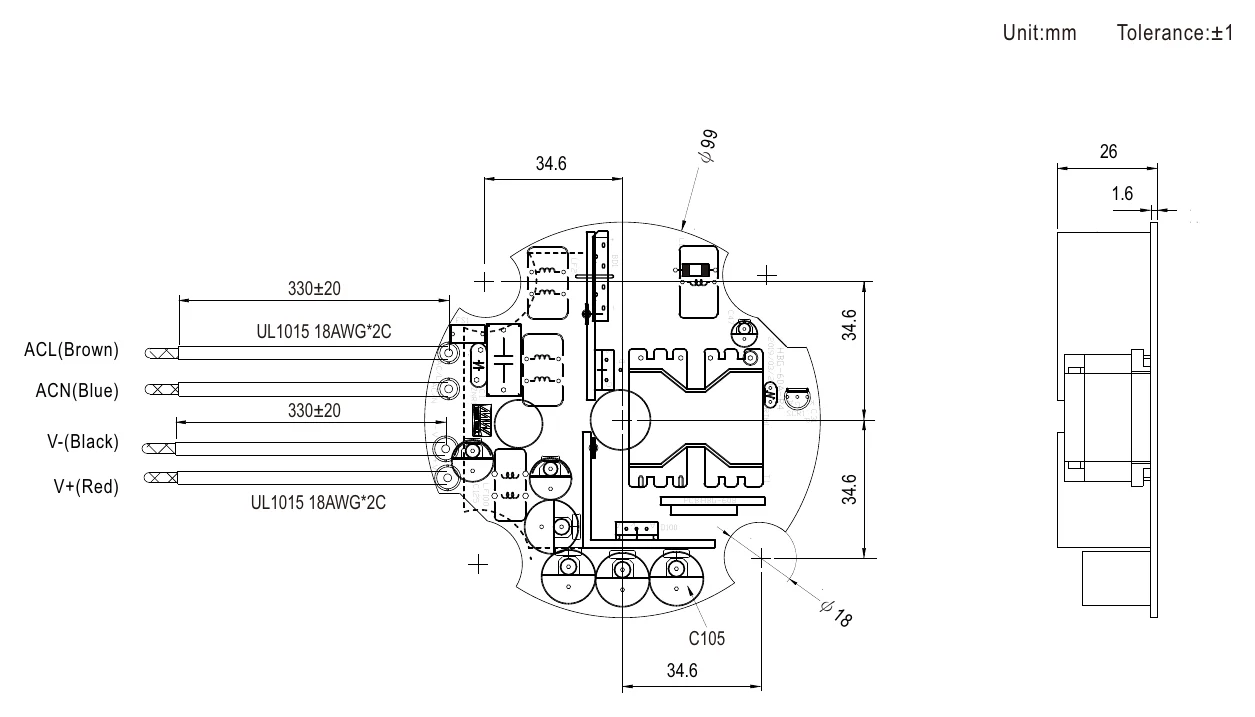

HBG-60-1050P MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

LED bay lighting
LED stage lighting
LED spot lighting
LED down lighting

Downloads

Datasheet1

HBG-60-1050P datasheetHBG_60_P_spec.pdf · 2026-02-09 edition PDF Download

FAQ

What is the Mean Well HBG-60-1050P designed for?

The HBG-60-1050P is a constant current LED power supply for lighting applications that need a regulated 1050mA output. It is rated at 57.75W with a constant current region of 37 to 55V (60V max. open circuit voltage), making it suitable for LED systems matched to those electrical requirements. Its circular PCB-type design also makes it distinct from standard boxed power supplies.

Is the HBG-60-1050P a constant current or constant voltage model?

This model is a constant current power supply, not a constant voltage unit. Its rated output current is 1050mA, and the current can be adjusted from 680mA to 1050mA. Buyers choosing LED drivers should match it to products that are specified for constant current operation.

Does the Mean Well HBG-60-1050P support dimming control?

The datasheet does not list any dimming function for this model. It is specified as a constant current driver with a current adjustment range of 680mA to 1050mA, so it is intended for applications where a set constant current output is required. If dimming is a requirement, a different model would be a better fit.

What operating conditions is the HBG-60-1050P rated for?

The HBG-60-1050P is rated for a working temperature range of -40°C to +70°C, with load derating at higher ambient temperatures per the output load vs temperature curve. It also includes PFC, hiccup-mode over-current protection with auto recovery, over-temperature protection, and 3.75kVAC input-to-output withstand voltage. These specifications make it a strong option for demanding commercial and industrial lighting environments.

What are the main compliance and reliability highlights of this model?

This power supply is approved to UL8750 and CSA C22.2 No. 250.13-12. It meets BS EN/EN61347-1 and BS EN/EN61347-2-13 safety standards, plus EN55015 and related EMC standards. Mean Well also lists an MTBF of 4523.2K hours min. (Telcordia SR-332) for this model.

How is the HBG-60-1050P different from a general-purpose fixed-voltage power supply?

The HBG-60-1050P is built specifically as a constant current LED driver, so its key output specification is 1050mA rather than a fixed-voltage load style used by many general-purpose supplies. It is meant for LED applications that require current-regulated operation and is not the same as a standard constant voltage PSU. Its circular PCB-type format is also more specialized than a typical enclosed rectangular supply.
