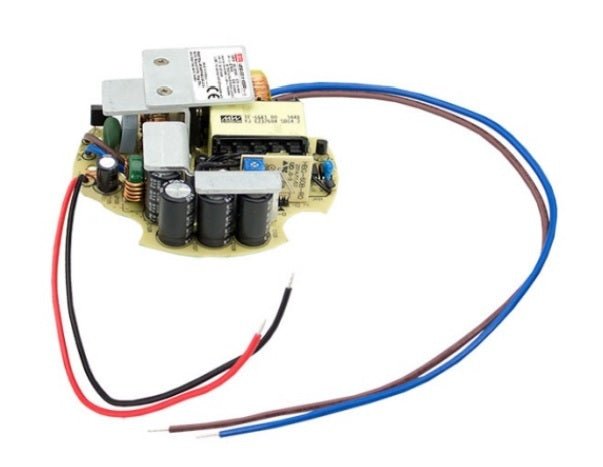

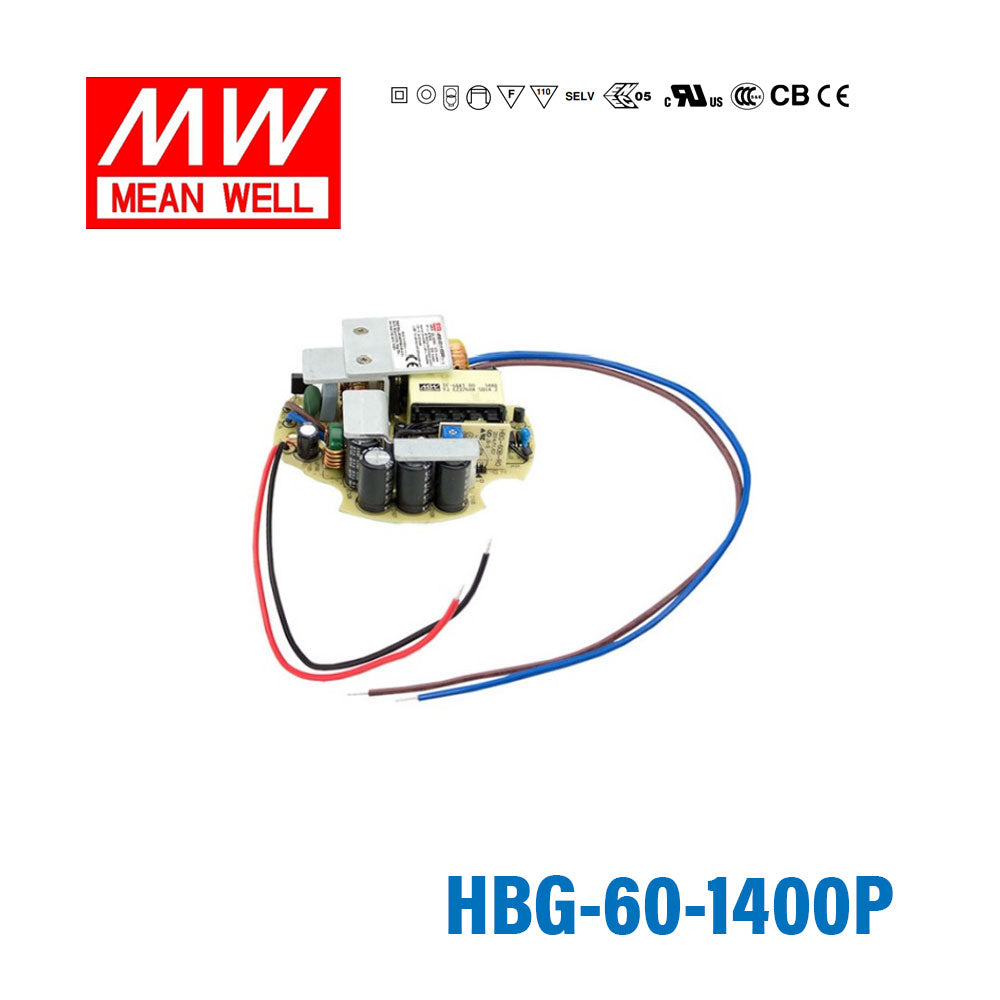

Mean Well HBG-60-1400 Power Supply 60W 1400mA PCB Type
The HBG-60 is a 60W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating60.2 Watt
-
Output Voltage50 Volt
-
Rated Current1.4 Ampere
-
Input Voltage90V~295V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length4.33 in
-
Width4.33 in
-
Height2.38 in
-
Weight1.1 lb
::specification::
Frequently Asked Questions
What type of product is the Mean Well HBG-60-1400?
The HBG-60-1400 is a constant current LED power supply rated at 60W with a 1400mA output. It is a PCB type unit in Mean Well's circular HBG series and is designed for LED driver applications where constant current output is required.
What are the main electrical ratings of the HBG-60-1400?
This model is rated for 60.2W output power, 1.4A rated current, and 50V output voltage. Its AC input range is 90 to 295VAC, and it also supports 127 to 417VDC input.
Does the Mean Well HBG-60-1400 support dimming?
No, this version is listed with no dimming control. If your project requires output dimming, you would need to compare it with a dimmable variant rather than this specific model.
Is the HBG-60-1400 suitable for demanding temperature conditions?
This power supply has a working temperature range of -40°C to +70°C, which makes it suitable for use in harsh operating environments within that range. Buyers should still confirm that the full application stays within the product's stated environmental limits.
What protection and compliance features does the HBG-60-1400 include?
The HBG-60-1400 includes over-current protection with hiccup mode and automatic recovery. It is also specified with built-in active PFC and is listed to BS EN/EN61347-1 and BS EN/EN61347-2-13, with EMC standards including EN55015 and EN61000-3-2 Class C.
What kinds of applications is this model generally used for?
Because it is a constant current 1400mA LED driver, this model is generally suited to LED lighting applications that require a driver in that output class. It is especially relevant where a circular PCB type form factor and Class II design are desirable.
What are the physical and service-life details of the HBG-60-1400?
The unit measures 99mm in diameter by 26mm high and has a listed weight of 0.5kg. Mean Well also specifies a typical lifetime over 50,000 hours and a 5-year warranty for this model.
