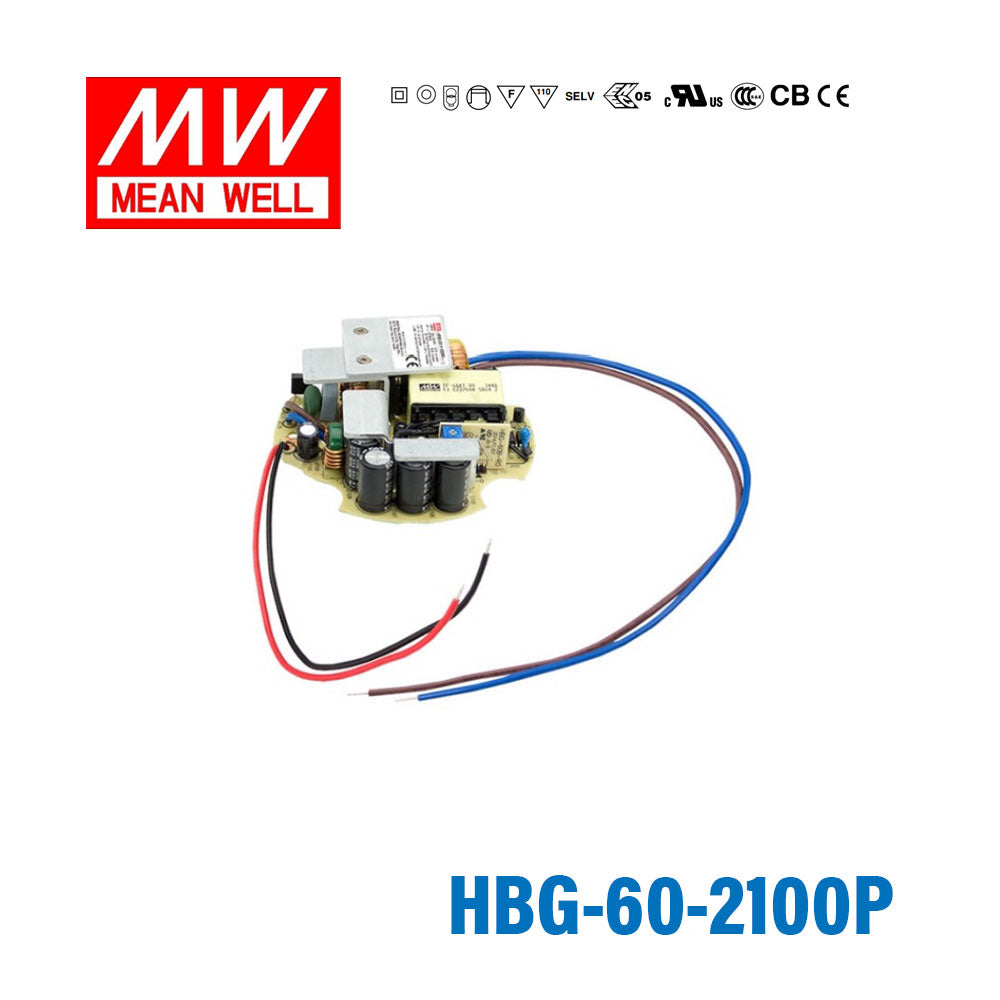

Mean Well HBG-60-2100P Power Supply 60W 2100mA PCB Type

Name: Mean Well HBG-60-2100P Power Supply 60W 2100mA PCB Type
Brand: Mean Well
SKU: HBG-60-2100P
Price: 34.62 USD
Availability: InStock

circular shapefor high/low bay lightPCB design

SKU HBG-60-2100P

$34.62 USD

Shipping calculated at checkout.

Select model — 2 in this family

HBG-60-2100P

HBG-60-2100 2100mA In stock $25.03 USD

HBG-60-2100P 2100mA PCB Type Low stock $34.62 USD

Product variants

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

HBG-60-2100P is the model of this series: rated current 2100mA, rated power 60.9W, typical efficiency 89%.

HBG-60-P series is a 60W AC/DC PCB type LED driver featuring the circular shape design. It operates from 90~295VAC and offers the constant current output models with different rated current between 1050mA and 2100mA. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -40℃ ~ +70℃ ambient temperature under free air convection.

Features

Constant current mode output
Circular shape PCB type design with class II design
Built-in active PFC function
Class 2 power unit
Typical lifetime>50000 hours
5 years warranty

Specifications

HBG-60-2100PSpecifications from the official datasheet (2026-02-09 edition)

OUTPUT

RATED CURRENT: 2100mA
RATED POWER: 60.9W
CONSTANT CURRENT REGION^Note.2: 19 ~ 29V
OPEN CIRCUIT VOLTAGE(max.): 35V
CURRENT ADJ. RANGE: 1360mA ~ 2100mA
CURRENT RIPPLE: 25% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 500ms / 230VAC 1200ms / 115VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 295VAC 127 ~ 417VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF>0.97/115VAC, PF>0.95/230VAC, PF>0.9/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧65%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 89%
AC CURRENT (Typ.): 0.7A/115VAC 0.4A/230VAC 0.3A/277VAC
INRUSH CURRENT (Typ.): COLD START 45A(twidth=100μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 28 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: Hiccup mode, recovers automatically after fault condition is removed
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Ta=-40 ~ +70℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: Ul8750, CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1 & BS EN/EN61347-2-13, BS EN/EN62384, GB/T19510.1, GB/T19510.213 independent,EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.8: Compliance to BS EN/EN55015, GB/T 17743, GB17625.1, BS EN/EN61000-3-2 Class C (@load≧65%) ; BS EN/EN61000-3-3,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, BS EN/EN55024, light industry level(surge immunity: Line-Line:2KV),EAC TP TC 020

OTHERS

MTBF: 4523.2K hrs min. Telcordia SR-332 (Bellcore) ; 455.5Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: ψ99mm *26mm (D * H)
PACKING: 0.21Kg; 45pcs/ 10.4Kg/ 1.03CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com

Technical drawings

HBG-60-2100P fosc : 50KHz — fosc : 50KHz

HBG-60-2100P ※ This series works in constant current mode to directly… — ※ This series works in constant current mode to directly…

HBG-60-2100P STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HBG-60-2100P TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HBG-60-2100P MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

LED bay lighting
LED stage lighting
LED spot lighting
LED down lighting

Downloads

Datasheet1

HBG-60-2100P datasheetHBG-60-P-SPEC.PDF · 2026-02-09 edition PDF Download

FAQ

What is the Mean Well HBG-60-2100P designed for?

This model is a constant current LED power supply intended for LED lighting applications that require a 2.1A rated output. Its circular PCB-type form factor also makes it suitable for fixture designs where a compact round driver format is preferred.

What are the key electrical ratings of the HBG-60-2100P?

The HBG-60-2100P is rated at 60.9W with a 19 to 29V constant current region (35V max. open circuit voltage) and 2.1A rated current. It accepts a wide input range of 90 to 295VAC or 127 to 417VDC, which supports use across varied power environments.

Does this LED driver support dimming?

The datasheet does not list any dimming function for this model, so it is intended for applications that need set constant current performance rather than integrated dimming functionality.

Can the output current be adjusted on this model?

Yes. The current adjustment range is specified as 1360mA to 2100mA, giving some flexibility within the product's designed operating range. That makes it useful where the application needs limited current adjustment without changing to a different driver family.

Is the HBG-60-2100P suitable for demanding temperature conditions?

Yes. It has a working temperature range of -40°C to +70°C, with load derating at higher ambient temperatures per the output load vs temperature curve, which supports operation in both cold and hot environments when the overall application is designed within spec. Buyers often look for this range in commercial and industrial lighting products.

What safety and protection features are specified for this model?

The HBG-60-2100P is approved to UL8750 and BS EN/EN61347-1 / EN61347-2-13, with PFC (PF>0.95 at 230VAC). It also includes over-current protection using hiccup mode with auto recovery, over-temperature protection, and a 3.75kVAC input-to-output withstand voltage rating.

What does the physical size and service life look like for this driver?

This model has a circular body with dimensions of 99mm diameter by 26mm height and weighs 0.21kg. Mean Well lists an MTBF of 4523.2K hours min. (Telcordia SR-332), which is an important consideration for long-service lighting products.
