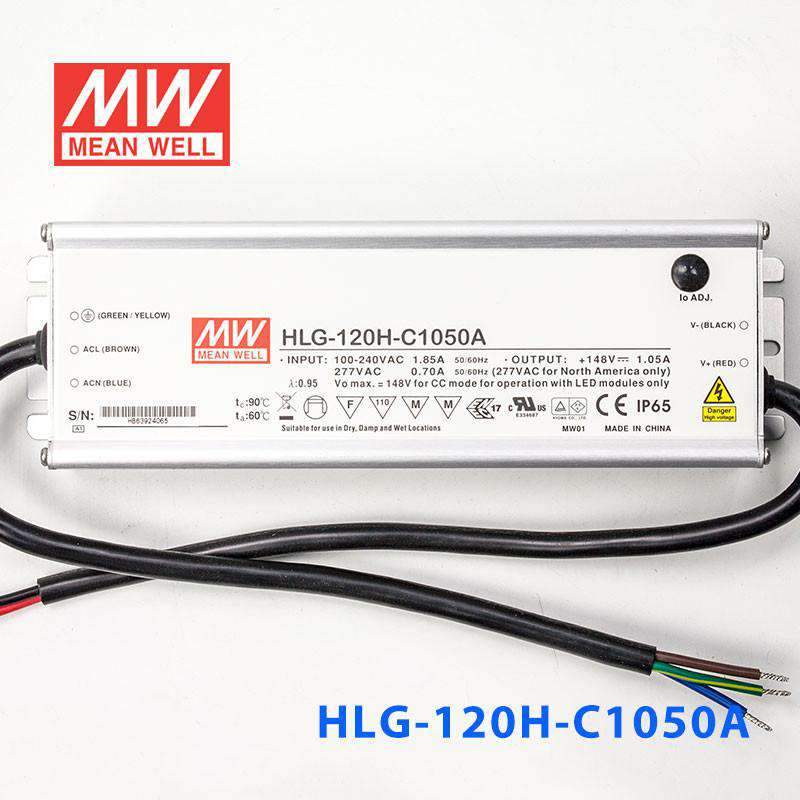

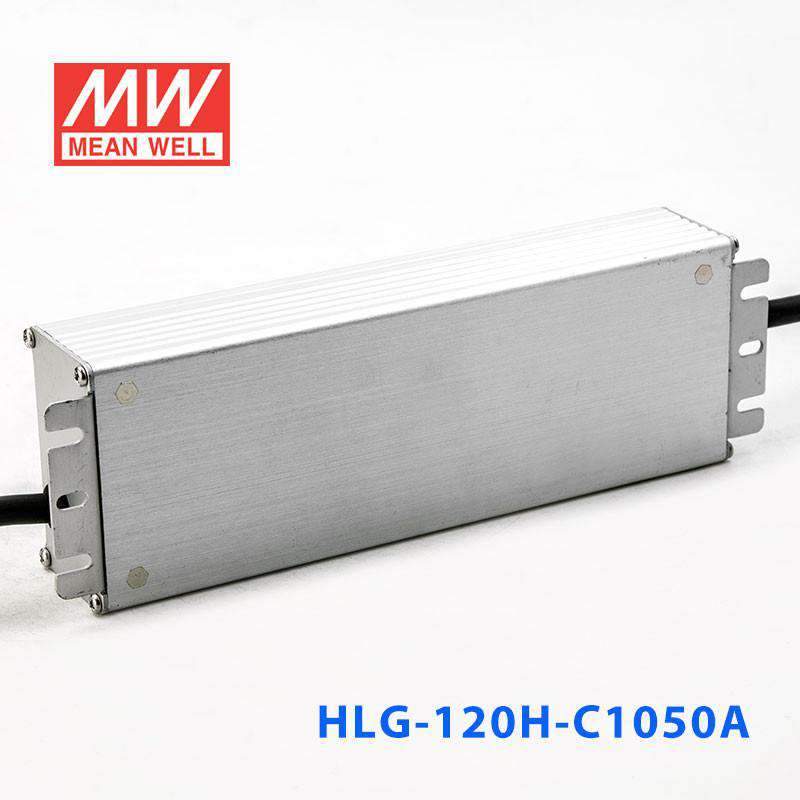

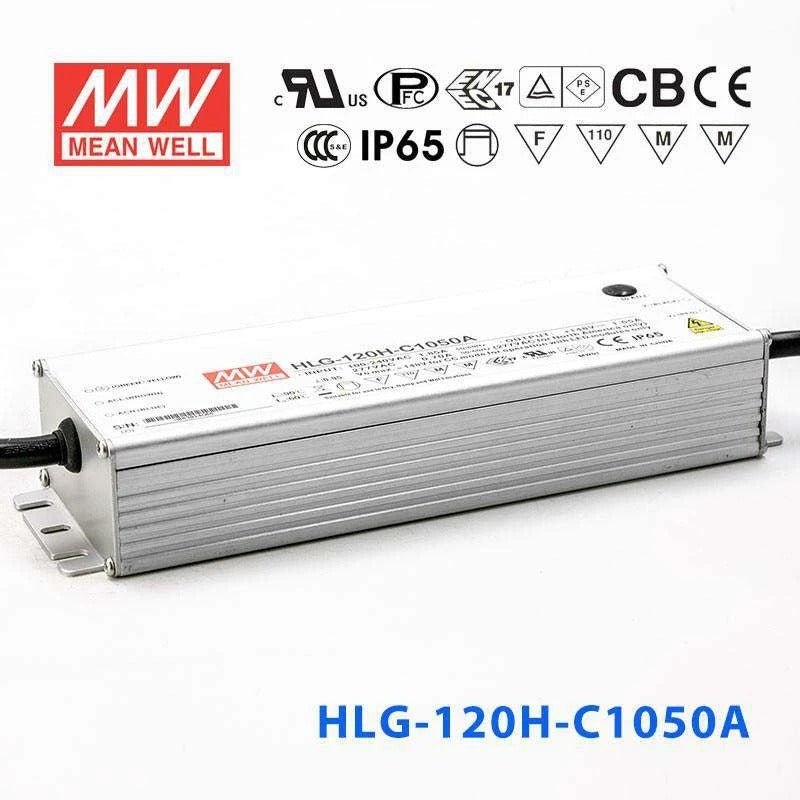

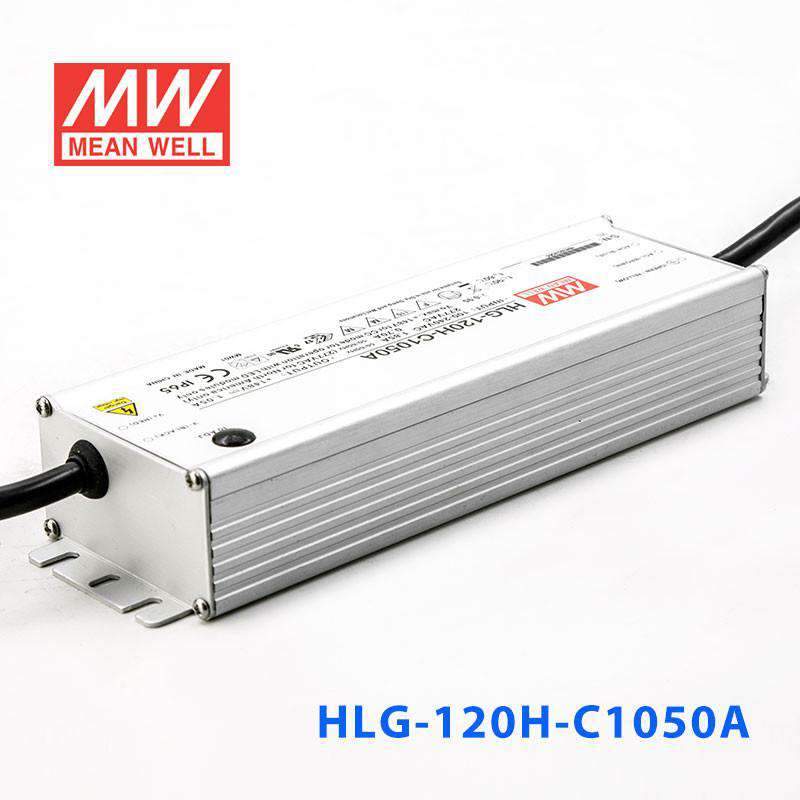

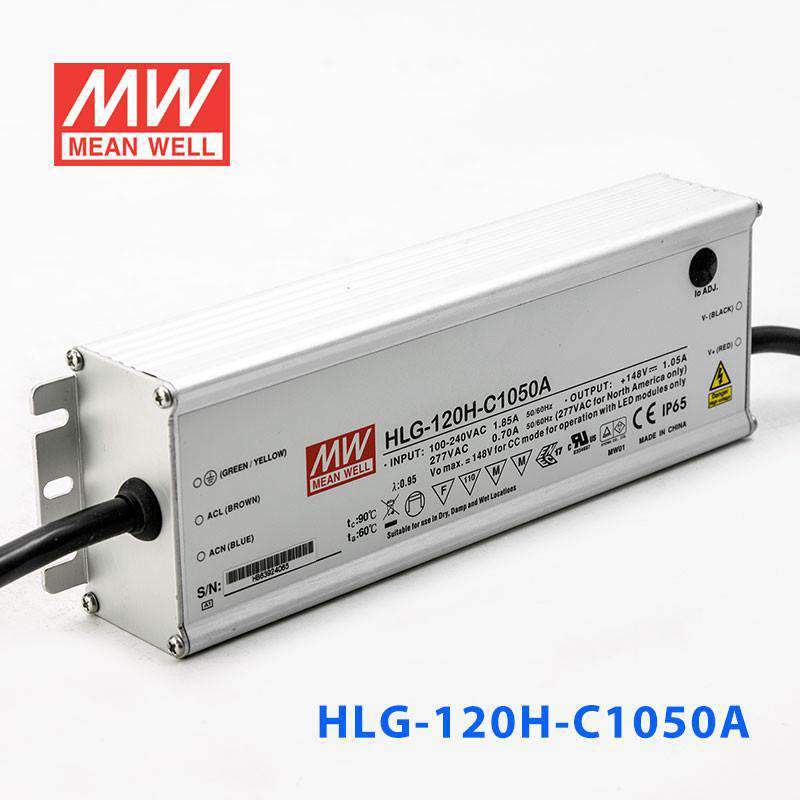

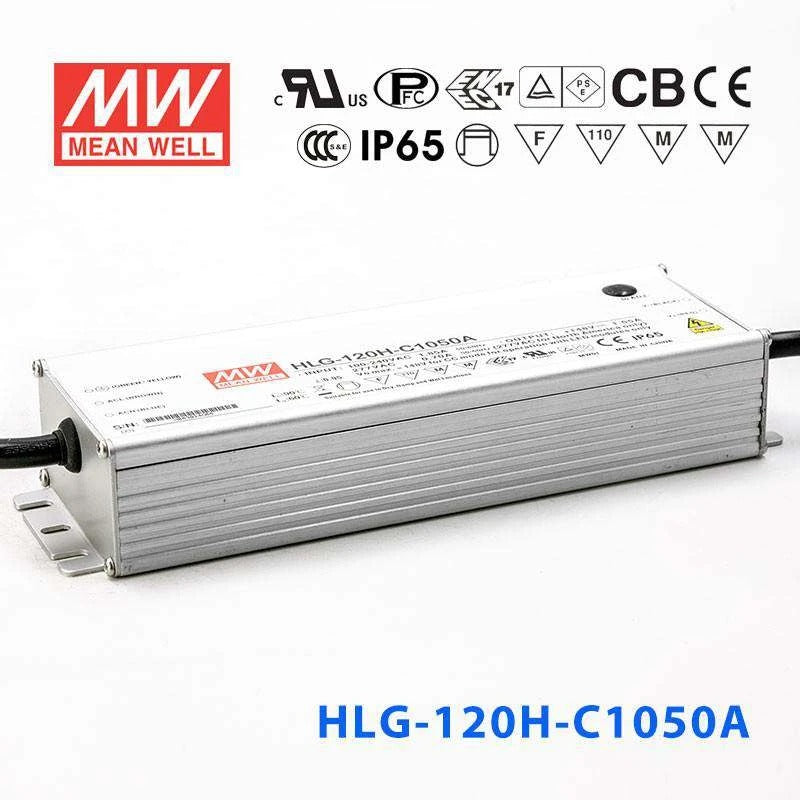

Mean Well HLG-120H-C1050A Power Supply

Description

Features

Universal AC input (up to 305VAC) / Full range

High efficiency up to 93.5%

Built-in active PFC function, PF> 0.9 for 60% of load or higher

Protections: Short circuit / Over current / Over voltage / Over temperature

IP67 / IP65 design for indoor or outdoor installations

Class 2 power unit / Pass LPS

Output current adjustable through output cable or internal potentiometer

Cooling by free air convection

Suitable for dry, damp and wet location

Suitable for LED lighting and street lighting applications

Meet 4kV surge immunity level (IEC61000-4-5)

Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) Blank-Type: IP67 rated. Cable for I/O connection D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details (safety pending for 100W/120W)

Optional CQC models available (A/Blank type)

7 years warranty

General Specification

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 60A at 230VAC
DC adjustment range	±10% rated output voltage (A-Type only)
Current adjustment range	50%~100%
Over current protection	95%~108% constant current limiting, auto-recovery
Over voltage protection	110%~140% rated output voltage
Setup, rise, hold up time	2500ms, 50ms, 16ms at full load and 230VAC
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC
Working temperature	-40~+70ºC (refer to output derating curve)
Safety standards	UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved, ENEC EN61347-1, Design refer to UL60950-1, EN60950-1
EMC standards	EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
Connection Input	UL rated, SJTW 18AWGx3C (30cm)
Connection Output	A/D/Blank-Type: SJTW 14AWGx2C (30cm) ; B-Type: SJTW 14AWGx2C (30cm)+SJTW 18AWGx2C (30cm)
Dimension (LxWxH) (mm)	220x 68x 38.8

Specifications

Brand

Mean Well
Series

HLG-C Series
Power Rating

155.4 Watt
Output Voltage

148 Volt
Rated Current

1.05 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

Built-in Potentiometer
Standards Met

CB,CCC,CE,EAC,ENEC,PSE,UL
Operation Mode

Constant Current
Operating Temperature

-40°C~90°C
Warranty

7 Year
Length

8.66 in
Width

2.68 in
Height

1.53 in
Weight

2.29 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HLG-120H-C1050A to drive high-power LED downlights?

Yes. The HLG-120H-C1050A delivers a constant 1050mA across a 74-148V output range, making it well suited for high-power COB or multi-chip LED downlights that operate in that voltage window. At 155.4W it can handle substantial ceiling-mounted fixtures, and the adjustable output lets you trim current to match the exact LED module requirements.

Is the HLG-120H-C1050A a good fit for driving LED signage modules in series?

Yes, provided your series string of signage modules has a combined forward voltage between 74V and 148V. The driver delivers a regulated 1050mA constant current, so it maintains consistent brightness across the string. Its wide 90-305VAC input also accommodates varying mains supplies found in commercial sign installations.

Can the HLG-120H-C1050A power LED arrays in a warehouse or industrial bay light?

Yes. With 155.4W at 1050mA and IP65 water resistance, the HLG-120H-C1050A is suitable for industrial high-bay or warehouse LED fixtures. The aluminium casing handles the -40°C to +90°C operating range typical of unheated facilities, and the adjustable output allows fine-tuning to the specific LED array voltage.

How many LEDs can the HLG-120H-C1050A drive in a series string?

The number of LEDs depends on each LED's forward voltage. The HLG-120H-C1050A operates in constant current mode at 1050mA with a CC voltage range of 74-148V, so the total forward voltage of your series string must fall within that window. Divide your target voltage by the individual LED forward voltage to determine how many LEDs can be connected in series.

Can the HLG-120H-C1050A be installed in a covered outdoor location like a parking canopy?

Yes. Its IP65 rating protects against dust ingress and low-pressure water jets, making it appropriate for covered outdoor areas such as parking canopies, building soffits, and covered walkways. For fully exposed installations with direct rain or standing water, an IP67-rated driver would be a better choice.

What is the difference between the HLG-120H-C1050A, C1050AB, and C1050B models?

All three share the same 155.4W, 1050mA, 74-148V constant current output and IP65 rating. The C1050A (this model) has adjustable output via a built-in potentiometer but no dimming input. The C1050AB adds both adjustment and a 1-10V/PWM dimming input. The C1050B has the dimming input only with no potentiometer adjustment.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well HLG-120H-C350A Power Supply 150.5W 350mA - Adjustable	150.5W	430V	0.35A	IP65	$49.31	View
Mean Well HLG-120H-C1050B Power Supply 155.4W 1050mA - Dimmable	155.4W	148V	1.05A	IP65	$50.49	View
Mean Well HLG-120H-C1050AB Power Supply 155.4W 1050mA - Adjustable and Dimmable	155.4W	148V	1.05A	IP65	$51.52	View

Mean Well HLG-120H-C1050A Power Supply 155.4W 1050mA - Adjustable
