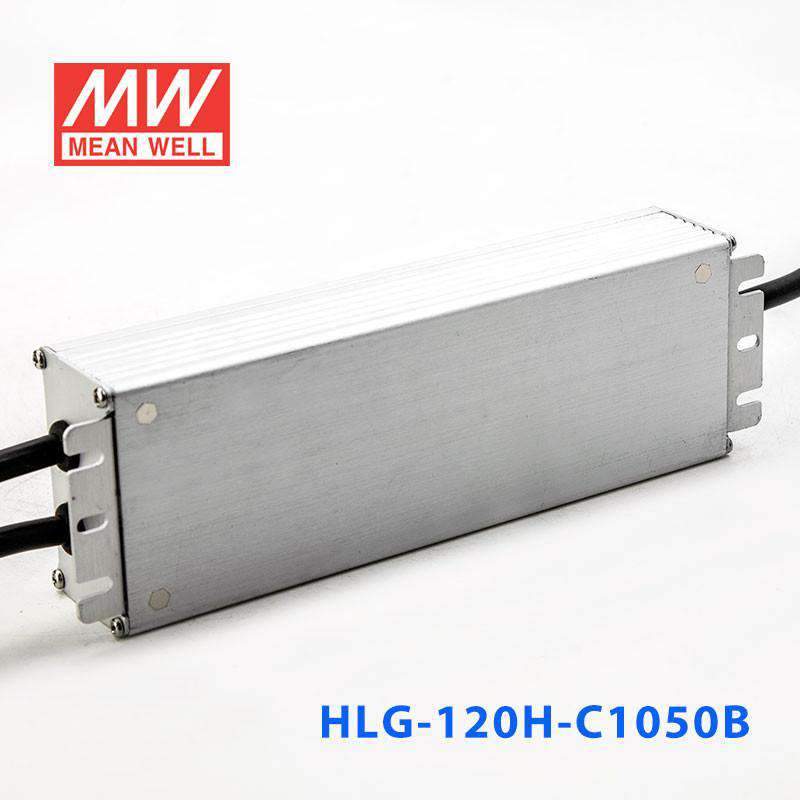

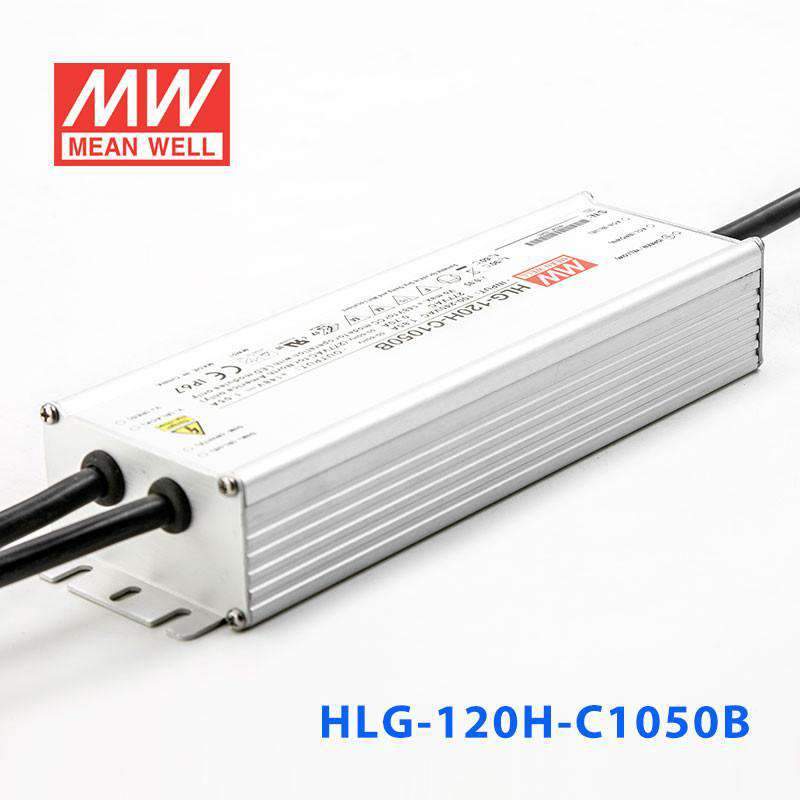

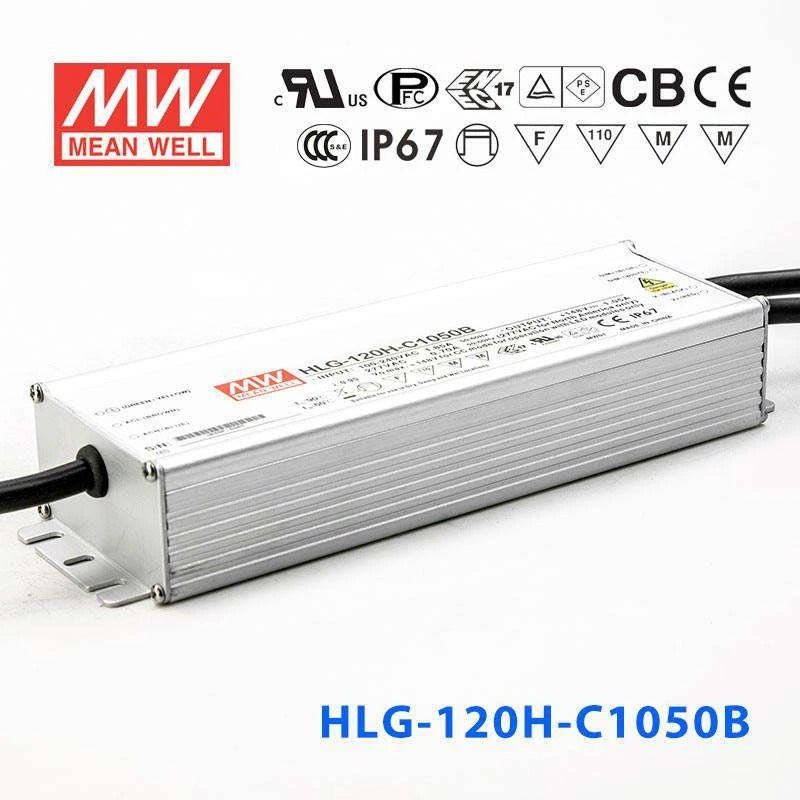

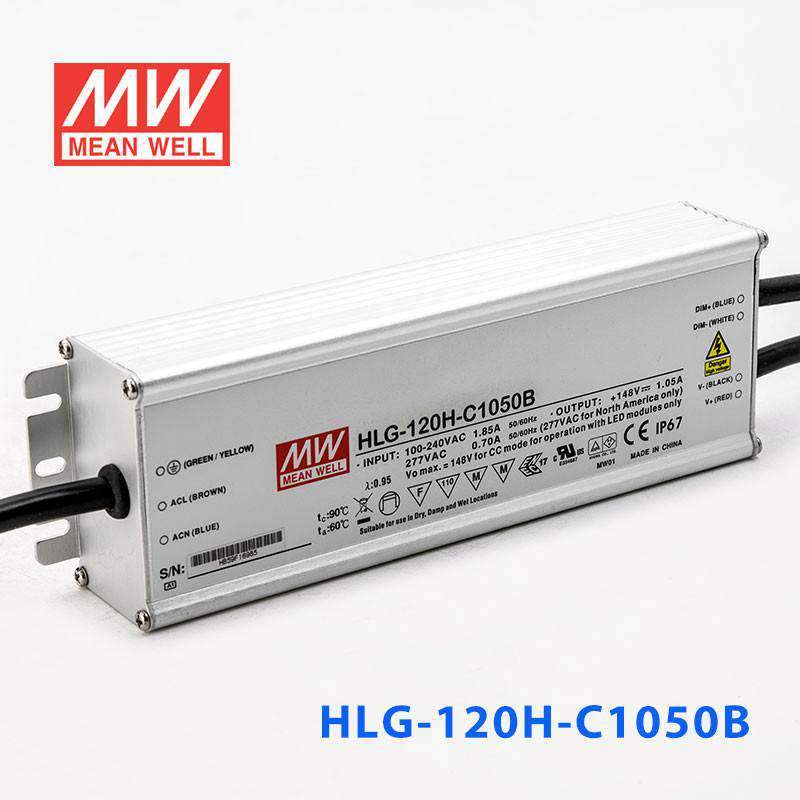

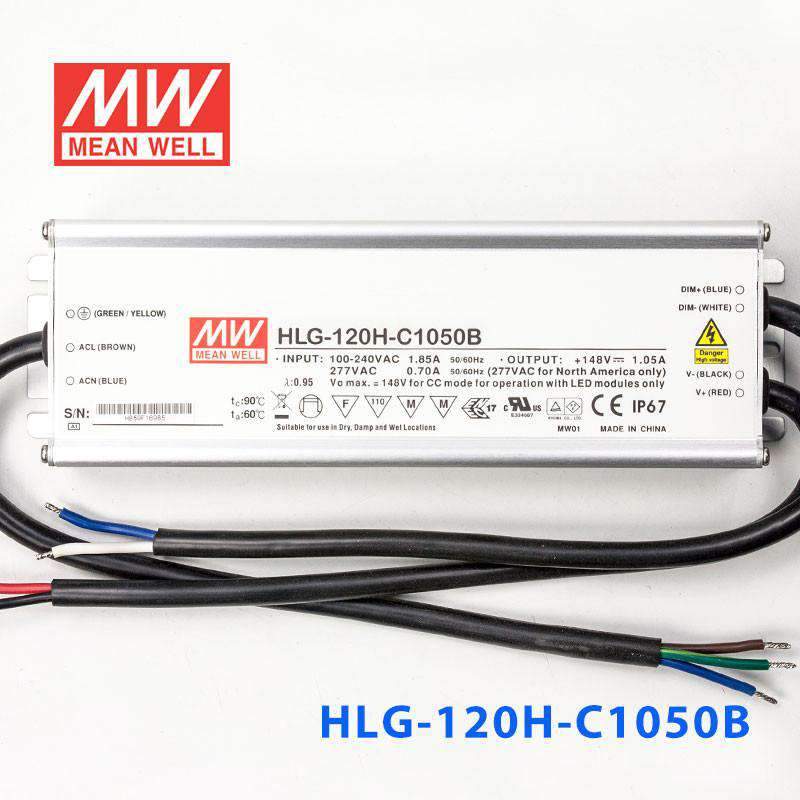

Mean Well HLG-120H-C1050B Power Supply | 155.4W 1050mA

Name: Mean Well HLG-120H-C1050B Power Supply 155.4W 1050mA - Dimmable
Brand: Mean Well
SKU: HLG-120H-C1050B
Price: 50.49 USD
Availability: InStock

Overview

HLG-120H-C1050B is the model of this series: rated current 1050mA, rated power 155.4W, typical efficiency 94%. Type B: 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) (IP67).

HLG-120H-C series is a 150W AC/DC LED driver featuring the constant current mode and high voltage output. HLG-120H-C operates from 90~305VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-120H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing with ClassⅠ design
Built-in active PFC function
IP67 design for indoor or outdoor installations
Function options: 3 in 1 dimming
Typical lifettime>62000 hours
7 years warranty

Specifications

HLG-120H-C1050BSpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED CURRENT: 1050mA
RATED POWER: 155.4W
CONSTANT CURRENT REGION^Note.2: 74V ~ 148V
CURRENT ADJ. RANGE: 525 ~ 1050mA
CURRENT RIPPLE: 8.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^Note.4: 1000ms / 115VAC 500ms / 230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.96/230VAC, PF≧0.93/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧50% /115VAC, 230VAC; @ load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 94%
AC CURRENT (Typ.): 1.6A / 115VAC 0.8 A / 230VAC 0.7A / 277VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=600μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 165 ~ 175V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE^Note.7: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 10 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.6: UL8750, CSA C22.2 No. 250.13-12, BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13, BS EN/EN62384 independent, GB/T19510.1, GB/T19510.213, IP67, J61347-1, J61347-2-13, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.6: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 2456.4K hrs min. Telcordia SR-332 (Bellcore) ; 191.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 220*68*38.8mm (L*W*H)
PACKING: 1.04Kg; 12pcs/13.5Kg/0.8CUFT

MODEL ENCODING

A: Io adjustable through built-in potentiometer; IP65
B (this model): 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
AB: Io adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
D: Timer dimming function, contact MEAN WELL for details(safety pending); IP67

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
7. For OTP which triggered at light load/no load condition, proceed AC repower on to recovery.
8. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HLG-120H-C1050B BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-120H-C1050B DIMMING OPERATION — DIMMING OPERATION

HLG-120H-C1050B Illustration (page 5) — Illustration (page 5)

HLG-120H-C1050B OUTPUT LOAD vs TEMPERATURE(Note.8) — OUTPUT LOAD vs TEMPERATURE(Note.8)

HLG-120H-C1050B STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HLG-120H-C1050B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-120H-C1050B MECHANICAL SPECIFICATION ※ B-Type — MECHANICAL SPECIFICATION ※ B-Type

HLG-120H-C1050B Dimensions (mm) — Dimensions (mm)

HLG-120H-C1050B WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

Downloads

Datasheet1

HLG-120H-C1050B datasheetHLG-120H-C-SPEC.PDF · 2026-02-04 edition PDF Download

Certificates5

UL Certificate(HLG-120H-C)(EN) PDF Download

CB Certificate(HLG-120H-C)(EN) PDF Download

EMC Certificate(HLG-120H-C)(EN) PDF Download

ENEC Certificate(HLG-120H-C)(EN) PDF Download

PSE Certificate(HLG-120H-C)(EN) PDF Download

Test reports1

Test Report(HLG-120H-C1050)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-120H-C1050B with a building automation system to dim LED fixtures?

Yes. The HLG-120H-C1050B has a 1-10V/PWM dimming input, making it compatible with building management systems that output standard dimming signals. It delivers 1050mA constant current at up to 155.4W, suitable for automating light levels in commercial spaces based on occupancy or daylight schedules.

Is the HLG-120H-C1050B suitable for dimmable LED track lighting in a gallery or showroom?

Yes, provided the track light modules operate at 1050mA with a combined forward voltage between 74V and 148V. The dimming input allows precise brightness control for accent lighting, which is essential in galleries where light levels affect artwork display. The constant current output ensures uniform brightness across all modules.

Can the HLG-120H-C1050B power LED arrays in outdoor architectural lighting with dimming?

Yes. With the series' IP65/IP67 rating and a case temperature (Tcase) range of -40°C to +90°C, the HLG-120H-C1050B can drive outdoor architectural LED fixtures while providing dimming control. It handles 155.4W at 1050mA constant current, suitable for facade lighting, wall washers, or landscape uplights that require brightness adjustment.

What is the CC voltage range of the HLG-120H-C1050B and why does it matter?

The CC voltage range is 74-148V. This means the driver automatically adjusts its output voltage within this window to maintain a steady 1050mA through the LED load. If your LED string's forward voltage falls outside this range, the driver cannot regulate properly. Always ensure your total LED forward voltage sits between 74V and 148V.

How does the HLG-120H-C1050B differ from the C1050A and C1050AB versions?

All three deliver 155.4W at 1050mA with a 74-148V CC range. The C1050B (this model) includes a 3-in-1 dimming input (1-10V, PWM or resistance) but no output adjustment potentiometer. The C1050A has the adjustable potentiometer but no dimming input. The C1050AB combines both adjustment and dimming in one unit.

Can the HLG-120H-C1050B be mounted in a damp indoor environment like a swimming pool area?

The series is rated IP65 or IP67, protecting against dust and water jets, which is generally adequate for damp indoor environments such as pool halls where splashing may occur. Working humidity is rated 10-95% RH non-condensing, so it should be mounted where condensation cannot form and away from direct spray from pool fixtures.
